MD2209 INSTALLATION INSTRUCTION

(A0)

10"~26" Max:100x100mm/4x4"

Min:75x75mm/3x3"

x3 x1

1 2

Für die Installationsanweisungen auf deutsch, Siehe Seite 9~10.

Pour l'instruction en français, veuillez vous reporter à la page 11~12.

Para las instrucciones de la instalación en español, favor vea la página 13~14.

Per le Istruzioni in italiano, vedi pagina 15~16.

If you have any questions, please feel free to contact us:

USA E-mail: customerservice@mountingdream.com

Phone call: (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific Time)

EU E-mail: [email protected]m

AU E-mail: customersupport@mountingdream.com

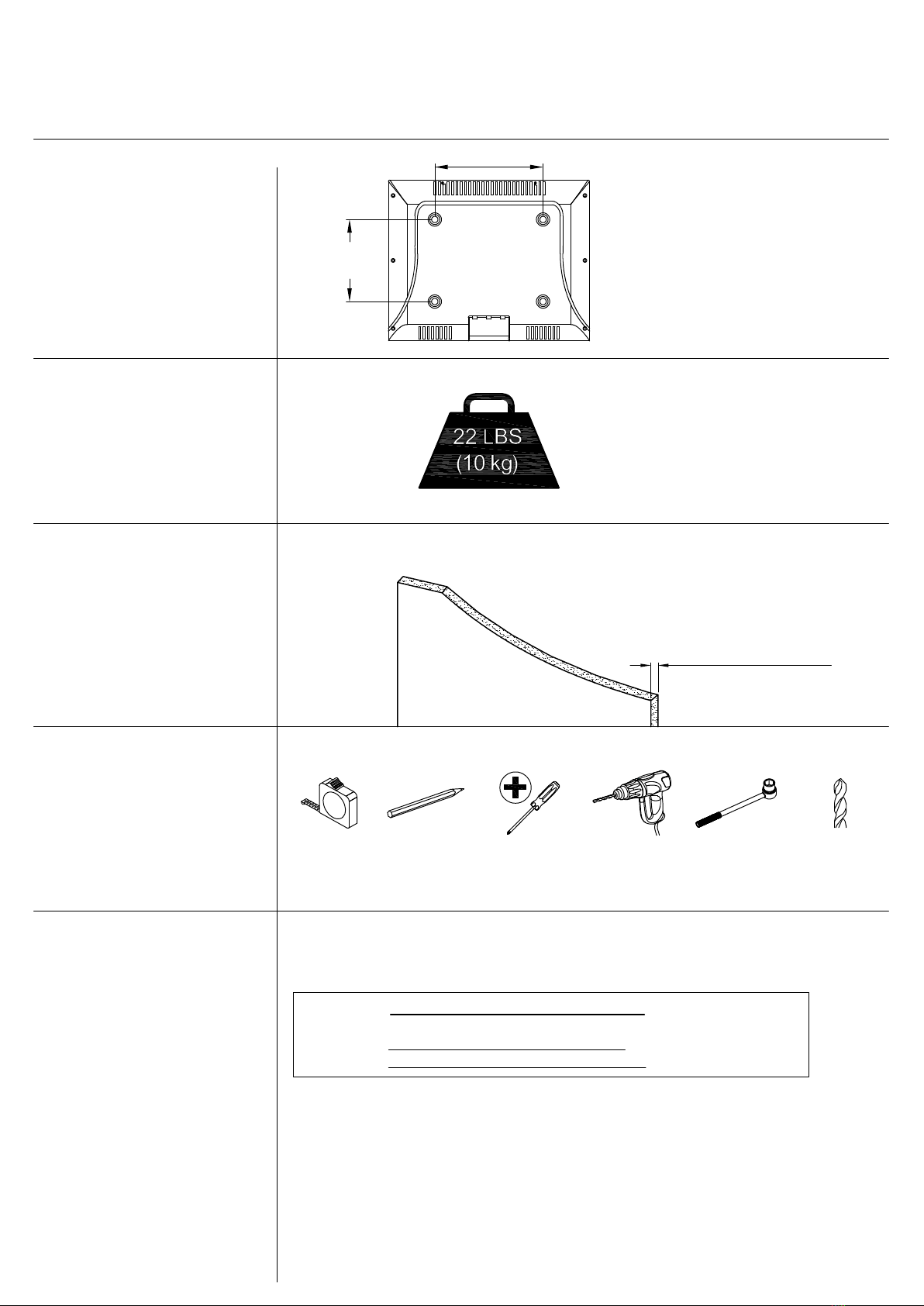

Before getting started, let’s make sure this mount is perfect for you!

1 Is your TV VESA

equal to/greater than

75x75mm/3x3" and

equal to/less than

100x100mm/4x4"?

2 Does your TV

(including accessories)

weigh less than

22 LBS (10 kg)?

4 Installation Tools

(Not Included)

Yes --- Perfect!

No --- This mount is NOT compatible.

MAX:100mm/4"

MAX:

100mm/4"

Yes --- Perfect!

No --- This mount is NOT compatible.

Band Tape

2M2M

5 Safety Caution

Please read this instruction carefully before installation.

If you do not understand these instructions or have doubts about the safety of the

installation, assembly or use of this product, please feel free to contact Customer Service:

● The hardware provided in the package can only use in 0.5" thick or above wooden

board installation on RV.

● The wall must be capable of supporting five times the weight of the TV and mount

combined. According to the wall you're going to install, the structure of your RV may

require additional reinforcement.

● Incorrect installation may result in product damage or body injury. Mounting Dream shall

bear no responsibility for any damage or injury resulted from incorrect installation,

incorrect assembly or misuse.

● Do not apply this product to any purpose not indicated by Mounting Dream.

● Make sure to stow the TV and fully lock the mount in place before your RV is moving.

Pencil Screwdriver Electrodrill Socket Wrench

1/2"(13mm)

3 Where can you

install this mount?

0.5"(12.7mm) thick or above wooden board

Min. 0.5"(12.7mm)

1/8"(3mm)

Wood Drill Bit

USA E-mail: customerservice@mountingdream.com

Phone call: (626) 604-9048 (USA) Mon - Fri 10am - 6pm (Pacific Time)

EU E-mail: customercare@mountingdream.com

AU E-mail: customersupport@mountingdream.com

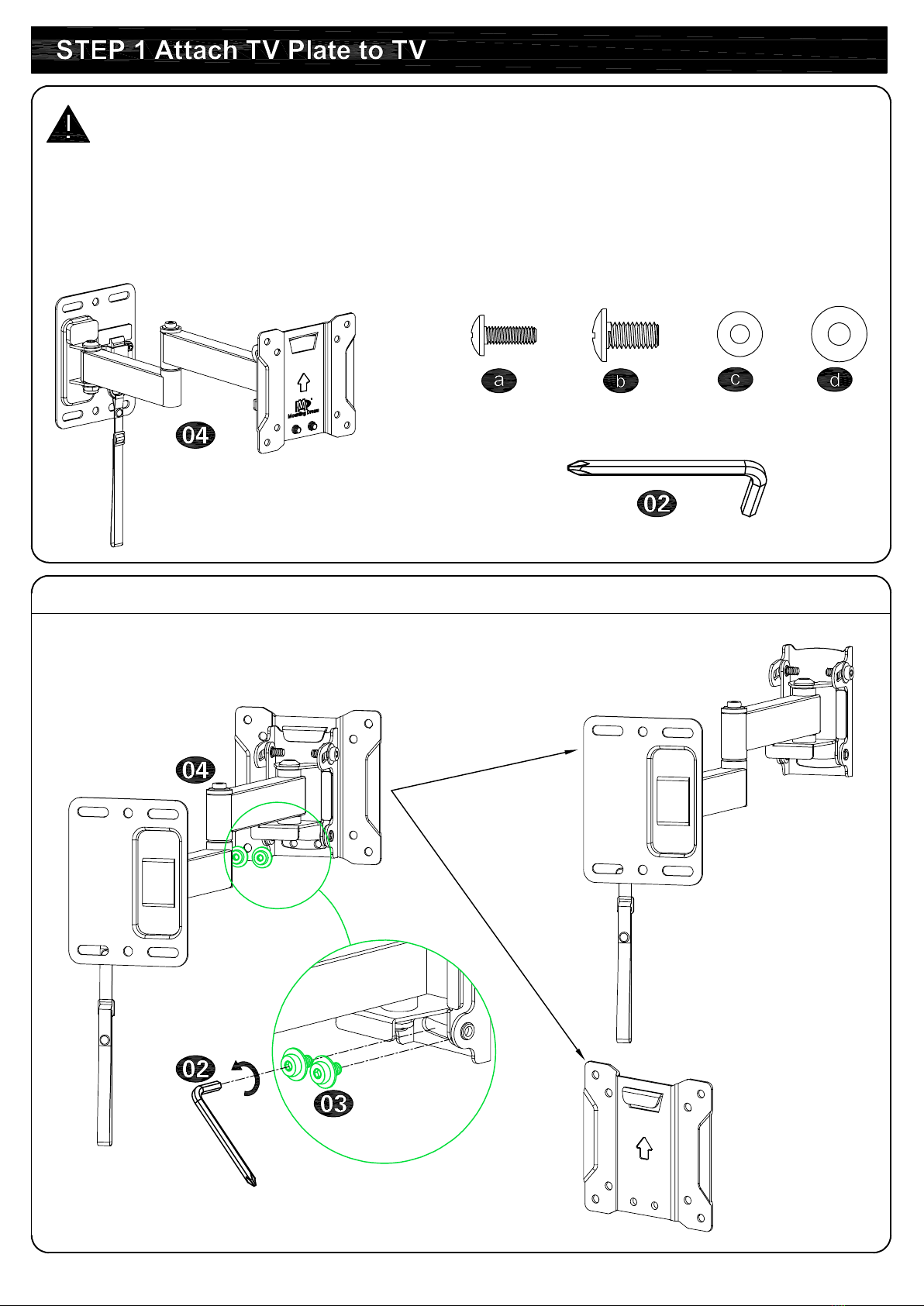

Parts and Hardware

WARNING:This product contains small items that could be a choking hazard if

swallowed. Before starting assembly, verify all parts are included and undamaged. For parts

shortage or damage, please contact us via customerservice@mountingdream.com (USA) or

customercare@mountingdream.com (EU) or customersupport@mountingdream.com (AU).

NOTE: Not all hardware included will be used.

M4x12mm M6x12mm M4 M6

WashersTV Screws

x4 x4 x4 x4

Wall Plate

TV Plate

1-1 Disassemble Wall Plate Unit into Two Pieces

Wall Plate Unit

x1 Allen Key

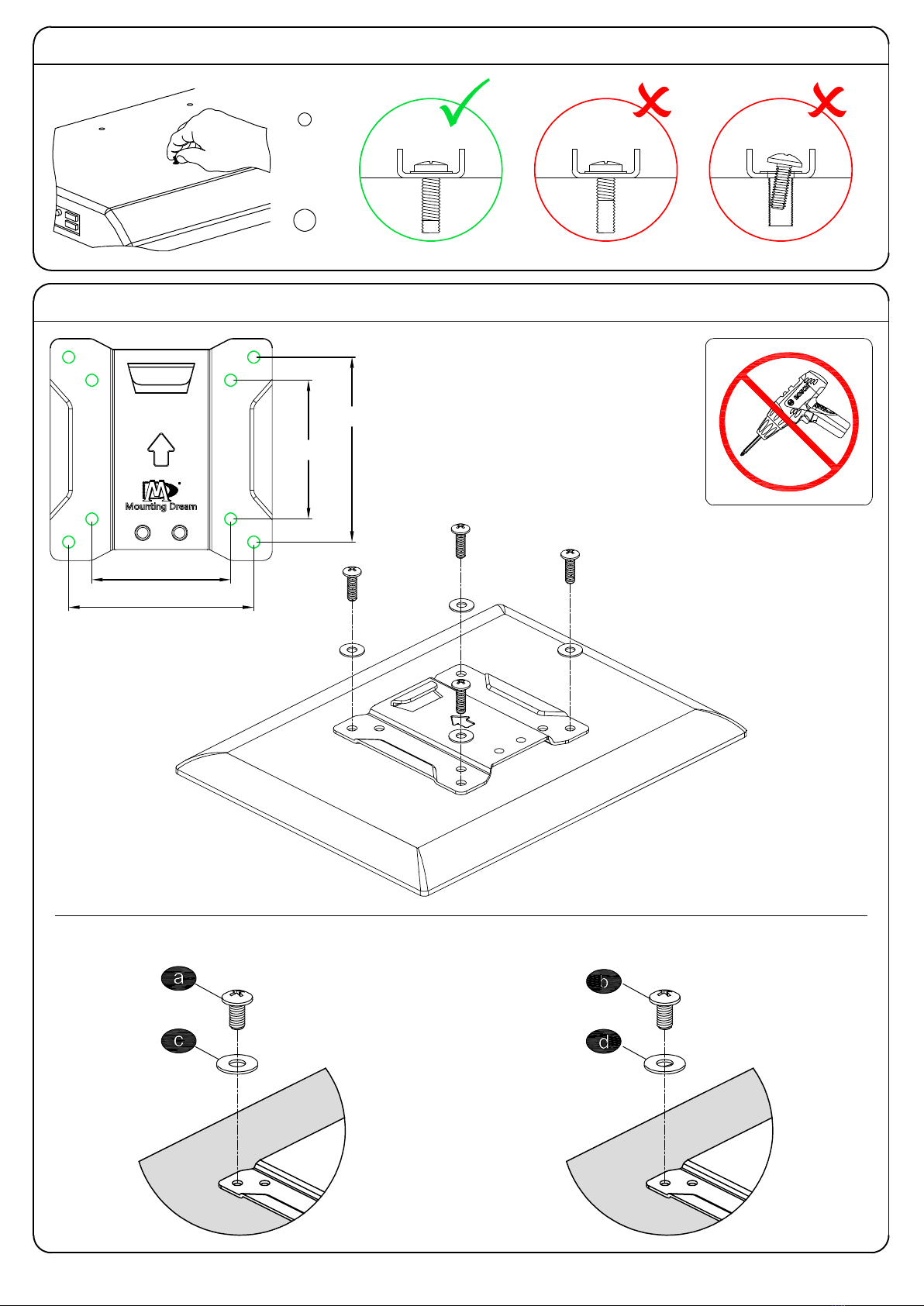

1-2 Select TV Screws

1-3 Attach TV Plate to TV Back

Screw and Washer Combination Options

No!

100mm

75mm

100mm

Parts and Hardware

Min. 0.5"(12.7mm)

1/8"

(3mm)

Wall Plate

No!

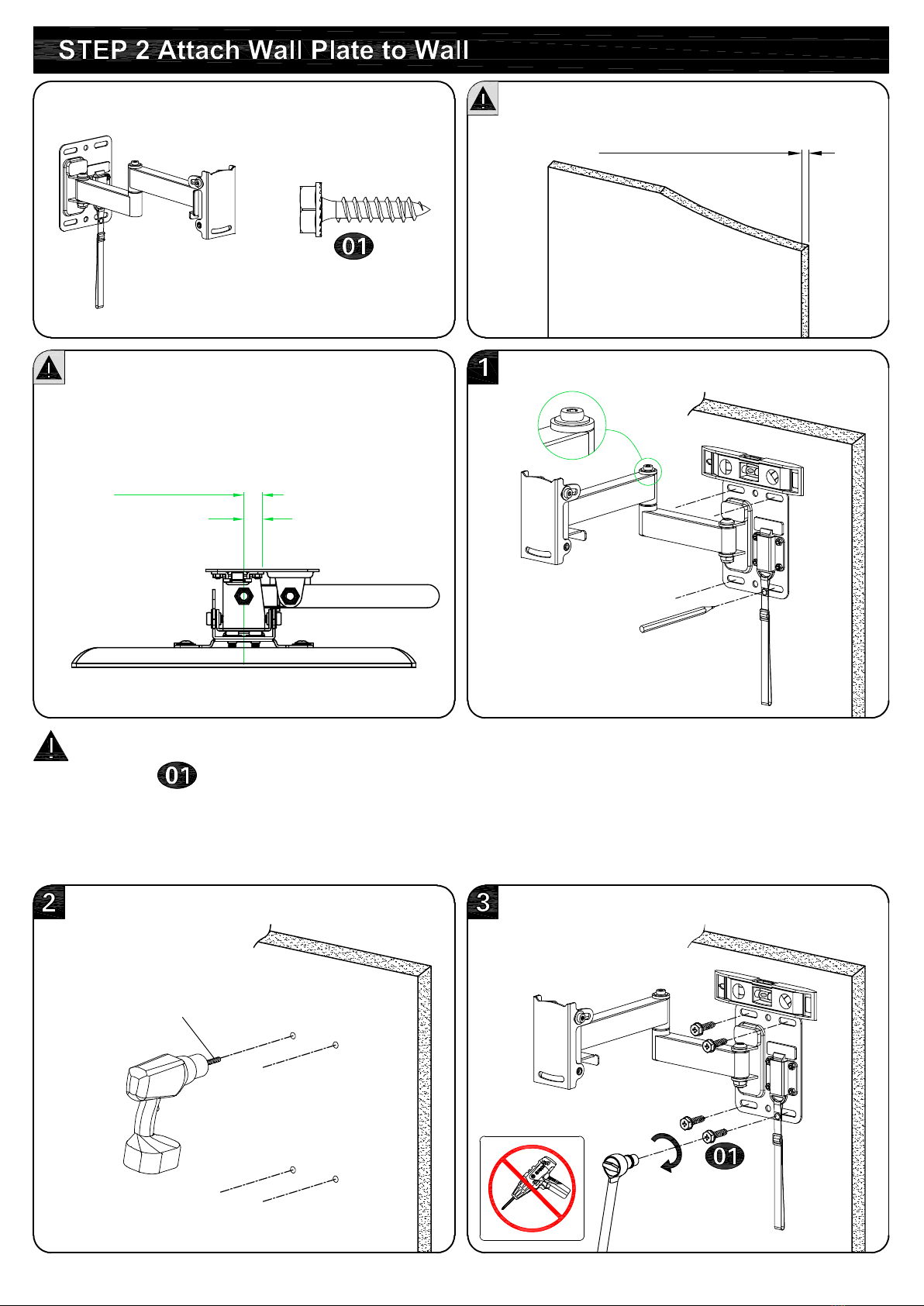

CAUTION: To avoid potential personal injury or property damage:

All 4 lag bolts MUST BE firmly tightened to prevent unwanted movement of the wall plate

assembly. Ensure the wall plate assembly is securely fastened to the wall before continuing on to

the next step.

To prevent the TV falling down, the Bolt Head Must Keep UP at this step!!

The TV plate is off center about 0.63"/16mm to

the wall plate. Please consider this point, when

positioning your TV on the wall.

Wooden Board

0.63"(16mm)

TV plate center Wall plate center

Lag Bolt M6x25mm

Bolt Head UP!

Wall Plate

22 LBS (10 kg)

Before hanging TV, please conduct "wall plate installation integrity test" first.

1 2

Tilting bolts

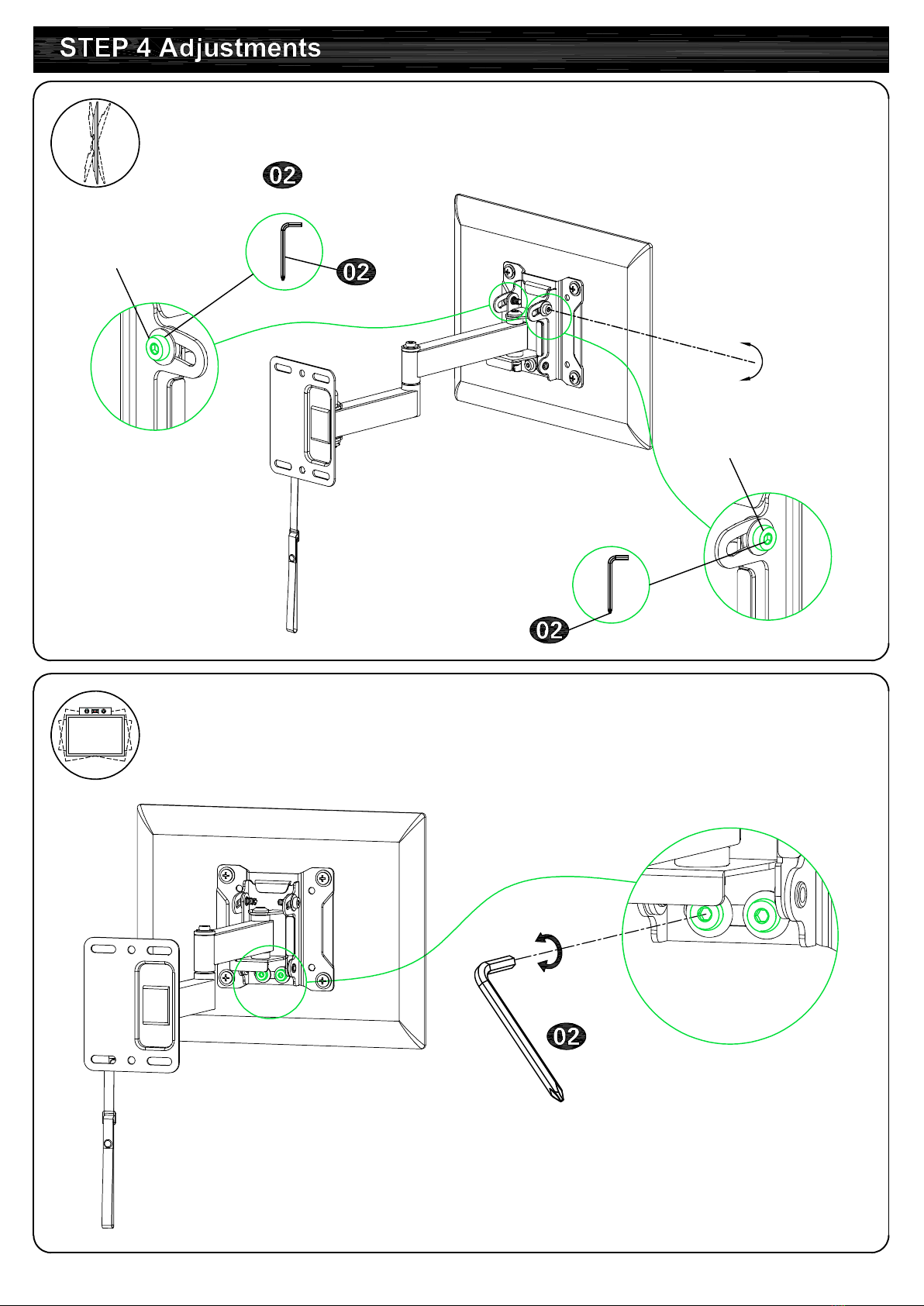

4-1 Tilting angle adjustment (+5°/-15°)：

Pull TV to your desired angle then fasten 2 tilting bolts with

Allen key .

-15°

+5°

4-2 TV leveling adjustment (±3°):

Loosen 2 leveling bolts on the rear of TV plate by maximum 2

turns, adjust to level, and retighten to secure.

Loosen

Tighten

Tilting bolts

Important ! Make sure to stow the TV and fully lock the mount in place

before your RV moves.

Push your TV to the wall. Pull down the strap and lock the TV plate to

the wall plate.

Stow

Pull down

the straps

Pull and hold the strap

Pull out

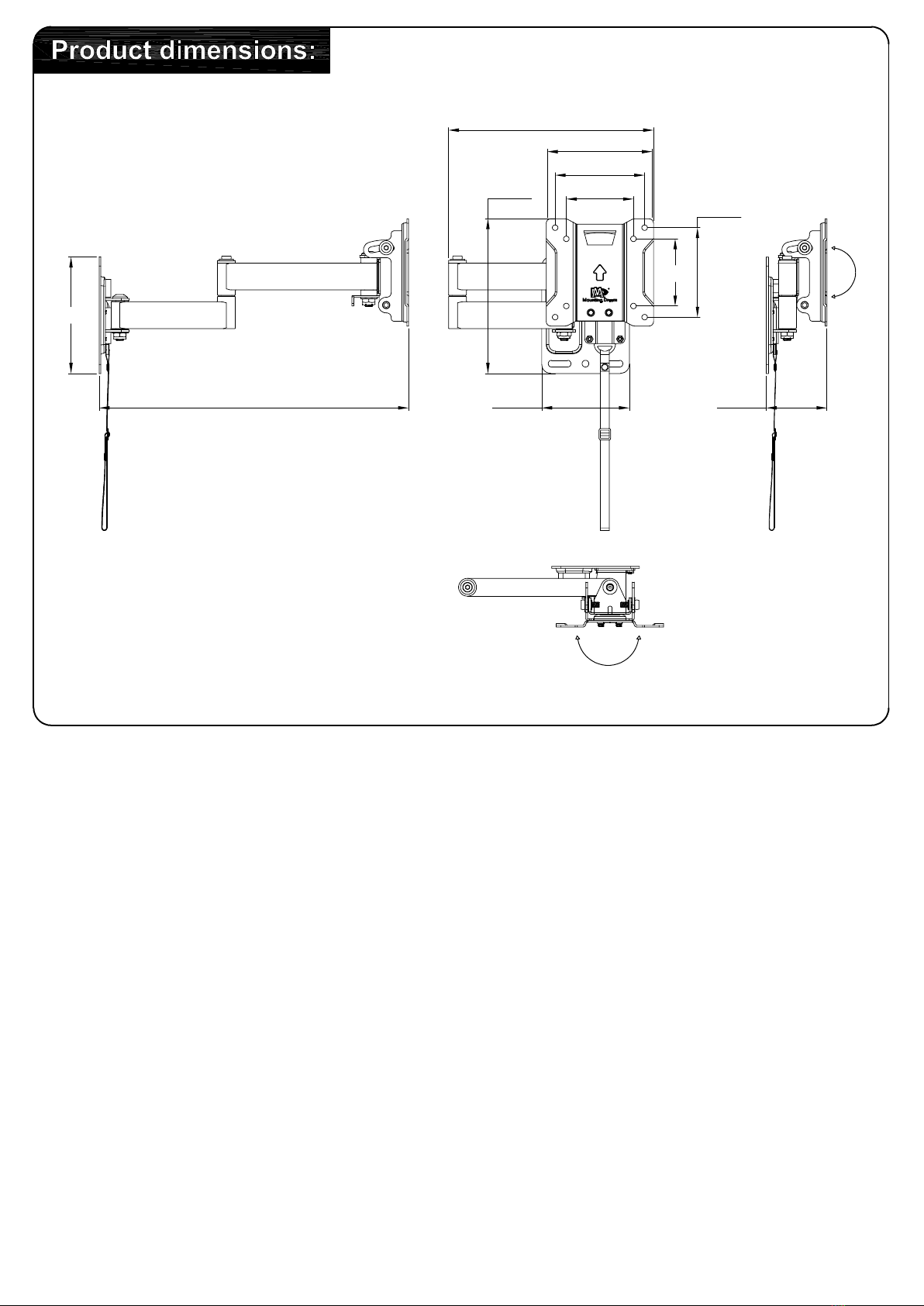

346mm

130mm

229mm

173mm

98mm

120mm

100mm

75mm

100mm

68mm

+90°/-90°

+5°

-15°

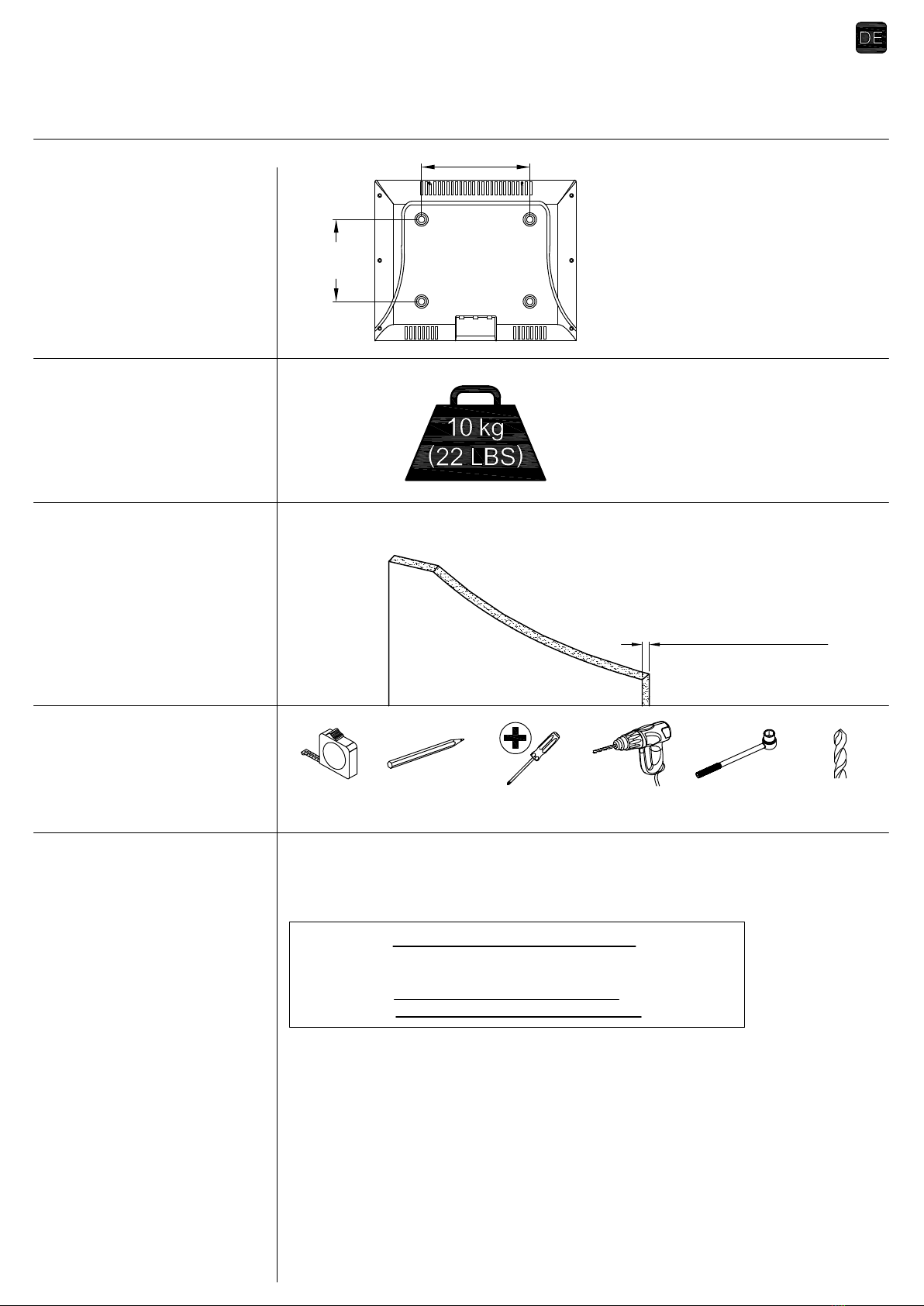

Vor der Installation bestätigen Sie bitte zuerst, ob diese Halterung für Ihr Fernsehapparat geeignet ist!

1Ist der Abstand der

Montagelöcher von Ihrem

Fernsehapparat zwischen

75x75mm/3x3" und

100x100mm/4x4"?

2 Wiegt Ihr

Fernsehapparat (inkl.

Zubehör) weniger als

10 kg (22 LBS)?

4 Werkzeuge für

Installation

(Nicht enthalten)

Ja - Perfekt!

Nein - Diese Halterung ist nicht geeignet!

MAX:100mm/4"

MAX:

100mm/4"

Ja - Perfekt!

Nein - Diese Halterung ist nicht geeignet!

Bandmaß

2M2M

5 Sicherheitshinweise

Bitte lesen Sie die Anweisungen sorgfältig vor der Installation durch.

Falls Sie diese Anweisungen nicht verstehen oder Zweifel bezüglich der Sicherheit der

Installation, des Zusammenbaus oder der Verwendung des Produkts haben, kontaktieren Sie bitte

den Kundendienst :

● Die in diesem Produktpaket enthaltene Hardware darf nur für die Installation von Holzplatten

mit einer Dicke von 12,7mm (0,5”) oder mehr auf Wohnmobilen verwendet werden.

● Die Wand muss das Fünffache des Gesamtgewichts des Fernsehapparats und der Halterung

tragen können. Je nach der Wand des Wohnmobils, die Sie installieren werden, wird eine

zusätzliche Verstärkung von der Wandstruktur gebraucht.

● Unsachgemäße Montage dieses Produkts kann zu Verletzungen und zu den Beschädigungen

an Ihrem Gerät führen. Mounting Dream haftet nicht für Schäden oder Verletzungen, die durch

unsachgemäße Montage, unsachgemäßen Zusammenbau oder unsachgemäße Verwendung

verursacht wurden.

● Verwenden Sie dieses Produkt nicht für einen anderen Zweck als speziell von Mounting

Dream angegeben.

● Bevor sich Ihr Wohnmobil bewegt, bitte verstauen Sie den Fernseher und stellen Sie sicher,

die Halterung vollständig in einer festen Position zu verriegeln.

Bleistift Kreuzschlitz-

schraubendreher Elektrobohrer (13mm, 1/2”)

Steckschlüssel

3 Wo kann man diese

Halterung installieren?

Holzplatte mit Dicke von 12,7mm (0,5”) oder mehr

Min. 12,7mm (0,5”)

3mm (1/8”)

Bohreinsatz

für Holz

USA E-Mail: [email protected]m

Telefonnummer: (626) -604-9048 (USA) Montag bis Freitag,

10:00 - 18:00 Uhr (Pazifikzeit)

EU E-Mail: customercare@mountingdream.com

AU E-Mail: [email protected]om
