Mounting Solutions SRD-600 Series Manuale utente
Assembly Guide
SRD-600 series
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
Assembly Guide for Sound Rack
SRD-600/42U
SRD-600/36U
SRD-600/24U
Models:
Assembly
components: SRD-600/24U SRD-600/36U SRD-600/42U
Frame top SRD-600 1 pcs 1 pcs 1 pcs
Frame bottom SRD-600 1 pcs 1 pcs 1 pcs
Rack Pillar SRD-600 U24 - 4 pcs U36 - 4 pcs U42 - 4 pcs
Side panel U24 - 2 pcs U36 - 2 pcs U42 - 2 pcs
Glass door U24 - 1 pcs U36 - 1 pcs U42 - 1 pcs
Blind door U24 - 1 pcs U36 - 1 pcs U42 - 1 pcs
Jamper SRD-600 2 pcs 4 pcs 6 pcs
Vertical prole U12 8 pcs 12 pcs 12 pcs
Vertical prole U6 - - 4 pcs
Cable channel U12 4 pcs 6 pcs 6 pcs
Shelf 2 pcs 2 pcs 2 pcs
Screw M6x16 DIN 912 16 pcs 16 pcs 16 pcs
Leg M10x30 4 pcs 4 pcs 4 pcs
Assembly Guide
SRD-600 series
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
SRD-600/24U
SRD-600/36U
SRD-600/42U
RC-2U
Rack Cover, 2U height
(1 pcs included)
RCV-2U
Rack perforated Cover,
2U height (1 pcs included)
RC-6U
Rack Cover, 6U height
(1 pcs included)
RC-4U
Rack Cover, 4U height
(1 pcs included)
RCF-4U
Rack Cover for 3 fans, 4U
height (1 pcs included)
RPB-2U
Rack Panel with cable access
slot and brushes , 2U height
(1 pcs included)
Jumper SRD-600
Shelf
(2 pcs included)
Cable channel 12U
Vertical prole 12U/6U
Assembly Guide
SRD-600 series
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine

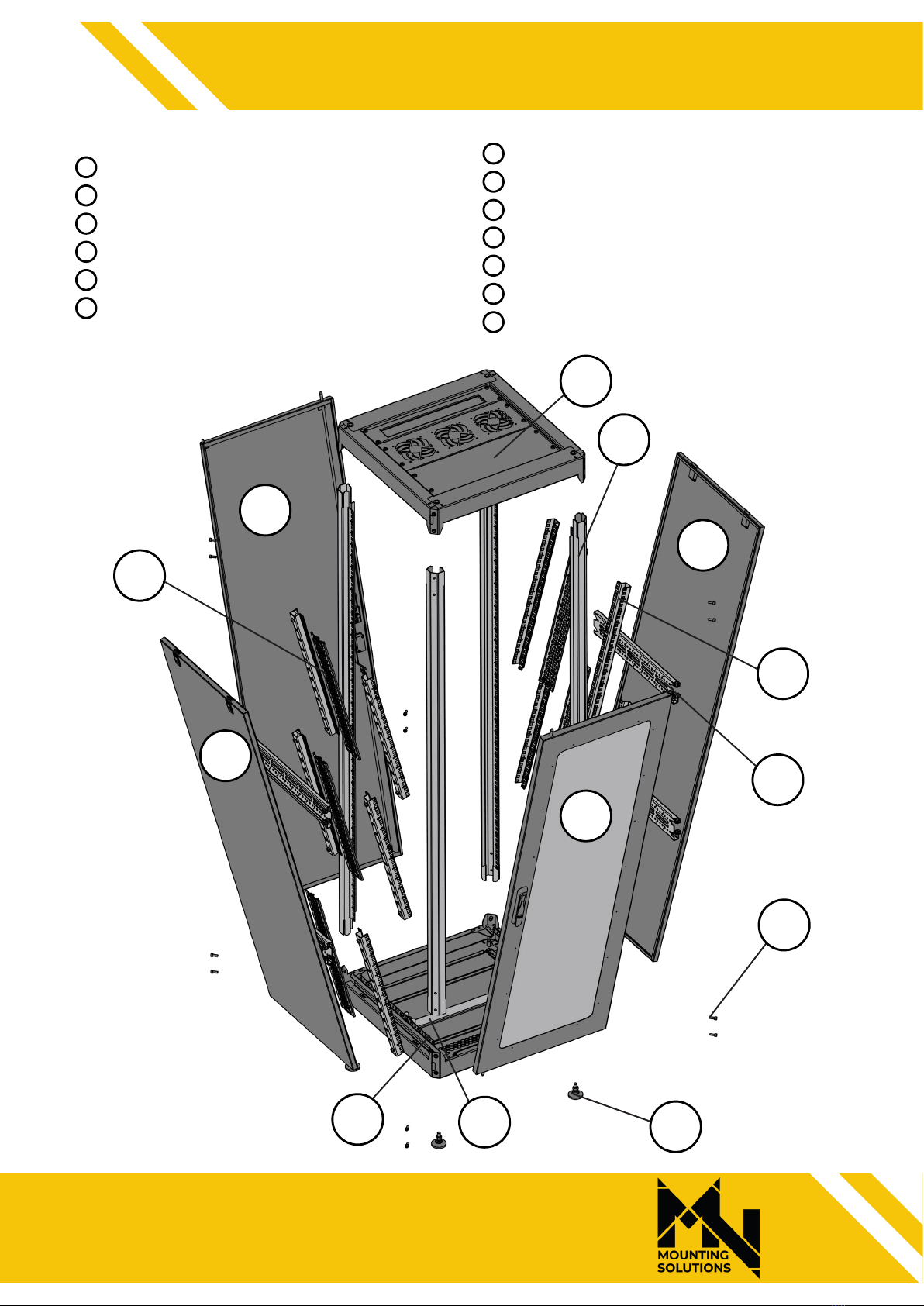

Assembly components:
1
2
3
4
5
6
7
8
9
10
11
1
Frame top SRD-600
2
3
5
4
Rack Pillar SRD-600
Side panel
Frame bottom SRD-600
6
Cable channel U12
Vertical prole U12/U6
7
8
9
10
Glass door
Blind door Leg M10x30
Screw M6x16 DIN 912
11
Jamper SRD-600
1
2
Shelf
1
2
4
Hex key 5 mm - 1 pcs
3
1
Assembly Guide
SRD-600 series
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine

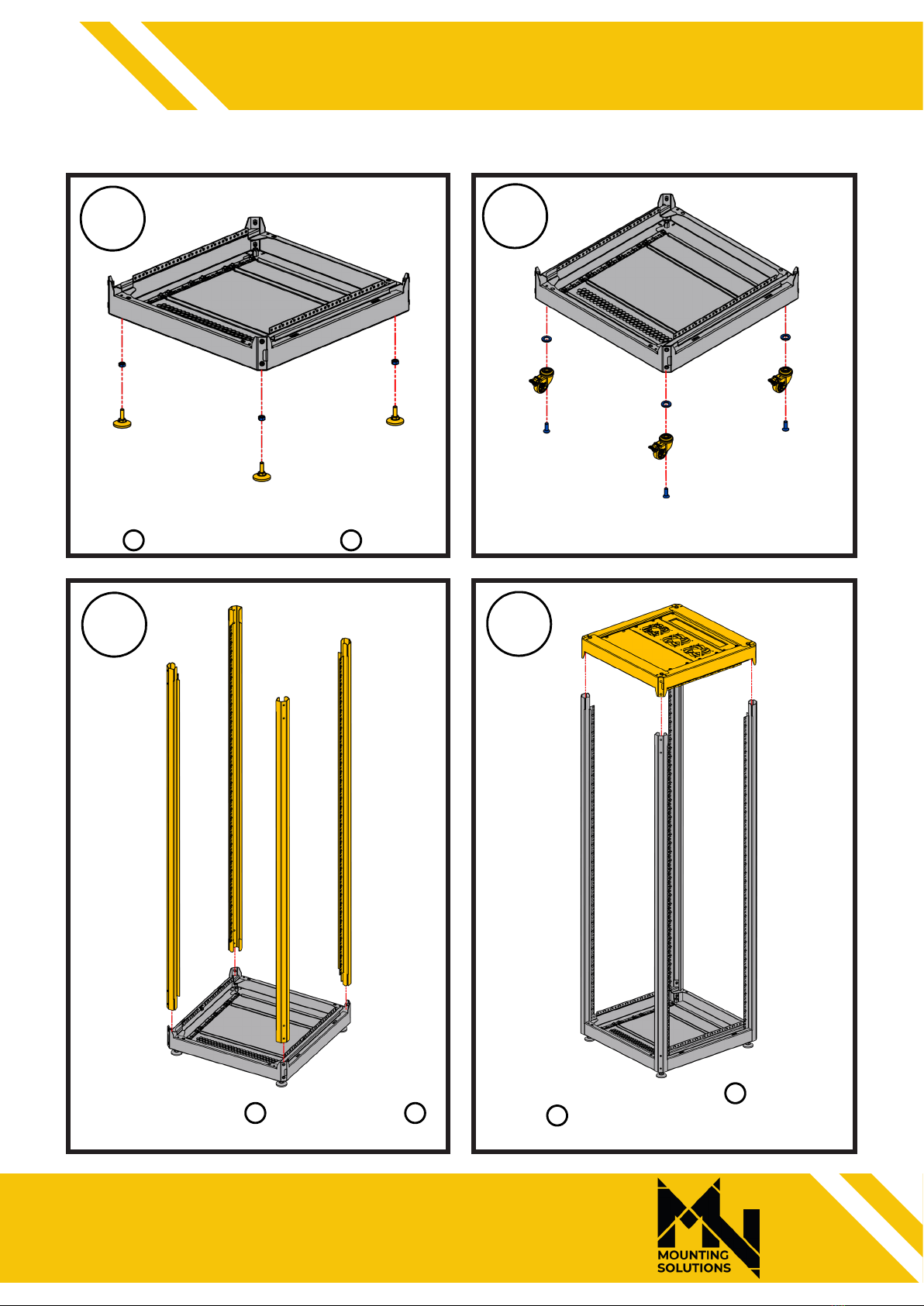

1. Start the assembly by installing
legs (
1
2
) into bottom frame (
2
).
2. Install pillars (
3
) in the frame (
2
),
without xing them with screws.
Assembly Instructions:
1
2
3
1.1. Optional!!! Install a Wheels Set 50
instead of legs.
1.1
3. Install the top frame (
1
) onto
pillars (
3
), without xing them with
screws.
Assembly Guide
SRD-600 series
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
5. Install Jampers (
7
) from the
inside frames.
5
4
4. Tighten the screws (
11
) of all
pillars (
3
).
67
6. Install Vertical proles (
8
) from
the inside frames.
7. Install Cable channels (
9
) from
the inside frames.
Assembly Guide
SRD-600 series
www.mnmounting.com
2 Merezhna str., Bila Tserkva,
Kyiv region, 09100, Ukraine
9. Install the doors (
5
and
6
).
10. Install the side panels (
4
).
9
SAFETY INSTRUCTIONS
1. Entrust mounting equipment only to
experienced professionals and strictly follow
the providedv safety instructions. Improperly
installed equipment may result in property
damage, personal injury and/or liability for
the installing contractor.
2. Only use appropriate fastening hardware.
3. Always make sure to securely use and lock
all mounting bolts. Loose bolts may become
unscrewed over time due to vibration which
will then create a safety hazard.
8. Install the Shelfs (
10
).
8
10
