Movincool OFFICE PRO 12 Manuale utente

OPERATION MANUAL

OFFICE PRO 12 / OFFICE PRO 18 / OFFICE PRO 24

INSTALLATION AND USAGE AND READ ALL SAFEGUARDS

READ THIS MANUAL CAREFULLY FOR INSTRUCTIONS ON CORRECT

SECCIÒN EN ESPAÑOL

SECTION EN FRANÇAIS

AVAILABLE AT WWW.MOVINCOOL.COM

or in part, without the written permission of the publisher. DENSO SALES

CALIFORNIA, INC. reserves the right to make changes without prior

notice. MovinCool is a registered trademark of DENSO Corporation.

OPERATIONMANUAL

OFFICE PRO 12 / OFFICE PRO 18 / OFFICE PRO 24

FOREWORD

Definition of Terms

GENERAL WARNINGS & CAUTIONS

Inventory

INSTALLATION

Choosing an Installation Site

Moving the Unit

Plugging in the Unit

Warning Signal Connection

Fire Alarm Control Panel Connection

LCDI Power Cord

FEATURES

OPERATION 14

Control Panel

......................................................................

LCD Indicators

Set Clock

Operating in COOL Mode

Operating in Fan Only Mode

Changing from Fan Only Mode to COOL Mode

How to Set a Program

How to View and Delete Program

How to Run and Stop Program

Operating Modes

Empty the Drain Tank

Drain Pump Kit (Optional)

Self-Diagnostic Codes

DAILY INSPECTION & MAINTENANCE

Empty the Drain Tank

Clean the Air Filters

Filter Removal Method

Filter Cleaning Method

In-Season/Off-Season Inspection & Maintenance

TROUBLESHOOTING

TECHNICAL SPECIFICATIONS

Table of Contents

.................................................................................

...............................................................

........................................

................................................................................

............................................................................

..............................................

.....................................................................

..............................................................

.................................................

..................................

...................................................................

...................................................................................

.................................................................................

.........................................................................

…………………………...……...……………………..

………...……...……………...…….

……………...……………....…..

….......……

……………………………...…………..

……………...…………….

………………...…………….

……….………………………...……………..

……………………...………………….

………...………………..

……………………...………...…….

………………………...………………

………………………...……………….

………………………...………….……

…....…...

……………………………………....……….

………………………...……..…...

…………………...………………..

……………………...…………...….

FOREWORD

Congratulations on purchasing the MovinCool portable

air conditioner.

This manual explains how to install and operate the MovinCool

Office Pro12, Office Pro18, and Office Pro24 portable

air conditioning units.

Please read this operation manual thoroughly to familiarize

yourself with the features of the unit and to ensure years

of reliable operation.

You may also find it useful to keep this operation manual on

hand for reference. Components and/or procedures are subject

to change without prior notice.

Definition of Terms

WARNING : Describes precautions that should be observed

in order to prevent injury to the user during

installation or unit operation.

CAUTION : Describes precautions that should be observed

in order to prevent damage to the unit or its

components, which may occur during installation

or unit operation if sufficient care is not taken.

NOTE : Provides additional information that facilitates installation

or unit operation.

GENERAL WARNINGS & CAUTIONS

1) All electrical work, if necessary, should only be performed by

qualified electrical personnel. Repair to electrical components

by non-certified technicians may result in personal injury

and/or damage to the unit. All electrical components replaced

must be genuine MovinCool parts, purchased from an

authorized reseller.

2) The proper electrical outlet for MovinCool units must be

equipped with a UL approved circuit breaker.

3) Because of potential safety hazards under a certain condition,

we strongly recommend against the use of an extension cord.

However, if you still elect to use an extension cord, it is

absolutely necessary that it will be a UL listed, 3-wire grounding

type appliance extension cord, having a 3-blade grounding plug

and a 3-slot receptacle that will plug into the appliance.

The marked rating of the extension cord should be 115 V, 15A

for Office Pro 12, and 115V, 20A for Office Pro 18 and 230V, 20A

for Office Pro 24 or equivalent.

4) The Office Pro 12 and Office Pro 18 are equipped with a ten (10)

foot (3 meter) UL approved LCDI power cords. The Office Pro 24

is equipped with a six (6) foot (1.8 meter) UL approved LCDI

power cord. If replacement, fixed location (hard wired) or

power cord lengthening (extension cord) cords are required,

contact your reseller or a qualified electrician for approved

replacement methods.

5) Never fold or place heavy objects on the power cord.

This could result in damage to the power cord causing

electrical shock or fire.

6) Do not place water or any other liquid on the unit. This can

cause damage to the unit and increase the risk of electrical

shock.

7) Do not sit or stand on the unit.

OFFICE PRO 12 MOVINCOOL UNIT OFFICE PRO 24 MOVINCOOL UNIT

PRODUCT REGISTRATION

MOVINCOOL

OFFICE PRO 18 MOVINCOOL UNIT

MOVINCOOL

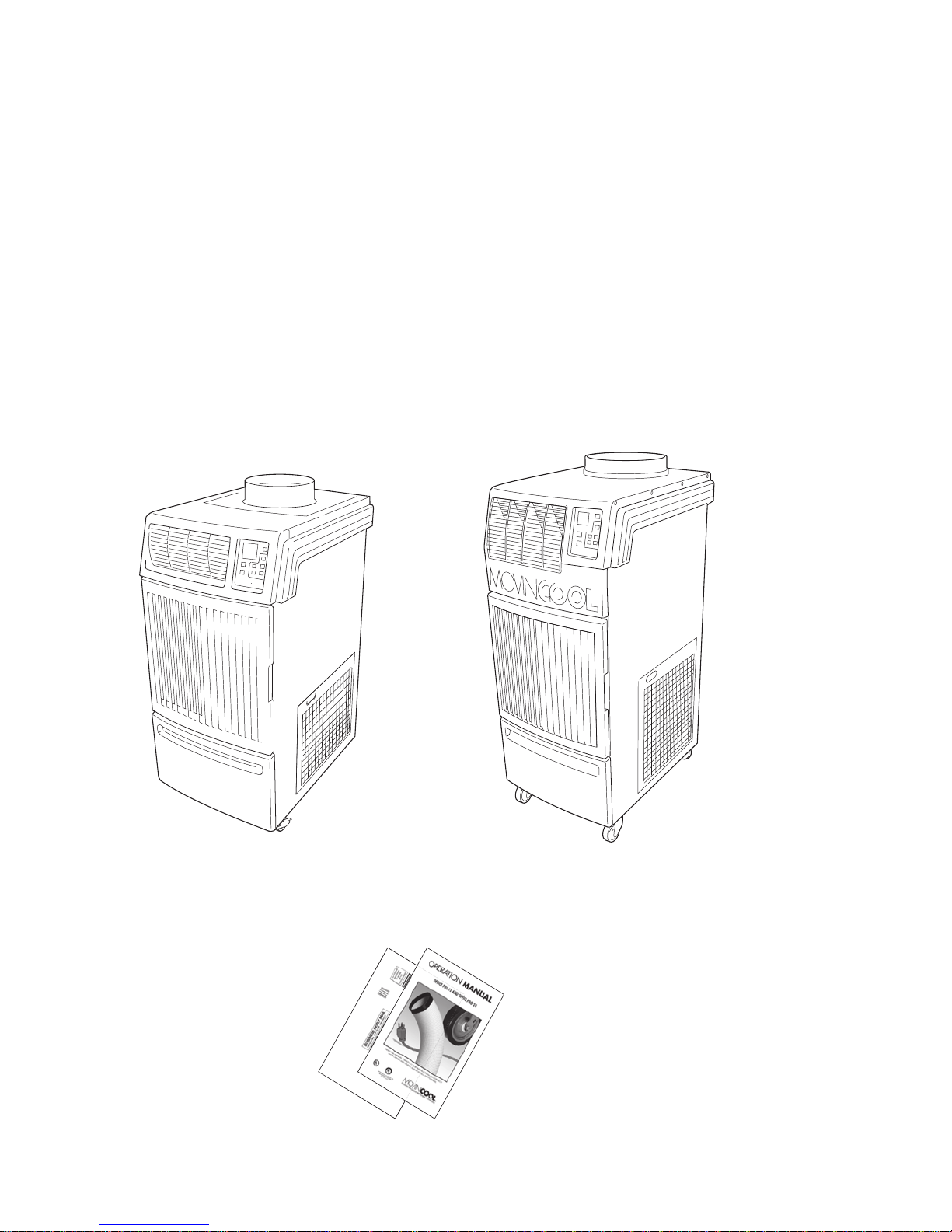

INVENTORY

After unpacking your MovinCool unit, please check to make

sure you have the following items :

1) Office Pro 12 or Office pro 18 or Office Pro 24

MovinCool Unit (1)

2) Operation Manual/Product Registration (1)

NOTE : If any of these items were not included in the box or

appear damaged, please contact your MovinCool reseller for

replacement.

OPERATION MANUAL/

8) Do not use the unit at condition above 95°F 60%RH.

7) Allow 18 inches of unobstructed airflow for both the air inlets

and outlets.

6) Install the unit in areas that can with-stand the weight of the

unit. The Office Pro 12 unit weighs approximately 200 lbs

(91kg), the Office Pro 18 unit weighs approximately

205 lbs (93kg) and the Office Pro 24 unit weighs approximately

252 lbs (114kg) (when the drain tank is full of water).

5) Do not install the unit in sloping areas. The unit may move or

topple over even if the casters are set to the LOCKED position.

4) Do not use in areas where the temperature is outside the

allowable operating range.

3) Do not use the unit in an atmosphere of excessively corrosive

gas or vapor.

2) Do not use the unit in areas where it will be exposed to rain

or water.

1) Do not use the unit in areas where leakage of flammable gas

may occur.

! CAUTION : Following are some precautions to consider before

choosing your installation site. Please review carefully as

improper installation may result in personal injury or damage

to the unit.

Choosing an Installation Site

INSTALLATION

Left Side Handle

MOVINCOOL

INSTALLATION(cont.)

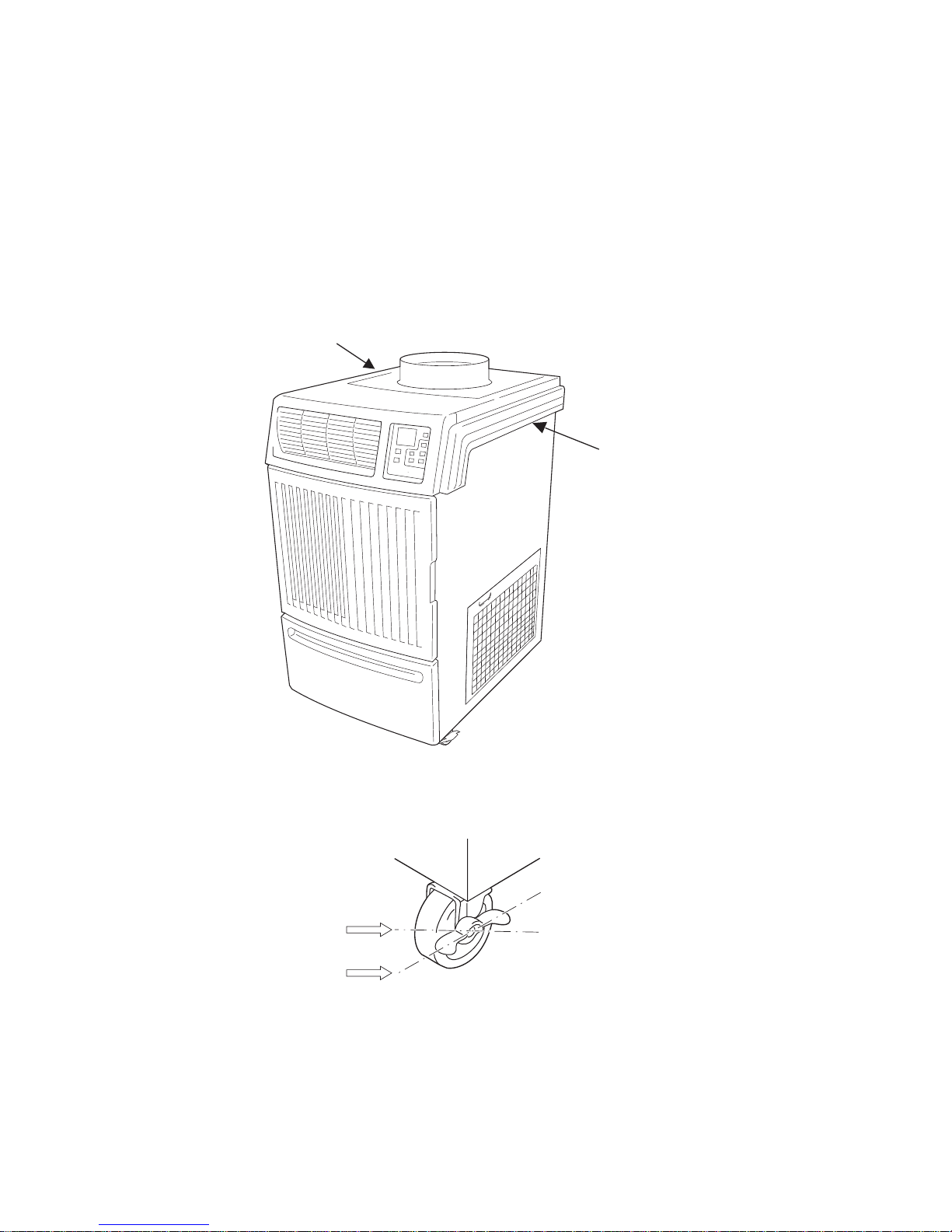

Moving the Unit

Unlock the casters and push the MovinCool unit using the side

handles to a flat, level surface and set the casters back to the

LOCKED position.



Right Side Handle

UNLOCKED

LOCKED

! WARNING:

!CAUTION:

INSTALLATION (cont.)

Plugging in the Unit

1) Check the prong and surface of the power cord plug for

dust/dirt. If dust and/or dirt are present, wipe off with a clean,

dry cloth.

2) Check the power cord, plug and prong for damage or excess

play. If any damage or excess play is found, contact your

MovinCool reseller for repair.

1) If the power cord or plug is damaged, repair should only be

performed by qualified electrical personnel.

2) Do not connect/disconnect the power cord or attempt to

operate buttons with wet hands. This could result in

electrical shock.

1) Office Pro 12 model ONLY : The AC outlet (115 VAC Single

Phase, 60Hz) needs to be rated at 15A or higher. Do not share

the outlet with any other instrument or equipment.

2) Office Pro 18 model ONLY : The AC outlet (115 VAC single

Phase, 60Hz) needs to be rated at 20A or higher. Do not share

the outlet with any other instrument or equipment.

3) Office Pro 24 model ONLY : The AC outlet (208/230 VAC single

phase, 60Hz) needs to be rated at 20A or higher. Do not share

the outlet with any other instrument or equipment.

NOTE :

1) Make sure the AC outlet is free of dirt, dust, oil, or any other

foreign matter.

2) The Office Pro 12 model is equipped with a UL approved LCDI

cord and an approved NEMA plug configuration (5-15).

The appropriate outlet must be used for this plug type.

3) The Office Pro 18 model is equipped with a UL approved LCDI

cord and an approved NEMA plug configuration (5-20).

The appropriate outlet must be used for this plug type.

4) The Office Pro 24 model is equipped with a UL approved LCDI

cord and an approved NEMA plug configuration(6-20).

The appropriate outlet must be used for this plug type.
