ioThinx 4500 (45M) Module

Series

Quick Installation Guide

Version 1.1, July 2019

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia

-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Package Checklist

•1 x ioThinx 4500 (45M) module

•1 x quick installation guide (printed)

Installation

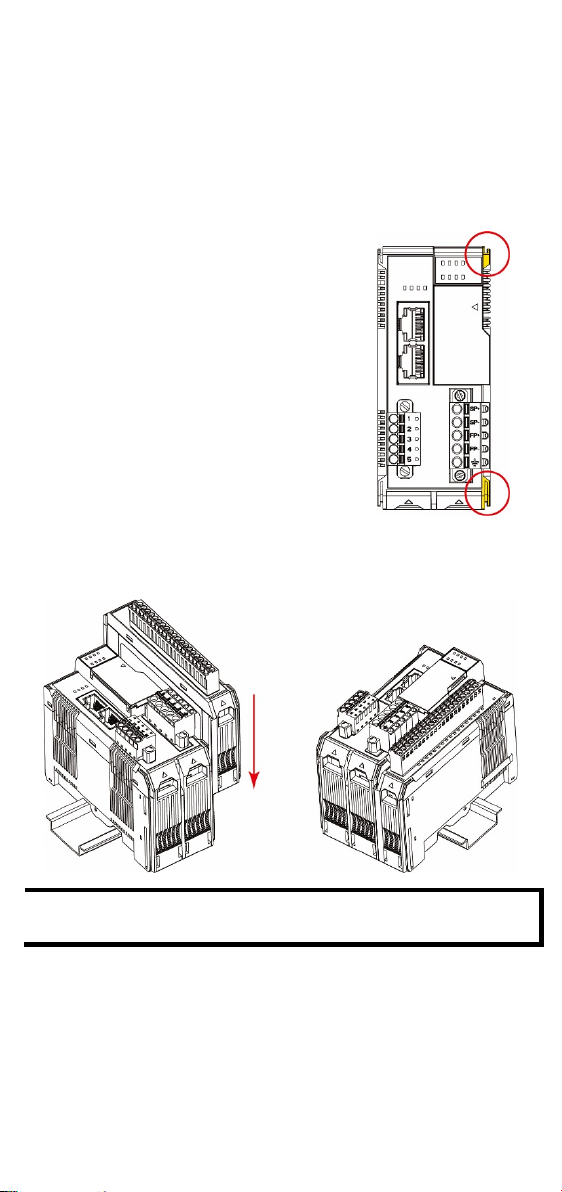

Installing a 45M Module on a DIN Rail

Step 1:

Align the 45M module side by side

with the head/CPU module, making sure that

the upper and lower rails are hooked

together.

Step 2: Align the 45M module side by side with the head/CPU module

and then push the 45M module until it touches the DIN rail. Next, apply

more force until the module clips to the DIN rail.

NOTE

After the module is firmly attached to the DIN rail, the module

connections to the internal bus will be established.

- 3 -

Removing a 45M Module from a DIN Rail

Step 1: Use your finger to lift the

release tab on the lower part of the

module.

Step 2: Push the top of the release tab to latch it, and then pull the

module out.

NOTE

Electrical connections for the internal bus will be disconnected

when removing the 45M module.

WARNING

Be sure the power is off bef

ore removing modules to avoid

damaging the equipment.

- 4 -

Installing the Covers on the First and Last Module

Attach the covers to the first and last module to cover the modules'

contacts.

NOTICE

Be sure to attach the covers to provide electrostatic discharge

protection.

Horizontal Installation

Before installing the

device, make sure there is

enough space between the

device and

nearby items

(walls, other devices, etc.)

to ensure proper heat

dissipation.

To ensure that the device

works properly, we

suggest reserving the

amount of space indicated

in the adjacent figure.

AUTION

DO NOT install the

device vertically. If the device is installed

vertically,

the fanless heat dissipation design will not perform

as intended.

- 5 -

LED Indicators

Labeling

Indication

Description

Status Status Green: Module ready

Green Slow Blinking: Booting up

Green Fast Blinking: Locating

Red: Module error

Red Slow Blinking: Upgrading firmware

Red Fast Blinking: S

afe mode (output module

only)

Off: Power off

I/O

Channel

Status

Please refer to the ioThinx 4500 Series User’s

Manual

Module Configuration

Please refer to the ioThinx 4500 Series User’s Manual.

Specifications

Input Current

Varies per module; please refer to the datasheet

Input Voltage

System power:

•3.3 V, via the ioThinx 4510/4533, 45MR-7210

Field Power:

•12/24 V, via the ioThinx 4510/4533, 45MR-7210

•DO modules (45MR-2600/2601/2606) must use

an external power supply for field power

Operating

Temperature

Standard Models: -20 to 60°C (-4 to 140°F)

Wide Temp. Models: -40 to 75°C (-40 to 167°F)

Storage

Temperature

-40 to 85°C (-40 to 185°F)

Attention

1. This device is only for indoor use in environments with pollution

degree 2.

2. The 45M has a ground pin on the back of the device. For surge

protection, connect the DIN rail to earth ground.

3. Cables rated for a minimum temperature of 105°C must be used

for the Power Supply Terminal.

4. We suggest using the following cable types for wiring:

•45MR-7210:

> AWG 12 to 16 for power connections

•45MR-2600/2601/2606 Digital Output Terminals:

> AWG 16 to 18

•45MR-2404 Relay Output Terminal:

> AWG 16 to 18

•All other 45MR modules:

> AWG 16 to 24

Moxa Inc.

Fl.4, No. 135, Lane 235, Baoqiao Rd.

Xindian Dist., New Taipei City, Taiwan R.O.C.
