BXP-C100 Series
Box computers with Tiger Lake 11th Gen Intel® Core™ processor base model and high-
interface models
Features and Benefits
Box-type computer with fanless design
11th Gen Intel® Celeron® or Intel® Core® processor
Rich interface options for up to 10 serial and 10 LAN ports
Compact size to fit most field applications
-30 to 60°C operating temperature range
Certifications
Introduction
The BXP-C100 wall-mount computers are powered by a 11th Gen Intel® Celeron® or Intel® Core™i5, or i7 processor. The computers come with a
rich set of interface options including up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and
4 digital outputs. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for
industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The unique battery fastener cover
design for the battery slot secures the battery in place and ensures stability in all operating environments.
The BXP-C100 compact wall-mountable computers come in a fanless design and can withstand a temperature range of -30 to 60°C, making them a
good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-C100 Series is an
intelligent computing solution that fulfills both OT and IT requirements in industrial environments.
Appearance
Front View
BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 odels
www.moxa.com
2

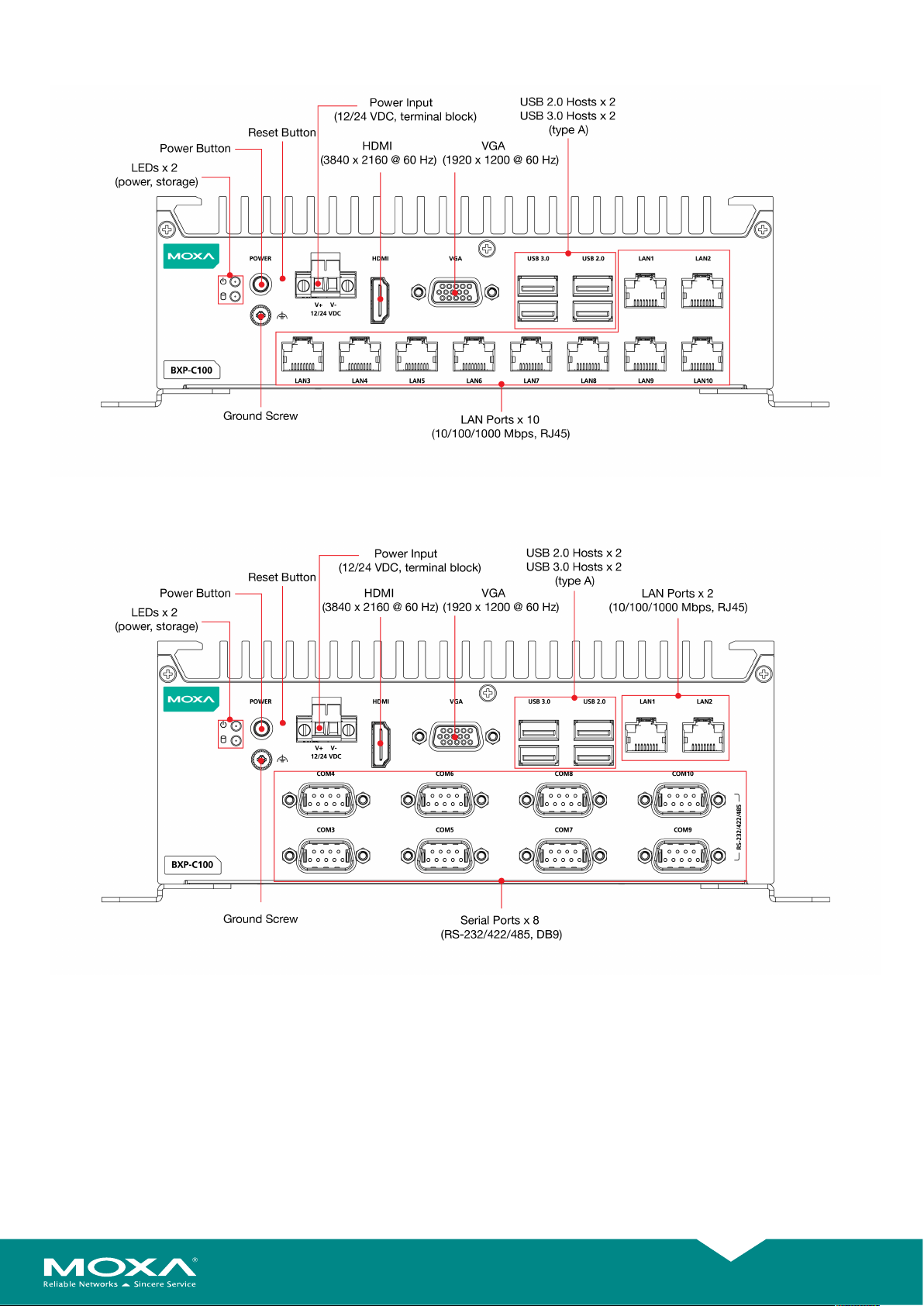

BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T odels
BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T odels
www.moxa.com
3
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T odels
Rear View
BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 odels
www.moxa.com
4
BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T odels
BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T odels
www.moxa.com
5
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T odels
Specifications
Computer
CPU BXP-C100-C1 Models:
Intel® Celeron® 6305E processor (Dual core, 4M cache, 1.80 GHz)
BXP-C100-C5 Models:
Intel® Core™ i5-1145G7E processor (Quad core, 8M cache, 2.60 GHz, Base:1.50 GHz)
BXP-C100-C7 Models:
Intel® Core™ i7-1185G7E processor (Quad core, 12M cache, 2.80 GHz, Base:1.80 GHz)
System Memory Slot SODIMM DDR4 slots x 1, up to 32 GB max.
System Memory Pre-installed 8 GB DDR4
Storage Slot CFast slot x 1 (SATAIII interface)
SD slots x 1, SD 3.0 interface (SDHC/SDXC)
Storage Pre-installed BXP-C100-C1-T-Win10/C5-T-Win10/C7-T-Win10:
64 GB CFast card
Supported OS Windows Images and Drivers Supported:
- Windows 10 IoT Enterprise LTSC 2021 64-bit
- Windows 11 Professional 64-bit
Linux Drivers Supported:
- Debian 11 (kernel 5.10)
- Ubuntu 22.04 LTS (kernel 5.15)
- RHEL 9 (kernel 5.14)
Graphics Controller Intel® UHD Graphics
Computer Interface
Ethernet Ports BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 10
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 4
All Other Models:
Auto-sensing 10/100/1000 Mbps ports (RJ45 connector) x 2
Serial Ports BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T:
RS-232/422/485 ports x 10, software selectable (DB9 male) x 10
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:
RS-232/422/485 ports x 5, software selectable (DB9 male) x 5
www.moxa.com
6
All Other Models:
RS-232/422/485 ports x 2, software selectable (DB9 male) x 2
USB 3.0 USB 3.0 hosts x 2, type-A connectors
USB 2.0 USB 2.0 hosts x 4, type-A connectors
Digital Input DIs x 4
Digital Output DOs x 4
TPM TPM v2.0
Video Output HDMI 2.0b x 1, (type-A connector)
VGA x 1, 15-pin D-sub connector (female)
Buttons Reset button
Power button
Ethernet Interface
Magnetic Isolation Protection 1.5 kV (built-in)
Serial Interface
Baudrate 50 bps to 115.2 kbps
Connector DB9 male
Data Bits 5, 6, 7, 8
Parity None, Even, Odd, Space, Mark
Stop Bits 1, 1.5, 2
Flow Control RTS/CTS, XON/XOFF
Serial Signals
RS-232 TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w Data+, Data-, GND
RS-485-4w Tx+, Tx-, Rx+, Rx-, GND
Digital Inputs
Connector Spring-type Euroblock terminal
Sensor Type Dry contact
Dry Contact Logic 0: Short to GND
Logic 1: Open
Digital Outputs
Connector Spring-type Euroblock terminal
I/O Type Sink
Current Rating 200 mA per channel
Voltage 0 to 24 VDC
www.moxa.com
7
LED Indicators
System Power x 1
Storage x 1
LAN 2 per port (10/100/1000 Mbps)
Power Parameters
Input Voltage 12/24 VDC
Power Connector Screw-fastened Euroblock terminal
Power Consumption 90 W
Physical Characteristics
Housing Metal
IP Rating IP20
Dimensions BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10:
210 x 166 x 48 mm (8.27 x 6.54 x 1.9 in)
BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T/C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:
210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in)
BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T:
210 x 166 x 83 mm (8.27 x 6.54 x 3.27 in)
Weight BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10:
2,015 g (4.44 Ib)
BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T:
2,355 g (5.19 Ib)
BXP-C100-C1-2L3C-T/C5-2L3C-T/C7-2L3C-T:
2,208 g (4.86 Ib)
BXP-C100-C1-8C-T/C5-8C-T/C7-8C-T:
2,385 g (5.25 Ib)
Installation Wall mounting (with optional kit)
Environmental Limits
Operating Temperature -30 to 60°C (-22 to 140°F)
Storage Temperature -40 to 75°C (-40 to 167°F)
Ambient Relative Humidity 5 to 95% (non-condensing)
Standards and Certifications
EMC EN 55032/35
EMI CISPR 32, FCC Part 15B Class A
BSMI
EMS IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV
IEC 61000-4-6 CS: 3 V
IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz
Safety UL 62368-1 (CB)
BSMI
Shock IEC 60068-2-27
Vibration IEC 60068-2-64
Package Drop Test ISTA 1A
Package Vibration Test ISTA 1A
www.moxa.com
8
Declaration
Green Product RoHS, CRoHS, WEEE
Reliability
Time Source Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger Built-in WDT
MTBF
Time 490,983 hrs
Standards Telcordia (Bellcore), GB
Warranty
Warranty Period 3 years
Details See www.moxa.com/warranty
Package Contents
Device 1 x BXP-C100 Series computer
Installation Kit 1 x terminal block, 2-pin, for DC power
1 x terminal block, 10-pin, for DIs/DOs
1 x wall-mounting kit (2 mounting ears, 6 screws)
Documentation 1 x quick installation guide
1 x warranty card
www.moxa.com
9
Dimensions
BXP-C100-C1-T/C5-T/C7-T/C1-T-Win10/C5-T-Win10/C7-T-Win10 odels
www.moxa.com
10

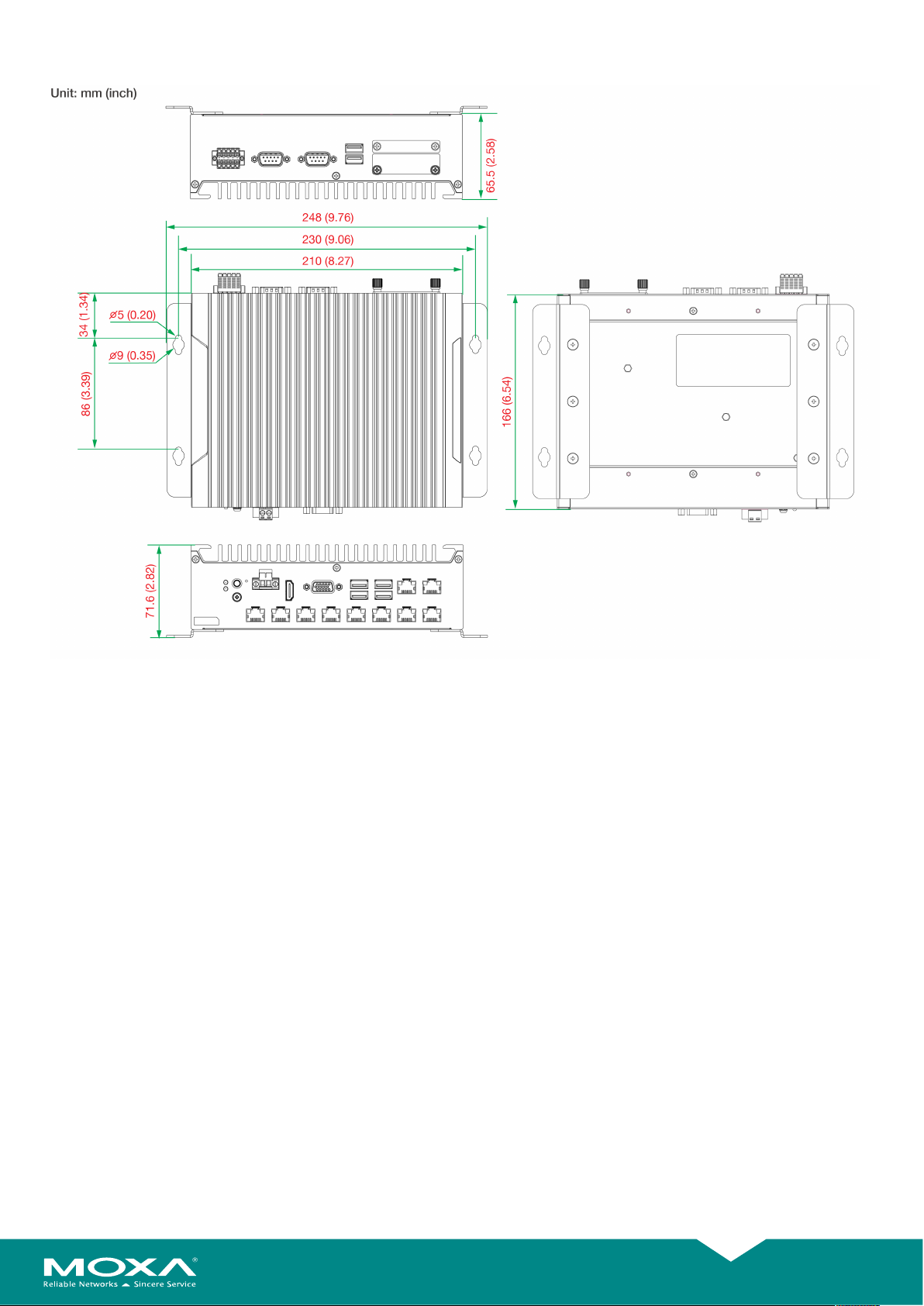

BXP-C100-C1-8L-T/C5-8L-T/C7-8L-T odels
