V2406C Series

Quick Installation Guide

Embedded Computers

Version 1.0, February 2020

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll

-free: 1-888-669-2872

Tel:

1-714-528-6777

Fax:

1-714-528-6778

Moxa China (Shanghai office):

Toll

-free: 800-820-5036

Tel:

+86-21-5258-9955

Fax:

+86-21-5258-5505

Moxa Europe:

Tel:

+49-89-3 70 03 99-0

Fax:

+49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel:

+886-2-8919-1230

Fax:

+886-2-8919-1231

Moxa India:

Tel:

+91-80-4172-9088

Fax:

+91-80-4132-1045



- 2 -

Overview

The V2406C Series embedded computers are based on the Intel® 7th

generation processor and feature 4 RS-232/422/485 serial ports, dual

LAN ports, and 4 USB 3.0 ports. The V2406C computers come with 1

VGA output and 1 HDMI port with 4k resolution support. The computers

comply with the EN 50155:2017 specifications, covering operating

temperature, power input voltage, surge, ESD, and vibration, making

them suitable for a variety of industrial applications.

The mSATA slot, SATA connectors, and USB ports provide the V2406C

computers with the reliability needed for industrial applications that

require storage expansion for data buffering. Most importantly, the

V2406C computers come with 2 storage trays for inserting additional

storage media, such as hard disk or solid-state drives, which support

hot swapping for convenient, fast, and easy storage replacement. Each

storage slot has its own LED that indicates whether a storage module is

plugged in.

Package Checklist

Each basic system model package is shipped with following items:

•V2406C Series embedded computer

•Wall-mounting kit

•2 HDD trays

•8 screws for securing the HDD trays

•HDMI cable locker

•Quick installation guide (printed)

•Warranty card

Hardware Installation

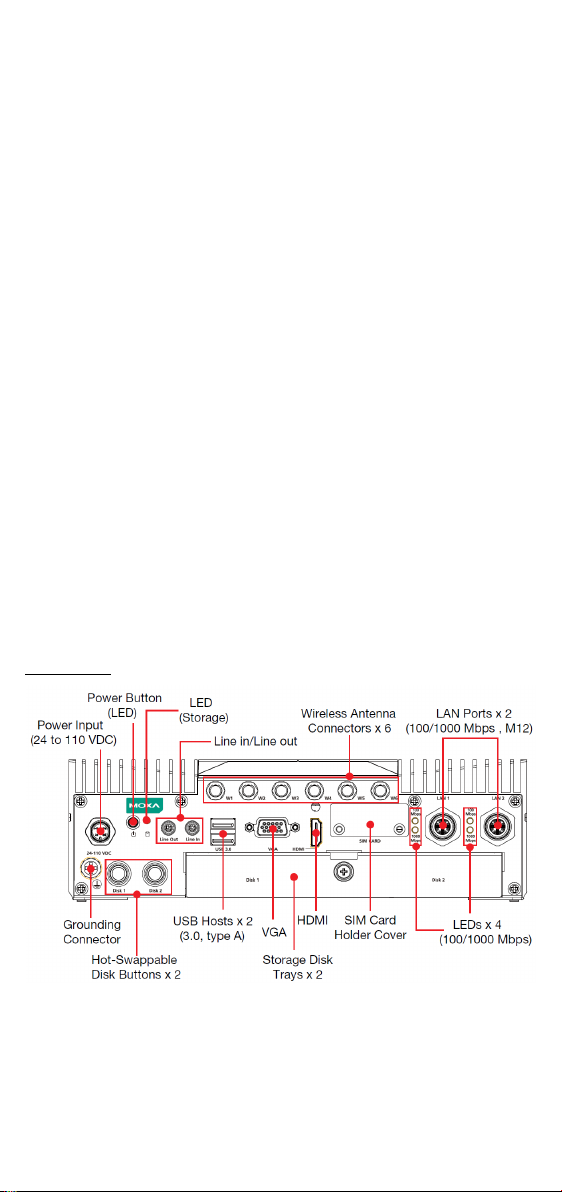

Front View

- 3 -

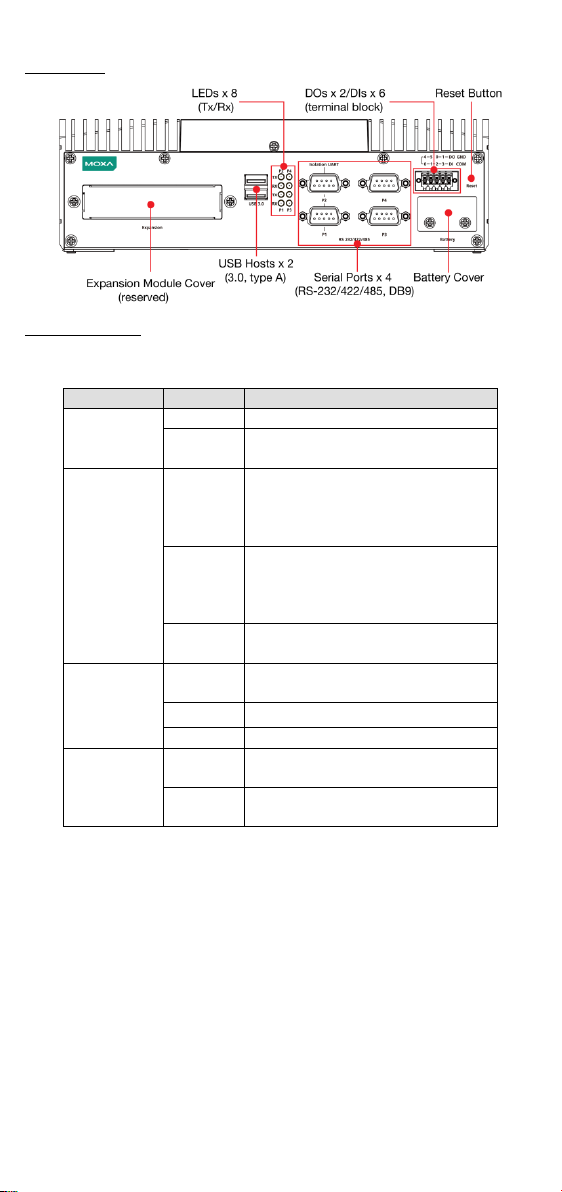

Rear View

LED Indicators

The following table describes the LED indicators located on the front

and rear panels of the V2406C computer.

LED Name

Status

Function

Power

(On power

button)

Green

Power is on

Off

No power input or any other power

error

Ethernet

(100 Mbps)

(1000 Mbps)

Green

Steady On: 100 Mbps Ethernet

link

Blinking: Data transmission is in

progress

Yellow Steady On: 1000 Mbps Ethernet

link

Blinking: Data transmission is in

progress

Off Data transmission speed at 10

Mbps or the cable is not connected

Serial

(TX/RX)

Green

Tx: Data transmission is in

progress

Yellow

Rx: Receiving Data

Off

No operation

Storage Yellow

Data is being accessed from either

the mSATA or the SATA drives

Off Data is not being accessed from

the storage drives

- 4 -

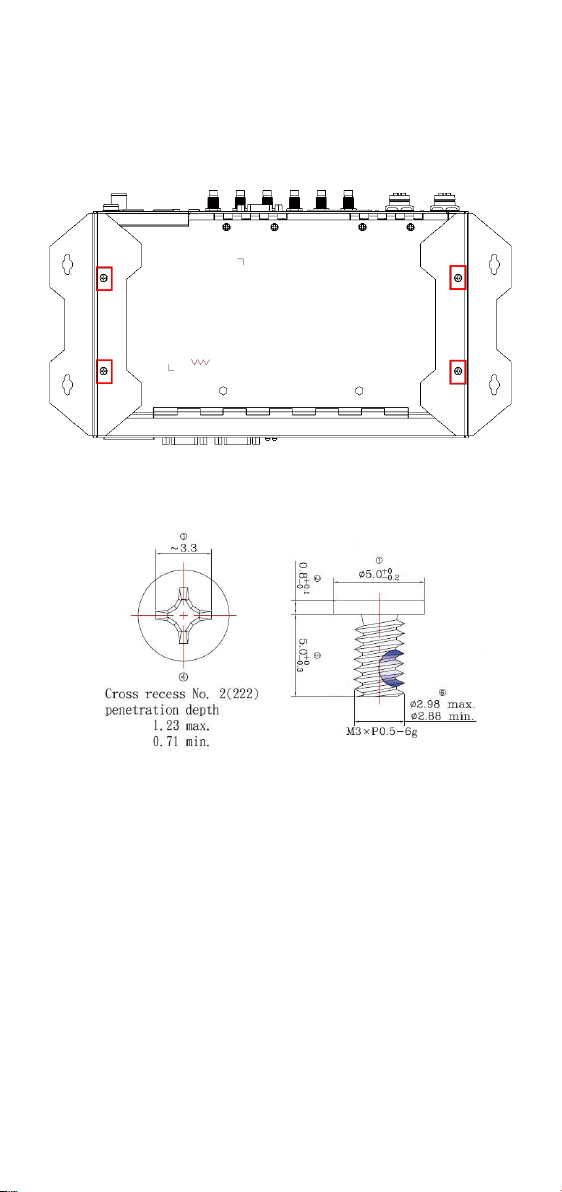

Installing the V2406C

The V2406C computer comes with two wall-mounting brackets. Attach

the brackets to the computer using two screws on each side. Ensure

that the mounting brackets are attached to the V2406C computer in the

direction shown in the following figure.

The four screws for the mounting brackets are included in the product

package. They are standard IMS_M3x5L screws and require a torque of

4.5 kgf-cm. Refer to the following illustration for details.

Use two screws (M3*5L standard is recommended) on each side to

attach the V2406C to a wall or cabinet. The product package does not

include the four screws required for attaching the wall-mounting kit to

the wall; they need to be purchased separately. Ensure that the

V2406C computer is installed in the direction shown in the following

figure.

- 5 -

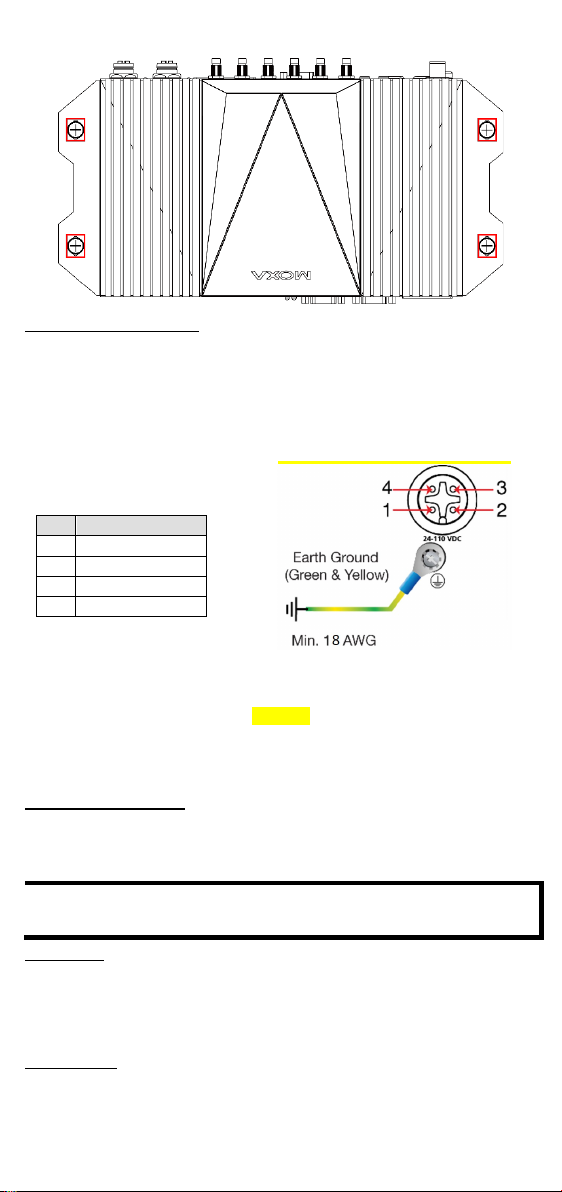

Connecting the Power

The V2406C computers are provided with M12 power input connectors

on the front panel. Connect the power cord wires to the connectors and

then tighten the connectors. Push the power button; the Power LED

(on the power button) will light up to indicate that power is being

supplied to the computer. It should take about 30 to 60 seconds for the

operating system to complete the boot-up process.

Definition

V+

N.C.

V-

N.C.

The power input specification is given below:

•DC mains with a power source rating of 24 V @ 2.74 A; 100 V @

0.584 A, and a minimum of 18 AWG.

For surge protection, connect the grounding connector located below

the power connector with the earth (ground) or a metal surface.

Connecting Displays

The V2406C has 1 VGA interface that comes with a D-Sub 15-pin

female connector. In addition, another HDMI interface is also provided

on the front panel.

NOTE

In order to have highly reliable video streaming, use premium,

HDMI-certified cables.

USB Ports

The V2406C comes with 2 USB 3.0 ports on the front panel and another

2 USB 3.0 ports on the rear panel. The USB ports can be used to

connect to other peripherals, such as keyboard, mouse, or flash drives

for expanding the system’s storage capacity.

Serial Ports

The V2406C comes with 4 software-selectable RS-232/422/485 serial

ports on the rear panel. Port 1 and Port 2 are isolated UART ports. The

ports use DB9 male connectors.

- 6 -

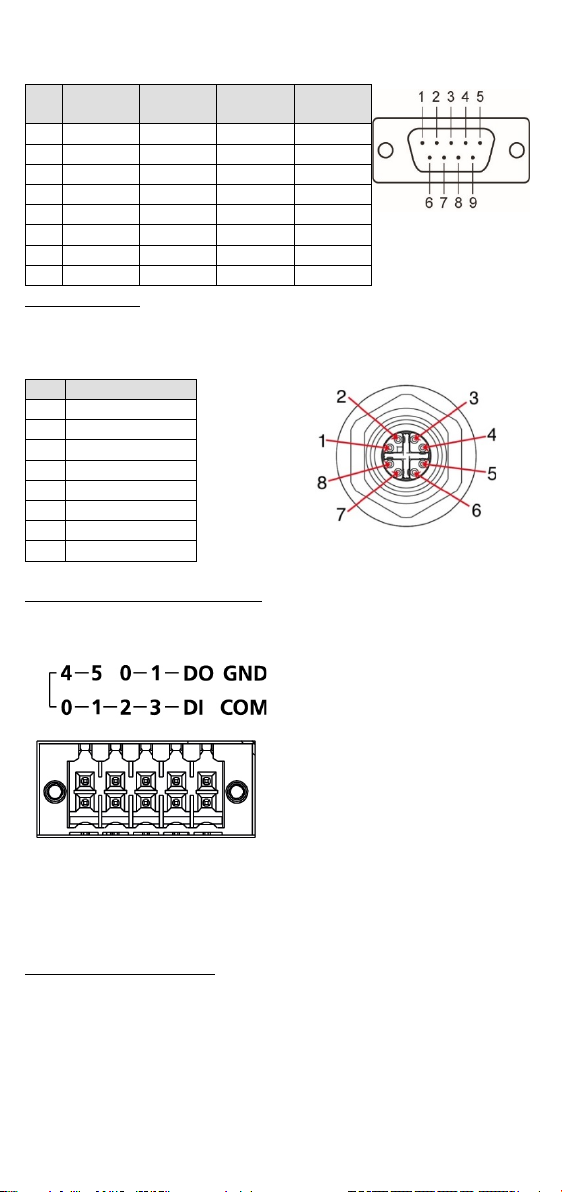

Refer to the following table for pin assignments:

RS-232

RS-422

RS-485

(4-wire)

RS-485

(2-wire)

DCD

TxDA(-)

–

RxD

TxDB(+)

–

TxD

RxDB(+)

DataB(+)

DTR

RxDA(-)

DataA(-)

GND

DSR

–

RTS

–

CTS

–

Ethernet Ports

The V2406C has 2 100/1000 Mbps RJ45 Ethernet ports with M12

connectors on the rear panel. Refer to the following table for pin

assignments:

Definition

DA+

DA-

DB+

DB-

DD+

DD-

DC-

DC+

Digital Inputs/Digital Outputs

The V2406C comes with six digital inputs and two digital outputs in a

terminal block. Refer to the following figures for the pin definitions and

the current ratings.

Digital

Inputs

Dry Contact

Logic 0: Short

to Ground

Logic 1: Open

Wet Contact

(DI to COM)

Logic 1: 10 to

30 VDC

Logic 0: 0 to 3

VDC

Digital

Outputs

Current

Rating:

200 mA per

channel

Voltage:

24 to 30 VDC

For detailed wiring methods, refer to the V2406C Hardware User’s

Manual.

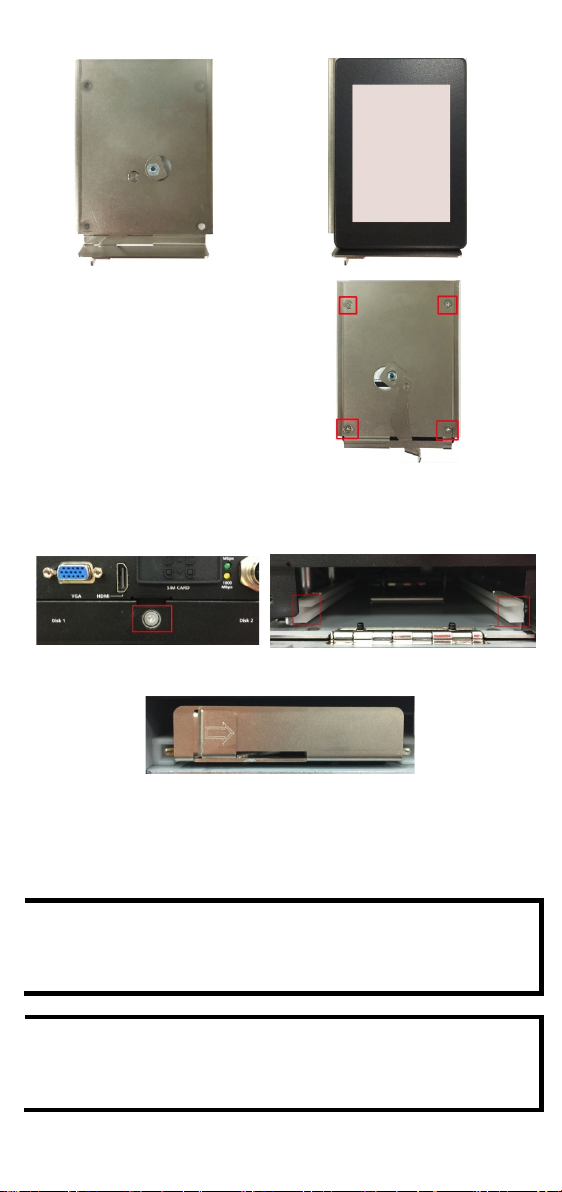

Installing Storage Disks

The V2406C comes with two storage sockets, allowing users to install

two disks for data storage.

Follow these steps to install a hard disk drive.

1. Unpack the storage tray

from the product

package.

2. Place the disk drive on the

tray.

- 7 -

3. Turn the disk and tray

arrangement around to

view the rear side of the

tray. Fasten the four

screws to secure the

disk to the tray.

4. Unfasten the screw on

the storage slot cover

and slide the cover

down to access the slot.

5. Find the location of the disk

tray rail.

6. Insert the tray so that it aligns with the rails on both sides and

slide the tray into the slot.

To take out the tray, simply pull the clutch to the right and pull the

tray out.

For instructions on installing other peripheral devices or wireless

modules, refer to the V2406C Hardware User’s Manual.

NOTE

This computer is intended to be installed in a restricted access

area only. In addition, for safety reason

s, the computer should

be installed and handled

only by qualified and experienced

professionals.

NOTE

This computer is designed to be supplied by listed equipment

rated 24 to 110 VDC, minim

um 2.74 to 0.584 A, and minimum

Tma=70

˚C. If you need assistance with purchasing a power

adapter, contact the Moxa technical support team.

- 8 -

NOTE

This unit is intended to be supplied by

a DC Busway, output

rated 24

to 110 VDC, minimum 2.74 A, and a DC Power source

with voltage tolerance

of +20% and -15%.

For example

, a UL Listed power source suitable for use at a

Tma 75°C minimum, rated

at 24 to 110 VDC and 2.74 A

minimum.

Replacing the Battery

The V2406C comes with one slot for a battery, which is installed with a

lithium battery with 3 V/195 mAh specifications. To replace the battery,

follow the steps below:

1. The battery cover is located on the front panel of the computer.

2. Unfasten the two screws on the battery cover.

3. Take off the cover; the battery is attached to the cover.

- 9 -

4. Separate the connector and remove the two screws on the metal

plate.

5. Replace the new battery in the battery holder, place the metal

plate on the battery and fasten the two screws tightly.

6. Reconnect the connector, place the battery holder into the slot,

and secure the cover of the slot by fastening the two screws on

the cover

NOTE

Be sure to use the correct type of battery. Incorrect battery

may cause system damage. Contact Moxa’s technical support

staff for assistance, if necessary.
