Moxa Technologies CSM-200-1213 Manuale utente

CSM-200 Series

Hardware Installation Guide

First Edition, November 2009

Reproduction without permission is prohibited.

Fl.4, No.135, Lane 235, Pao-Chiao Rd. Shing Tien City,

Taipei, Taiwan, R.O.C.

TEL: +886-2-8919-1230

P/N: 1802002002010

- 2 -

Overview

Introduction

The CSM-200 series is an Ethernet to optical fiber media converter and is part

of the NRack System. It provides Ethernet media conversion from 10/100

BaseT(X) to 100 BaseFX (SC or ST connectors), and can be installed in every

chassis of the NRack System.

The CSM-200 Series includes the following models:

•CSM-200-1213: 10/100BaseT(X) to 100BaseFX slide-in module media

converter, multi-mode ST connector.

•CSM-200-1214: 10/100BaseT(X) to 100BaseFX slide-in module media

converter, multi-mode SC connector.

•CSM-200-1218: 10/100BaseT(X) to 100BaseFX slide-in module media

converter, single-mode SC connector.

Installation

The CSM-200 media converter slide-in module can be hot-swapped, which

means the chassis doesn’t need to be powered off or removed during

installation. Align the slide-in module with the chassis installation slot so that

the panel fastener screw is at the top of the module, and carefully slide the

slide-in module into the slot while aligning the module’s circuit board with the

installation guide.

Ensure that the slide-in module is firmly seated inside the chassis. Push in and

rotate the attached panel fastener screw clockwise to secure the module to the

chassis.

Why Convert Ethernet to Fiber?

Fiber communication not only extends the communication distance, but also

provides many advantageous features.

•IMMUNITY FROM ELECTRICAL INTERFERENCE:

Fiber is not affected by electromagnetic interference or radio frequency

interference. It provides a clean communication path and is immune to

cross-talk.

•INSULATION:

Optical fiber is an insulator; the glass fiber eliminates the need for using

electric currents as the communication medium.

•SECURITY:

Fiber cannot be tapped by conventional electric means and is very difficult

to tap into optically. Furthermore, radio and satellite communication

signals can be captured easily for decoding.

•RELIABILITY & MAINTENANCE:

Fiber is immune to adverse temperature and moisture conditions, does not

corrode or lose its signal, and is not affected by short circuits, power

surges, or static electricity.

- 3 -

Features

yLFP(Link Fault Pass-through) and FEF(Far End Fault)

yTwo different operation modes

¾Store-and-Forward

¾Pass Through

yAuto negotiation

ySupport TS-1000 ver. 2

ySupport Turbo Ring 2

yPlug and Play

yHot-swap

Package Checklist

Moxa’s CSM-200 Series is shipped with the following items. If any of these

items is missing or damaged, please contact your customer service

representative for assistance.

yCSM-200 Series

yHardware Installation Guide

yWarranty Card

NOTE: Please notify your sales representative if any of the above items are

missing or damaged.

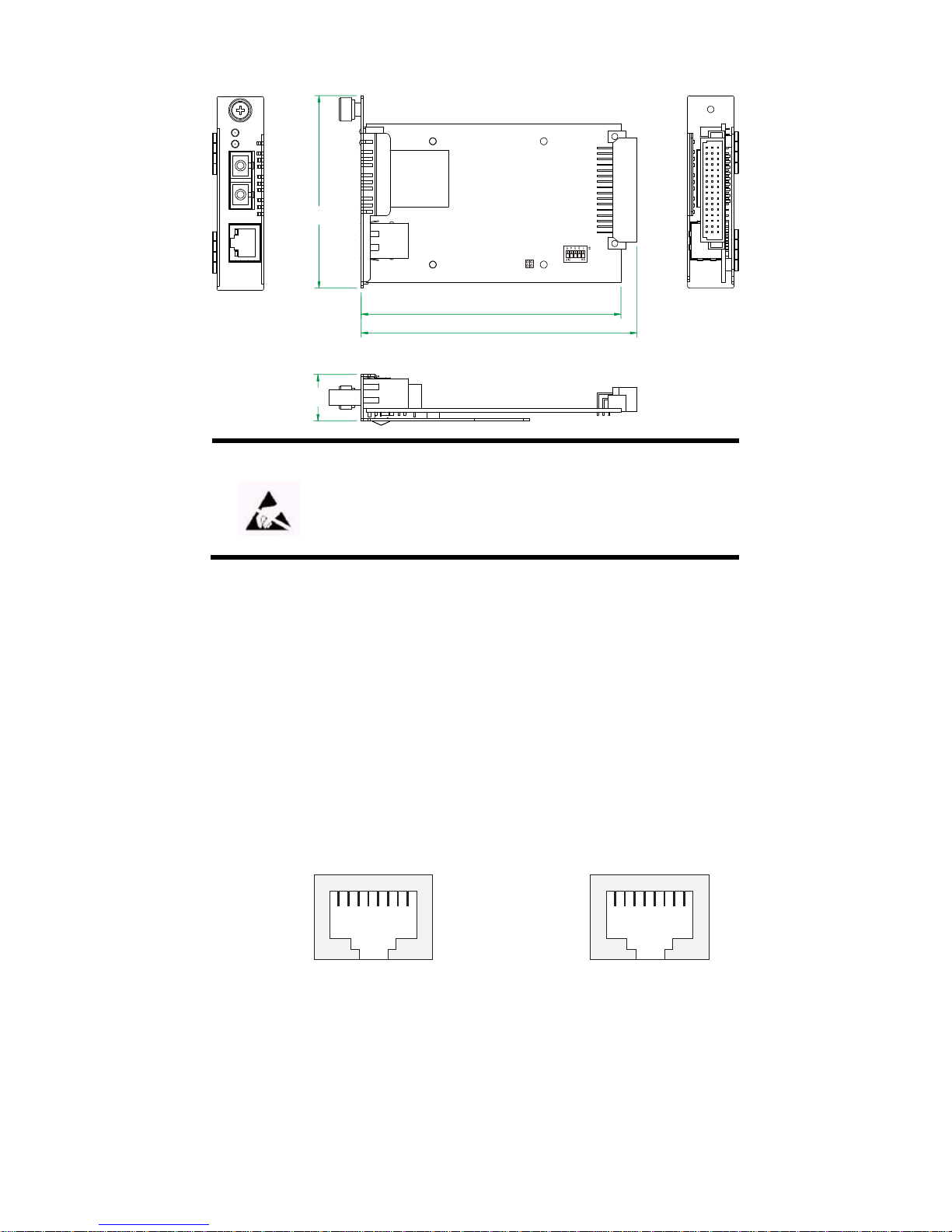

Dimensions

CSM-200-1213

117.1 mm (4.61 in)

124.3 mm (4.89 in)

86.8 mm

(3.42 in)

21 mm

(0.83 in)

PWR

Fiber

Link

10M

100M

- 4 -

CSM-200-1214/CSM-200-1218

117.1 mm (4.61 in)

124.3 mm (4.89 in)

86.8 mm

(3.42 in)

21 mm

(0.83 in)

PWR

Fiber

Link

10M

100M

ATTENTION

Electrostatic Discharge Warning!

To protect the product from damage due to electrostatic

discharge, we recommend wearing a grounding device when

handling your CSM-200 slide-in modules.

Communication Connections

The CSM-200 Series has one 10/100BaseT(X) Ethernet port, and one

100BaseFX (SC or ST type connector) fiber port.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) Ethernet ports located on CSM-200 are used to connect

to Ethernet-enabled devices.

Below we show pinouts for both MDI (NIC-type) ports and MDI-X

(HUB/Switch-type) ports, and also show cable wiring diagrams for

straight-through and cross-over Ethernet cables.

RJ45 (8-pin, MDI) Port Pinouts RJ45 (8-pin, MDI-X) Port Pinouts

Pin Signal

Tx+

Tx-

Rx+

Rx-

Pin Signal

Rx+

Rx-

Tx+

Tx-

- 5 -

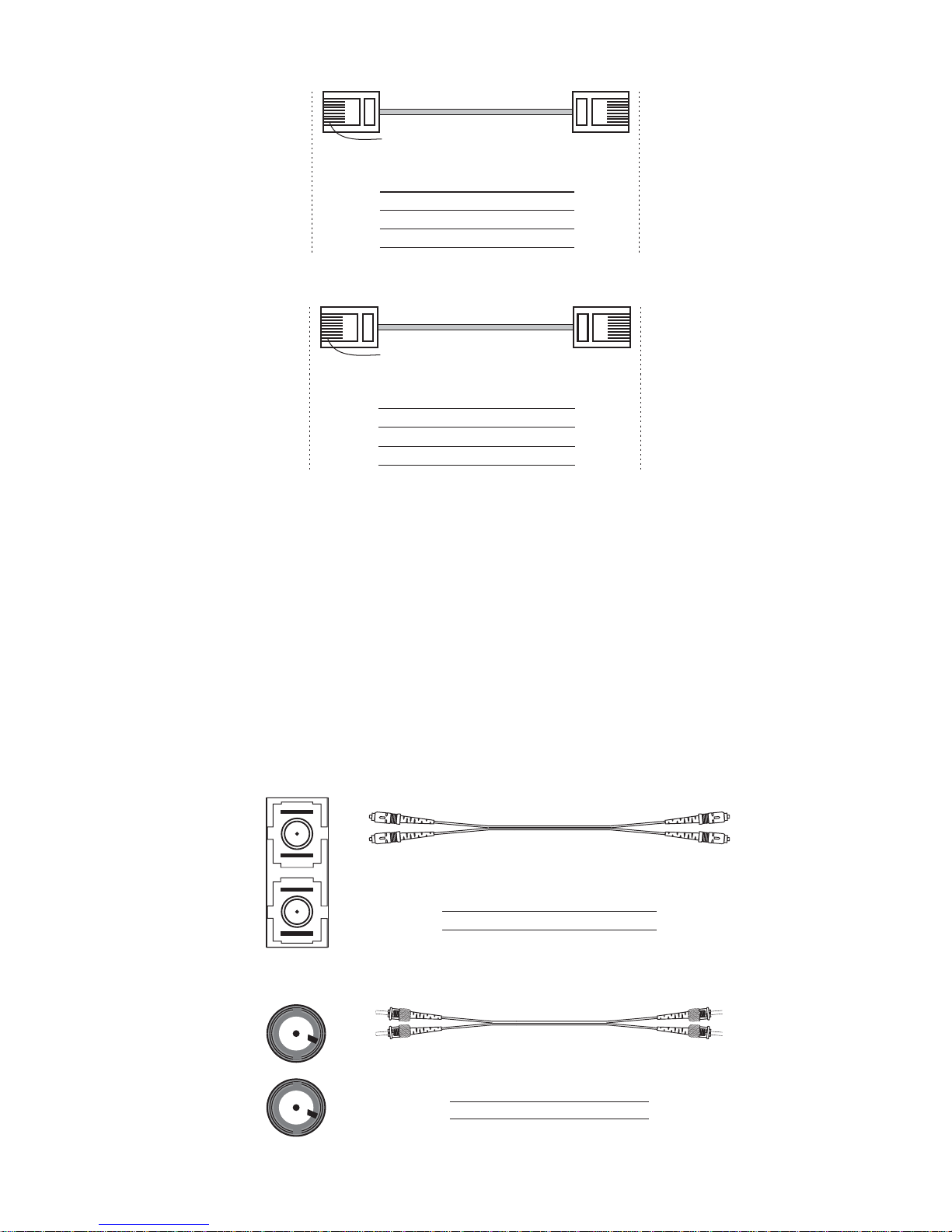

RJ45 (8-pin) to RJ45 (8-pin) Straight-Through Cable Wiring

Straight-Through Cable

RJ45 Plug Pin 1

Switch Port

RJ45

Connector RJ45

Connecto

Tx+

Tx-

Rx+

Rx-

NIC Port

Cable Wiring

3 3

6 6

1 1

2 2

Rx+

Rx-

Tx+

Tx-

RJ45 (8-pin) to RJ45 (8-pin) Cross-Over Cable Wiring

Cross-Over Cable

RJ45 Plug Pin 1

Switch Port

(NIC Port)

RJ45

Connector RJ45

Connector

Tx+

Tx-

Rx+

Rx-

(Rx+)

(Rx-)

(Tx+)

(Tx-)

(Tx+)

(Tx-)

(Rx+)

(Rx-)

Switch Port

(NIC Port)

Cable Wiring

3 1

6 2

1 3

2 6

Rx+

Rx-

Tx+

Tx-

100BaseFX Fiber Port Connection

The concept behind the SC port and cable is quite straightforward. Suppose

you are connecting devices I and II. Contrary to electrical signals, optical

signals do not require a circuit in order to transmit data. Consequently, one of

the optical lines is used to transmit data from device I to device II, and the

other optical line is used transmit data from device II to device I, for

full-duplex transmission.

All you need to remember is to connect the Tx (transmit) port of device I to the

Rx (receive) port of device II, and the Rx (receive) port of device I to the Tx

(transmit) port of device II. If you are making your own cable, we suggest

labeling the two sides of the same line with the same letter (A-to-A and B-to-B,

as shown below, or A1-to-A2 and B1-to-B2).

SC-Port Pinouts SC-Port to SC-Port Cable Wiring

Cable Wiring

A A

B B

ST-Port Pinouts ST-Port to ST-Port Cable Wiring

Cable Wiring

A A

B B

- 6 -

ATTENTION

This is a Class 1 Laser/LED product. Do not stare into the

Laser Beam.

Switch Settings

There is 1 set of DIP switches on the board. The following figure and table

give the settings for the 5-connector DIP switch.

DIP Function ON OFF

1 Auto Negotiation Enable Disable

2 Force TP Speed 100 M 10 M

3 Force TP Duplex Full Duplex Half Duplex

4 Link Fault Pass Through Enable Disable

5 Operating Mode Store-and-Forward Pass Through

NOTE 1. All the DIP settings default to “ON”.

2. When configured for Pass Through mode, the Ethernet port

and fiber port should transmit at 100 Mbps, which is

equivalent to full duplex mode.

LED Indicators

There are 2 LEDs on the front bracket of the CSM-200 slide-in modules.

LED Color State Function

On Power is being supplied to power input.

PWR Green

Off Power is not being supplied to power

input.

On FX port’s 100 Mbps is active.

Blinking Data is being transmitted at 100 Mbps.

Fiber Link Green

Off 100BaseFX port is inactive.

On TP port’s 10 Mbps is active.

Blinking Data is being transmitted at 10 Mbps.

10M (TP) Yellow

Off TP port’s 10 Mbps link is inactive.

On TP port’s 100 Mbps is active.

Blinking Data is being transmitted at 100 Mbps.

100M (TP) Green

Off TP Port’s 100 Mbps is inactive.

- 7 -

Auto MDI/MDI-X Connection

The Auto MDI/MDI-X function allows users to connect the Moxa CSM-200’s

10/100BaseTX ports to any kind of Ethernet device, without needing to

determine the type of Ethernet cable being used for the connection.

This means that you can use either a straight-through cable or cross-over cable

to connect the CSM-200 Series to Ethernet devices.

Dual Speed Functionality and

Switching

The Moxa CSM-200’s 10/100 Mbps RJ45 Ethernet port auto negotiates with

the connected device for the fastest data transmission rate supported by both

devices. All models of the CSM-200 Series are plug-and-play devices, so that

software configuration is not required at installation, or during maintenance.

The half/full duplex mode for the RJ45 Ethernet ports is user dependent and

changes (by auto-negotiation) to full or half duplex, depending on which

transmission speed is supported by the attached device.

Auto-Negotiation and Speed Sensing

All of the CSM-200’s RJ45 Ethernet ports independently support

auto-negotiation for 10BaseT and 100BaseTX transmission speeds, with

operation according to the IEEE 802.3u standard.

This means that some nodes could be operating at 10 Mbps, while at the same

time other nodes are operating at 100 Mbps.

Auto-negotiation takes place when an RJ45 cable connection is made, and then

each time a LINK is enabled. Moxa’s CSM-200 advertises its capability for

using either 10 Mbps or 100 Mbps transmission speeds, with the device at the

other end of the cable expected to advertise similarly. Depending on what type

of device is connected, this will result in agreement to operate at a speed of

either 10 Mbps or 100 Mbps.

If a Moxa CSM-200 RJ45 Ethernet port is connected to a non-negotiating

device, it will default to 10 Mbps speed and half-duplex mode, as required by

the IEEE 802.3u standard.

- 8 -

Specifications

Technology

Standards IEEE 802.3 for 10BaseT,

IEEE 802.3u for 100BaseT(X), 100BaseFX

Interface

RJ45 ports 10/100BaseT(X)

Fiber ports 100BaseFX (SC/ST connector)

LED Indicators PWR, Fiber Link, 10/100M(TP port)

Optical Fiber 100BaseFX

Multi-mode Single-mode

Wavelength 1300 nm 1310 nm

Max. TX -10 dBm 0 dBm

Min. TX -20 dBm -5 dBm

RX Sensitivity -32 dBm -34 dBm

Link Budget 12 dB 29 dB

Typical Distance 5 km a

4 km b 40 km c

Saturation -6 dBm -3 dBm

a. 50/125 μm, 800 MHz*km fiber optic cable

b. 62.5/125 μm, 500 MHz*km fiber optic cable

c. 9/125 μm, 3.5 PS/(nm*km) fiber optic cable

Physical Characteristics

Housing SPCC

Dimensions 86.8 x 124.3 x 21 mm (3.42 x 4.89 x 0.83 in)

Weight Product only:

CSM-1213: 115 g (0.25 lb)

CSM-1214/1218: 125 g (0.28 lb)

Packaged:

CSM-1213: 170g (0.37 lb)

CSM-1214/1218: 180g (0.40 lb)

Environmental Limits

Operating Temperature 0 to 60°C (32 to 142°F)

Storage Temperature -20 to 75°C (-4 to 158°F)

Humidity 5 to 95 % RH

Power Requirements

Input Voltage 12 VDC

Power Consumption 180 mA @ 12 VDC

Regulatory Approvals

CE Class A

FCC Part 15 sub part B class A

EMS EN61000-4-2 (ESD), Criteria A, Level 4

EN61000-4-3 (RS), Criteria A, Level 2

EN61000-4-4 (EFT), Criteria A, Level 3

EN61000-4-5 (Surge), Criteria A, Level 3

EN61000-4-6 (CS), Criteria A, Level 2

En61000-4-8 (PFMF), Criteria A, Level 3

Freefall IEC 60068-2-32

Warranty

Warranty Period 5 years

Details: See www.moxa.com/warranty

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll-free: 1-888-669-2872

Tel: +1-714-528-6777

Fax: +1-714-528-6778

Moxa China (Shanghai office):

Toll-free: 800-820-5036

Tel: +86-21-5258-9955

Fax: +86-10-6872-3958

Moxa Europe:

Tel: +49-89-3 70 03 99-0

Fax: +49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel: +886-2-8919-1230

Fax: +886-2-8919-1231

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Moxa Technologies Convertitore multimediale

Moxa Technologies

Moxa Technologies MIINEPORT E1 Manuale utente

Moxa Technologies

Moxa Technologies UPORT 1110 Manuale utente

Moxa Technologies

Moxa Technologies TCF-90 Manuale utente

Moxa Technologies

Moxa Technologies VPort 351 Series Manuale utente

Moxa Technologies

Moxa Technologies VPort 451 Manuale utente

Moxa Technologies

Moxa Technologies UPort 1400-G2 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 5100A Series Manuale utente

Moxa Technologies

Moxa Technologies VPort 354 Manuale utente

Moxa Technologies

Moxa Technologies IMC-21 Manuale utente

Moxa Technologies

Moxa Technologies TCF-142-S Manuale utente

Moxa Technologies

Moxa Technologies TCC-80I Series Manuale utente

Moxa Technologies

Moxa Technologies UPort 2210 Manuale utente

Moxa Technologies

Moxa Technologies ICF-1150 series Manuale utente

Moxa Technologies

Moxa Technologies MGate 5118 Series Manuale utente

Moxa Technologies

Moxa Technologies IMC-21GA Manuale

Moxa Technologies

Moxa Technologies TCF-142-S Manuale utente

Moxa Technologies

Moxa Technologies Transio A52 Manuale utente

Moxa Technologies

Moxa Technologies UPORT 1200 series Manuale utente

Moxa Technologies

Moxa Technologies TCF-142-M-SC-RM Manuale utente

Moxa Technologies

Moxa Technologies VPort 464 Series Manuale utente

Moxa Technologies

Moxa Technologies ICF-1180I Series Manuale utente

Moxa Technologies

Moxa Technologies TCC-100 Series Manuale utente

Moxa Technologies

Moxa Technologies VPort 2141 Manuale utente

Moxa Technologies

Moxa Technologies ICF-1280I Series Manuale

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
