PTC-101-M12

Hardware Installation Guide

Moxa Industrial Media Converter

Second Edition, January 2013

- 2 -

Overview

The PTC-101-M12 industrial media converter is designed to provide

reliable and stable operation in harsh industrial environments. The

PTC-101-M12 converts between 10/100BaseT(X) and 100BaseFX. To

keep your industrial automation applications running continuously, the

PTC-101-M12 comes with a relay output warning alarm to help prevent

damage to your equipment.

The PTC-101-M12 has a wide operating temperature range of -40 to 85°C,

and is designed to withstand a high degree of vibration and shock. The

rugged hardware design makes the PTC-101-M12 perfect for ensuring

that your Ethernet equipment can be used with critical industrial

applications, such as in hazardous locations. The converter complies with

FCC, UL, and CE standards.

Package Checklist

The PTC-101-M12 is shipped with the following items:

•Moxa Industrial Media Converter

•Hardware Installation Guide

•Moxa Product Warranty booklet

Note: If any of these items are missing or damaged, please contact your

customer service representative for assistance.

Features

•Supports 10/100Base-TX auto-negotiation and auto-MDI/MDI-X

•Single mode with SC or ST fiber connector available

•Supports Link Fault Pass-Through

•Power failure by relay output

•Redundant dual VDC power inputs

•-40 to 85°C operating temperature range

- 3 -

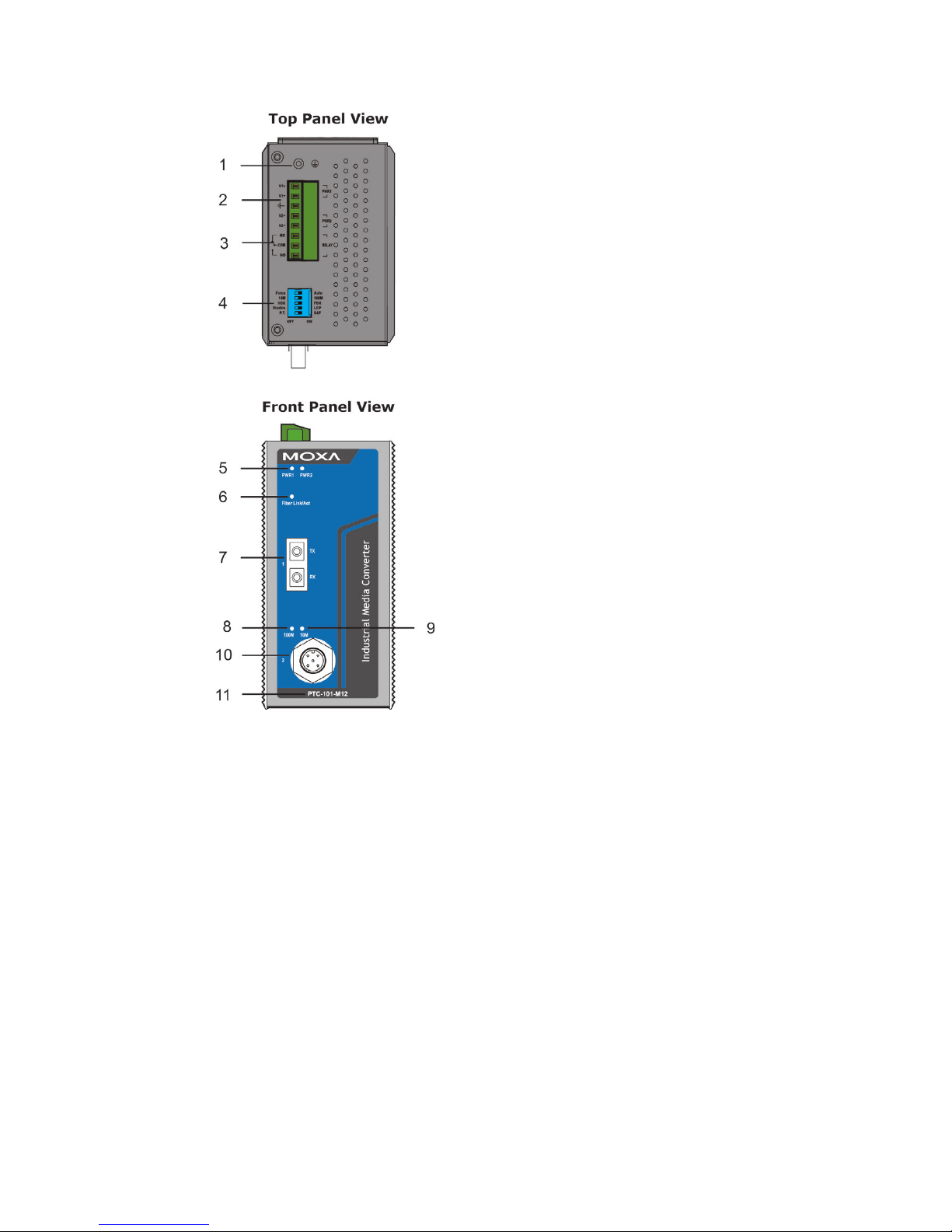

Panel Layouts

1. Grounding screw

Terminal block for power input

3. Normal Open (NO, COM) /

Normal Close (NC, COM)

4. DIP switch

5. Power input PWR LED

6. Fiber Link/Active LED

7. 100BaseFX Port

(ST/SC connector)

8. TP port 100 Mbps LED

9. TP port 10 Mbps LED

10.

10/100BaseT(X)

11.

Model name

- 4 -

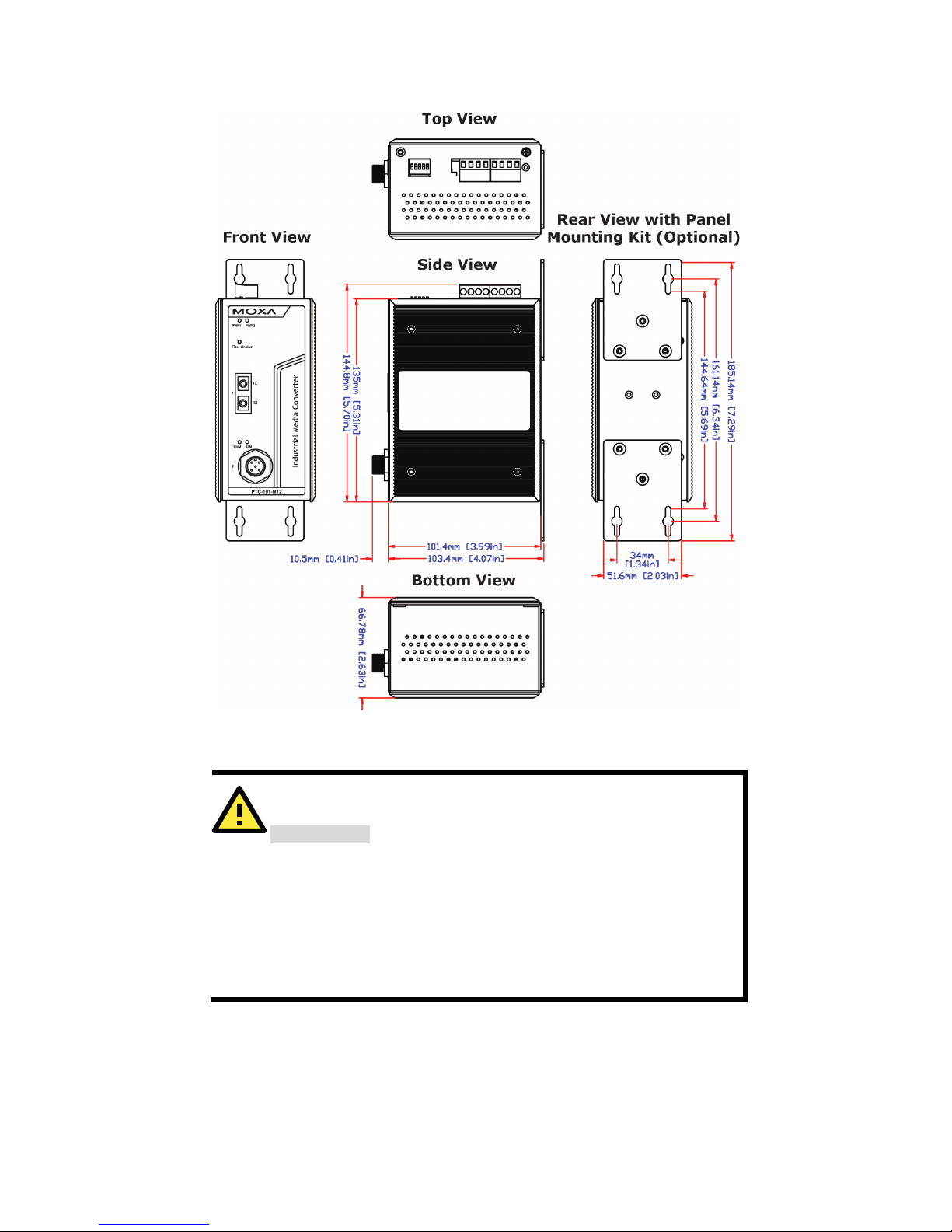

Dimensions

Wiring Requirements

ATTENTION

Safety First!

•

Be sure to disconnect the power cord before installing

and/or

wiring your PTC-101-M12.

•

Calculate the maximum possible current in each power wire

and common wire, and observe all electrical codes dictating

the maximum current allowable for each wire size.

•

If the current goes above the maximum ratings, the wiring

could overheat, causing serious damage to your equipment.

- 5 -

You should also pay attention to the following:

•Use separate paths to route wiring for power and devices. If power

wiring and device wiring paths must cross, make sure the wires are

perpendicular at the intersection point.

NOTE

Do not run signal or communications wiring and power wiring in

the same wire conduit. To avoid interference, wires with different

signal characteristics should be routed separately.

•You can use the type of signal transmitted through a wire to

determine which wires should be kept separate. The rule of thumb is

that wiring that shares similar electrical characteristics can be

bundled together.

•Keep input wiring and output wiring separated.

•It is strongly advised that you label the wiring to all devices in the

system.

Grounding the PTC-101-M12

Grounding and wire routing help limit the effects of noise due to

electromagnetic interference (EMI). Run the ground connection from the

ground screw to the grounding surface prior to connecting devices.

ATTENTION

This product is intended to be mounted to a well

-grounded

mounting surface such as a metal panel.

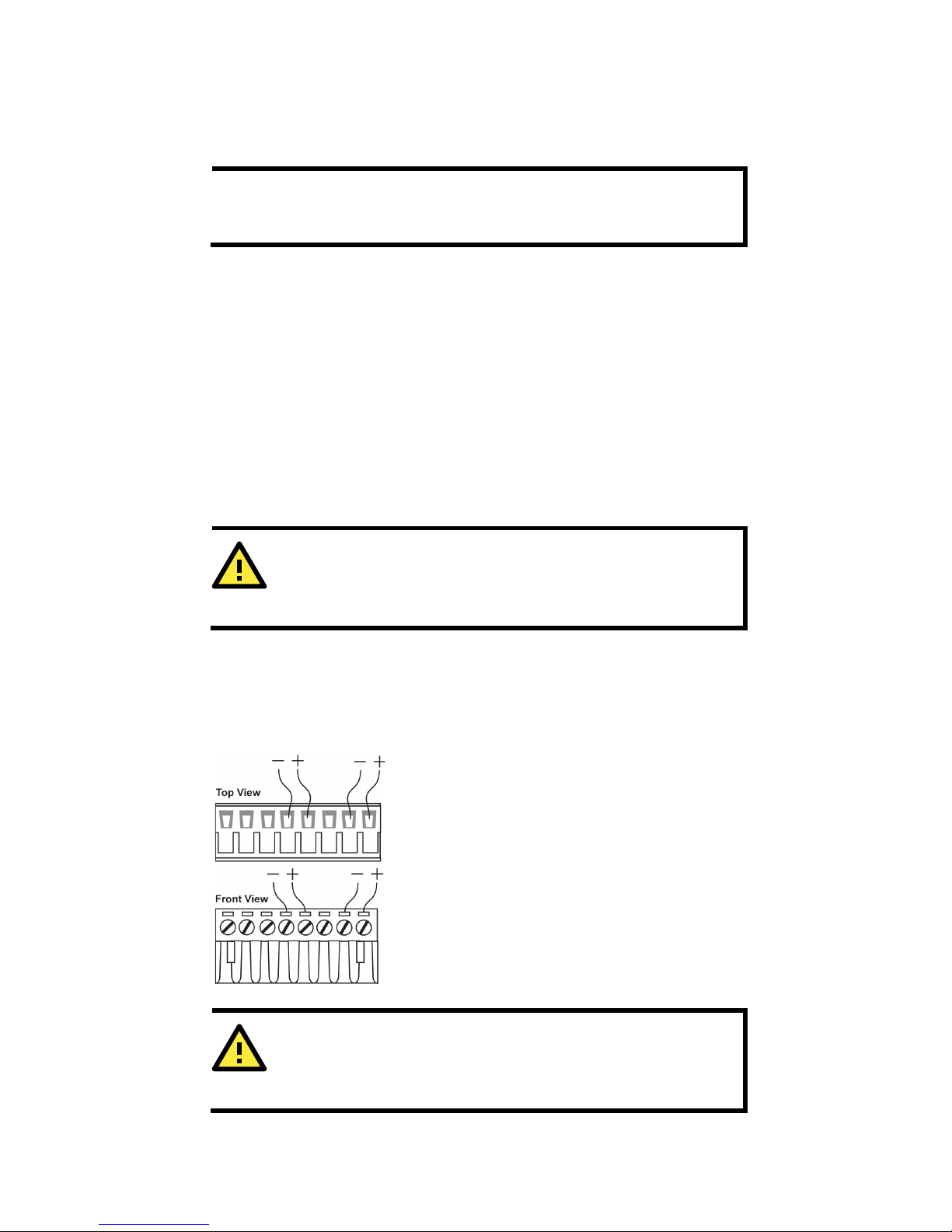

Wiring the Redundant Power Inputs

The top five contacts of the 8-contact terminal block connector on the

PTC-101-M12’s top panel are used for the two DC inputs. Top and front

views of one of the terminal block connectors are shown here.

STEP 1: Insert the negative/positive DC wires

into the V

-/V+ terminals.

STEP 2:

To keep the DC wires from pulling

loose, use a small flat

-blade screwdriver to

tighten the wire

-clamp screws on the front of

the terminal block connector.

STEP 3:

Insert the plastic terminal block

connector prongs into the terminal block

receptor, which is located on the

C-101-M12’s top panel.

ATTENTION

Before connecting the PTC

-101-M12 to the DC power inputs,

make sure the voltage of the DC power source is stable.

- 6 -

Communication Connections

The PTC-101-M12 has one 10/100BaseT(X) Ethernet port, and one

100BaseFX (SC or ST type connector) fiber port.

10/100BaseT(X) Ethernet Port Connection

The 10/100BaseT(X) ports located on the PTC-101-M12’s front panel are

used to connect to Ethernet-enabled devices.

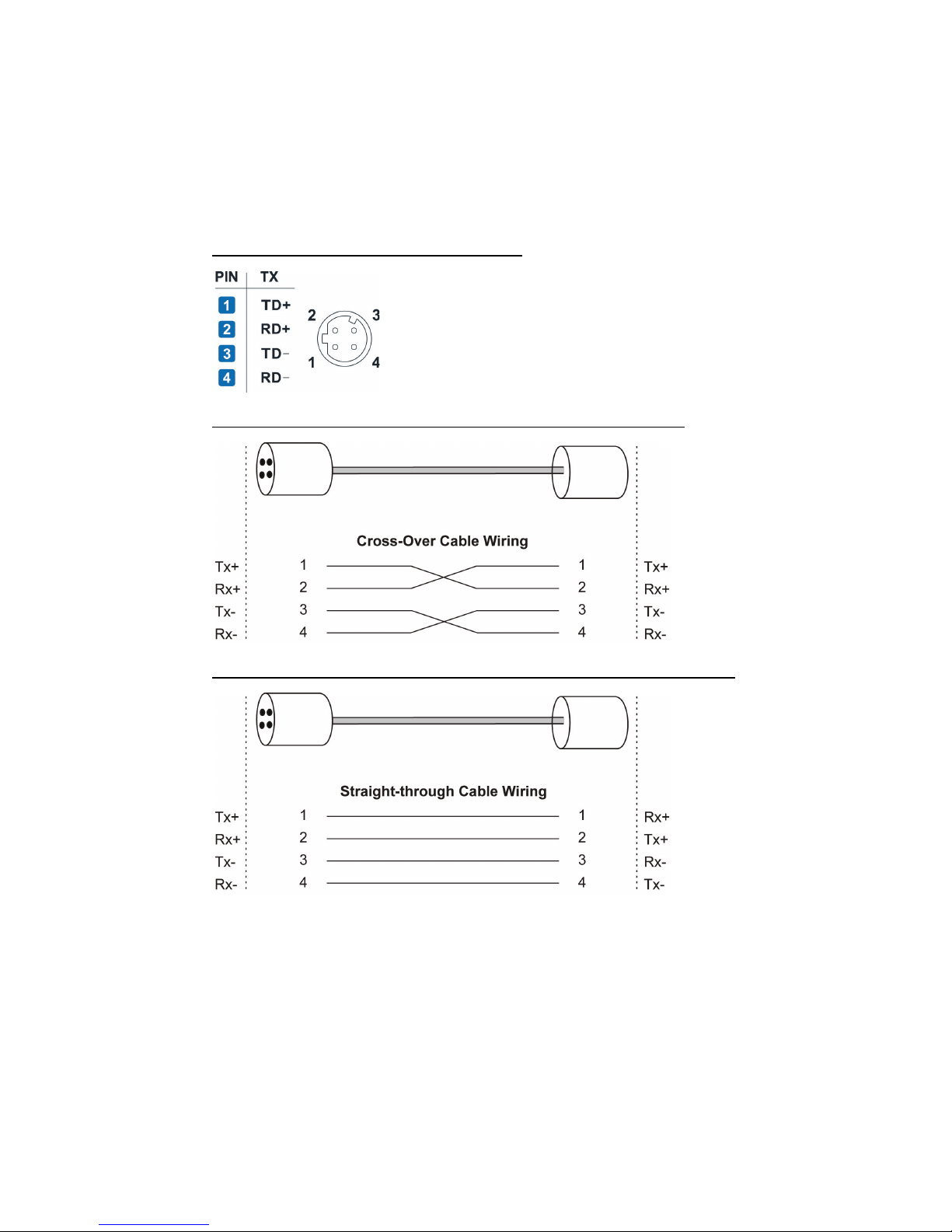

Pinouts for the 10/100BaseT(X) Ports

M12 (4-pin, M) to M12 (4-pin, M) Cross-Over Cable Wiring

M12 (4-pin, M) to M12 (4-pin, M) Straight-Through Cable Wiring

Auto MDI/MDI-X Connection

The Auto MDI/MDI-X function allows users to connect PTC-101-M12’s

10/100BaseTX ports to any kind of Ethernet device, without needing to

pay attention to the type of Ethernet cable being used for the connection.

This means that you can use either a straight-through cable or cross-over

cable to connect the PTC-101-M12 to Ethernet devices.

- 7 -

100BaseFX Ethernet Port Connection

The concept behind the SC port and cable is quite straightforward.

Suppose you are connecting devices I and II. Contrary to electrical signals,

optical signals do not require a circuit in order to transmit data.

Consequently, one of the optical lines is used to transmit data from device

I to device II, and the other optical line is used transmit data from device

II to device I, for full-duplex transmission.

All you need to remember is to connect the Tx (transmit) port of device I

to the Rx (receive) port of device II, and the Rx (receive) port of device I

to the Tx (transmit) port of device II. If you are making your own cable,

we suggest labeling the two sides of the same line with the same letter

(A-to-A and B-to-B, as shown below, or A1-to-A2 and B1-to-B2).

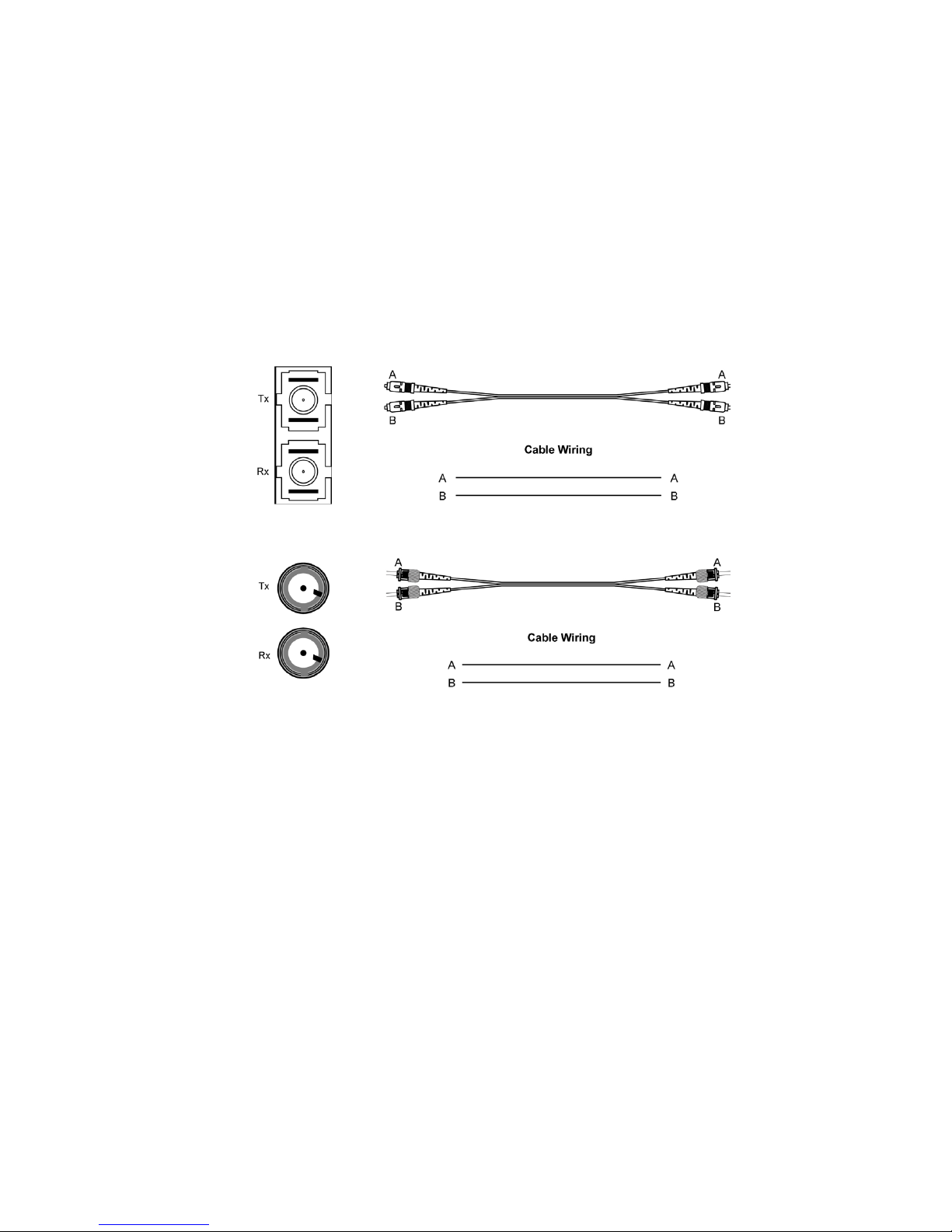

SC-Port Pinouts

SC-Port to SC-Port Cable Wiring

ST-Port Pinouts

ST-Port to ST-Port Cable Wiring

Redundant Power Inputs

The PTC-101-M12 has two power inputs, which can be connected

simultaneously to live DC power sources. If one power source fails, the

other live source acts as a backup, and automatically supplies all of the

PTC-101-M12’s power needs.

- 8 -

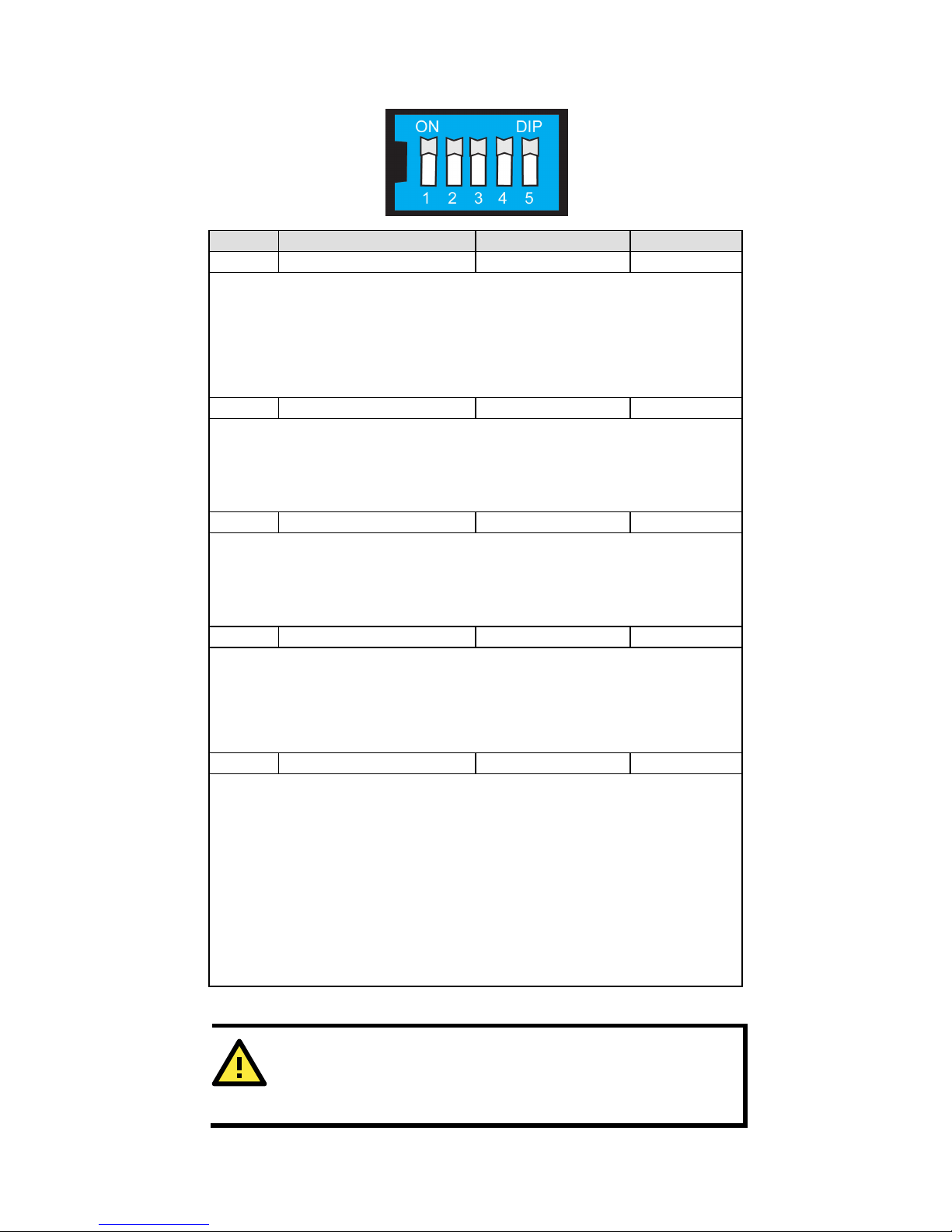

DIP Switch Settings

DIP No.

Function

OFF

Auto Negotiation

Enable

Disable

“ON”:

Enables the

“Auto Negotiation” function. The speed and duplex

states for each port link segment are automatically configured

using the highest performance interoperation mode.

“OFF”:

Disables the “Auto Negotiation” function. The speed and duplex

states depend on the

manual setting configuration.

Force TP Speed

100 Mbps

10 Mbps

(Only when Auto Negotiation is disabled)

“ON”:

Forces the Ethernet port to use 100 Mbps transmission.

“OFF”:

Forces the Ethernet port to use 10 Mbps transmission.

Force TP Duplex

Full Duplex

Half Duplex

(Only when Auto Negotiation is disabled)

“ON”:

Forces the Ethernet port to use Full Duplex.

“OFF”:

Forces the Ethernet port to use Half Duplex.

Link Fault Pass Through

Enable

Disable

“ON”:

Enables “Link Fault Pass Through.” The link status on the TX port

will inform the FX port of the same device and vice versa.

“OFF”:

Disables “Link Fault Pass Through.” The link status on the TX port

will not inform the FX port.

Operating Mode

Store-and-Forward

Pass Through

“ON”:

Selects

“Store-and-

Forward” mode. Begins to forward a packets

to a destination port after an entire packet is received. The latency

depends on the packet length.

“OFF”:

Selects “Pass Through” mode. Operates with the minimum

latency. Both transceivers are

interconnected via internal MIIs

and the internal switch engine and data buffer are not used.

Note:

With “Pass Through” mode enabled, the Ethernet port and fiber

port should transmit at 100 Mbps, which is equivalent to full

duplex mode.

Default DIP settings are all in the ON position.

ATTENTION

After changing the DIP switch setting, you will need to power off

and then power on the PTC-101-M12 to activate the new setting.

- 9 -

LED Indicators

The front panel of the PTC-101-M12 has several LED indicators. The

function of each LED is described in the table below.

LED

Color

State

Description

PWR1 Green

Power is being supplied to power

input PWR1.

Off

Power is not being supplied to

power input PWR1.

PWR2 Green

Power is being supplied to power

input PWR2.

Off

Power is not being supplied to power

input PWR2.

Fiber/Link

/Act Green

Fiber port is active.

Blinking Data is being transmitted or

received.

Off

Fiber is inactive.

10M Yellow

10 Mbps Ethernet port link is active.

Blinking Data is being transmitted at

10 Mbps.

Off

10 Mbps Ethernet port link is

inactive.

100M Green

100 Mbps Ethernet port is active.

Blinking

Data is being transmitted at

100 Mbps.

Off

100 Mbps Ethernet port link is

inactive.

Specifications

Technology

Standards

IEEE 802.3 for 10BaseT

IEEE 802.3u for 100BaseT(X), 100BaseFX

Interface

M12 (TP) port

10/100BaseT(X)

Fiber port

100BaseFX (SC/ST connectors)

LED Indicators

PWR1, PWR2, Fiber Link, 10/100M (TP port)

Dip Switches

Dip No.

Function

OFF

Auto Negotiation

Enable

Disable

Force TP Speed

100 Mbps

10 Mbps

Force TP Duplex

Full Duplex

Half Duplex

Link Fault Pass

Through

Enable

Disable

Operating Mode

Store-and-Forward

Pass Through

Note: Default DIP settings are in the ON position.

Alarm Contact

One relay output with current carrying

capacity of 1 A @ 24 VDC

- 10 -

Optical Fiber: 100BaseFX, Single-mode

Wavelength

1310 nm

Max. TX

0 dBm

Min. TX

-5 dBm

RX Sensitivity

-34 dBm

Link Budget

29 dB

Typical Distance

40 km*

Saturation

-3 dBm

* 9/125 μm, 3.5 PS/(nm*km) fiber optic cable

Power Requirements

Input Voltage

20 to 72 VDC

Power Consumption

170 mA @ 20 VDC

Fuse Rating

3.15A(T)2

Connection

Removable terminal block

Overload Current

Protection

1.6 A (protects against two signals shorted

together)

Reverse Polarity

Protection

Present

Physical Characteristics

Housing

Metal

Dimensions

112 x 145 x 67 mm (4.40 x 5.70 x 2.63 in)

Environmental Limits

Operating Temperature

-40 to 85°C (-40 to 185°F)

Storage Temperature

-40 to 85°C (-40 to 185°F)

Ambient Relative

Humidity

5 to 90% (non-condensing)

Regulatory Approvals

Safety

UL 60950-1

EMI

FCC Part 15, CISPR (EN55022) class A

EMS EN 61000-4-2, Level 4

EN 61000-4-3, Level 3

EN 61000-4-4, Level 4

EN 61000-4-5, Level 4

EN 61000-4-6, Level 3

EN 61000-4-8, Level 5

EN 61000-4-11, Criteria B

Rail Traffic

EN 50121-4, EN 50155

Vibration

EN 50125-3

Warranty

Warranty Period

5 years

Details

See www.moxa.com/warranty

Indice

Altri manuali Moxa Technologies Convertitore multimediale

Moxa Technologies

Moxa Technologies PTC-101 Series Manuale utente

Moxa Technologies

Moxa Technologies TCF-142-M-ST Manuale utente

Moxa Technologies

Moxa Technologies NPort 5410 Manuale utente

Moxa Technologies

Moxa Technologies Transio TCC-82 Manuale utente

Moxa Technologies

Moxa Technologies Transio A52 Manuale utente

Moxa Technologies

Moxa Technologies IMC-21A IMC-21A Manuale utente

Moxa Technologies

Moxa Technologies NPort 5100A Series Manuale utente

Moxa Technologies

Moxa Technologies TCF-142-M-ST Manuale utente

Moxa Technologies

Moxa Technologies VPort 25 Series Manuale utente

Moxa Technologies

Moxa Technologies UPort 1400-G2 Series Manuale utente

Moxa Technologies

Moxa Technologies VPort 351 Series Manuale utente

Moxa Technologies

Moxa Technologies MGate 5118 Series Manuale utente

Moxa Technologies

Moxa Technologies ICF-1180I Series Manuale utente

Moxa Technologies

Moxa Technologies ME50-M-SC Manuale utente

Moxa Technologies

Moxa Technologies UPort 1400-G2 Series Manuale utente

Moxa Technologies

Moxa Technologies MIINEPORT E1 Manuale utente

Moxa Technologies

Moxa Technologies IMC-P101 Series Manuale

Moxa Technologies

Moxa Technologies VPort 254 Series Manuale utente

Moxa Technologies

Moxa Technologies NPort 5600-8-DT Manuale utente

Moxa Technologies

Moxa Technologies CSM-200-1213 Manuale utente

Moxa Technologies

Moxa Technologies UPORT 1100 series Manuale utente

Moxa Technologies

Moxa Technologies CSM-400 Series Manuale utente

Moxa Technologies

Moxa Technologies VPort 461A Series Manuale utente

Moxa Technologies

Moxa Technologies VPort 2141 Manuale utente

Manuali Convertitore multimediale popolari di altre marche

SoundTraxx

SoundTraxx Blunami BLU-2200 Manuale utente

SPROLINK

SPROLINK VA1 Manuale utente

Acclaim Lighting

Acclaim Lighting DDC-1-AC Manuale utente

Nikon

Nikon AF-S TC-20E III Manuale utente

Axis

Axis AXIS Q7406 Manuale utente

Omega

Omega TAC80B-J Manuale utente

Zoom

Zoom Thunderbolt TAC-2R Manuale utente

OST

OST iConverter 10/100M Manuale utente

Vertiv

Vertiv Netsure Manuale utente

birddog

birddog MINI Manuale utente

Roland

Roland GI-10 Manuale utente

Wallenstein

Wallenstein WX310 Manuale utente

Pace

Pace MSS 200-1 Manuale utente

Solar Converters

Solar Converters EQ 12/24-50 Manuale utente

CYP

CYP EL-7400V Manuale utente

TIE

TIE MIDI 1i1o Manuale utente

DCS

DCS Vivaldi Upsampler Manuale utente

Westermo

Westermo MCW-211 SERIES Manuale utente
