Moxa Technologies AWK-4121 Manuale utente

Moxa AirWorks AWK-4121

User’s Manual

First Edition, January 2009

www.moxa.com/product

Reproduction without permission is prohibited.

Moxa AirWorks AWK-4121

User’s Manual

The Moxa software described in this manual is furnished under a license agreement and may be used only in

accordance with the terms of that agreement.

Reproduction without permission is prohibited.

Trademarks

MOXA is a registered trademark of Moxa Inc.

All other trademarks or registered marks in this manual belong to their respective manufacturers.

Disclaimer

Information in this document is subject to change without notice and does not represent a commitment on the

part of Moxa.

Moxa provides this document “as is,” without warranty of any kind, either expressed or implied, including, but

not limited to, its particular purpose. Moxa reserves the right to make improvements and/or changes to this

manual, or to the products and/or the programs described in this manual, at any time.

Information provided in this manual is intended to be accurate and reliable. However, Moxa assumes no

responsibility for its use, or for any infringements on the rights of third parties that may result from its use.

This product might include unintentional technical or typographical errors. Changes are periodically made to the

information herein to correct such errors, and these changes are incorporated into new editions of the

publication.

Technical Support Contact Information

www.moxa.com/support

Moxa Americas:

Toll-free: 1-888-669-2872

Tel: +1-714-528-6777

Fax: +1-714-528-6778

Moxa China (Shanghai office):

Toll-free: 800-820-5036

Tel: +86-21-5258-9955

Fax: +86-10-6872-3958

Moxa Europe:

Tel: +49-89-3 70 03 99-0

Fax: +49-89-3 70 03 99-99

Moxa Asia-Pacific:

Tel: +886-2-8919-1230

Fax: +886-2-8919-1231

Table of Contents

Chapter 1 Introduction..................................................................................................1-1

Overview.................................................................................................................................. 1-2

Package Checklist .................................................................................................................... 1-2

Product Features ...................................................................................................................... 1-2

Product Specifications ............................................................................................................. 1-3

Functional Design .................................................................................................................... 1-5

LED Indicators ............................................................................................................. 1-5

Beeper........................................................................................................................... 1-6

Reset Button ................................................................................................................. 1-6

Relay (Digital Output) .................................................................................................. 1-7

Chapter 2 Getting Started.............................................................................................2-1

First-time Installation and Configuration................................................................................. 2-2

Communication Testing ........................................................................................................... 2-3

Function Guide ........................................................................................................................ 2-4

Chapter 3 Web Console Configuration........................................................................3-1

Configuration by Web Browser ............................................................................................... 3-2

Overview.................................................................................................................................. 3-4

Basic Settings........................................................................................................................... 3-5

System Info Settings..................................................................................................... 3-5

Network Settings .......................................................................................................... 3-6

Time Settings................................................................................................................ 3-7

Wireless Settings...................................................................................................................... 3-8

Basic Wireless Settings................................................................................................. 3-8

WLAN Security Settings ............................................................................................ 3-12

Advanced Wireless Settings ....................................................................................... 3-20

WLAN Certification Settings (for EAP-TLS in Client mode only)......................... 3-21

Advanced Settings ................................................................................................................. 3-22

DHCP Server (for AP mode only)............................................................................. 3-22

Packet Filters .............................................................................................................. 3-24

RSTP Settings (for AP mode only)........................................................................... 3-27

SNMP Agent .............................................................................................................. 3-29

Auto Warning Settings ........................................................................................................... 3-31

System Log................................................................................................................. 3-31

Syslog ......................................................................................................................... 3-32

E-mail ......................................................................................................................... 3-33

Relay........................................................................................................................... 3-34

Trap ............................................................................................................................ 3-35

Status...................................................................................................................................... 3-36

Associated Client List (for AP mode only)................................................................. 3-36

DHCP Client List (for AP mode only) ....................................................................... 3-36

System Log................................................................................................................. 3-37

Relay Status ................................................................................................................ 3-37

DI and Power Status ................................................................................................... 3-38

Wireless Status ........................................................................................................... 3-38

Maintenance........................................................................................................................... 3-38

Console Settings ......................................................................................................... 3-39

Ping............................................................................................................................. 3-39

Firmware Upgrade...................................................................................................... 3-40

Config Import Export ................................................................................................. 3-40

Load Factory Default.................................................................................................. 3-41

Password..................................................................................................................... 3-41

Save Configuration ................................................................................................................ 3-41

Restart .................................................................................................................................... 3-42

Logout.................................................................................................................................... 3-43

Chapter 4 Other Console Configurations....................................................................4-1

RS-232 Console Configuration (115200, None, 8, 1, VT100)................................................. 4-2

Configuration by Telnet and SSH Consoles............................................................................. 4-4

Configuration by Web Browser with HTTPS/SSL .................................................................. 4-5

Disabling Telnet and Browser Access...................................................................................... 4-7

Chapter 5 References....................................................................................................5-1

Wireless Distribution System (WDS) ...................................................................................... 5-2

Beacon ..................................................................................................................................... 5-4

DTIM ....................................................................................................................................... 5-4

Fragment .................................................................................................................................. 5-4

RTS Threshold ......................................................................................................................... 5-4

STP and RSTP ......................................................................................................................... 5-4

The STP/RSTP Concept ............................................................................................... 5-4

Differences between RSTP and STP ............................................................................ 5-5

Chapter 6 Supporting Information...............................................................................6-1

About This User’s Manual ....................................................................................................... 6-2

DoC (Declaration of Conformity)............................................................................................ 6-3

Federal Communication Commission Interference Statement ..................................... 6-3

R&TTE Compliance Statement.................................................................................... 6-3

Firmware Recovery.................................................................................................................. 6-4

Technical Support Contact Information................................................................................... 6-5

Chapter 1 Introduction

Moxa AirWorks AWK-4121 enables wireless access to network resources. The AWK-4121 is

rated to operate at temperatures ranging from -40 to 75°C and is rugged enough for any harsh

industrial environment.

In this chapter, we cover the following topics:

Overview

Package Checklist

Product Features

Product Specifications

Functional

¾LED Indicators

¾Beeper

¾Reset Button

¾Relay (Digital Output)

AirWorks AWK-4121 User’s Manual Introduction

Overview

The AWK-4121 outdoor wireless AP/bridge/client is an ideal 3-in-1 solution for industrial

applications that are hard to wire, too expensive to wire, or use mobile equipment that connect to a

TCP/IP network.

The AWK-4121 is rated to operate at temperatures ranging from -40 to 75°C, and its dust-tight and

weatherproof design is IP67-rated. An IP67 rating means the device is completely protected from

dust and is protected against the effects of immersion in water between 15cm and 1m in depth.

This means you can set up a WLAN or extend existing wired networks to outdoor locations and

still maintain a reliable connection. The AWK-4121 has two redundant DC power inputs for

increased reliability, can be powered via PoE, and is easy to deploy.

Package Checklist

Moxa’s AWK-4121 is shipped with the following items. If any of these items is missing or

damaged, please contact your customer service representative for assistance.

y1 AWK-4121

y2 Omni-directional antennas (5dBi, N-type male, 2.4 GHz)

y1 Quick Installation Guide

y1 Software CD

y1 Moxa Product Warranty Booklet

y1 Accessory Pack (including wall-mounting kit, screws and RJ45 field installable plug)

NOTE

The above items come with the AWK-4121 standard version. The package contents may vary in

different customized versions.

Product Features

yIEEE802.11a/b/g Compliant

yThree-in-one design (AP/Bridge/Client)

yAdvanced Wireless Security:

¾64-bit and 128-bit WEP/WPA/WPA2

¾SSID Hiding/IEEE 802.1X/RADIUS

¾Packet access control & filtering

ySTP/RSTP support for redundancy of system networking

yRS-232 console management

y2DI+1DO for on-site monitoring and warming

yFree firmware update for more advanced functions

yOperating temperature ranges from -40 to 75℃

yPower input by redundant 24 VDC power inputs or Power over Ethernet

yWall mounting ability

1-2

AirWorks AWK-4121 User’s Manual Introduction

yIP67-rated metal housing

Product Specifications

WLAN

Standards IEEE 802.11a/g/b for Wireless LAN

IEEE 802.11i Wireless Security

IEEE 802.3u 10/100BaseT(X) for Ethernet LAN

EEE 802.3af for Power-over-Ethernet

IEEE 802.1D/w STP/RSTP

Spread Spectrum and

Modulation (Typical)

802.11b: DSSS with DBPSK, DQPSK, CCK

802.11g: OFDM with BPSK, QPSK, 16QAM, 64QAM

802.11a: OFDM with BPSK, QPSK, 16QAM, 64QAM

Operating Channels US: 2.412 to 2.462 GHz (11 channels)

5.15 to 5.25 GHz (4 channels)

EU: 2.412 to 2.472 GHz (13 channels)

5.15 to 5.25 GHz (4 channels)

JP: 2.412 to 2.472 GHz (13 channels, OFDM)

2.412 to 2.484 GHz (14 channels, CCK)

5.15 to 5.25 GHz (4 channels for W52)

Security 64-bit and 128-bit WEP encryption, WPA /WPA2

(IEEE 802.1X/ RADIUS, TKIP and AES)

Protocol General Protocols: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP,

SNTP, TCP, UDP, RADIUS, SNMP, RTP

AP-only Protocols: ARP, BOOTP, DHCP, dynamic VLAN-Tags

for 802.1X-Clients, STP/RSTP (IEEE 802.1D/w)

Data Rates 802.11b: 1, 2, 5.5, 11 Mbps

802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

Transmit Power 802.11b: 1 to 11 Mbps: Typ. 18±1.5 dBm

802.11g: 6 to 24 Mbps: Typ. 18±1.5 dBm

36 to 48 Mbps: Typ. 16±1.5 dBm

54 Mbps: Typ. 15±1.5 dBm

802.11a: 6 to 24 Mbps: Typ. 16±1.5 dBm

36 to 48 Mbps: Typ. 14±1.5 dBm

54 Mbps: Typ. 13±1.5 dBm≥17dBm

Receiver Sensitivity 802.11b: -92 dBm @ 1 Mbps, -90 dBm @ 2 Mbps,

-88 dBm @ 5.5 Mbps, -84dBm @ 11 Mbps

802.11g: -87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps,

-85 dBm @ 12 Mbps, -82dBm @ 18 Mbps,

-80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps,

-72dBm @ 48 Mbps, -70 dBm @ 54 Mbps

802.11a: -87 dBm @ 6 Mbps, -86 dBm @ 9 Mbps,

-85 dBm @ 12 Mbps, -82dBm @ 18 Mbps,

-80 dBm @ 24 Mbps, -76 dBm @ 36 Mbps,

-72dBm @ 48 Mbps, -70 dBm @ 54 Mbps

Interface

Antenna Connector N-type (female)

DI/DO Connection 8-pole M12 connector

Alarm Contact 1 relay output (capacity: 1A @24VDC)

Digital Input 2 electrically-isolated inputs

‧0 to 3.3V for state “0” (OFF)

1-3

AirWorks AWK-4121 User’s Manual Introduction

‧10 to 48V for state “1” (ON)

‧Max. input current: 8 mA

Console RS-232 (RJ45 type)

LAN Port 10/100BaseT(X) auto negotiation speed

LED Indicators PWR, FAULT, STATE, WLAN and LAN

Power

Input Voltage 12 to 48 VDC, redundant dual DC power inputs or

48 VDC Power-over-Ethernet (IEEE 802.3af)

Input Current 0.494 to 0.121 A

Input Current (@ 24VDC) 0.3 A

Overload Current Protection 1.6 A

Reverse Polarity Protection Present

Mechanical

Dimensions 224 x 147.7 x 66.5 mm (8.82 x 5.82 x 2.62 in)

Weight 1.2 kg

Installation Wall Mounting or DIN-Rail (with optional wall mounting kit)

Casing IP67 protection, aluminum case

Environment

Operating Temperature: -40 to 75°C (-40 to 167°F)

Storage Temperature: -40 to 85ºC (-40 to 185ºF)

Ambient Relative Humidity 5 to 95% (non-condensing)

Regulatory Approvals*

Radio: EN300 328/ EN301 893/ EN301 489-1/-17

ARIB STD-33/T66/T71 (Japan)

EMI: FCC Part 15

* Please check Moxa’s website for the most up-to-date certification status.

Warranty 5 years

Details: See http://

www.moxa.com/warranty

ATTENTION

The AWK-4121 is NOT a portable mobile device and should be located at least 20cm away from

the human body.

1-4

AirWorks AWK-4121 User’s Manual Introduction

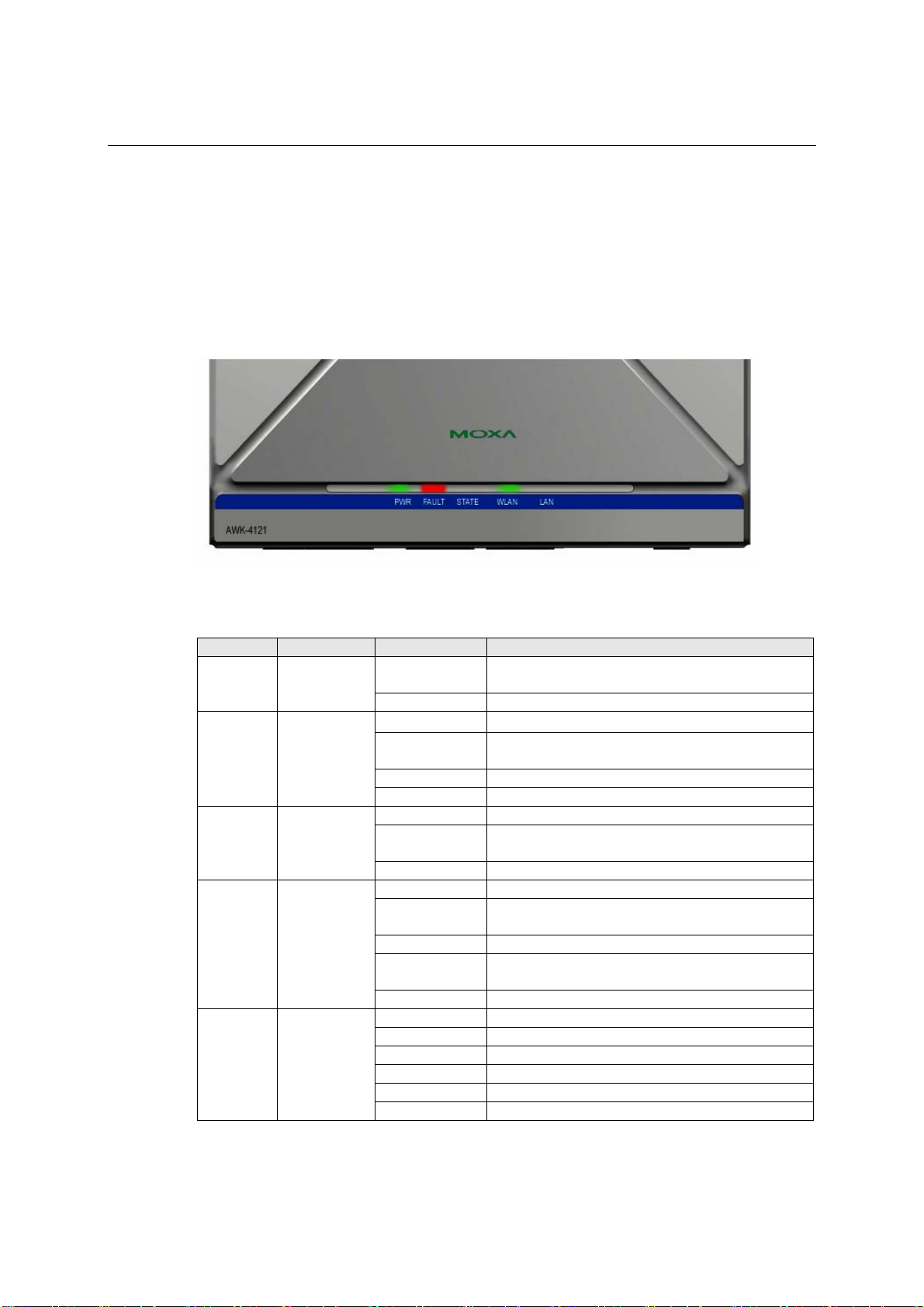

Functional Design

LED Indicators

The LEDs on the front panel of AWK-4121 allow you to identity the status and wireless settings

quickly.

The LED for FAULT indicates the system failure and user-configured events. If the AWK-4121

cannot retrieve the IP address from a DHCP server, the FAULT LED will blink at an interval of

one second.

The following table is a summary for the wireless settings and LED displays. You can check the

status of the AWK-4121 by reading these LEDs. More information about “Basic Wireless

Settings” is presented in Chapter 3.

LED Color State Description

On Power is being supplied (from power input 1 or 2,

or PoE).

PWR Green

Off Power is not being supplied

On Relay is event-triggered.

Blink (slow) Cannot get an IP address from the DHCP server

(interval: 1 sec)

Blink (fast) IP address conflict (interval: 0.5 sec)

FAULT Red

Off Normal status

Green Software Ready

Green Blink The AWK Search Utility has located the AWK.

(interval: 1sec)

STATE Green/Red

Red Booting or Error condition

Green On WLAN functions in Client mode.

Green Blink WLAN’s data communication is run in Client

mode

Amber On WLAN functions in AP/Bridge mode.

Amber Blink WLAN’s data communication is run in AP/Bridge

mode

WLAN Green/Amber

Off WLAN is not in use or not working properly.

Yellow On LAN port’s 10Mbps link is active.

Yellow Blink Data is being transmitted at 10 Mbps

Yellow Off LAN port’s 10Mbps link is inactive.

Green On LAN port’s 100Mbps link is active.

Green Blink Data is being transmitted at 100 Mbps

LAN Yellow/ Green

Green Off LAN port’s 100Mbps link is inactive.

1-5

AirWorks AWK-4121 User’s Manual Introduction

ATTENTION

When the LEDs for STATE (Green), FAULT, and WLAN all light up simultaneously and blink at

one-second intervals, it means the system failed to boot. This may be due to improper operation or

uncontrollable issues, such as an unexpected shutdown during firmware update. To recover the

firmware, refer to “Firmware Recovery” in Chapter 6.

Beeper

The beeper signals that the system is ready with two short beeps.

Reset Button

The RESET button is located on the bottom panel of the AWK-4121. You can reboot the

AWK-4121 or reset it to factory default settings by pressing the RESET button with a pointed

object such as an unfolded paper clip.

ySystem reboot: Hold the RESET button down for under 5 seconds and then release.

yReset to factory default: Hold the RESET button down for over 5 seconds until the STATE

LED starts blinking green. Release the button to reset the AWK-4121.

STEP 1: Remove the reset button cover. STEP 2: Using a pointed object, press and

hold the reset button.

1-6

Altri manuali per AWK-4121

Indice

Altri manuali Moxa Technologies Router di rete

Moxa Technologies

Moxa Technologies EDS-G308 Manuale

Moxa Technologies

Moxa Technologies EDR-G9010 Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-505A Series Manuale utente

Moxa Technologies

Moxa Technologies ioLogik E1242 Manuale utente

Moxa Technologies

Moxa Technologies MAR-2000 Manuale utente

Moxa Technologies

Moxa Technologies E Series Manuale utente

Moxa Technologies

Moxa Technologies SDS-3008 Series Manuale utente

Moxa Technologies

Moxa Technologies EDR-8010 Series Manuale utente

Moxa Technologies

Moxa Technologies EDS-210A-1GTX-1GSFP-4SFP Manuale utente

Moxa Technologies

Moxa Technologies TN-4900 Series Manuale utente

Moxa Technologies

Moxa Technologies PT-7528 Manuale utente

Moxa Technologies

Moxa Technologies NAT-102 Series Manuale utente

Moxa Technologies

Moxa Technologies OnCell 5004 Series Manuale utente

Moxa Technologies

Moxa Technologies TSN-G5000 Series Manuale utente

Moxa Technologies

Moxa Technologies ioLogik E2200Series Manuale utente

Moxa Technologies

Moxa Technologies ETHERDEVICE EDS-308 Manuale

Moxa Technologies

Moxa Technologies ToughNet TN-5308-4 Manuale

Moxa Technologies

Moxa Technologies EDS-405 Manuale utente

Moxa Technologies

Moxa Technologies EtherDevice EDR-G903 Manuale

Moxa Technologies

Moxa Technologies PowerTrans PT-7728 Manuale

Moxa Technologies

Moxa Technologies UC-8112-LX-STK Manuale utente

Moxa Technologies

Moxa Technologies EDS-408A Manuale

Moxa Technologies

Moxa Technologies OnCell 5004 Series Manuale utente

Moxa Technologies

Moxa Technologies AirWorks AWK-1137C-EU Manuale utente

Manuali Router di rete popolari di altre marche

Allnet

Allnet ALL0333AU Manuale utente

HomeSeer

HomeSeer HT-SEL Manuale utente

Sercomm

Sercomm Genesis OC3505D Manuale utente

Billion

Billion BIPAC 5102 Series Manuale utente

TP-Link

TP-Link TD-8817 Manuale utente

Motorola

Motorola MR1900 Manuale utente

Digi

Digi IX14 Manuale utente

Cisco

Cisco NCS 540 Manuale

XAVi

XAVi X8821e Manuale utente

BEC

BEC 6200WZL Manuale utente

MikroTik

MikroTik hAP ac3 Series Manuale utente

Korenix

Korenix JetNet 5428G Series Manuale utente

NETGEAR

NETGEAR FS526T - Switch Manuale utente

Korenix

Korenix JetNet 5710G Series Manuale utente

Automated Logic

Automated Logic ZN551 Manuale del proprietario

Cisco

Cisco ASR 1000 Series Manuale dell'operatore

EnGenius

EnGenius ESR-9710 Manuale utente

Cisco

Cisco 805 Series Istruzioni operative e di sicurezza
