Moyerdiebel 201HT Manuale utente

201HT

Undercounter High Temperature

Dishwashing Machine

with Built-in Booster Heater

201HT UNDERCOUNTER

MD031 Printed in U.S.A.

Moyer Diebel – USA

P.O. Box 4183, Winston-Salem, NC 27115 Tel: 336/661-1992 Fax: 336/661-9546 800/228-8350 www.moyerdiebel.com

Moyer Diebel Ltd. – Canada

2674 North Service Rd., Jordan Station, Ontario, Canada L0R 1S0 Tel: 800/263-5798 Fax: 905/562-4618

[email protected]

SPECIFIER STATEMENT

Specified unit will be Moyer Diebel Model 201HT

undercounter high temperature dishwashing machine

with built-in booster.

Features include 15-3/4” door opening, standard detergent

and rinse-aid dispensing pumps. Built-in 40°F/22°C rise

booster, and wash tank heater maintains water required

temperature.

1 year parts and labor warranty.

Project

Item No.

Quantity

STANDARD FEATURES

• NEW Exclusive Feature – Multi-phase allows for

infield conversion from single to three phase

electrical with ease!

• Rinse Sentry feature ensures proper 180°F/82°C final

rinse temperature.

• Built-in booster provides 180°F/82°C final rinse water.

• Pumped drain.

• Detergent and rinse-aid pumps.

• 15-3/4” [400mm] door opening accommodates

larger wares, including trays!

• Upper and lower interchangeable wash/rinse arms

produce sparkling clean ware every time.

• Fully automatic wash/rinse cycle processes a rack

of wares in 141 seconds … 21 racks an hour!

• Complete with two 20” x 20” [508mm x 508mm]

racks (peg rack and flat rack).

• Stainless steel top and side panels.

• Thermostatically controlled wash tank heater

maintains water at the required temperature.

• Heavy-duty stainless steel construction.

• Fill and dump.

• One year parts and labor warranty.

NEW!

OPTIONS & ACCESSORIES

70°F/39°C rise booster

CST – Combination sink/table

Machine on right P/N 403561

CST – Combination sink/table

Machine on left P/N 403562

Flat bottom dishrack P/N 101273

Peg dishrack P/N 101285

6” Stand P/N 0712393

17RS – 17” Stand P/N 0708757



*Note: Electrical supply service

must be a 3-wire plus ground

for connection as shown.

Note: Field convertible to

accept 3 phase power.

Warning: Plumbing and electrical connections should

be made by qualified personnel who will observe all the

applicable plumbing, sanitary and safety codes.

Due to an ongoing value analysis program at Moyer

Diebel, specifications in this catalog are subject to

change without notice.

Dimensions shown in inches and [millimeters]

(1M) 9/07

SPECIFICATIONS

Capacity

Racks per hr. 21

Motor Horsepower

Wash 1

Water Consumption

Per hr. (max. use) 38.4 US gal;

Per rack 1.8 US gal;

Temperatures °F

Wash (minimum) 150

Rinse (minimum) 180

Heating

Tank heat, electric (kW) 2.0

Electric booster

(kW required for 40°F rise) 6

(kW required for 70°F rise) 9

Time Cycle in Seconds

Wash 90

Rinse 26

Drain/fill 25

Total 141

201HT

Undercounter

High Temperature Dishwashing Machine

with Built-in Booster Heater

MOYER DIEBEL USA

201HT

2 3

15-3/4" [400]

4" [102]

25" [635]

2" [51]

33-3/4" [857]

15-3/4"

[400]

Clearance

40-1/2"

[1029]

24" [610]

MOYER DIEBEL USA

201HT

2 3

15-3/4" [400]

4" [102]

25" [635]

2" [51]

33-3/4" [857]

15-3/4"

[400]

Clearance

40-1/2"

[1029]

24" [610]

MOYER DIEBEL USA

201HT

2 3

15-3/4" [400]

4" [102]

25" [635]

2" [51]

33-3/4" [857]

15-3/4"

[400]

Clearance

40-1/2"

[1029]

24" [610]

115V

115V208V

L1 L2 N G

Elec.

Specs.

Rated

Amps

Minimum

Supply Ckt.

Conductor

Ampacity

Maximum

Overcurrent

Protective

Device

208/60/1 32 40 40

240/60/1 36 40 40

208/60/3 22 30 30

240/60/3 24 30 30

201HT with 40°F Rise Booster

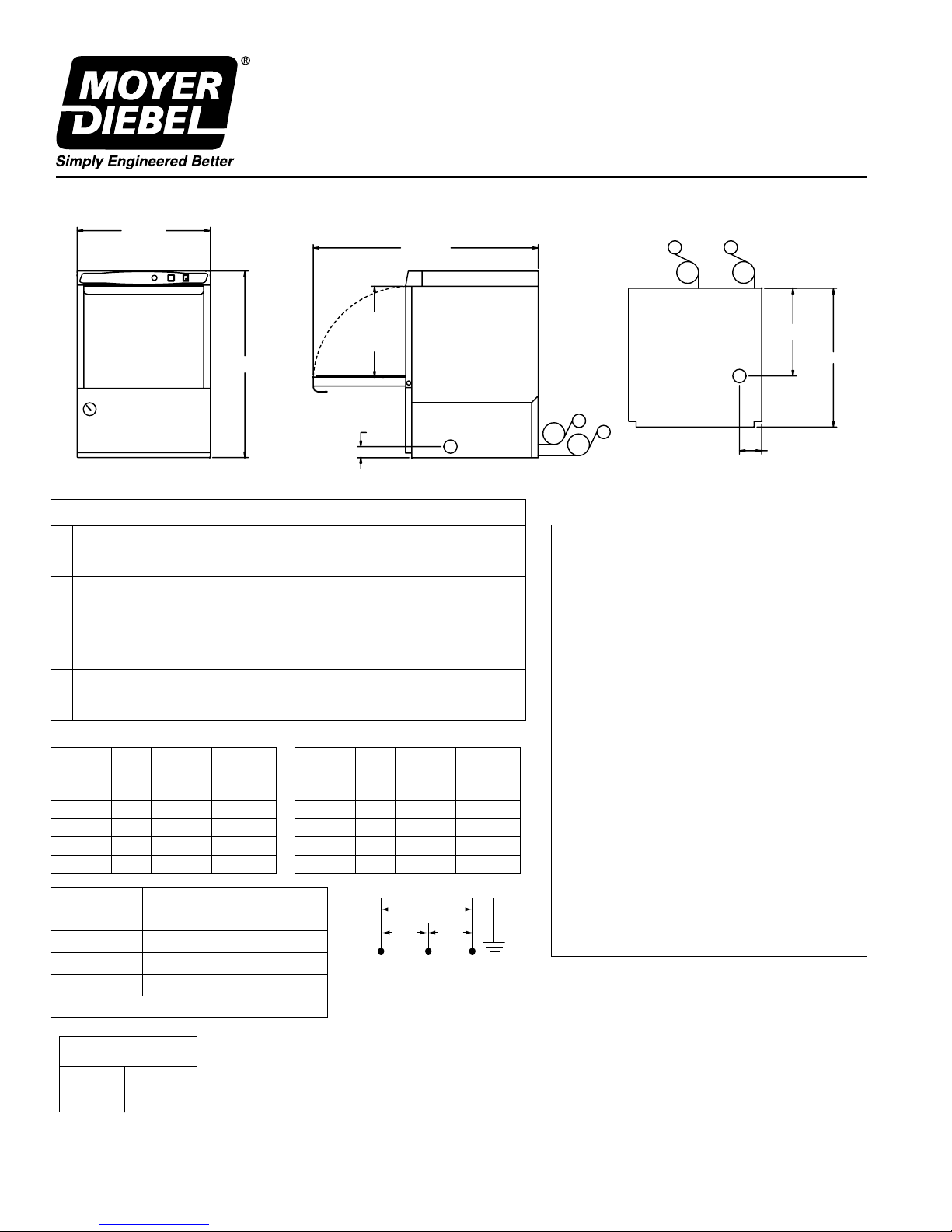

Plan ViewFront View Side View

Due to an ongoing value analysis program at Moyer Diebel, specifications in this catalog are subject to change without notice.

201HTN without booster

750 Watt tank heat

Elec. Rated

Specs. Amps

115/60/1 12

Utilities

1Electrical Connection

208-240/60/1; 3 wire plus ground, (See Box).

208-240/60/3; 4 wire plus ground, (See Box).

2Hot Water

1/2” supply; 140°F/60°C Min. hot water connection for 40°F/22°C rise booster;

110°F/43°C Min. hot water connection for 70°F/39°C rise booster. Incoming supply

pressure must maintain a Flow pressure 20-22 PSI (Pressure reducing valve, PRV,

supplied by customer or may be purchased unmounted).

Machine equipped with 3/4” [19] hose connector.

3Drain Connection

5/8” [15.9] I.D. flexible reinforced hose, 6 ft. [1829] long. Max. drain flow 15 US gpm.

[12.5 imp gal] Max. drain height 3 ft. [914]

Uncrated Crated

Height 33-3/4” 39-1/2”

Width 24” 25”

Depth 25” 25-1/2”

Ship Wt. lbs/kg 178 198

* Adjustable foot height - 11/4” [45]

Elec.

Specs.

Rated

Amps

Minimum

Supply Ckt.

Conductor

Ampacity

Maximum

Overcurrent

Protective

Device

208/60/1 45 60 60

240/60/1 50 60 60

208/60/3 29 35 35

240/60/3 33 40 40

201HT with 70°F Rise Booster
