MP-Man BT182PAK Manuale utente

For Model No.

BT182PAK User Manual

Page 1

For your safety – read this user guide carefully to ensure proper use of the product

and to avoid any danger of physical damage

Be cautious while using your MP3player to avoid explosion, fire, electric shock, etc.

When using your player, pay attention to your health, especially the hearing power.

Do not leave the player in a place subject to moisture or temperature higher than 35℃or 5℃.

Do not use earphones while driving or riding a bicycle.

Do not repair device by yourself, or it will cause damage.

Using earphones while walking may cause trac accident.

Avoid getting the player wet or dropped in water.

Do not turn up the volume too high as doctors warn against prolonged exposure to high volume.

Stop using the device or turn down the volume if you encounter problems on your hearing.

Please backup important data onto your computer to avoid data loss.

Always use the accessories provided by or approved by our company.

Note

Please recharge the digital player before using it!

Support Bluetooth function (by connecting it to Bluetooth speakers and headphones)

Support Pedometer and Stopwatch function

MP3/WMA/WAV/OGG/APE/FLAC music file format supported.

Support USB 2.0 capability, much faster than USB 1.1, to enable faster communication with your PC

Support voice recording function.

Support repeat function.

Support sleeping mode.

Page 2

Key features

Page 3

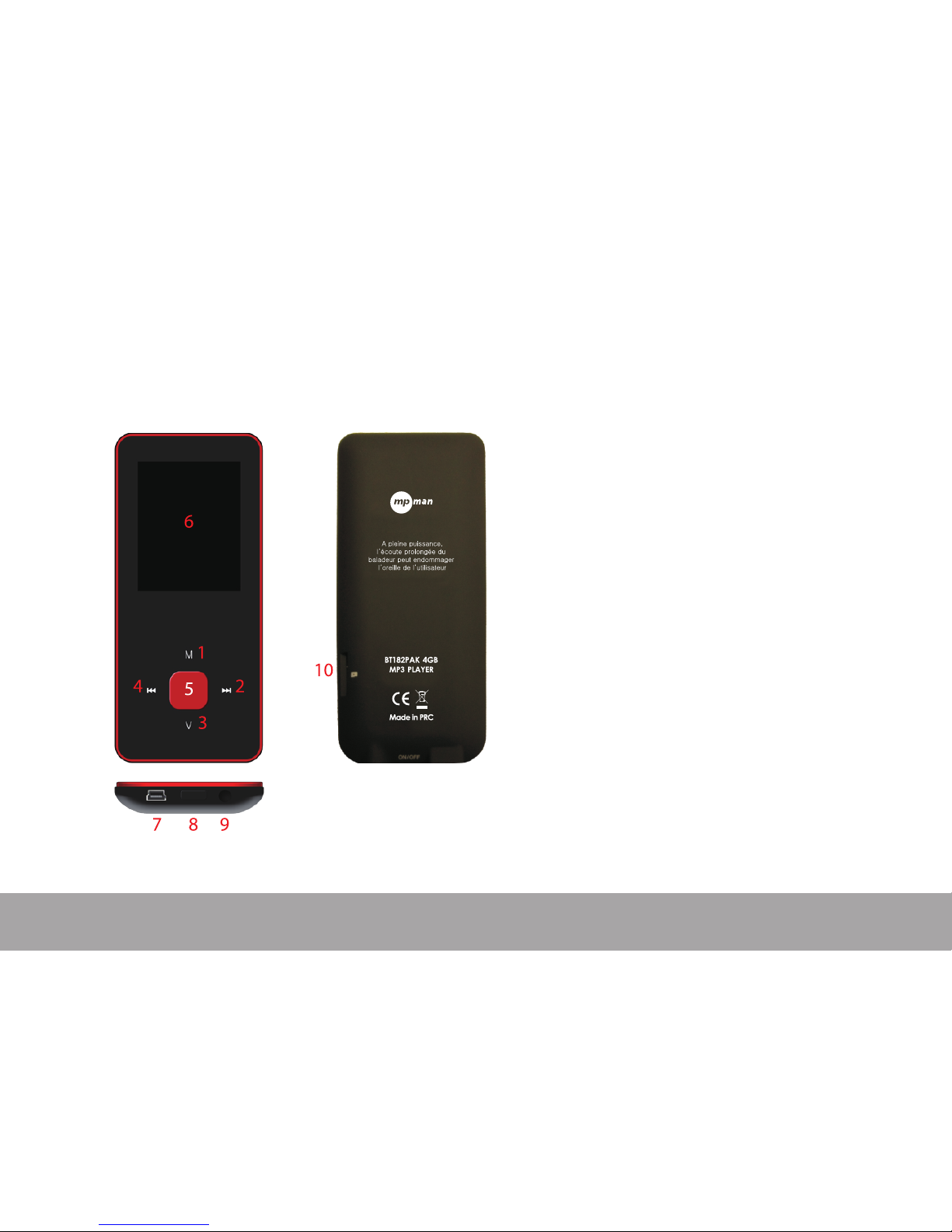

Nomenclature

10.

M : Previous menu, Sub menu

>> : Forward

V : Volume control

<< : Backward

▶: Enter, Play, Pause, Power on/o

LCD display

USB port

Main power on/o switch

Earphone jack

Micro SD slot

Charging battery safely

1. Connect to device’s USB port with the provided USB cable.

2. Battery indicator will blink while charging and once full, it will stop blinking.

3. If device is full charged, disconnect the USB cable.

- Before using it for the rst time, please charge device.

- Do not overcharge device, or it may shorten the battery’s life.

- Battery life shortens after long time usage

- The li-polymer battery is consumptive material, so even if device is tuned o for prolonged it needs to be

charged periodically.

Note

Page 4

CAUTION

Do not disassemble, crush, short-circuit or incinerate your battery as it may cause re, injury, burns, or other hazards

Page 5

When Main Power Switch is turned off, slide button to turn on device

When Main Power Switch is turned on,long press [▶] to turn on device.

Basic operations

Turn on device

When device is turned on,long press [▶] to turn off device.

If device functions abnormally, slide Main Power Switch button to forcefully turn off device. Due to possible data loss,

it is recommended to turn off device by long pressing [▶] button.

Turn off device

Note

In case device is not being used for long time, it is recommended to turn o device by keeping Main Power Switch turned o.

Page 6

[Backward/Forward] :

move up/down or right/left.

[M] :

short press to go back to previous menu and long press to show sub-menu option.

[▶] :

short press to enter into menu, play or pause and long press to turn off device.

[V] :

press to show volume control and use [Backward/Forward] key to adjust volume.

Key function

Page 7

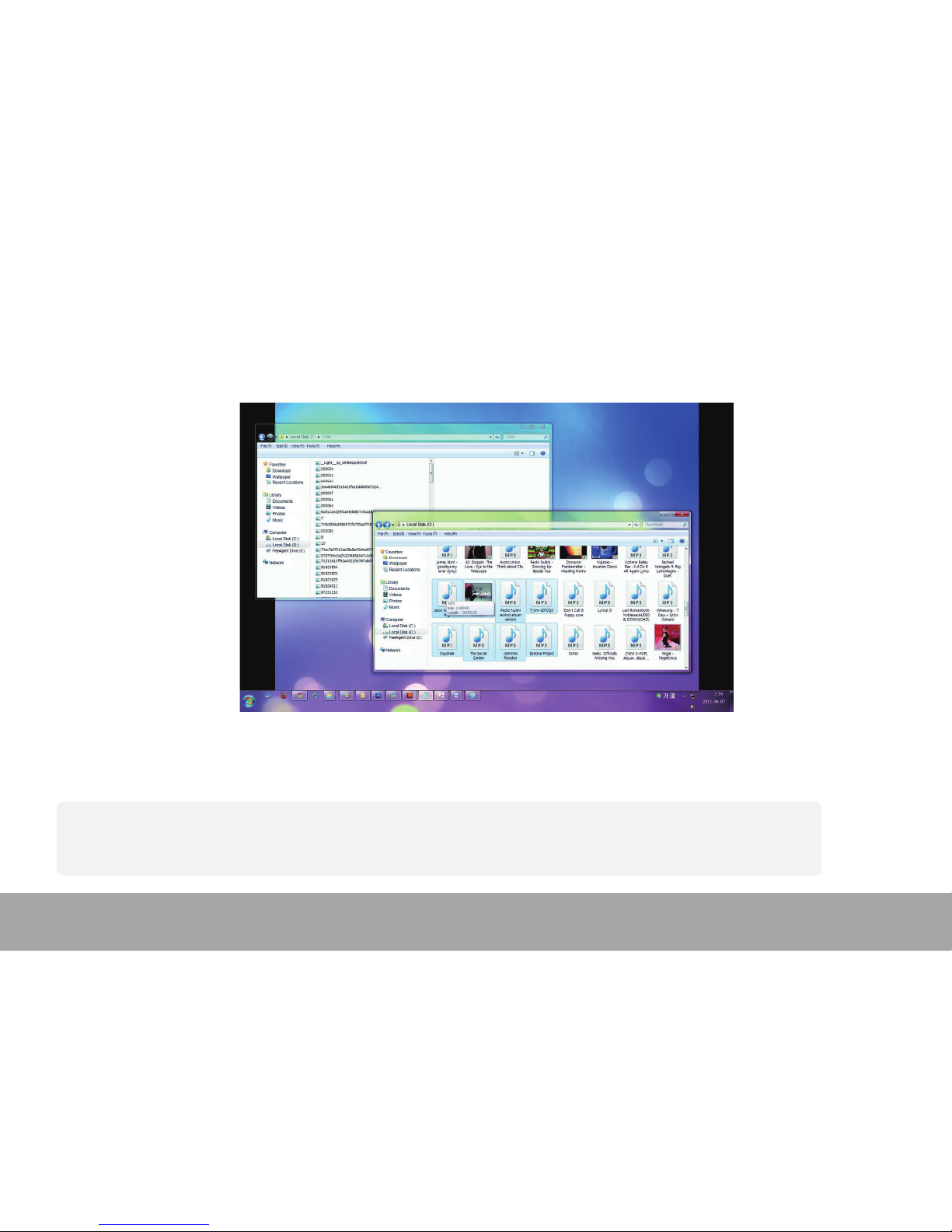

- use device as a removable USB storage

1. Connect device to computer using provided USB cable.

2. Select ”USB Disk”and Add files/folders into it by dragging or copying and pasting them.

3. Delete files from the removable USB storage (use the "Delete" command).

Adding/Removing files/Folders

Page 8

CAUTION

1. Do not disconnect device while les are being transferred.

2. Do not press [M/Play] key while transferring les, or it can cause data loss or damage to the device.

- Follow the steps to avoid damaging device or losing data.

1. Left click mouse on the icon that is on the taskbar at the bottom right corner of the desktop.

2. Click "Safely remove USB Mass storage Device”.

3. Disconnect the player from your computer.

Disconnecting device from PC

Page 9

Note

Bluetooth icon is shown on notication bar when turned on.

Note

Refer to user’s manual of Speaker or headphone for pairing modes.

This device can connect to Bluetooth speaker and headphone that supports A2DP, AVRCP profiles.

Select“Setting”on main menu.Press [▶] to enter, select“Bluetooth”and press [▶].

Select“Bluetooth status”and press [▶] to show on/off menu.

Press [Backward/Forward] to select On/Off and press [▶] to turn on or off.

Turn on/off Bluetooth

Set“Pairing mode”of Bluetooth speaker or headphone.

Go to“Device search”and press [▶] to show“Please wait”message.Wait until this message disappears.

(Time for searching device depends on number of devices nearby and it can take up to 1~3 minutes depending

on the environment).

Pairing device

Connecting to Bluetooth speaker/

headphone
