MQ Multiquip QP3THX Manuale utente

OPERATION MANUAL

THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

MODEL QP3THX

TRASH PUMP

(HONDA GX240RT2QMTNH1 GASOLINE ENGINE)

Revision #2 (06/03/20)

To order go to Discount-Equipment.com

We sell worldwide for the brands: Genie, Terex, JLG, MultiQuip, Mikasa, Essick, Whiteman,

Mayco, Toro Stone, Diamond Products, Generac Magnum, Airman, Haulotte, Barreto, Power

Blanket, Nifty Lift, Atlas Copco, Chicago Pneumatic, Allmand, Miller Curber, Skyjack, Lull,

Skytrak, Tsurumi, Husquvarna Target, Stow, Wacker, Sakai, Mi-T-M, Sullair, Basic, Dynapac,

MBW, Weber, Bartell, Bennar Newman, Haulotte, Ditch Runner, Menegotti, Morrison, Contec,

Buddy, Crown, Edco, Wyco, Bomag, Laymor, EZ Trench, Bil-Jax, F.S. Curtis, Gehl Pavers, Heli,

Honda, ICS/PowerGrit, IHI, Partner, Imer, Clipper, MMD, Koshin, Rice, CH&E, General Equip-

ment ,Amida, Coleman, NAC, Gradall, Square Shooter, Kent, Stanley, Tamco, Toku, Hatz,

Kohler, Robin, Wisconsin, Northrock, Oztec, Toker TK, Rol-Air, APT, Wylie, Ingersoll Rand /

Doosan, Innovatech, Con X, Ammann, Mecalac, Makinex, Smith Surface Prep,Small Line,

Wanco, Yanmar

Discount-Equipment.com is your online resource for

commercial and industrial quality parts and equipment sales.

561-964-4949

visit us on line @ www.discount-equipment.com

TO PURCHASE THIS PRODUCT PLEASE CONTACT US

Select an option below to find your Equipment

Equipment Financing and

Extended Warranties Available

PAGE 2 — QP3THX TRASH PUMP • OPERATION MANUAL — REV. #2 (06/03/20)

PROPOSITION 65 WARNING

To order go to Discount-Equipment.com

QP3THX TRASH PUMP • OPERATION MANUAL — REV. #2 (06/03/20) — PAGE 3

TABLE OF CONTENTS

QP3THX Trash Pump

Proposition 65 Warning ........................................... 2

Safety Information ................................................ 4-8

Speciﬁcations (Pump).............................................. 9

Speciﬁcations (Engine).......................................... 10

General Information............................................... 11

Pump Components........................................... 12-13

Basic Engine.......................................................... 14

Inspection (Engine)................................................ 15

Setup ..................................................................... 16

Operation.......................................................... 17-18

Maintenance (Pump) ........................................ 19-20

Maintenance (Engine) ...................................... 21-23

Storage .................................................................. 24

Troubleshooting (Engine)....................................... 26

Troubleshooting (Engine/Pump) ............................ 27

NOTICE

Speciﬁcations and part numbers are subject to change

without notice.

To order go to Discount-Equipment.com

PAGE 4 — QP3THX TRASH PUMP • OPERATION MANUAL — REV. #2 (06/03/20)

SAFETY INFORMATION

Do not operate or service the equipment before reading

the entire manual. Safety precautions should be followed

at all times when operating this equipment.

Failure to read and understand the safety

messages and operating instructions could

result in injury to yourself and others.

SAFETY MESSAGES

The four safety messages shown below will inform you

about potential hazards that could injure you or others.The

safety messages speciﬁcally address the level of exposure

to the operator and are preceded by one of four words:

DANGER, WARNING, CAUTION

or NOTICE.

SAFETY SYMBOLS

DANGER

Indicates a hazardous situation which, if not avoided,

WILL result in DEATH or SERIOUS INJURY.

WARNING

Indicates a hazardous situation which, if not avoided,

COULD result in DEATH or SERIOUS INJURY.

CAUTION

Indicates a hazardous situation which, if not avoided,

COULD result in MINOR or MODERATE INJURY.

NOTICE

Addresses practices not related to personal injury.

Potential hazards associated with the operation of this

equipment will be referenced with hazard symbols which

may appear throughout this manual in conjunction with

safety messages.

To order go to Discount-Equipment.com

QP3THX TRASH PUMP • OPERATION MANUAL — REV. #2 (06/03/20) — PAGE 5

SAFETY INFORMATION

GENERAL SAFETY

CAUTION



NEVER operate this equipment without proper protective

clothing, shatterproof glasses, respiratory protection,

hearing protection, steel-toed boots and other protective

devices required by the job or city and state regulations.



NEVER operate this equipment when not

feeling well due to fatigue, illness or when

under medication.



NEVER operate this equipment under the inﬂuence of

drugs or alcohol.

NOTICE



This equipment should only be operated by trained and

qualiﬁed personnel 18 years of age and older.



Whenever necessary, replace nameplate, operation and

safety decals when they become difﬁcult read.



Manufacturer does not assume responsibility for any

accident due to equipment modiﬁcations. Unauthorized

equipment modiﬁcation will void all warranties.



NEVER use accessories or attachments that are not

recommended by Multiquip for this equipment. Damage

to the equipment and/or injury to user may result.



ALWAYS know the location of the nearest

ﬁre extinguisher.



ALWAYS know the location of the nearest

ﬁrst aid kit.



ALWAYS know the location of the nearest phone or keep

a phone on the job site. Also, know the phone numbers

of the nearest ambulance, doctor and ﬁre department.

This information will be invaluable in the case of an

emergency.

PUMP SAFETY

DANGER

NEVER

pump volatile, explosive, ﬂammable or low ﬂash

point ﬂuids. These ﬂuids could ignite or explode.



The engine fuel exhaust gases contain poisonous carbon

monoxide. This gas is colorless and odorless, and can

cause death if inhaled.



The engine of this equipment requires an adequate free

ﬂow of cooling air. NEVER

operate this equipment in any

enclosed or narrow area

where free ﬂow of the air is

restricted. If the air ﬂow is

restricted it will cause injury

to people and property and

serious damage to the

equipment or engine.

NEVER operate the equipment in an explosive

atmosphere or near combustible materials.An

explosion or ﬁre could result causing severe

bodily harm or even death.

WARNING

NEVER

pump corrosive chemicals or water containing

toxic substances. These ﬂuids could create serious

health and environmental hazards. Contact local

authorities for assistance.

NEVER open the priming plug when pump

is hot. Hot water inside could be pressurized

much like the radiator of an automobile.

Allow pump to cool to the touch before

loosening plug. The possibility exists of

scalding, resulting in severe bodily harm.

NEVER disconnect any

emergency or safety devices.

These devices are intended for operator safety.

Disconnection of these devices can cause severe injury,

bodily harm or even death. Disconnection of any of these

devices will void all warranties.

DANGEROUS

GAS FUMES

To order go to Discount-Equipment.com

PAGE 6 — QP3THX TRASH PUMP • OPERATION MANUAL — REV. #2 (06/03/20)

SAFETY INFORMATION

CAUTION



NEVER lubricate components or attempt service on a

running machine.



NEVER block or restrict flow from discharge hose.

Remove kinks from discharge line before starting pump.

Operation with a blocked discharge line can cause water

inside pump to overheat.

NOTICE



ALWAYS ﬁll the pump casing with water before starting

the engine. Failure to maintain water inside the pump

housing will cause severe damage to the pump and

mechanical seal.



In winter drain water from pump housing to prevent

freezing.



NEVER start the pump with the clean-out cover removed.

The rotating impeller inside the pump can cut or sever

objects caught in it. Before starting the pump, check that

the clean-out cover is securely fastened.



ALWAYS keep the machine in proper running condition.



ALWAYS ensure pump is on level ground before use.



Fix damage to machine and replace any broken parts

immediately.



ALWAYS store equipment properly when it is not being

used. Equipment should be stored in a clean, dry location

out of the reach of children and unauthorized personnel.

ENGINE SAFETY

WARNING

NEVER

operate the engine with heat shields or

guards removed.

DO NOT remove the engine oil drain plug

while the engine is hot. Hot oil will gush

out of the oil tank and severely scald any

persons in the general area of the pump.

CAUTION

NEVER touch the hot exhaust manifold,

mufﬂer or cylinder. Allow these parts to cool

before servicing equipment.

NOTICE

NEVER

run engine without an air ﬁlter or with a dirty air

ﬁlter. Severe engine damage may occur. Service air ﬁlter

frequently to prevent engine malfunction.

NEVER tamper with the factory settings

of the engine or engine governor. Damage

to the engine or equipment can result

if operating in speed ranges above the

maximum allowable.

To order go to Discount-Equipment.com

QP3THX TRASH PUMP • OPERATION MANUAL — REV. #2 (06/03/20) — PAGE 7

SAFETY INFORMATION

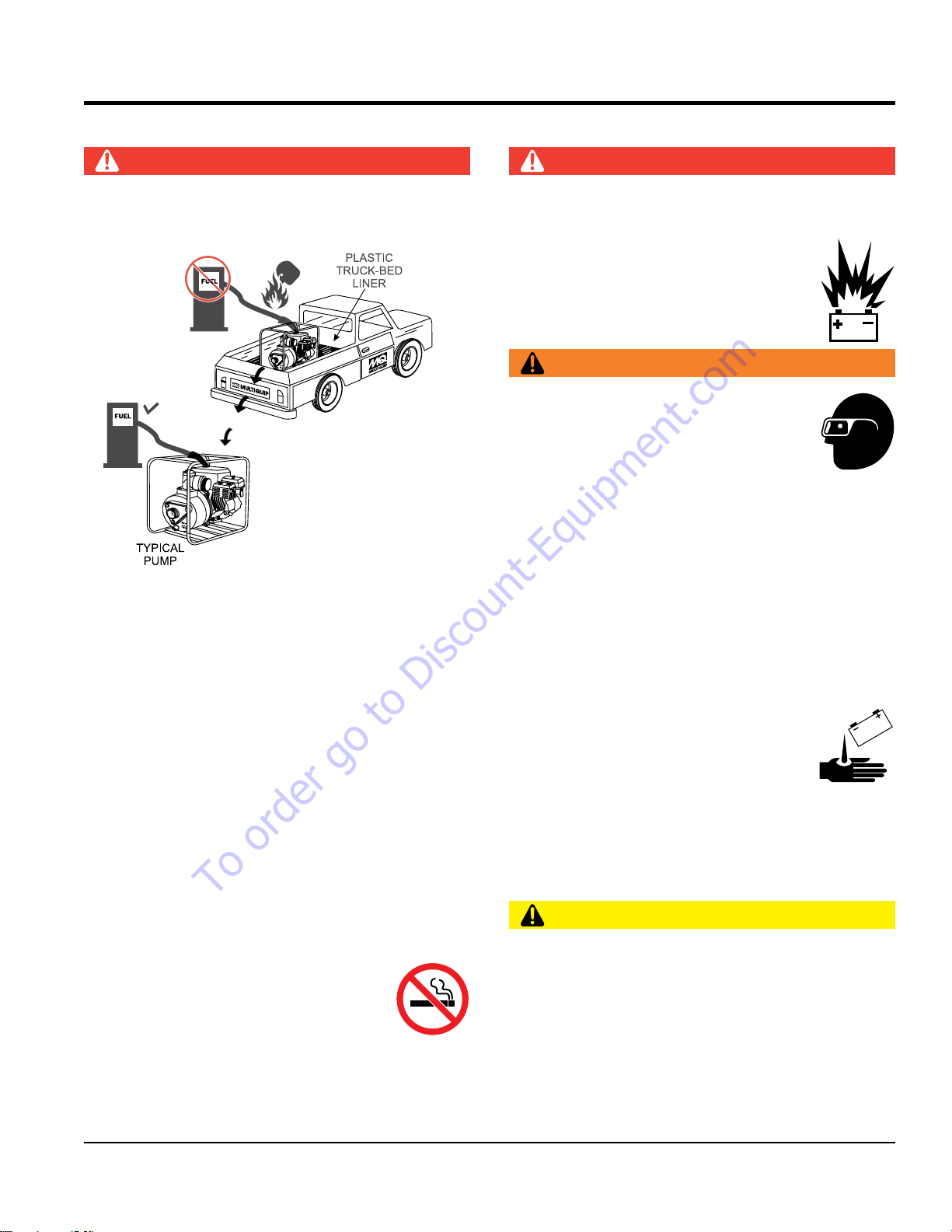

FUEL SAFETY

DANGER



DO NOT add fuel to equipment if it is placed inside truck

bed with plastic liner. Possibility exists of explosion or

ﬁre due to static electricity.



DO NOT start the engine near spilled fuel or combustible

ﬂuids. Fuel is extremely ﬂammable and its vapors can

cause an explosion if ignited.



ALWAYS refuel in a well-ventilated area, away from

sparks and open ﬂames.



ALWAYS use extreme caution when working with

ﬂammable liquids.



DO NOT ﬁll the fuel tank while the engine is running

or hot.



DO NOT overﬁll tank, since spilled fuel could ignite if it

comes into contact with hot engine parts or sparks from

the ignition system.



Store fuel in appropriate containers, in well-ventilated

areas and away from sparks and ﬂames.



NEVER use fuel as a cleaning agent.



DO NOT smoke around or near the

equipment. Fire or explosion could result

from fuel vapors or if fuel is spilled on a

hot engine.

BATTERY SAFETY (ELECTRIC START ONLY)

DANGER

DO NOT

drop the battery. There is a possibility that the

battery will explode.

DO NOT expose the battery to open ﬂames,

sparks, cigarettes, etc.The battery contains

combustible gases and liquids. If these

gases and liquids come into contact with a

ﬂame or spark, an explosion could occur.

WARNING

ALWAYS wear safety glasses when

handling the battery to avoid eye irritation.

The battery contains acids that can cause

injury to the eyes and skin.

Use well-insulated gloves when picking up

the battery.

ALWAYS

keep the battery charged. If the battery is not

charged, combustible gas will build up.

DO NOT

charge battery if frozen. Battery can explode.

When frozen, warm the battery to at least 61°F (16°C).

ALWAYS

recharge the battery in a well-ventilated

environment to avoid the risk of a dangerous concentration

of combustible gases.

If the battery liquid (dilute sulfuric acid)

comes into contact with clothing or skin,

rinse skin or clothing immediately with

plenty of water.



If the battery liquid (dilute sulfuric acid) comes into

contact with eyes

, rinse eyes immediately with plenty

of water and contact the nearest doctor or hospital to

seek medical attention.

CAUTION

ALWAYS disconnect the

NEGATIVE battery terminal

before performing service on the equipment.

ALWAYS

keep battery cables in good working condition.

Repair or replace all worn cables.

To order go to Discount-Equipment.com

PAGE 8 — QP3THX TRASH PUMP • OPERATION MANUAL — REV. #2 (06/03/20)

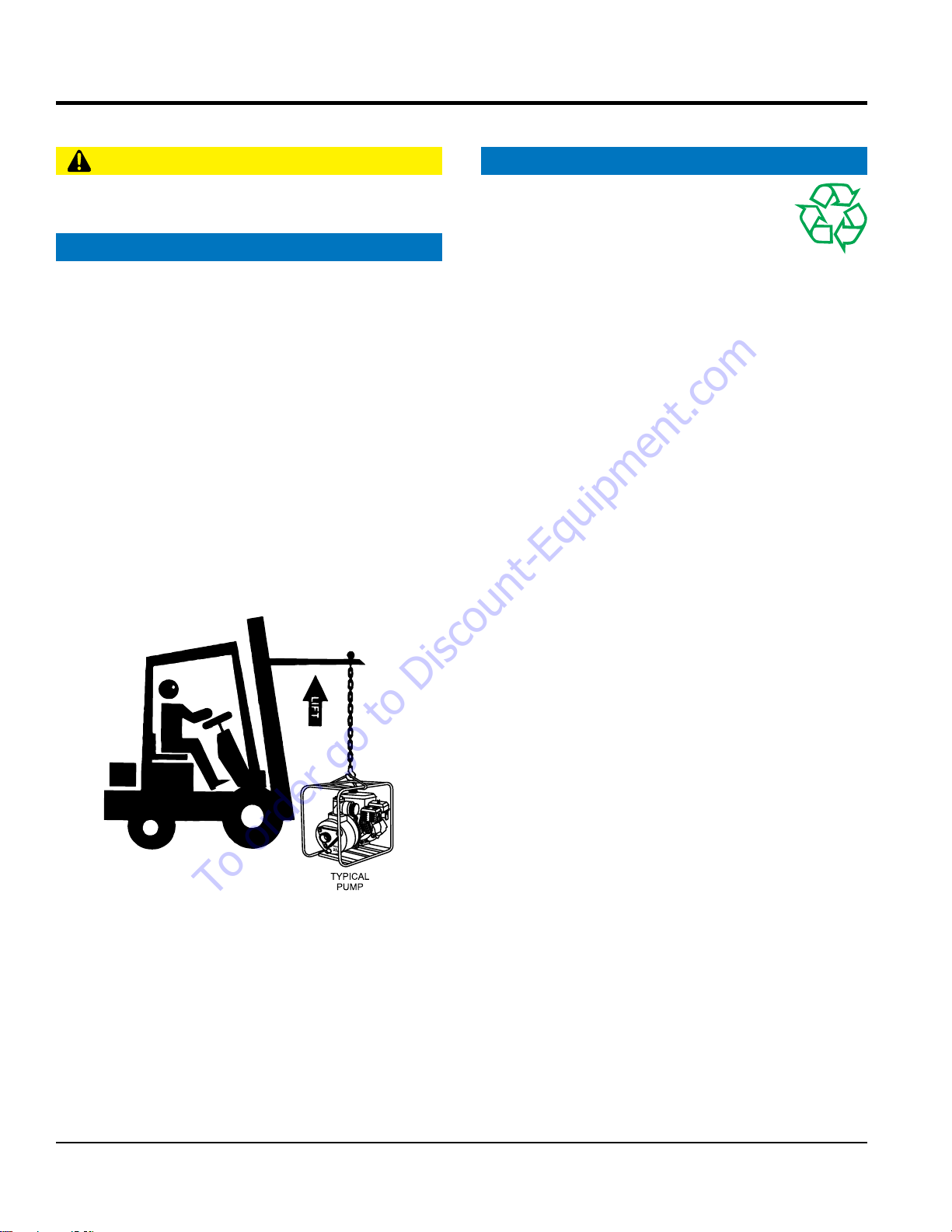

TRANSPORTING SAFETY

CAUTION



NEVER allow any person or animal to stand underneath

the equipment while lifting.

NOTICE



Before lifting, make sure that the equipment parts (hook

and vibration insulator) are not damaged and screws are

not loose or missing.



Always make sure crane or lifting device has been

properly secured to the lifting bail (hook) of the

equipment.



ALWAYS shutdown engine before transporting.



NEVER lift the equipment while the engine is running.



Tighten fuel tank cap securely and close fuel cock to

prevent fuel from spilling.



Use adequate lifting cable (wire or rope) of sufﬁcient

strength.



Use one point suspension hook and lift straight upwards.



DO NOT lift machine to unnecessary heights.



ALWAYS tie down equipment during transport by

securing the equipment with rope.

ENVIRONMENTAL SAFETY

NOTICE

Dispose of hazardous waste properly.

Examples of potentially hazardous waste

are used motor oil, fuel and fuel ﬁlters.

DO NOT

use food or plastic containers to dispose of

hazardous waste.

DO NOT

pour waste, oil or fuel directly onto the ground,

down a drain or into any water source.

SAFETY INFORMATION

To order go to Discount-Equipment.com

QP3THX TRASH PUMP • OPERATION MANUAL — REV. #2 (06/03/20) — PAGE 9

Table 1. Speciﬁcations (Pump)

Pump

Model QP3THX

Type Trash Pump

Suction 3.0 in. (76 mm.)

Discharge Size 3.0 in. (76 mm.)

Maximum Pumping Capacity 396 gallons/minute

(1,500 liters/minute)

Max. Solids Diameter 1.5 in. (38.1 mm)

Maximum Sunction Lift 25 ft. (7.6 m)

Max. Head 95 ft. (29.0 m)

Max. Pressure 41 psi (283 kPa)

Dry Net Weight 176 lbs. (80 kg.)

SPECIFICATIONS (PUMP)

Figure 1. QP3THX Dimensions

Table 2. Dimensions

Reference

Letter Dimension in. (mm)

A 22.9 (582)

B 24.0 (610)

C 29.3 (745)

To order go to Discount-Equipment.com
