User Manual
Code: APTI-H10PV2-36W
AHD, HD-CVI, HD-TVI, PAL CAMERA APTI-H10PV2-36W - 720p, 3.6 mm
2017-08-22 APTI-H10PV2-36W 1/3
Megapixel camera with 1/4" CMOS sensor and AHD / HD-CVI / HD-
TVI / PAL.
The AHD / HD-CVI / HD-TVI interface allows to transmission of
analog video signal via coaxial cable in 720p resolution. It enables
the transmission of HD resolution images for even 500 m distance
with keeping the low costs of the installation. During transmission
there are no delays and is maintained the original, high quality
image.
The range of IR illumination according to the manufacturer data,
depends on outer conditions (visibility - air transparency,
environment, wall colors ie. scene reflectance).
Setting the camera in PAL mode allows to obtain an image in 960H
resolution. The appropriate signal format selection is done by tilting
and holding the joystick for 5 s without entering to the OSD menu.
Changing the signal to the NTSC in the camera causes loss of
image in connected AHD recorder.
Standard: AHD, HD-CVI, HD-TVI, PAL
Sensor: 1/4 " Progressive Scan CMOS
Matrix size: 1.0 Mpx
Resolution: • 1280 x 720 - 720p, AHD-M, HD-CVI, HD-TVI,
• 960 x 576 - PAL
Range of IR illumination: 20 m
IR illuminator power adjustment: Automatic
Lens: 3.6 mm
View angle: 53 °
S/N ratio: > 48 dB
Video output: 1 Vpp 75 Ω, AHD, HD-CVI, HD-TVI, PAL - selectable by switch
Main features:
• DNR - Digital Noise Reduction
• WDR - Wide Dynamic Range
• ICR - Movable InfraRed filter
• AGC - Automatic Gain Control
• Auto White Balance
• Sharpness - sharper image outlines
OSD menu:
Vandal-proof:
Power supply: 12 V DC / 280 mA
Housing: Dome - Plastic
User Manual
Code: APTI-H10PV2-36W
AHD, HD-CVI, HD-TVI, PAL CAMERA APTI-H10PV2-36W - 720p, 3.6 mm
2017-08-22 APTI-H10PV2-36W 2/3
"Index of Protection": IP44
Color: White
Operation temp: -20 °C ... 50 °C
Weight: 0.15 kg
Dimensions: Ø 90 x 80 mm
Guarantee: 2 years
Camera is out from clamping ring (the OSD menu controller visible):

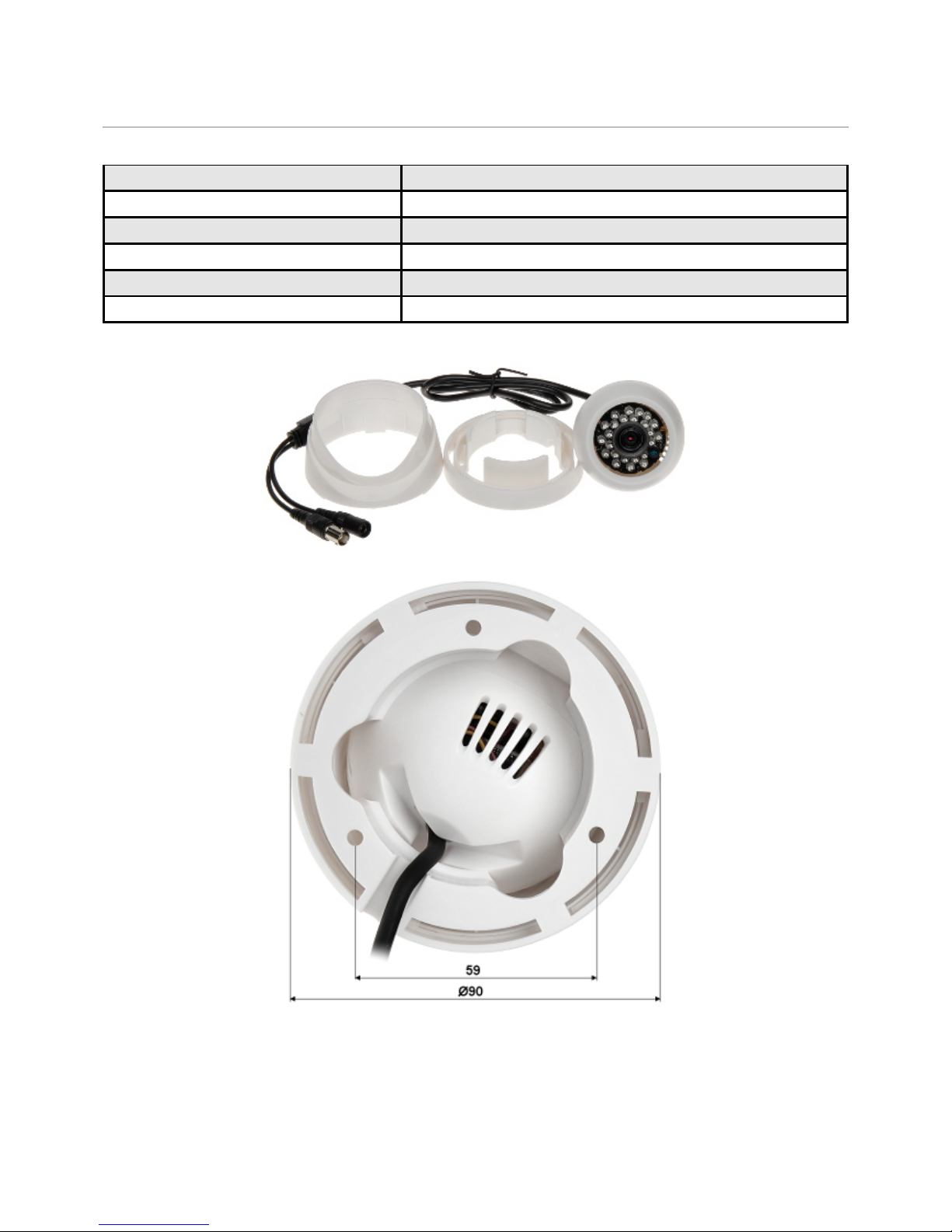

Mounting dimensions:
User Manual
Code: APTI-H10PV2-36W
AHD, HD-CVI, HD-TVI, PAL CAMERA APTI-H10PV2-36W - 720p, 3.6 mm
2017-08-22 APTI-H10PV2-36W 3/3
The appropriate signal format selection is done by tilting and holding the joystick for 5 s without entering to the OSD menu.
Changing the signal to the NTSC in the camera causes loss of image in connected AHD/HD-CVI/HD-TVI recorder:
In the kit:
PACKAGE PARAMETERS
Dimensions (L x W x H): 110x110x85 mm Gross Weight: 0.21 kg
