MSA PremAire System Manuale utente

Combination

Breathing

Apparatus

and

CARRIER AND HARNESS ASSEMBLY

TAL 502 (L) Rev. 0 © MSA 2005 Prnt. Spec. 10000005389 (I) Mat. 10064390

Doc. 10064390

TAL 502 (L) Rev. 0 - 10064390

TAL 205 (L) Rev. 10 - 800000

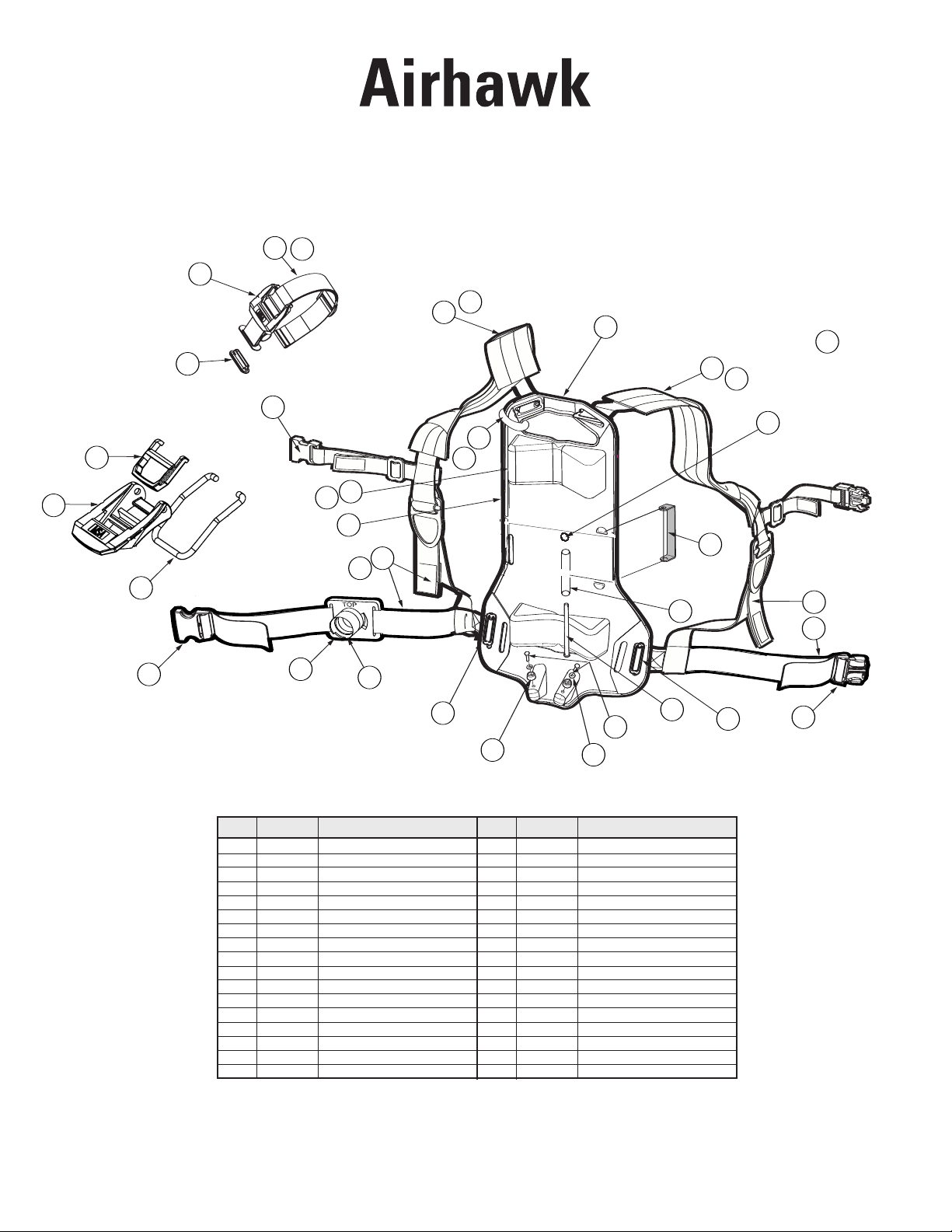

Carrier and Harness Assembly

Nylon part number 10037276

Kevlar part number 10037277

88a

23 24

88a

12a

22a

20a

20 13

15a

16 3

Item P/N Description Item P/N Description

110042344 Nylon Cylinder Band

1a 10042345 Kevlar Cylinder Band

210026846 Cylinder Band Buckle

310030617 Grommet (3 Req’d)

410026846 Buckle

510026847 Slide, Buckle

610026848 Loop, Buckle

710038691 Check Strap Nylon Kit (optional)

810037254 Nylon Left/Right Shoulder Strap

8a 10037255 Kevlar Left/Right Shoulder Strap

910030616 Grommet

10 1011767 Lumbar Pad (use only with Vulcan)(optional)

11 10005952 Retaining Ring

12 10040423 Hose Strap Nylon

12a 10040424 Hose Strap Kevlar

13 10005785 Bracket

14 10037270 Bushing (2 Req’d)

15 10037258 Right Pull Strap Nylon

15a 10037259 Right Pull Strap Kevlar

16 10005950 Pin

17 627503 Rivet (2 Req’d)

18 10014635 Washers (2 Req’d)

19 10014666 Bumper (2 Req’d)

20 10037256 Left Pull Strap Nylon

20a 10037257 Left Pull Strap Kevlar

21 10037784 Backplate

22 10040727 I.D. Label Nylon

22a 10040728 I.D. Label Kevlar

23 10022245 Belt Clip

24 10018222 O-Ring

25 10040450 Male Buckle

26 10040451 Female Buckle

27 10037253 Shoulder Pads (not shown, option)

3TAL 502 (L) Rev. 0 - 10064390

TAL 502 (L) Rev. 0 - 10064390

CARRIER AND HARNESS ASSEMBLY

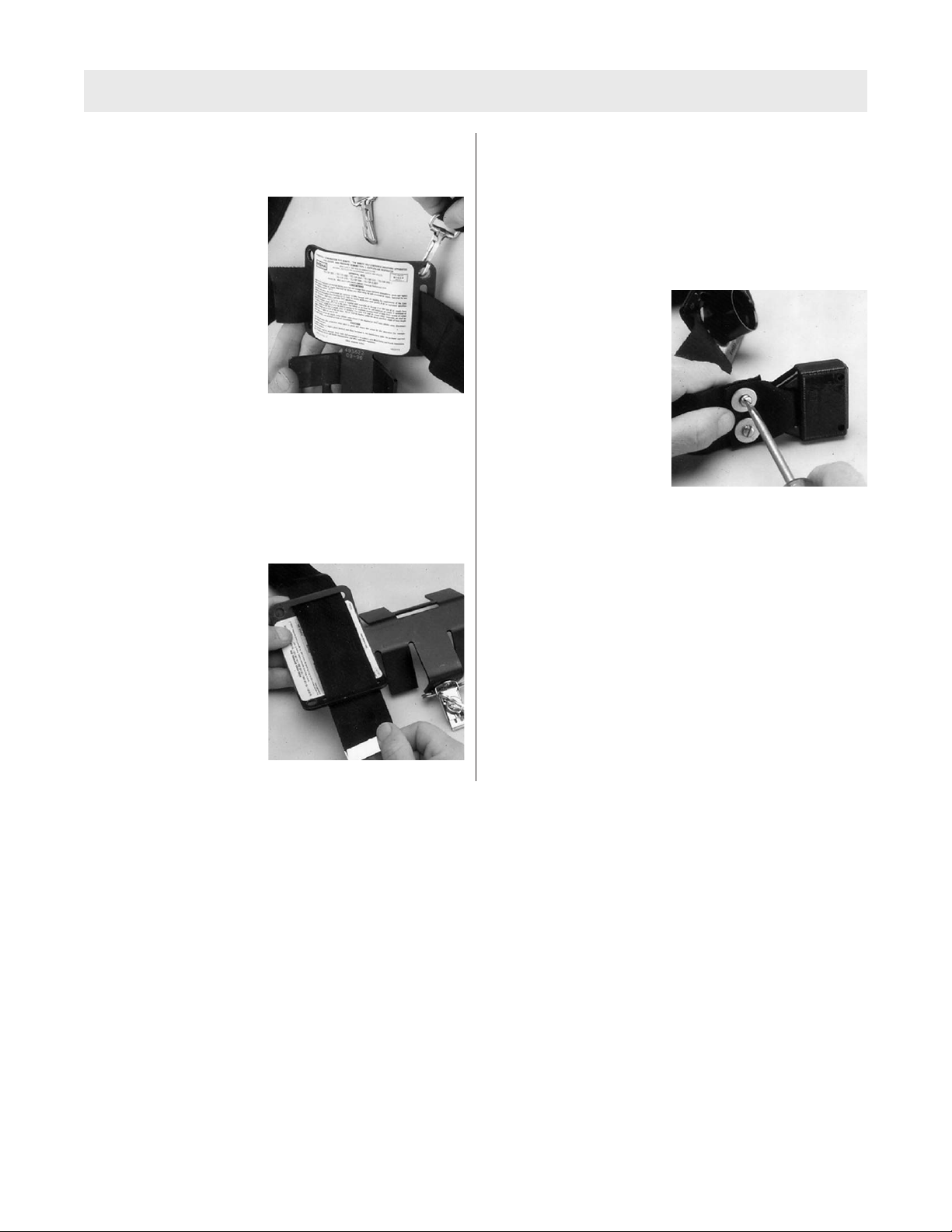

Replacing the Shoulder Strap Assembly

1.Disconnect the shoul-

der harness snap

hooks from the carrier

assembly.

2. Install new shoulder strap assembly by attaching

snaphooks to the carrier assembly.

Replacing the Waist-Strap

1. Unthread the waist-strap from the buckle. Pull strap

through the cylinder carrier bracket slots. Slide strap

through second stage regulator holder. Note the path

of the strapping.

2. Thread the new strap

through the second

stage regulator holder,

then through cylinder

carrier bracket, then

through the belt buckle.

REPLACING THE OPTIONAL FHR OR NYLON WAIST-

STRAP ASSEMBLY

1. Remove the screws, washers, tee nuts and second

stage holder, then remove waist-strap from cylinder

carrier.

Note: Before installation of new waist belt, apply Loctite

222 to screw threads.

2. Install new waist-strap

through the second

stage holder by orient-

ing the strap and

replacing the screws,

washers and tee nuts.

5TAL 502 (L) Rev. 0 - 10064390
