MSI MEGA 180 MS-6265 Manuale utente

Version 1.1

multi-lingual

G52-B6265X6

QuickInstallationGuide

Trademarks

All trademarksusedinthismanualarethepropertyoftheirrespective owners.

AboutthisManual

Thismanualisdesignedtoprovidetheuseraquick reference forbarebone

setup.AsMEGA180 isshippedoutinabarebone,weassumeyou needthe

information regardinghowtoassemblythesystem,suchasCPU, RAM,FDD,

HDD..., etc.Basedon thisassumption,wemake thismanualofquick installa-

tion guide.Pleasefollowthedescription stepbysteptoassemblythecomponents.

If you have anyquestion inassemblingthesystem,you cancontactyourdealer

orourtechnicalsupport.

TechnicalSupport

If aproblemariseswithyoursystemand no solution canbeobtainedfromthe

user’smanual, pleasecontactyourplace ofpurchaseorlocaldistributor.

Revision History

Revision Revision HistoryDate

V1.1FirstReleaseformulti-lingual December2003

version

NOTE:Thismanualiswrittenjustforsystemassembly.Forcomplete

information aboutthesystem,pleaserefertotheuser’smanualinCD.

CONTENTS

English.......................................................................................................4

French(FRANÇAIS)..........................................................................................................16

German(DEUTSCH)..........................................................................................................28

Spanish(ESPAÑOL)...........................................................................................................40

Italian(ITALIANO)................................................................................................................52

Russian()...........................................................................64

Polish(POLSKI)...................................................................................................................76

Chinese(繁體中文)..............................................................................................................88

SimplifiedChinese(？蔨いゅ)..................................................................100

Japanese(､鬣ｻｻy)....................................................................................112

???????

SafetyInstructions

1.Alwaysreadthesafetyinstructionsfirst.

2.KeepthisUser’sManualforfuturereference.

3.Keepthisequipmentaway fromhumidity.

4.Lay thisequipmenton areliableflatsurface beforesettingit up.

5.Theopeningson theenclosureareforairconvection hence protectsthe

equipmentfromoverheating.DONOTCOVERTHEOPENINGS.

6.Make surethevoltage ofthepowersource and adjustproperly110/230V

beforeconnectingtheequipmenttothepowerinlet.

7.Place thepowercordsuchaway thatpeoplecannotstepon it. Donot

place anythingoverthepowercord.

8.AlwaysUnplugthePowerCordbeforeinsertinganyadd-on cardormodule.

9.All cautionsand warningson theequipmentshouldbenoted.

10. Neverpouranyliquidintotheopeningthatcoulddamage orcauseelectri-

calshock.

11. If anyofthefollowingsituationsarises,gettheequipmentcheckedbya

service personnel:

l Thepowercordorplugisdamaged.

l Liquidhaspenetratedintotheequipment.

l Theequipmenthasbeenexposedtomoisture.

l Theequipmenthasnotworkwell oryou cannotgetit workaccording

toUser’sManual.

l Theequipmenthasdroppedand damaged.

l Theequipmenthasobvioussignofbreakage.

12.DONOTLEAVETHISEQUIPMENTIN ANENVIRONMENT

UNCONDITIONED, STORAGETEMPERATUREABOVE600C(1400F), IT

MAYDAMAGETHEEQUIPMENT.

CAUTION: Dangerofexplosion if batteryisincorrectlyreplaced.

Replace onlywiththesameorequivalenttyperecommendedbythe

manufacturer.

overview

Thisproductisshippedoutasabarebone.Somecomponentsareequipped

whilesomeareoptional. See thefollowingforthestandardand optionalitems:

Thismanualprovidesyou withtheinformation ofsystemsetup.Before

assemblingyoursystem,pleasebepreparedfortheinstallation toolsand appro-

priateitems.If you arenotclearabouttheitems,contactyourdealerforthe

information.

Installation Tools

Screws

You will find twotypesofscrewsinthepackage.

ScrewDriverGloves

Type1Type2

Fastening HDD

Fastening CD-ROM

StandardMainboard,PowerSupply,Case,Cables,Cooler,

RadioAntenna,RemoteController,CardReader,

CD, Manual

OptionalTV-TunerCardMS-8606

Checking theItems

Beforestartingtheassembling,check theitemsyou need.

HDD ModuleAMDK7CPU

CPUCooler

CD-ROMModuleDDR DIMM

RadioAntenna

Attention!!!

Thechassisand devicesshownon theinstallation photos

areforyourreference only.Theactualproductsmay vary

inchassiscolor,frontbezeland othercomponent.

Installation Flowchart

StartRemove Cover

Install HDD

Install CPU&

CoolerInstall Optical

Drives

Install RAM

Replace Cover

RemovingCover

Useyourhand orascrewdrivertounscrew

thethree thumbscrewson theback panel.

Remove thechassiscover.

Firstpushthecoverbackwardand thenlift it

up toremove.

Installinghdd

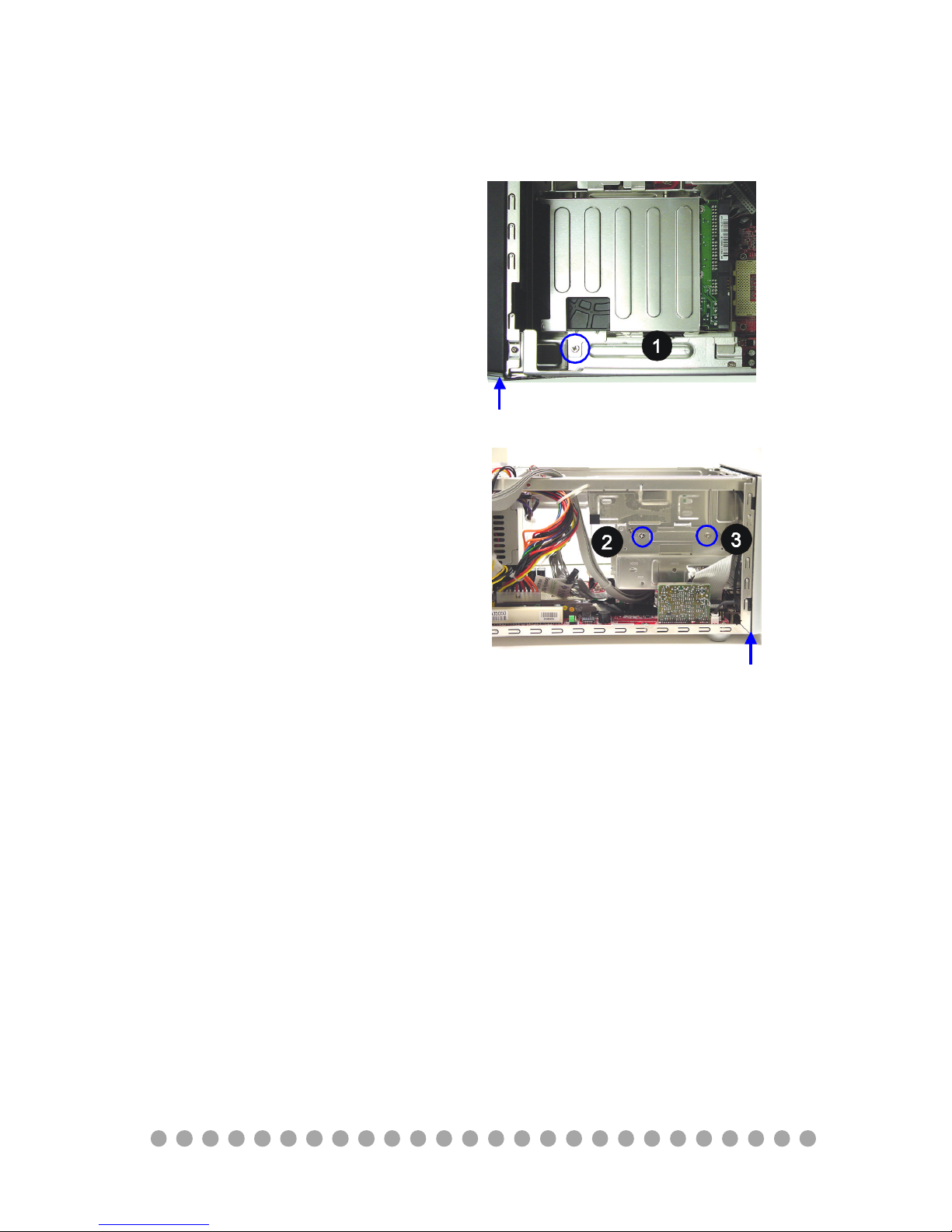

Locatethebracket. Remove thescrewsto

take outthebracket.

InserttheHDD moduleintothebracket.

UseType2screwstosecuretheHDD tothe

bracket. Remembertofastenthescrewson

bothsides.

frontpanel

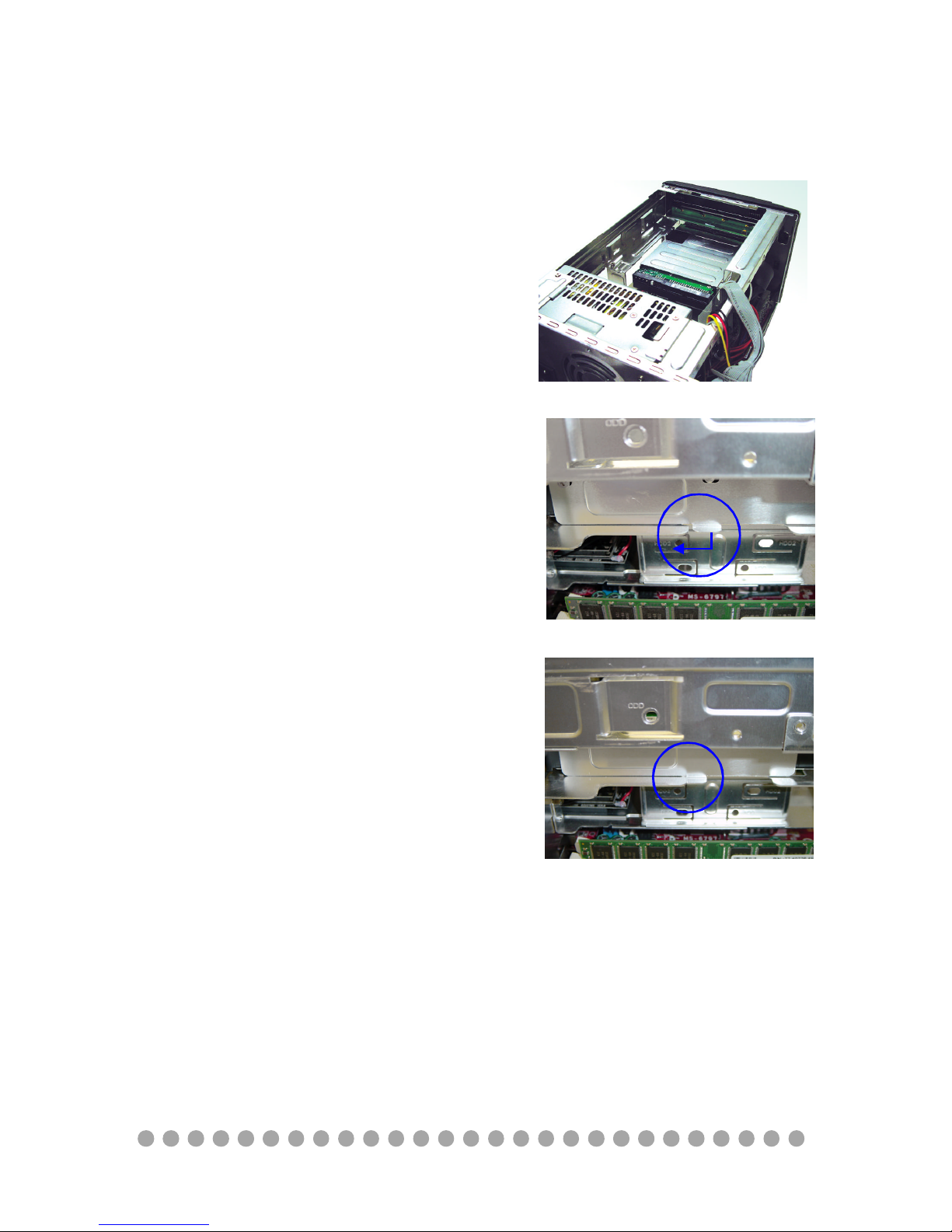

Replace theHDD intothechassis.

Make surethattheHDD bracketfitsprop-

erlywiththechassis.

ScrewtheHDD tothechassis.

frontpanel
