MSI PRO AP243T 12M Manuale utente

PRO Series

All-in-One PC

PRO AP243T 12M (MS-AE10)

PRO AP243TP 12M (MS-AE10)

PRO AP243 13M (MS-AE10)

PRO AP243P 13M (MS-AE10)

PRO AP243TP 13M (MS-AE10)

User Guide

2Contents

Contents

Getting Started.............................................................................................................. 3

Package Contents................................................................................................... 3

Safety & Comfort Tips ............................................................................................ 3

System Overview..................................................................................................... 4

Hardware Setup.................................................................................................... 10

Component Replacement & Upgrade .................................................................. 16

Windows 11 System Operations................................................................................ 18

Power Management ............................................................................................. 18

Network Connections........................................................................................... 22

System Recovery .................................................................................................. 30

F3 Hotkey Recovery (Optional) .................................................................................. 32

Troubleshooting.......................................................................................................... 33

Safety Instructions...................................................................................................... 35

TÜV Rheinland Certification....................................................................................... 37

ENERGY STAR Certification....................................................................................... 37

Regulatory Notices..................................................................................................... 38

Revision

V1.1, 2023/04

Getting Started

This chapter provides you with the information on hardware setup procedures. While

connecting devices, be careful in holding the devices and use a grounded wrist strap

to avoid static electricity.

Package Contents

All-in-One PC PRO AP243T 12M, PRO AP243TP 12M

PRO AP243 13M, PRO AP243P 13M, PRO AP243TP 13M

Documentation

User Guide (Optional)

Quick Start Guide (Optional)

Warranty Card & Warranty Book (Optional)

Accessories

Mouse (Optional)

Keyboard (Optional)

Webcam Privacy Shutter (Optional)

External Power Supply

Power Cord

⚠

Important

∙

Contact your place of purchase or local distributor if any of the items is damaged or

missing.

∙

Package contents may vary by country.

∙

The included power cord is exclusively for this personal computer and should not be

used with other products.

Safety & Comfort Tips

∙Choosing a good workspace is important if you have to work with your PC for a long

period of time.

∙Your work area should have enough illumination.

∙Choose the proper desk and chair and adjust their height to fit your posture when

operating.

∙When sitting on the chair, sit straight and keep a good posture. Adjust the chair’s

back (if available) to support your back comfortably.

∙Place you feet flat and naturally on the floor, so that your knees and elbows have the

proper position (about 90-degree) when operating.

∙Put your hands on the desk naturally to support your wrists.

∙Avoid using your PC in a place where discomfort may occur (such as on the bed).

∙The PC is an electrical device. Please treat it with great care to avoid personal

injury.

4Getting Started

System Overview

PRO AP243TP 12M, PRO AP243P 13M, PRO AP243TP 13M

Getting Started

7 7

10 11 12 13

14 15

15 16 17

6Getting Started

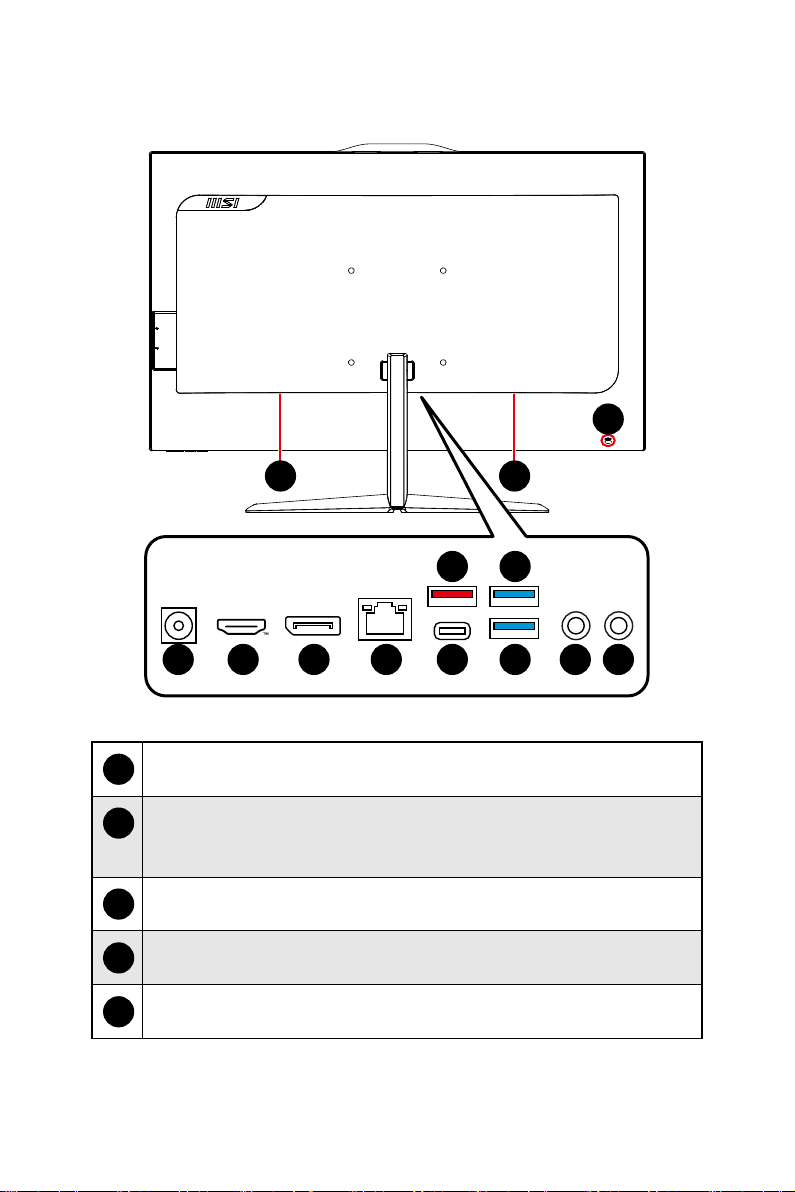

PRO AP243T 12M, PRO AP243 13M

Getting Started

7 7

10 11 12 13

14 15

15 16 17

1Digital Microphone

2IR Webcam Module

The IR Webcam Module supports infrared-based facial recognition for

instant access to your computer.

3Brightness Adjustment Button

4Power Button

5Cable Routing Hole

8Getting Started

6USB 2.0 Port

This connector is provided for USB peripheral devices. (Speed up to 480

Mbps)

⚠

Important

High-speed devices are recommended for USB 3.2 ports whereas low-

speed devices, such as mouse or keyboard, are suggested to be plugged

into the USB 2.0 ports.

7Stereo Speaker

8Kensington Lock

9Power Jack

10 HDMI™ Connector

Supports 4K@60Hz as specified in HDMI™ 2.1.

⚠

Important

∙

Available for the processor with integrated graphics.

∙

Graphics specifications may vary depending on the installed CPU.

11 DisplayPort Connector

Supports 4K@60Hz as specified in DisplayPort 1.4.

⚠

Important

∙

Available for the processor with integrated graphics.

∙

Graphics specifications may vary depending on the installed CPU.

12 LAN Jack

The standard RJ-45 LAN jack is provided for connection to the Local Area

Network (LAN). You can connect a network cable to it.

LINK/ACT

LED

SPEED

LED

LED Status Description

Link/ Activity

LED

Off No link

Yellow Linked

Blinking Data activity

Speed LED

Off 10 Mbps

Green 100 Mbps

Orange 1 Gbps

Getting Started

13 USB 3.2 Gen 2 Port (Type-C)

This connector is provided for USB peripheral devices. This connector can

provide up to 5V/3A of power. (Speed up to 10 Gbps)

14 USB 3.2 Gen 2 Port

This connector is provided for USB peripheral devices. (Speed up to 10

Gbps)

15 USB 3.2 Gen 1 Port

This connector is provided for USB peripheral devices. (Speed up to 5 Gbps)

16 Mic-In Jack

17 Line-Out Jack

10 Getting Started

Hardware Setup

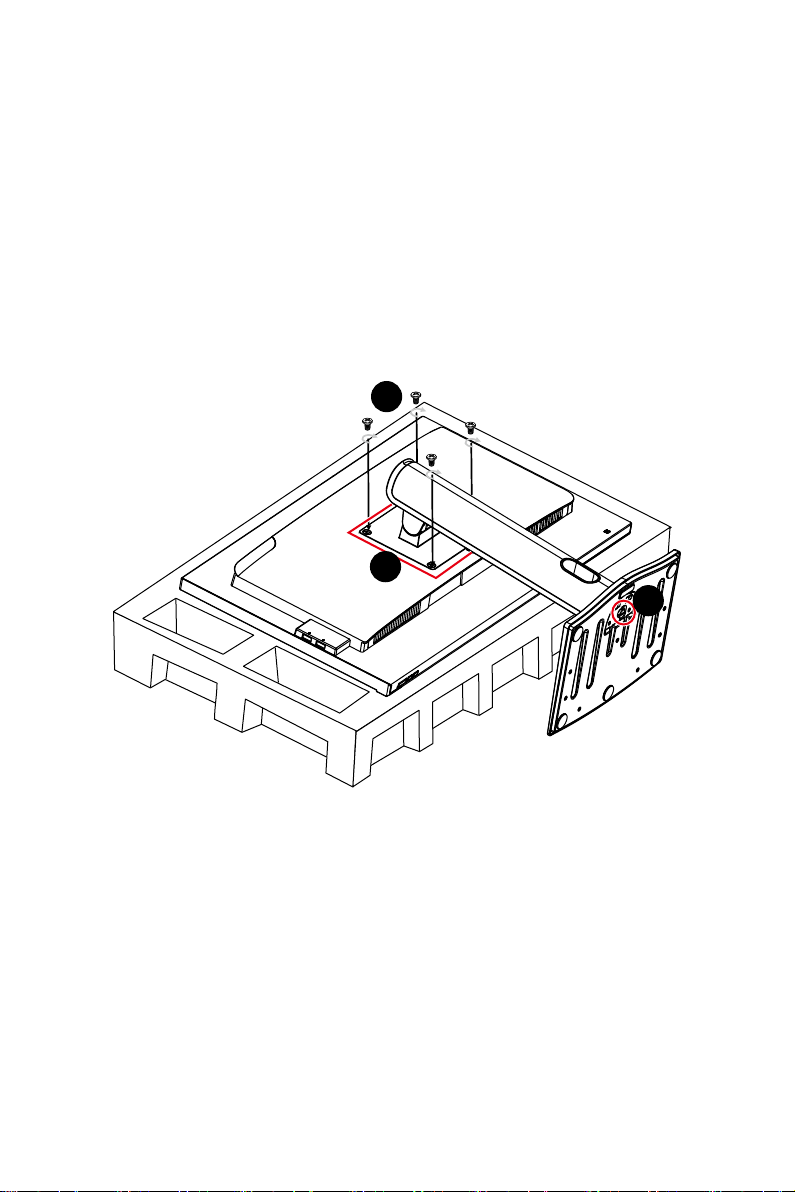

Installing the Stand

1. Leave the PC in its protective foam packaging. Align the stand bracket to the rear

groove.

2. Tighten the stand bracket with screws.

3. Connect the base to the stand and tighten the base screw to secure the base.

4. Align and push the hinge cover towards the rear groove until it locks in place.

5. Make sure the stand assembly is properly installed before setting the PC upright.

PRO AP243TP 12M, PRO AP243P 13M, PRO AP243TP 13M
