MSI ThunderboltM3 Manuale utente

How to detect

Thunderbolt device

on ThunderboltM3

Step0: Please refer manual on page2 and page3 for

installing ThunderboltM3 card.

Step0: Please refer manual on page2 and page3 for

installing ThunderboltM3 card.

•Settings \ Advanced\Windows OS configuration\Windows10

WHQL Support: UEFI

–Fourth level

»Fifth level

Step1: Please setting “Windows10 WHQL Support” to

UEFI in BIOS setup.

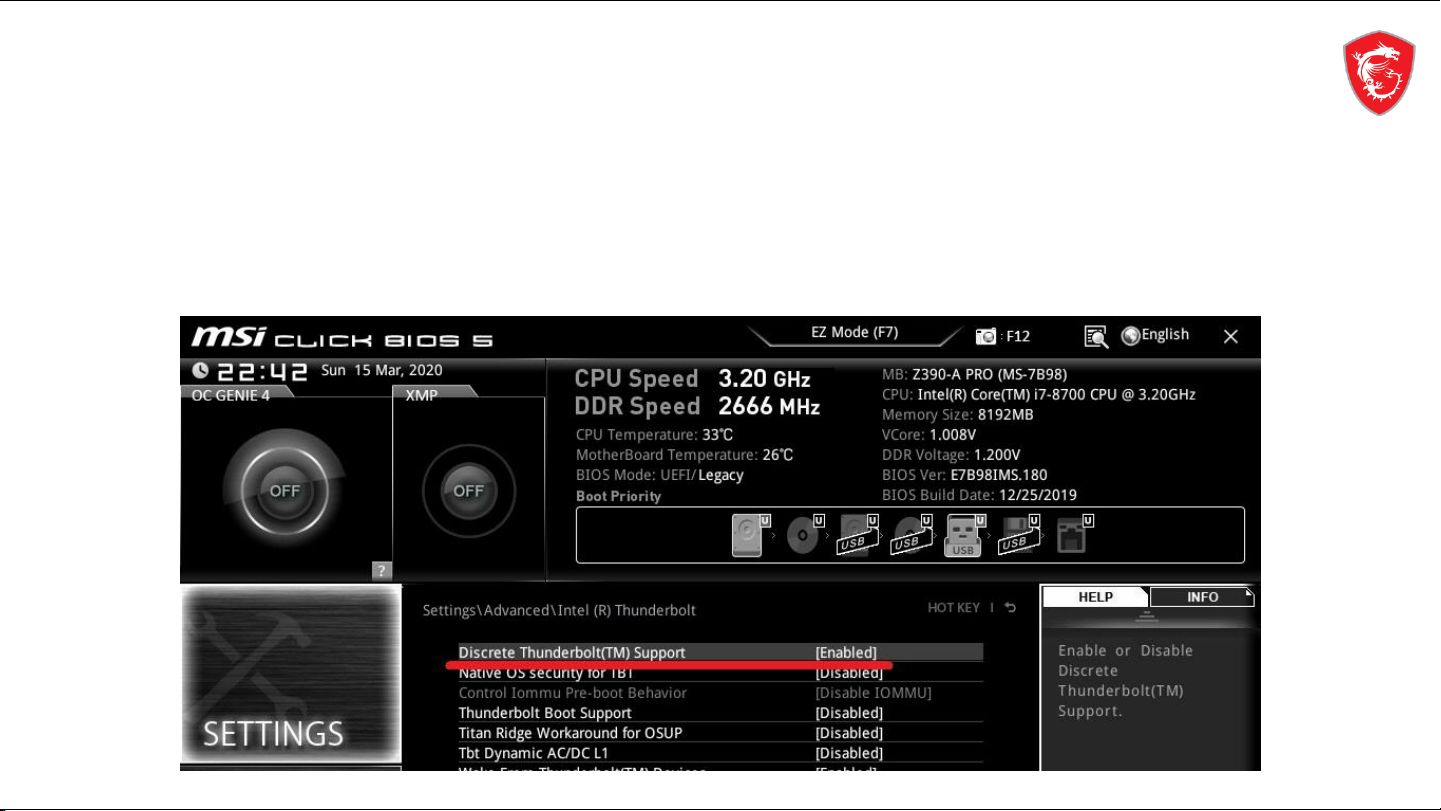

•Settings \ Advanced \ Intel® Thunderbolt / Discrete

Thunderbolt(TM) Support : Enabled

Step2: Please setting “Discrete Thunderbolt(TM)

Support ” to Enabled in BIOS setup.

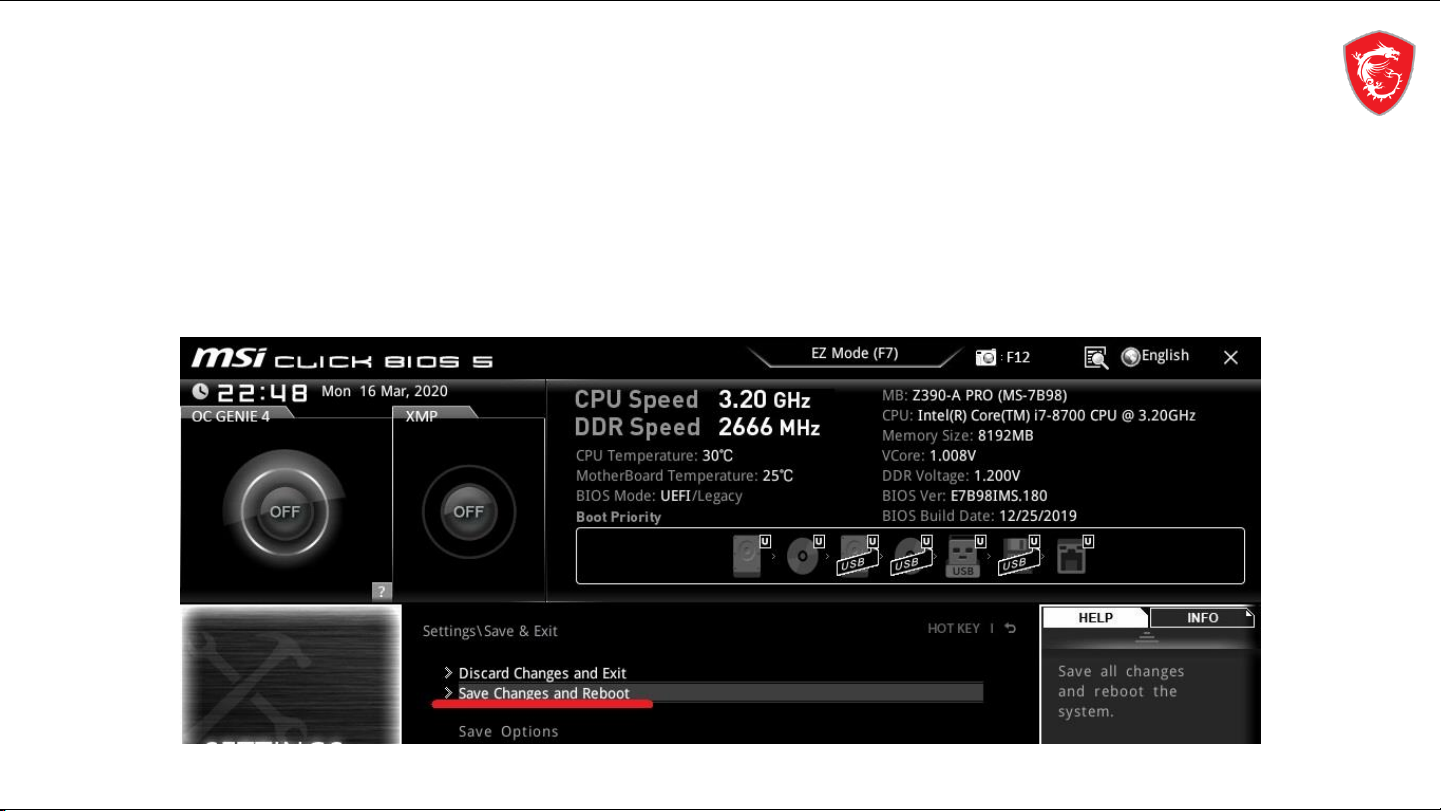

•Or please press “Save Changes and Reboot” and then press “OK

button”. Setting \ Save & Exit

Step3: Press F10 button for saving change and exit.

•Settings \ Advanced \ Intel® Thunderbolt /

Discrete Thunderbolt(TM) configuration \

Windows 10 Thunderbolt support: Enabled

Step4: Into BIOS setup again.

Step5: Please setting “Windows 10 Thunderbolt

Support” to Enabled.

Step6: Please wait 20 seconds.

Step7: Press F10 button for saving change and exit.

Please refer setp3.

Step8: Install Windows 10 OS again and then must be

connect Thunderbolt device on ThunderboltM3 card.

Step9: Please install driver for this unknown device-

“Base System device” in device manager.

•It is driver for ThunderboltM3 on MSI website.

•https://www.msi.com/PC-component/support/ThunderboltM3

Step10: It will be showed “Thunderbolt(TM) control” in

device manager after installing driver.
