ENGLISH
4
Wireless11gBroadbandRouter
Before You Begin
Thank you for purchasing MSI Wireless 11g Broadband Router
RG54G2. This best-of-class broadband router is a multi-functional device,
ideal and flexible for home and office networking.
This Quick Start Guide is designed to assist with the installation and
utilization of MSI Wireless 11g Broadband Router. Please note all fig-
ures in this guide are for reference only; the actual setup screenshots
might be vary on different systems. For more information, please refer
to User Guide in the CD-ROM, or visit http://www.msi.com.tw to obtain
the latest on-line documentation.
How to Use This Guide
If you want to... refer to...
know your router page 5
install your router page 6 ~ 7
configure your router page 8 ~ 13
ENGLISH
5
QuickStartGuide
QuickStartGuide
Unit Description
LANPowerWLAN WAN
Reset Button WAN Port Power Connector
LAN Ports (1~4)RF OFF Button
LEDs
Connection Ports
6
Wireless11gBroadbandRouter
Hardware Installation
Selecting a Location
Before connecting the RG54G2 to your devices, please note the RG54G2
should be placed in a location where is:
- A flat surface, and do not put any heavy object on it.
- Easy to access; therefore, you can easily connect Cable/DSL
modem to its WAN port and connect computers or other
devices to its LAN ports.
- Easily to read LEDs clearly, so that you may monitor real-time
networking status and take instant measures as problems arise.
Tip: The location of RG54G2 should be the optimum position to obtain
best signal quality; sometimes, you may adjust the direction of antennae.
Connecting the Router
1. Ensure both of your RG54G2 and Cable/DSL modem are
powered off before connecting.
2. Connect one end of an
Ethernet cable to the WAN
port of RG54G2, and the
other end to your Cable/DSL
modem.
ENGLISH
7
QuickStartGuide
QuickStartGuide
Hardware Installation (2)
3. To build up wired Internet
connection, plug one end of
another Ethernet cable to the
LAN port (1~4) of RG54G2,
and the other end to your
computers. It does not matter
which numbered LAN port is
chosen.
4. Power on your Cable/DSL modem by turning on power switch
or re-connecting its power adapter.
5. Power up the RG54G2 by
plugging the DC end of power
adapter into the power
receptor of RG54G2 and the
AC end to an electrical outlet.
6. Verify LEDs on the top panel light up to indicate proper
connection:
- Power LED should be ON to show power connection
- WAN LED should be ON if your modem is correctly
connected to the router.
- LAN 1~4 LED should be ON correspondent to the
numbered ports your computers are connecting to.
8
Wireless11gBroadbandRouter
Configuration
Using the Configuration Utility
MSI RG54G2 provides you a convenient utility - the Web Configura-
tion Utility, to customize the network settings. Whenever you want to
configure the router, please follow these instructions.
1. Start your PC. If it is already started, re-start it. It will then
obtain an IP address from the router’s DHCP server.
2. Launch your web browser. In the Address bar, type the default
IP address 192.168.1.254 and press [Enter].
3. A password request screen will pop up. Enter default
password admin in the Password field and then click LOGIN
button.
Type the default
password: admin
Default Parameters of Your Router
SSID RG54G2
Password admin
IP address 192.168.1.254
Subnet mask 255.255.255.0
Channel 7
Encryption Disable
ENGLISH
9
QuickStartGuide
QuickStartGuide
Configuration (2)
4. The Home window of the configuration utility will appear as
below, providing two options to select: Typical Configuration
and Customized Configuration.
Home Window of Web Configuration Utility
10
Wireless11gBroadbandRouter
Configuration (3) - Typical Configuration
Click Next to continue Step 2.
Setting Up the Typical Configuration
Click the Typical Configuration button, you will see a step-by-step
Setup Wizard to walk you through the basic settings of the router.
Setting the Time Zone
First, you should choose your Time Zone from the pull-down menu.
For system management purpose, a correct time zone setting will let you
have accurate time stamps on the system log. If you are in the area that
within the daylight saving period, please also check the Daylight Sav-
ing option.

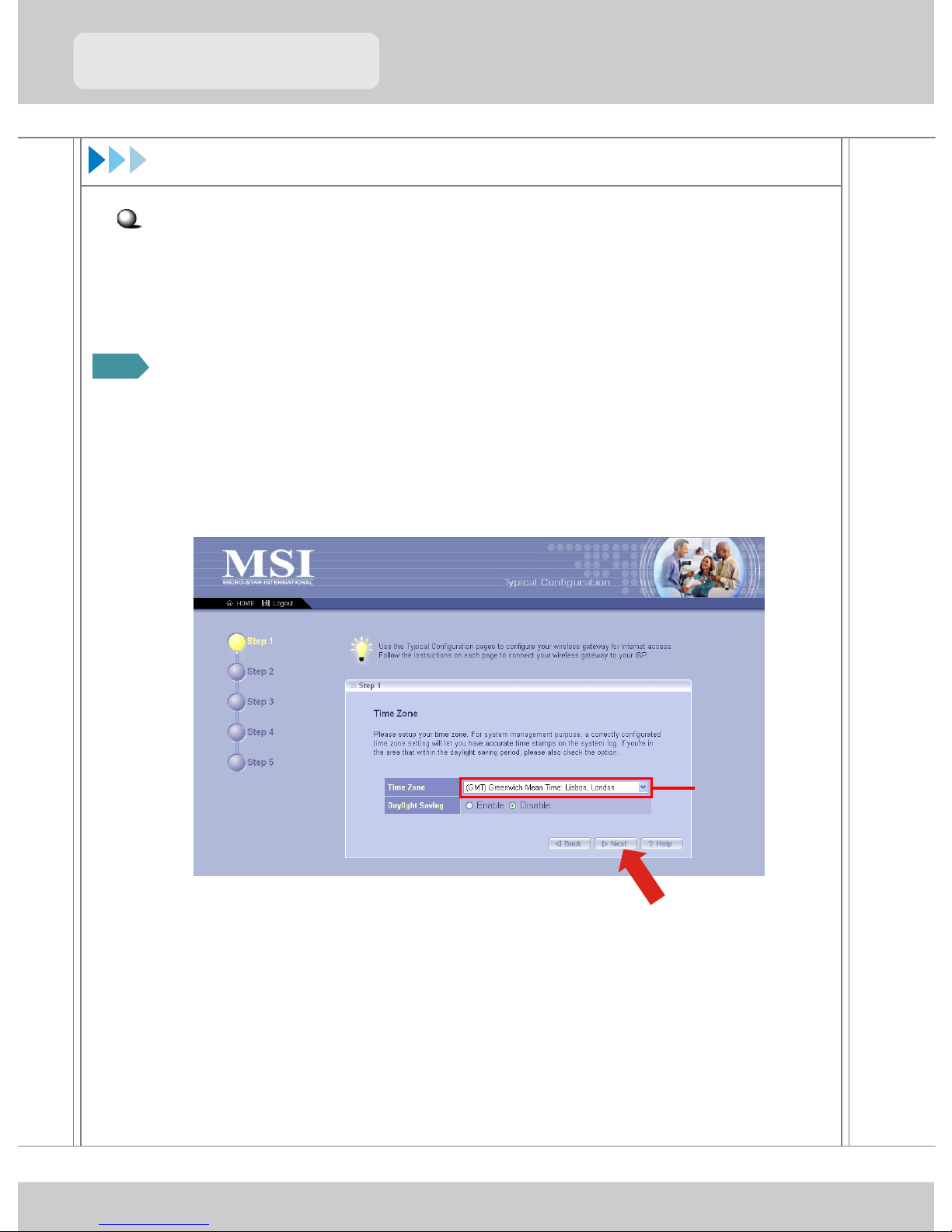

STEP11
11
1
Choose your
Time Zone.
