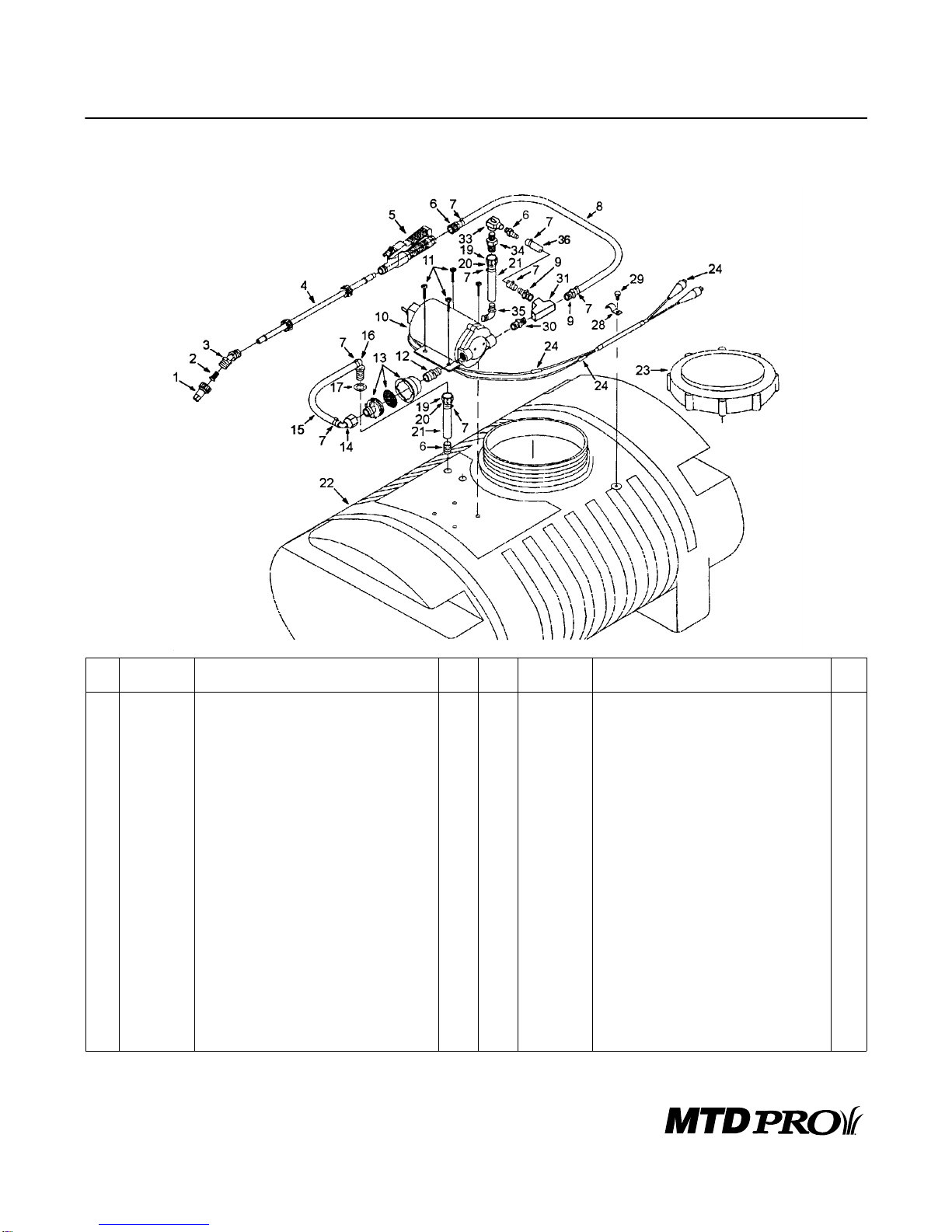

Electric, Spot-Sprayers Parts List
Model No.: SY15 15-Gallon, 1/4" x 25' FlexCoil Hose
Model No.: SY25 25-Gallon, 1/4" x 25' FlexCoil Hose
Ref.
No. Part No. Description Qty. Ref.
No. Part No. Description Qty.
1 00022463 Spray Tip, Adjustable 1 19 00035628 Swivel Nut, Nylon 2
2 00005173 Strainer 1 20 00035627 Hose Barb, 3/8 Nylon 2
3 00017744 Adapter, 45° 1 21 see ref. 32 Hose, 3/8" x 14' —
4 00022462 Extension Wand, 15” 1 22 00035898 Tank, 15 Gallon, Polyethylene 1
5 00022449 Trigger Valve 1 00035884 Tank, 25 Gallon, Polyethylene 1
00018334 Wand Assembly (includes 1 each Ref.
1,Ref. 2, Ref 3. Ref. 4 and Ref. 5) 1 23 00022448 Tank Lid 1
6 00035781 Hose Barb, 3/8 x 1/4 MPT 3 24 00018283 Wire Harness 1
7 01000215 Hose Clamp 8 25
8 00035816 Hose, 1/4" x 25', FlexCoil 1 26
9 00035631 Hose Barb, 3/8 x 3/8 MPT 2 27
10 00020851 Diaphragm Pump, Flojet 1 28 00035790 Conduit Strap, 1/2 1
11 00035678 Mach. Screw, # 10-24 x 3/4 Pan Hd. 4 29 00034947 Cap Screw, 5/16-18 x 1/2 Hex Hd. 1
12 00035599 Fitting, Adapter 1 30 00032078 Nipple, 3/8 MPT Close 1
13 00035601 Filter, 30 Mesh S.S. Screen 1 31 00032081 Tee, 3/8 FPT Brass 1
14 00035600 Hose Barb, 3/8 x 90° Swivel Elbow 1 32 01004805 Hose Kit, Includes 1 ea. (ref. 15 & 36) —
Includes 2 ea. (ref. 21) —
15 see ref. 32 Hose, 3/8"x 18' — 33 00031247 Valve, 90°, 1/4 FPT 1
16 00035626 Hose Barb, 3/8" x 90° Male Elbow 1 34 00032086 Fitting, Adapter, 1/4 MPT x 11/1 61 1
17 00035629 Washer, 11/16 Nylon 1 35 00032113 Elbow, 90°, 1/4 MPT x 3/8 Hose Barb 1
18 36 see ref. 32 Hose, 3/8" x 5" —
