MTD Yard Machines Y765 Manuale

Item Part No. Description

20 791-182405 Switch Assembly

21 791-181862 Housing Screw

22 791-181345 Cover Screw

23 753-05023 Wire Lead

24 753-06169 Starter Housing Assembly (includes 20-23)

25 753-04466 Anti-Rotation Screw

26 753-05056 Clamp Assembly (includes 25)

27 753-05091 Shroud Extension and Stand (includes 22)

28 753-04324 Module Assembly

29 791-610311B Spark Plug

30 753-04619 Exhaust Gasket

31 753-04620 Muffler Mounting Bolt Assembly

32 753-05169 Muffler Assembly (includes 30 & 31)

33 791-182723 Cylinder Bolt

34 753-04182 Cylinder Gasket

* 753-1209 Piston Ring Set

* 753-04826 Short Block Assembly (includes 9, 29, 33 & 34)

* not shown

Item Part No. Description

1 753-04511 Air Cleaner Cover Assembly (includes 2 & 22)

2 791-180350B Air Cleaner Filter

3 791-180351 Carburetor Mounting Screws

4 791-180226 Wavey Washer

5 753-04418 Choke Lever Assembly

6 753-04419 Choke Lever & Plate (includes 5)

7 753-04408 Carburetor Assembly (includes 8 & 18)

8 791-610675 Carburetor Gasket

9 791-181860 Carb Mount Screw

10 791-683974B Primer and Hose Assembly

11 753-1196 Carburetor Mount Assembly (includes 9, 12 & 13)

12 791-684451 Reed Assembly

13 753-05487 O-Ring

14 791-612134 Rear Mounting Pad

15 791-182612 Fuel Cap Assembly

16 791-182767 Fuel Tank Assembly (includes 15)

17 791-145308 Front Mounting Pad

18 753-05240 Flywheel Assembly

19 791-610303 Square Nut Drive

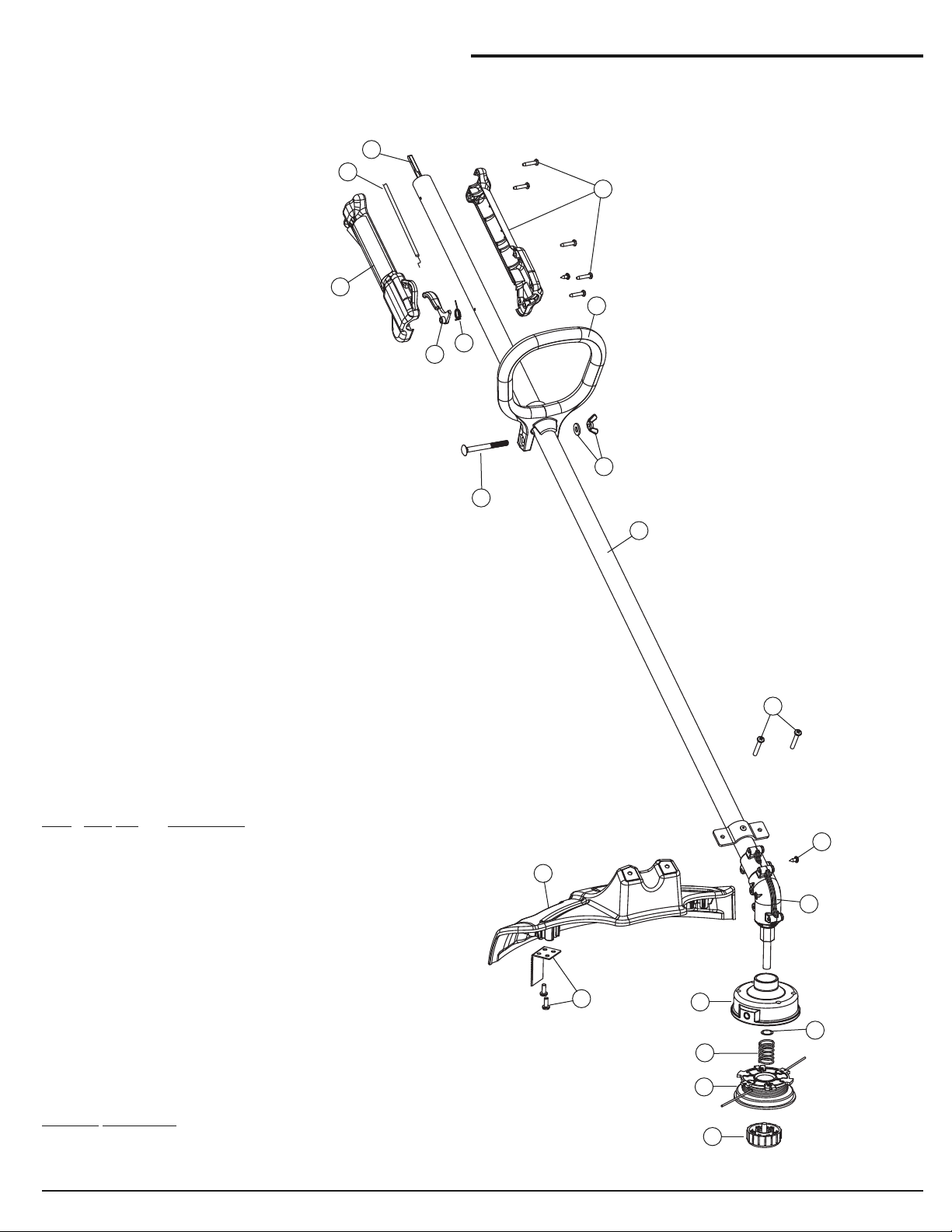

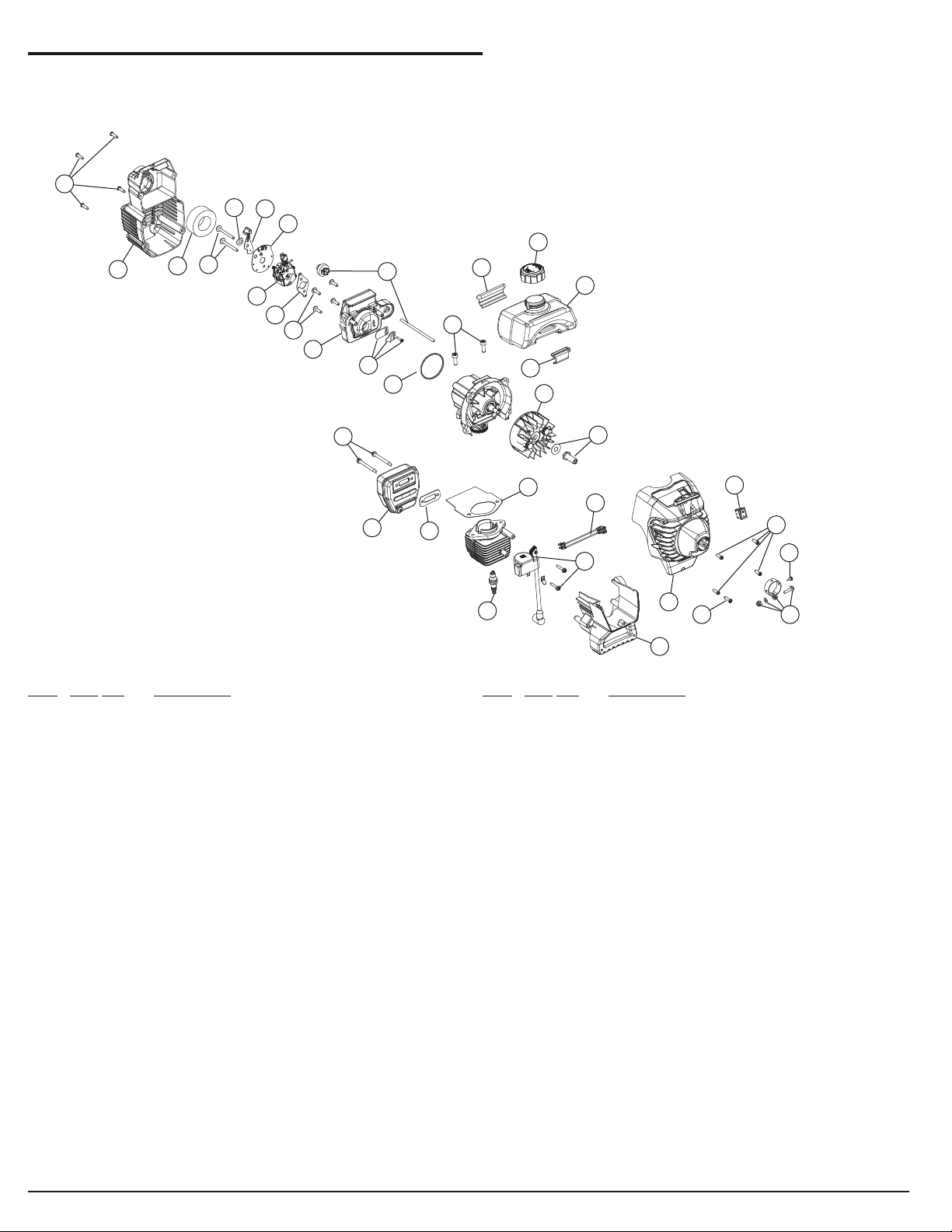

REPLACEMENT PARTS - MODEL Y765

2-CYCLE GAS TRIMMER

PPN 41DD765G900

PARTS LIST PART NO. 769-04518 P00 6/09

123

7

11

4

6

5

10

12

13

34

17

33

14

15

19

18

20

24

23

27

31

28

32

8

30

29 22

25

26

9

22

21

16

REPLACEMENT PARTS - MODEL Y765

2-CYCLE GAS TRIMMER

PPN 41DD765G900

Issued 6/09

Item Part No. Description

1 753-04927 Throttle Housing Assembly (includes 2 & 3)

2 791-610314 Throttle Trigger Spring

3 791-181807 Throttle Trigger

4 753-04901 Throttle Cable

5 791-153064 D-Handle Assembly (includes 6)

6 791-181587 D-Handle Hardware

7 753-06164 Drive Shaft Housing Assembly (includes 8)

8 753-05211 Flexible Drive Shaft

9 753-06125 Shield Mounting Hardware

10 753-06123 Shield Assembly (includes 11)

11 753-06126 Blade Assembly

12 753-05698 Anti-Rotation Screw

13 753-06165 Gearbox Assembly (includes 14-18)

14 753-04284 Outer Spool Assembly (includes 15)

15 791-610660 Retainer

16 791-610317B Spring

17 753-1155 Inner Reel

18 791-153066B Bump Head Knob Assembly

Optional Acessories

* 791-153577B Spool & 0.080 in. (2.03 mm) Line Assembly

1

4

3

2

1

5

6

7

8

10

15

9

14

11

16

17

18

6

12

13
