Multimo A 751 Manuale utente

Assembly Instructions

60 min.

110 min.

Technical Service

End User

A 751- SIMPLE TWIN 100 CM

VIDEO

https://youtu.be/v0iYmDpHkwQ

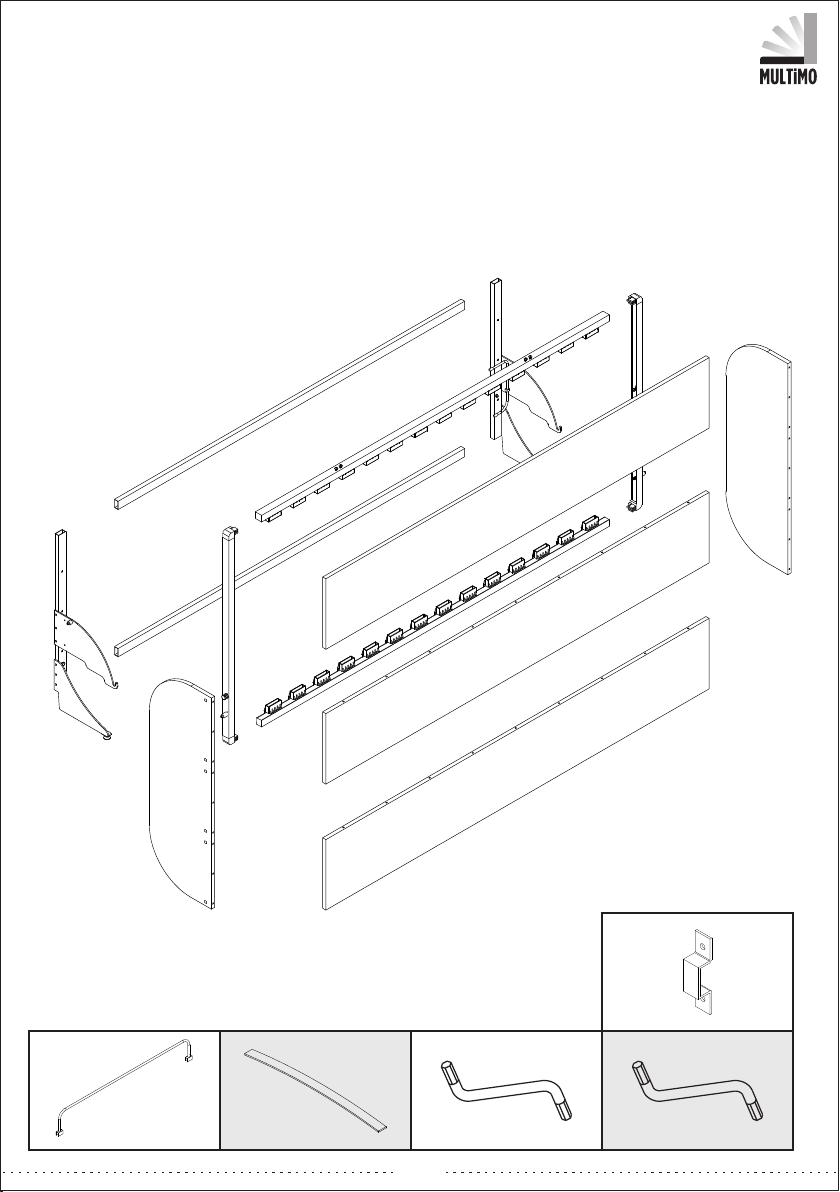

Page 1 Page 2

E-R

E-L

G-R

G-L

AMR 03 (300 N)

2 / piece

DD - 01 ( R10 )

18 / piece

TFC - 01(8x70) mm

18 / piece

SG - 01

4 / piece

TAP - 01

32 / piece

KVL 01

14 / piece

MNG - 01

32/ piece

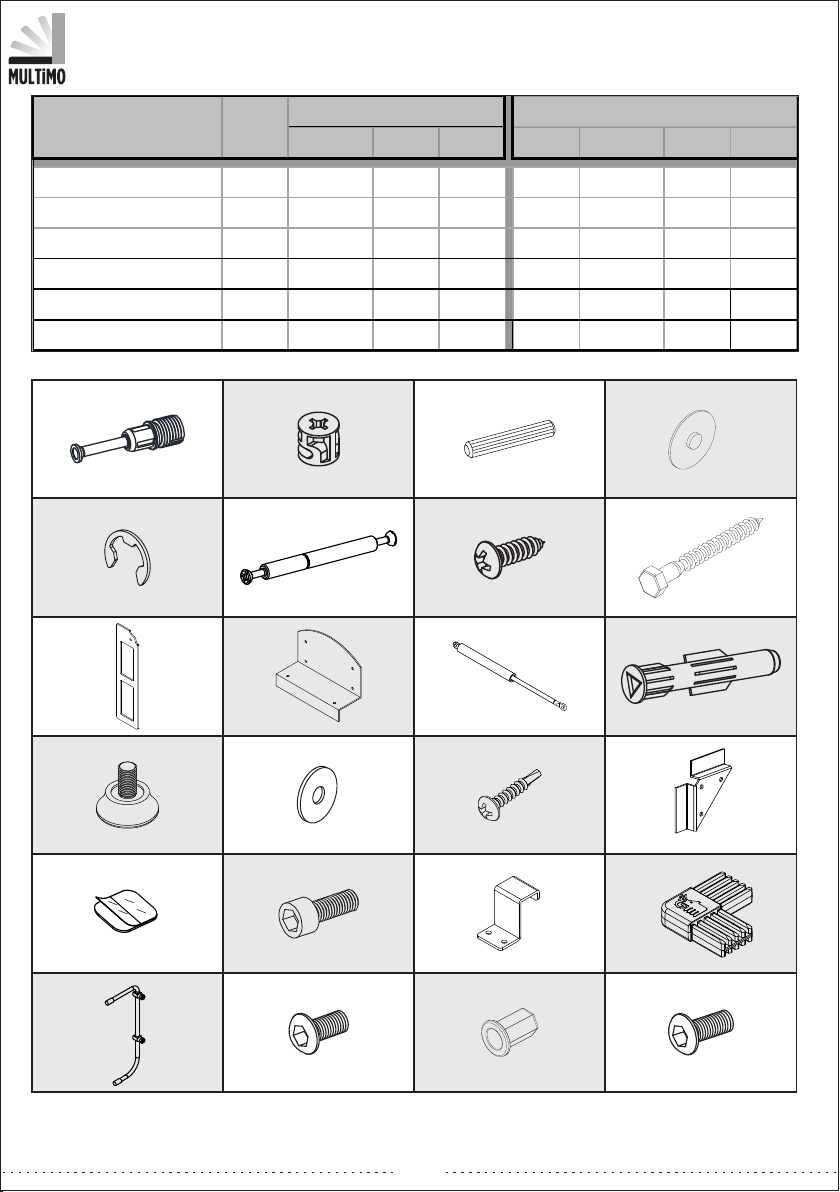

Accessories List

MNX 02

12/ piece

MNX - 03

10 / piece

PL - 04 (5x12x0,7) mm

4 / piece

SC-79

2 / piece

SC-101

3 / piece

AL - 01 (4MM)

1 / piece

AL - 02 (5MM)

1 / piece

KOR -B

1 / piece

BKA - 01

2 / piece

KCE - 01

4/ piece

YSB - 01 ( 3,9x16 ) mm

4 / piece

SYS-01

1 / piece

VTB - 02 (4,2x16) mm

36 / piece

2 / piece

SC-98

KBY- 02

4 / piece14 / piece

SC-110

IM - 02 (6x20) mm

4 / piece

CTM - 01 ( 6x10 ) mm

4 / piece

SKT 01

4 / piece 4 / piece

CTM - 04 ( 8x25 ) mm

LTA - 01

14 / piece

SC-78

2 / piece H

Track Title

(inch) (mm)

Piece T hickness Length Width Piece T hick Height Most

A20,71 40,08 13,58 218 1018 345

B10,71 84,17 13,39 1 18 2138 340

C10,71 84,17 13,39 1 18 2138 340

D10,71 84,17 13,39 1 18 2138 340

E-R / E-L 231,30 2 795

F275,98 2 1930

Page 1 Page 2

E-R

E-L

G-R

G-L

AMR 03 (300 N)

2 / piece

DD - 01 ( R10 )

18 / piece

TFC - 01(8x70) mm

18 / piece

SG - 01

4 / piece

TAP - 01

32 / piece

KVL 01

14 / piece

MNG - 01

32/ piece

Accessories List

MNX 02

12/ piece

MNX - 03

10 / piece

PL - 04 (5x12x0,7) mm

4 / piece

SC-79

2 / piece

SC-101

3 / piece

AL - 01 (4MM)

1 / piece

AL - 02 (5MM)

1 / piece

KOR -B

1 / piece

BKA - 01

2 / piece

KCE - 01

4/ piece

YSB - 01 ( 3,9x16 ) mm

4 / piece

SYS-01

1 / piece

VTB - 02 (4,2x16) mm

36 / piece

2 / piece

SC-98

KBY- 02

4 / piece14 / piece

SC-110

IM - 02 (6x20) mm

4 / piece

CTM - 01 ( 6x10 ) mm

4 / piece

SKT 01

4 / piece 4 / piece

CTM - 04 ( 8x25 ) mm

LTA - 01

14 / piece

SC-78

2 / piece H

Track Title

(inch) (mm)

Piece T hickness Length Width Piece T hick Height Most

A20,71 40,08 13,58 218 1018 345

B10,71 84,17 13,39 1 18 2138 340

C10,71 84,17 13,39 1 18 2138 340

D10,71 84,17 13,39 1 18 2138 340

E-R / E-L 231,30 2 795

F275,98 2 1930

Page 3 Page 4

STEP 2

STEP 1

E-R

E-L

BKA - 01

KBY - 02

SYS - 01

SC - 98

STEP 3

VIDEO

https://youtu.be/5O4oYTvrHSc

VIDEO

https://youtu.be/gDVoh2so3T4

ATTENTION!!!

Must be secured to the wall made of brick, concrete or similarly strong material.

Mounting to wooden or metal studs is also acceptable.

Do not mount directly to sheetrock or paper-mache type walls not supported by studs.

Ø 10 mm / 0,254 nch

DD - 01

TFC - 01

Use mounting frame as a drilling template.

Attach frame to the wall at one point only.(STEP-2)

Ensure frame is perfectly level.(STEP-2)

Mark drilling points through predrilled holes in the frame.(STEP-3)

Remove frame from the wall and drill pilot holes in the wall.(STEP-4)

Attach frame to the wall using supplied hardware.(STEP-5-6)

2010 mm

850 mm

Page 3 Page 4

STEP 2

STEP 1

E-R

E-L

BKA - 01

KBY - 02

SYS - 01

SC - 98

STEP 3

VIDEO

https://youtu.be/5O4oYTvrHSc

VIDEO

https://youtu.be/gDVoh2so3T4

ATTENTION!!!

Must be secured to the wall made of brick, concrete or similarly strong material.

Mounting to wooden or metal studs is also acceptable.

Do not mount directly to sheetrock or paper-mache type walls not supported by studs.

Ø 10 mm / 0,254 nch

DD - 01

TFC - 01

Use mounting frame as a drilling template.

Attach frame to the wall at one point only.(STEP-2)

Ensure frame is perfectly level.(STEP-2)

Mark drilling points through predrilled holes in the frame.(STEP-3)

Remove frame from the wall and drill pilot holes in the wall.(STEP-4)

Attach frame to the wall using supplied hardware.(STEP-5-6)

2010 mm

850 mm

Page 5 Page 6

STEP 4

Ø 10 mm / 0,254 nch

DD - 01 x 11

STEP 5

STEP 6

TFC - 01 X 3

A-

FİRST LOCATE THE STUDS BY USİNG ''STUD

FİNDER'' İN THE WALL AND DRİLL İT

SUPPLY DRYWALL FASTENERS APPROPPRİATE

TO YOUR WALL TYPE. WE RECOMMEND

USİNG STEEL TOGGLE BOLT ANCHOR THAT

SHOWN BELOW

TFC - 01 X 2

DD - 01 X 2

SC - 101

B-

VIDEO

https://youtu.be/ZLoblB_9C9g

SC - 98

TFC - 01 X 6

A-

B-

SC - 101 X 3

https://youtu.be/t5xEcWUooe4

VIDEO

Page 5 Page 6

STEP 4

Ø 10 mm / 0,254 nch

DD - 01 x 11

STEP 5

STEP 6

TFC - 01 X 3

A-

FİRST LOCATE THE STUDS BY USİNG ''STUD

FİNDER'' İN THE WALL AND DRİLL İT

SUPPLY DRYWALL FASTENERS APPROPPRİATE

TO YOUR WALL TYPE. WE RECOMMEND

USİNG STEEL TOGGLE BOLT ANCHOR THAT

SHOWN BELOW

TFC - 01 X 2

DD - 01 X 2

SC - 101

B-

VIDEO

https://youtu.be/ZLoblB_9C9g

SC - 98

TFC - 01 X 6

A-

B-

SC - 101 X 3

https://youtu.be/t5xEcWUooe4

VIDEO

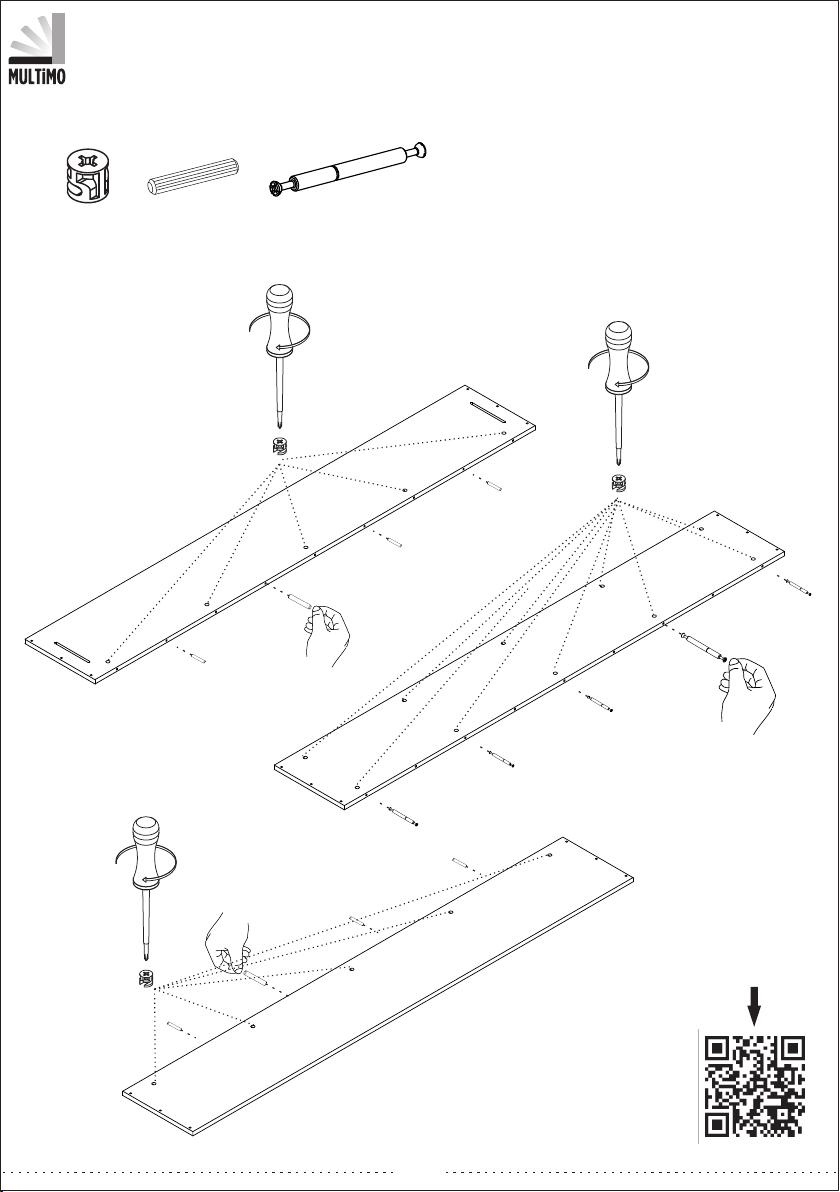

Page 7 Page 8

STEP 7

KVL 01

MNG - 01

MNG - 01 x 6

KVL - 01 x 3 A

MNG - 01 x 5

MNG - 01 x 10

MNG - 01 x 5 B

MNX - 03 x 10

KVL - 01 x 4

MNX - 03

210°

STEP 8

STEP 9

KVL 01

MNG - 01

210°

VIDEO

https://youtu.be/MXxWZklhtWE

VIDEO

https://youtu.be/T83F5yBtXls

Page 7 Page 8

STEP 7

KVL 01

MNG - 01

MNG - 01 x 6

KVL - 01 x 3 A

MNG - 01 x 5

MNG - 01 x 10

MNG - 01 x 5 B

MNX - 03 x 10

KVL - 01 x 4

MNX - 03

210°

STEP 8

STEP 9

KVL 01

MNG - 01

210°

VIDEO

https://youtu.be/MXxWZklhtWE

VIDEO

https://youtu.be/T83F5yBtXls

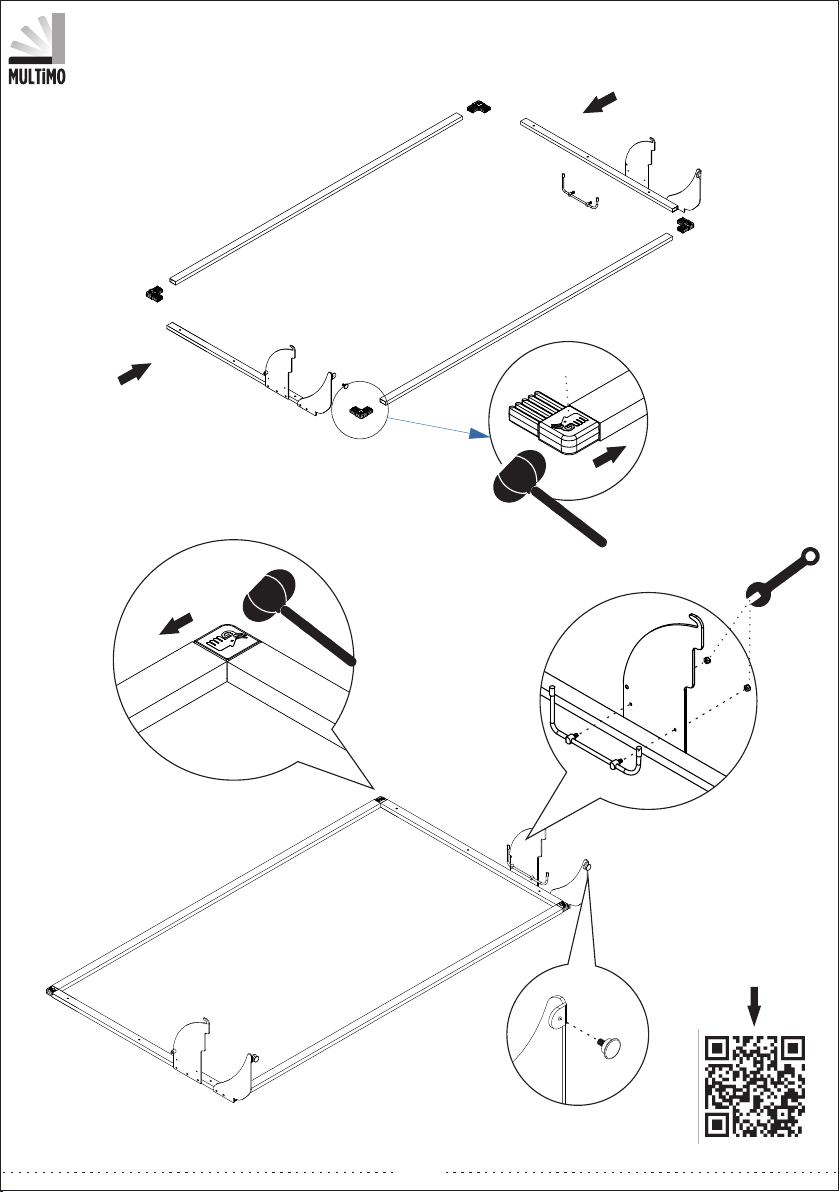

Page 9 Page 10

STEP 10

G-R

G-L

LTA - 01 x 14

G-R

G-L

Install plastic corners and

metal joints without gaps

SKT - 01

CTM - 01

-3

AL - 01

G-R

STEP 11

69 mm 69 mm

SC-110 x 10

VTB - 02 x 20

SC-110 x 4

VTB - 02 x 8

Assemble the brackets over the

places shown over H,K proles

Assemble the brackets over the

places shown over G-L,G-R proles

VIDEO

https://youtu.be/DzmViqWnr_Q

VIDEO

https://youtu.be/Wiz7E7c32vw
