Multitech MultiVOIP 400 MVP400 Manuale utente

Standalone Voice/IP Gateway

Model MVP400

Proprietary Mode

Quick Start Guide

82099351 Revision B

MultiVOIP (Model MVP400)

This publication may not be reproduced, in whole or in part,

without prior expressed written permission from Multi-Tech

Multi-Tech Systems, Inc. makes no representations or warranties

with respect to the contents hereof and specifically disclaims any

implied warranties of merchantability or fitness for any particular

purpose. Furthermore, Multi-Tech Systems, Inc. reserves the right

to revise this publication and to make changes from time to time in

the content hereof without obligation of Multi-Tech Systems, Inc. to

notify any person or organization of such revisions or changes.

Record of Revisions

Revision Description

AManual released. Covers software version 3.01.

(10/07/01)

BRemove MultiVOIP Manager from splash screen.

(01/28/02)

Patents

This Product is covered by one or more of the following U.S.

Patent Numbers:

6151333, 5757801, 5682386

. Other Patents

Pending.

TRADEMARK

Trademark of Multi-Tech Systems, Inc. is the Multi-Tech logo.

Windows is a registered trademark of Microsoft.

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112

(763) 785-3500 or (800) 328-9717

Fax 763-785-9874

Tech Support (800) 972-2439

Internet Address: http://www.multitech.com

iii

Contents

Introduction ................................................................................... 4

Related Documentation ................................................................. 5

Installing Your MultiVOIP ............................................................... 6

Configure and Install your Host MultiVOIP ............................. 6

Configure your Client MultiVOIPs ........................................... 6

Deploy the VOIP Network ...................................................... 6

Unpacking Your MultiVOIP ............................................................ 8

Safety Warnings ............................................................................ 8

Cabling Your MultiVOIP ................................................................ 9

E&M Jumper Block Positioning Procedure ............................11

Configuring Your Host MultiVOIP ................................................ 13

Configuring Your Client MultiVOIPs ............................................. 30

Deploying the VOIP Network....................................................... 41

Limited Warranty ......................................................................... 44

Technical Support ........................................................................ 45

FCC Declaration .......................................................................... 46

MultiVOIP Quick Start Guide

Introduction

Welcome to Multi-Tech's new standalone Voice/IP Gateway

which allows analog voice and fax communication over an IP

network. The MultiVOIP model number is MVP400 and is a

four-channel unit. Multi-Tech’s new voice/fax over IP gateway

technology allows voice and fax communication to ride, with

no additional expense, over your existing IP network, which

has traditionally been data-only. To access this free voice and

fax communication, all you have to do is connect your

MultiVOIP to your telephone equipment, and then to your

existing Ethernet LAN. Once configured, the MultiVOIP then

allows voice and fax to travel down the same path as your

traditional data communications.

The MVP400 is designed with four voice/fax channels (which

offer three voice/fax interfaces per channel), a 10M bps Ethernet

LAN interface, and a command port for configuration.

System management is provided through the command port

using bundled Windows® software, which provides easy-to-

use configuration menus and online Help.

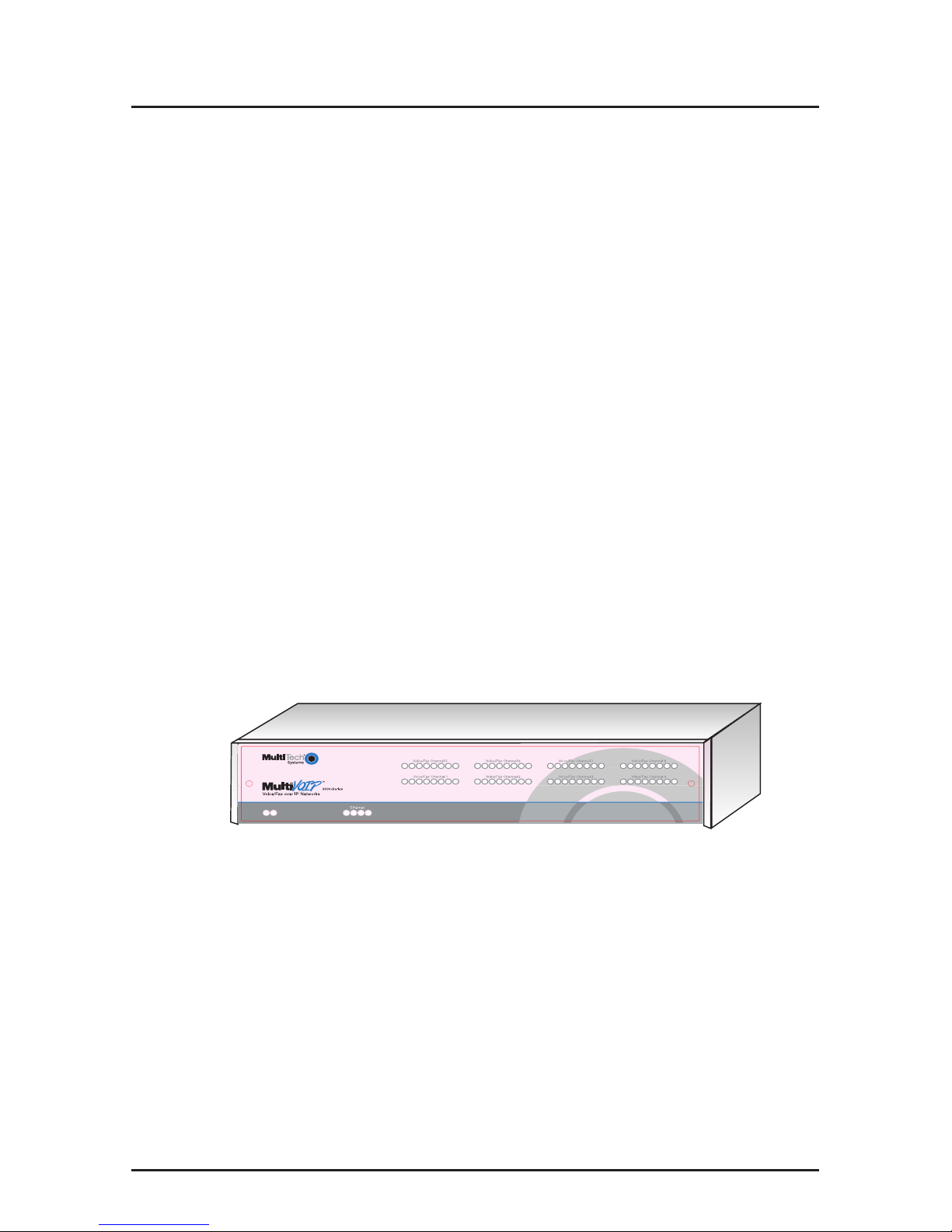

Figure 1. MultiVOIP

Introduction

Related Documentation

The MultiVOIP Quick Start Guide is intended to be used by a

qualified VOIP Administrator (one that has both telephony and

networking experience). This Quick Start Guide provides the

necessary information for a qualified administrator to unpack,

cable, load software, and configure the host and client units for

proper operation.

A detailed MultiVOIP User Guide is also provided on the

system CD with your unit. This user guide provides in-depth

information on the features and functionality of Multi-Tech’s

MultiVOIP. The User Guide is provided in .pdf format on the

system CD and is also available from our Web site.

The User Guide is produced using Adobe AcrobatTM. To view

or print your copy of a user guide, install Acrobat ReaderTM on

your computer. The Acrobat Reader is included on your

system CD or is available as a free download from Adobe’s

Web site at http://www.adobe.com.

Launch the Reader and select the .pdf file from the CD.

Viewing and printing a user guide from the web also requires

that you have the Adobe Acrobat Reader loaded on your

system. The MultiVOIP User Guide is also available on Multi-

Tech’s Web site at http://www.multitech.com

From the MTS homepage, click Support | Manuals | MultiVOIP

and choose the appropriate User Guide to download the .pdf file.

MultiVOIP Quick Start Guide

Installing Your MultiVOIP

The basic steps of installing your MultiVOIP network involve

unpacking the units, connecting the cables, and configuring

the units using the included management software (MultiVOIP

Configuration). The recommended installation process

includes three phases that, when completed, result in a fully

functional Voice Over IP network. A general description of

each phase is provided below, and detailed instructions follow

throughout the rest of this section.

Configure and Install your Host MultiVOIP

As the first step, the VOIP administrator configures the

MultiVOIP designated as the “Host” unit. This includes the

assignment of a unique LAN IP address, subnet mask, and

Gateway IP address, as well as the selection of appropriate

channel interface type for each of the Voice/Fax channels.

Once all connections have been made, the VOIP administrator

configures the unit and builds the Phone Directory Database

that will reside in the Host unit.

Configure your Client MultiVOIPs

The next step is to configure the MultiVOIPs designated as

“Client” units. The Client units can be another MVP400, a

MVP800 unit, MVP200 or a MultiVOIP 100 Series. Again,

unique LAN IP addresses, subnet masks, and Gateway IP

addresses are assigned, and each Voice/Fax channel is

configured for the appropriate channel interface type. When

this is done, the Phone Directory Database option is set to

Client, and the IP address of the Host MultiVOIP is entered.

Once all client units are configured, the process moves on to

Phase 3.

Deploy the VOIP Network

The final phase of installation is deployment of the network.

Through the first two phases, the VOIP administrator controls

configuration, so when the Client MultiVOIPs are sent to their

Introduction

remote sites, the remote site administrators need only to

connect the units to their LAN and telephone equipment. A full

Phone Directory Database (supplied by the Host MultiVOIP)

will be loaded into their unit within minutes of being connected

and powered up.

The final task of the VOIP Administrator is to develop the VOIP

Dialing Directory based on the Phone Directory Database and

the phone numbers of the interfacing telephone equipment.

Now, a VOIP User can call any person on the VOIP network.

MultiVOIP Quick Start Guide

Unpacking Your MultiVOIP

Remove all items from the box.

www.multitech.com

Voice/Fax over IP Networks

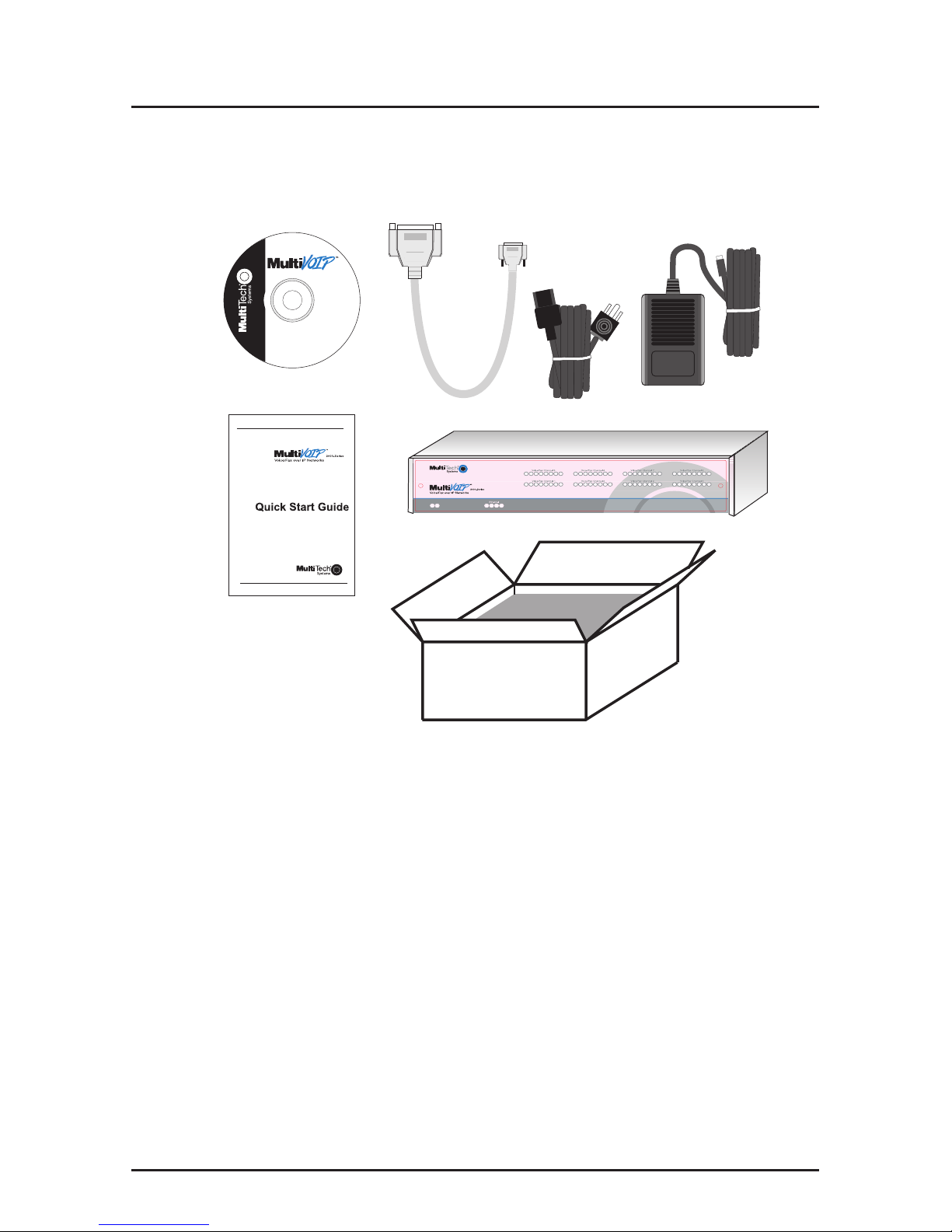

Figure 2. Unpacking

Safety Warnings

Caution

Danger of explosion if battery is incorrectly replaced.

A lithium battery on the voice/fax channel board provides

backup power for the time keeping capability. The battery has

an estimated life expectancy of ten years.

When the battery starts to weaken, the date and time may be

incorrect. If the battery fails, the board must be sent back to

Multi-Tech Sytems for battery replacement.

The E&M, FXS, and Ethernet ports are not designed to be

connected to a Public Telecommunication Network.

Cabling

Cabling Your MultiVOIP

Cabling your MultiVOIPinvolves connecting the host MultiVOIP

to your LAN and telephone equipment.

If you are connecting any Voice/Fax Channel to an E&M trunk

other than type 2, perform the E&M Jumper Block Positioning

procedure, which immediately follows the Cabling Procedure,

before performing the Cabling Procedure.

1. Connect one end of the power supply to a live AC outlet

and connect the other end to the MultiVOIP as shown in

Figure 3. The power connector is a 7-pin circular DIN

connector.

E&M FXO FXS E&M FXO FXS E&M FXO FXS

VOICE/

FAX

CHANNEL

VOICE/

FAX

CHANNEL

VOICE/

FAX

CHANNEL

VOICE/

FAX

CHANNEL

VOICE/

FAX

CHANNEL

VOICE/

FAX

CHANNEL

VOICE/

FAX

CHANNEL

VOICE/

FAX

CHANNEL

CHANNEL 10

CHANNEL 9

CHANNEL 8

CHANNEL 7

CHANNEL

CHANNEL 5

CHANNEL 4

CHANNEL 3

CHANNEL 2 (RS232/V.35)

CHANNEL 1 (RS232/V.35)

10BASET

ETHERNET

COMMAND PORT

EXT. COMPOSITE LINK (RS232/V.35) POWER

GND

T1 DSU

MONITOR

XMT RCV

INTERNAL

COMPOSITE

LINK

E&M FXO FXS

Ethernet Connection

Command Port Connection

Power Connection

FXS

FXO

E&M

FXSE&M

FXO

PSTN

Voice/Fax Channel 1 - 8

Connections

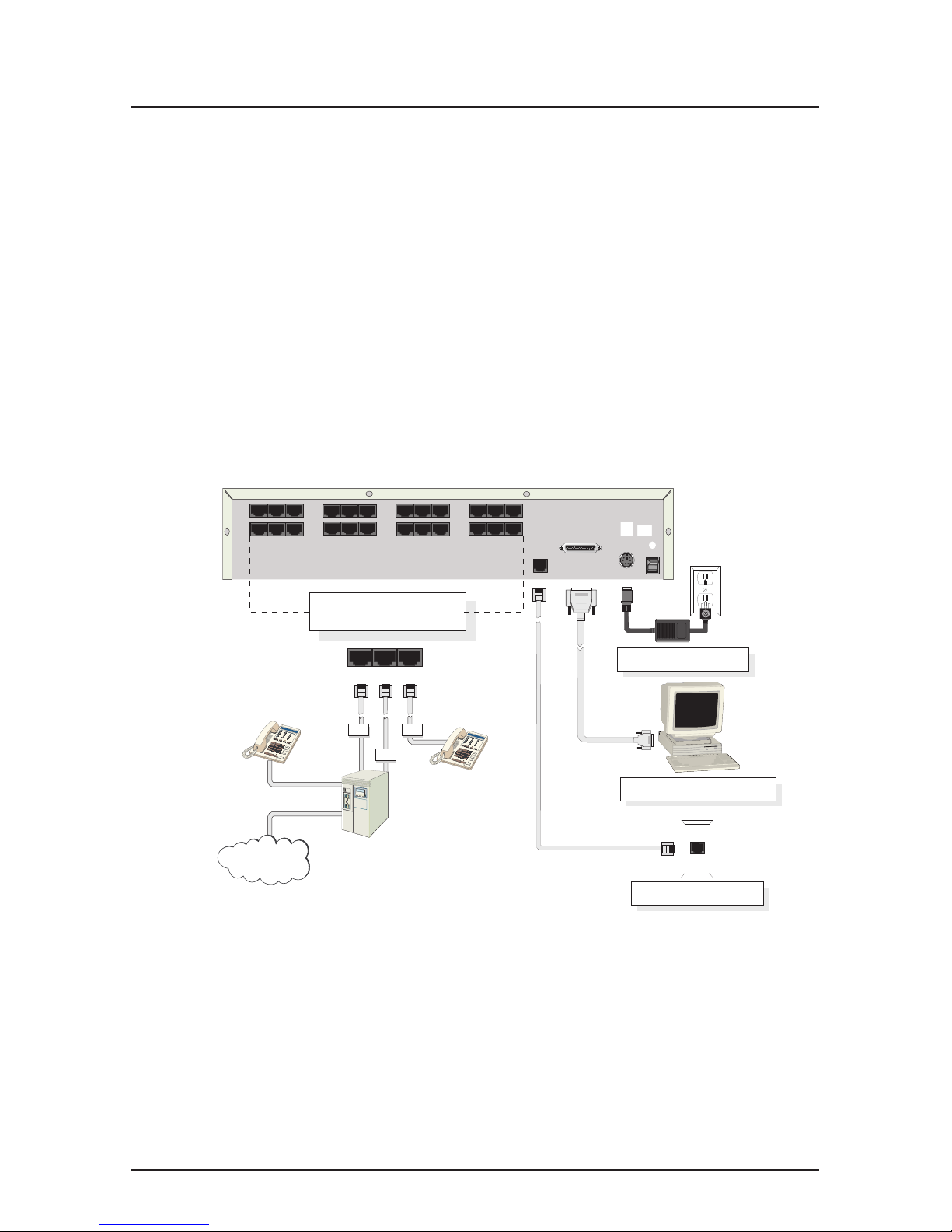

Figure 3. Cable Connections

2. Connect the MultiVOIP to a PC by using the DB-9 to DB-25

cable provided with your unit. Plug the DB-25 end of the

cable into the Command port of the MultiVOIP and the

other end into the serial port on the PC. See Figure 3.

MultiVOIP Quick Start Guide

3. Connect a network cable to the ETHERNET 10BASET

connector on the back of the MultiVOIP. Connect the other

end of the cable to your network.

4. If you are connecting a station device such as an analog

telephone, a fax machine, or a Key Telephone System

(KTS) to your MultiVOIP, connect one end of an RJ11

phone cord to the Voice/Fax Channel 1 FXS connector on

the back of the MultiVOIP and the other end to the station

device.

If you are connecting a PBX extension to your MultiVOIP,

connect one end of an RJ11 phone cord to the Voice/Fax

Channel 1 FXO connector on the back of the MultiVOIP

and the other end to the PBX extension.

If you are connecting an E&M trunk from a telephone

switch to your MultiVOIP, connect one end of an RJ45

phone cord to the Voice/Fax Channel 1 E&M connector

on the back of the MultiVOIP and the other end to the

trunk. Refer to the User Guide for E&M pin assignments.

If you are connecting to an E&M trunk, you need to ensure

that the E&M trunk jumper is in the correct position for the

E&M type trunk. The default E&M jumper position is E&M

type 2. To change the E&M jumper position, perform the

E&M jumper block positioning procedure, which

immediately follows this procedure.

5. Repeat the above step to connect the remaining telephone

equipment to each Voice/Fax Channel on your MultiVOIP.

6. Turn on power to the MultiVOIP by placing the ON/OFF

switch on the back panel to the ON position. Wait for the

BOOT LED on the MultiVOIP to go off before proceeding.

This may take a couple minutes.

Proceed to the next section to load the MultiVOIP software.

Altri manuali per MultiVOIP 400 MVP400

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Multitech Portale

Multitech

Multitech MULTIVOIP MVP-2410 Manuale utente

Multitech

Multitech MultiVOIP MVP400 Manuale utente

Multitech

Multitech MultiVOIP GSM SIP-to-Cellular Gateways... Manuale utente

Multitech

Multitech ProxyServer MTPSR1-202ST Manuale utente

Multitech

Multitech MultiVOIP GSM SIP-to-Cellular Gateways... Manuale utente

Multitech

Multitech MultiVOIP MVPFXS-8 Manuale utente

Multitech

Multitech Conduit AP Manuale utente

Multitech

Multitech MultiVOIP MVPGK1 Gatekeepers Manuale utente

Multitech

Multitech MultiVOIP MVP2400 Manuale utente

Multitech

Multitech Conduit MTCDT-L4E1 Istruzioni per l'installazione

Multitech

Multitech MultiVOIP MVP120 Manuale utente

Multitech

Multitech MTCAP-LAP3-915-001 Manuale utente

Multitech

Multitech MultiVOIP MVP100GK Gatekeeper Manuale utente

Multitech

Multitech MultiVOIP 100 (MVP110 Manuale utente

Multitech

Multitech 410 Manuale utente

Multitech

Multitech MultiVOIP MVP120 Manuale utente

Multitech

Multitech VoIP Manuale utente

Multitech

Multitech Conduit 300 Series Istruzioni per l'installazione

Multitech

Multitech MultiVOIP MVP100GK Gatekeeper Manuale utente

Multitech

Multitech MTAC-003 Istruzioni per l'installazione

Multitech

Multitech MULTIVOIP MVP-210 Manuale utente

Multitech

Multitech Conduit MTCDT-246L-US-EU-GB Istruzioni per l'installazione

Multitech

Multitech MultiVOIP MVPFX2-2 Manuale utente

Multitech

Multitech CallFinder CF100FX2-G Manuale utente

Manuali Portale popolari di altre marche

LST

LST M500RFE-AS Manuale utente

Kinnex

Kinnex Media Gateway Manuale utente

2N Telekomunikace

2N Telekomunikace 2N StarGate Manuale utente

Mitsubishi Heavy Industries

Mitsubishi Heavy Industries Superlink SC-WBGW256 Manuale utente

ZyXEL Communications

ZyXEL Communications ZYWALL2 ET 2WE Manuale utente

Telsey

Telsey CPVA 500 - SIP Manuale utente

RTA

RTA 460A-NNA4 Scheda tecnica

Shaw

Shaw Gateway HDPVR Manuale utente

ABB

ABB VSN900 Guida rapida

Commander

Commander Pulse Manuale utente

2N Telekomunikace

2N Telekomunikace ATEUS EasyGate 501309E Manuale utente

NETGEAR

NETGEAR C6300BD Manuale utente

Amit

Amit CDW531AM Manuale utente

HMS

HMS Netbiter EasyConnect EC150 Manuale utente

Huawei

Huawei EchoLife HG620 Manuale utente

AT&T

AT&T U-verse 3801 Manuale per l'uso e la cura

Logic IO

Logic IO RTCU MX2 turbo Manuale utente

Suttle

Suttle MediaMAX MXM-521 Manuale utente
