Multitech MultiConnect MTCM Manuale utente

MultiConnect®microCell Cellular Modem

MTCM/MTCM2 Quick Start

MultiConnect®microCell Cellular Modem MultiTech Systems MultiConnect®microCell Cellular Modem MultiTech Systems

Quick Start Quick Start

Installing the Device

1. Connect antennas to the antenna connectors.

2. Install drivers on your computer. Go to

https://www.multitech.com/brands/multiconnect-microcell, select

your model, and click Downloads.

3. Connect the USB connector to your computer directly, through a

hub, or with a USB extension cable.

The USB connection powers the device and the POWER LED lights.

Next Steps

For information on configuring and communicating with your device,

refer to the MultiConnect microCell User Guide for your model

information. Go to https://www.multitech.com/brands/multiconnect-

microcell, select your model and click Manuals for model specific

documentation.

You can also use the Connection Manager utility to update the driver and

connect the device. Information about installing and using the

Connection Manager is also in the user guide.

Regulatory Information

This equipment has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits

are designed to provide reasonable protection against harmful

interference in a residential installation.

For additional regulatory information, see your device’s user guide or go

to your device’s page at http://www.multitech.com

MultiConnect®microCell Cellular Modem

(MTCM/MTCM2)

Document Part Number: 82104702L

This publication may not be reproduced, in whole or in part, without the

specific and express prior written permission signed by an executive

by Multi-Tech Systems, Inc.

Multi-Tech Systems, Inc. makes no representations or warranties,

whether express, implied or by estoppels, with respect to the content,

information, material and recommendations herein and specifically

disclaims any implied warranties of merchantability, fitness for any

particular purpose and non-infringement. Multi-Tech Systems, Inc.

reserves the right to revise this publication without obligation to notify

any person or organization of such revisions or changes.

MultiConnect, MultiTech and the MultiTech logo are registered

trademarks of Multi-Tech Systems, Inc. All other brand and product

names are trademarks or registered trademarks of their respective

companies.

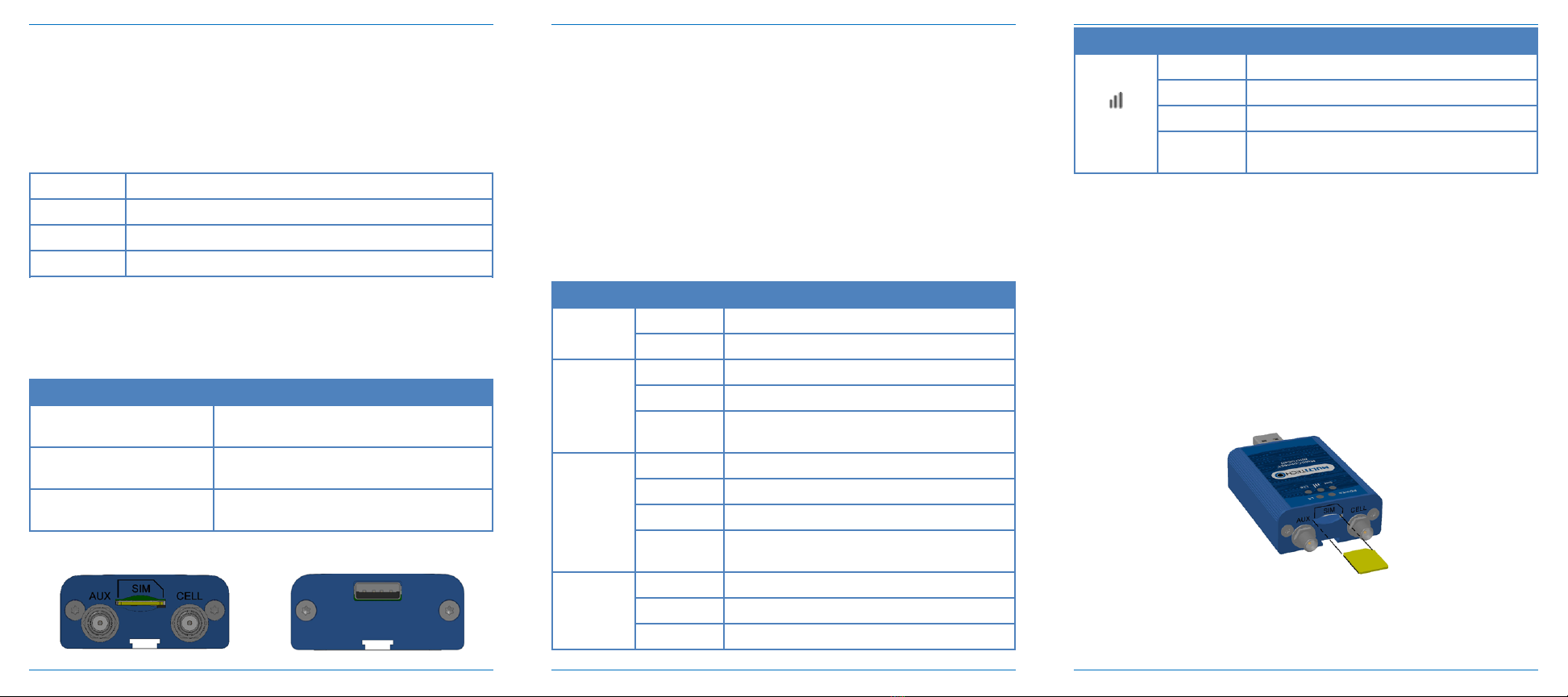

MultiConnect®microCell Cellular Modem MultiTech Systems MultiConnect®microCell Cellular Modem MultiTech Systems MultiConnect®microCell Cellular Modem MultiTech Systems

Quick Start Quick Start Quick Start

Overview

The MultiConnect microCell (MTCM/MTCM2) is a compact

communications device that provides network capabilities for fixed and

mobile applications.

Package Contents

Your package includes the following (varies with model):

Device 1- MultiConnect microCell modem

Antennas 2 - External antennas

Cable 1 - 1.5 USB extension cable (MTCM2-L6G1 only)

Documents 1 - Quick Start, 1 - Warranty information

Documentation

To download documentation, go to

https://www.multitech.com/brands/multiconnect-microcell, select your

model and click Manuals for device specific documentation.

Document Description

MultiConnect microCell

User Guide

Hardware, regulatory, and getting started

information.

MultiConnect microCell

Quick Start

This document. Steps for getting started.

Check online for an update version.

AT Commands Reference

Manual

Lists AT Commands and parameters

used to communicate with your device.

Side Panels

Connectors

The device has the following connectors:

■USB 1 USB connector,

■SMA 2 female SMA connectors, labeled CELL and AUX

■SIM 1 micro-SIM slot, between the SMA connectors

LEDs

Note:

■For additional LED information, refer to the User Guide for your

model.

■Slow is 1 second, on 1 second off.

■Fast is 200 milliseconds, on 200 milliseconds off.

LED Status Description

Power On Device has power

Off Device does not have power

Link Status

(LS)

On Radio is not registered

Flash Slow Registered

Off Radio is turned off, in PSM mode, receiving

a firmware update, or SIM is not inserted.

LTE On LTE

Flash Fast L4G1 only 3G

Flash Slow L4G1 only 2G

Off SIM not inserted or radio technology

unknown

SIM On Ready

Flash Slow Other

Off SIM not inserted

LED Status Description

Signal

Strength

On Good

Flash Fast Fair

Flash Slow Poor

Off Too low for communication or SIM not

inserted.

Antennas

Finger-tighten both antennas and then angle them away from each other

for antenna diversity. See user guide for more details.

Installing a SIM Card

To operate the device, you need a micro SIM card (3FF) from your

network provider.

To install the SIM card:

1. Locate the SIM card slot on the device. It is labeled SIM.

2. Push the SIM card into the slot with the contact side facing up as

shown. The SIM card locks into place.
