Data/Fax Industrial Temperature Modem

MT5634IND

Quick Start Guide

Data/Fax Industrial Temperature Modem

MT5634IND

82010381L Rev. B

This publication may not be reproduced, in whole or in part, without prior

expressed written permission from Multi-Tech Systems, Inc. All rights

reserved.

Multi-Tech Systems, Inc. makes no representations or warranty with respect to the

contents hereof and specifically disclaims any implied warranty of merchantability

or fitness for any particular purpose. Furthermore, Multi-Tech Systems, Inc.

reserves the right to revise this publication and to make changes from time to time

in the content hereof without obligation of Multi-Tech Systems, Inc. to notify any

person or organization of such revisions or changes. Check Multi-Tech’s web site

for current versions of our product documentation.

Revision Date Description

A 01/11/05 Initial release.

B 05/30/07 Revise mounting bracket

description & tech support listing.

Trademarks

Multi-Tech, the Multi-Tech logo, and MultiModem are registered trademarks

of Multi-Tech Systems, Inc. All other brand and product names mentioned in

this publication are trademarks or registered trademarks of their respective

companies.

Technical Support

Country By Email By Phone

France: [email protected]

+(33) 1-64 61 09 81

Europe, Asia, Africa.: [email protected] +(44) 118 959 7774

U.S., Canada, all others: [email protected] (800) 972-2439 or

763-717-5863

World Headquarters

Multi-Tech Systems, Inc.

2205 Woodale Drive

Mounds View, Minnesota 55112 U.S.A.

(763) 785-3500 or (800) 328-9717 Fax (763) 785-9874

http://www.multitech.com

Multi-Tech Systems, Inc. MT5634IND Quick Start Guide

Introduction

This guide shows you how to set up your Multi-Tech MultiModem

MT5634IND. See the User Guide on the MT5634IND CD for more

information including product specifications, configuration,

troubleshooting, and more. AT commands for the MT5634IND modem

are published in a separate Reference Guide included on the

MT5634IND CD and posted on the Multi-Tech Web site.

Safety Warnings

•Use this product only with UL- and CUL-listed computers (US).

•Never install phone wiring during a lightning storm.

•Never install a phone jack in a wet location unless the jack is

specifically designed for wet locations.

•Never touch uninsulated phone wires or terminals unless the

phone line has been disconnected at the network interface.

•Use caution when installing or modifying phone lines.

•Avoid using a phone during an electrical storm; there is a risk of

electrical shock from lightning.

•Do not use a phone in the vicinity of a gas leak.

•To reduce the risk of fire, use only 26 AWG or larger telephone

line cord.

MultiModem Package Contents

•One MT5634IND industrial data/fax modem.

•One mounting bracket.

•RS-232 serial cable.

•One RJ-11 phone cable.

•With AC Version: One universal power supply with power cord.

With DC Version: One fused power cable.

•One printed Quick Start Guide.

•One MT5634IND CD containing the modem driver, User Guide,

AT Commands Reference Guide, Fax Commands Reference

Guides, Quick Start Guide, Global Wizard software, PhoneTools

(a data communications program), and Acrobat Reader.

Multi-Tech Systems, Inc. MT5634IND Quick Start Guide

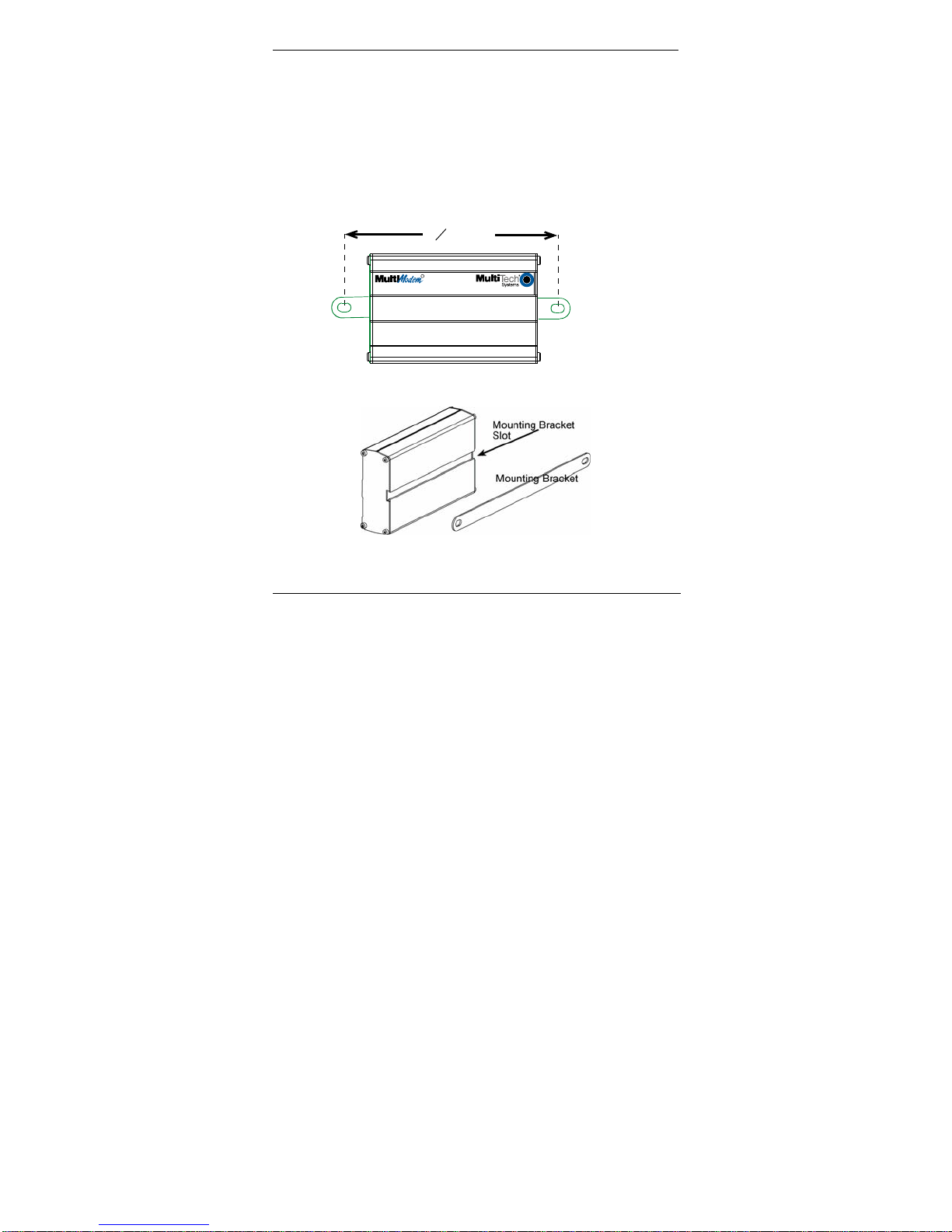

Step 1 – Desktop Placement or Panel-

Mounting

The MT5634IND is design to be used on the desktop or to be panel-

mounted. For panel-mounting, follow these directions for attaching the

mounting bracket:

1. Typically, the modem is mounted against a flat surface with two

mounting screws. Drill the mounting holes at the desired location.

The mounting holes must separated by 4 -15/16 inches center-to-

center.

Screw Separation

1516 inches

Industrial Modem

IND

2. To connect the mounting bracket to the modem, slide the bracket

into the slot on the back of the chassis.

3. Attach the modem to the surface with two screws.

Multi-Tech Systems, Inc. MT5634IND Quick Start Guide

Step 2 – Connect the Modem to Your

System

For AC Power

Turn off your computer. Place the modem in a convenient location, and

then connect it to your computer’s serial port, the phone line, and AC

power.

For DC Power

For DC power, use the fused cable in place of the Universal Power

Supply and the AC Power Cord. It uses a 313000 Series fuse (length:

1.25” or 31.75mm; diameter: 0.25” or 6.35mm).

Fused

Cable

Fused Cable

Connection

Multi-Tech Systems, Inc. MT5634IND Quick Start Guide

Steps for Connecting Your Modem to Your System

RS-232 Connection

Plug one end of the serial cable into the RS-232 connector on the

modem, and plug the other end into a serial port connector on your

computer, such as COM1 or COM2.

Phone Line Connection

Plug one end of the phone cable into the MT5634IND LINE jack

and the other end into a phone line wall jack.

Power Connection

For AC

Plug the power supply cable with attached transformer block into

the power connector on the MultiModem. Then plug the AC cord

receptacle into the transformer block, and plug the other end of the

of the AC cord into a power outlet or power strip.

Note: Use only the power supply supplied with the MT5634IND.

Use of any other power supply will void the warranty and could

damage the modem.

For DC

Plug the fused cable into the power connector on the MultiModem.

Then attach the two wires at the other end of the fused cable to a

DC power source.

Step 3 – Install the Modem Driver

If you use Windows 98+, you must install the modem driver, which is

installed using the Windows Plug and Play feature. Follow the four-step

procedure below. If you use another operating system, see your

operating system manual.

1. Make sure your modem is connected properly, and then turn on

your computer. Windows should detect your new modem and

open the Install New Modem wizard.

2. Insert the MT5634IND CD, and then click OK.

3. Windows installs and configures the modem.

4. Click Finish to exit.

Note for Windows NT – Windows NT inserts one additional prompt

before Step 2. Follow the on-screen directions and select the Multi-Tech

MT5634SMI-V92-IND driver.

Multi-Tech Systems, Inc. MT5634IND Quick Start Guide

Step 4 – Configure the Modem for Your

Country or Region

Different countries have different requirements for how modems must

function. Therefore, before you use your modem, you must configure it

to match the defaults of the country/region in which you are using it. You

must also do this if you move the modem to another country/region after

it has been configured for the first country/region. You can use one of

two configuration methods:

1. The Global Wizard. Directions follow on the next page.

2. AT Commands. See the User Guide for directions.

Using the Global Wizard to Configure Your Modem

1. Insert the MultiModemIND CD into the CD-ROM drive. The

Autorun menu should appear.

2. Click Initial Setup and Country/Region selection.

3. Choose either:

•Run Global Wizard from CD. This will not load the wizard

onto your hard drive, or

•Install Global Wizard on the HD. This will install the wizard

onto your PC for future use.

4. The Global Wizard dialog displays. Follow the on-screen

directions.

Step 5 – Install Data Communications

Software

Data communications software is designed to send and receive

messages. Multi-Tech includes PhoneTools, a communications software

program with your modem. However, the modem will work with other

data communications software, such as HyperTerminal.

To install PhoneTools, insert the CD into the CD-ROM drive; click the

PhoneTools icon. You will be asked to choose your language. The

software automatically loads onto your PC. See the PhoneTools user

documentation included with the PhoneTools software.

Patents

This device is covered by one or more of the following patents:

6,031,867; 6,012,113; 6,009,082; 5,905,794; 5,864,560; 5,815,567;

5,815,503; 5,812,534; 5,809,068; 5,790,532; 5,764,628; 5,764,627;

5,754,589; 5,724,356; 5,673,268; 5,673,257; 5,644,594; 5,628,030;

5,619,508; 5,617,423; 5,600,649; 5,592,586; 5,577,041; 5,574,725;

5,559,793; 5,546,448; 5,546,395; 5,535,204; 5,500,859; 5,471,470;

5,463,616; 5,453,986; 5,452,289; 5,450,425; D353,598; 5,355,365;

5,309,562; 5,301,274. Other patents pending.

82010381L
