Murdock BF3 series Manuale utente

COMPLIES WITH

Member of

1.800.591.9360

Technical Assistance Fax: 1.626.855.4894

TECHNICAL ASSISTANCE TOLL FREE TELEPHONE NUMBER:

NOTES TO INSTALLER:

1. Please leave this documentation with the owner of the fixture when finished.

2. Please read this entire booklet before beginning the installation.

3. Check your installation for compliance with plumbing, electrical and other applicable codes.

LIMITED WARRANTY - UNITED STATES & CANADA

Murdock warrants that its products are free from defects in material or workmanship under normal use and

service for a period of one year from date of shipment from the factory. Murdocks’s liability under this warranty

shall be discharged solely by repair or replacement of defective material, provided Murdock is notified in writing

within the time periods described above.

This warranty does not cover installation or labor charges and does not apply to materials, which have been

damaged by other causes such as mishandling or improper care or abnormal use. The repair or replacement of

the defective materials shall constitute the sole remedy of the Buyer and the sole remedy of Murdock under this

warranty. Murdock shall not be liable under any circumstances for incidental, consequential or direct charges

caused by defects in the materials, or any delay in the repair or replacement thereof. This warranty is in lieu of

all other warranties expressed or implied. Product maintenance instructions are issued with each unit and

disregard or non-compliance with these instructions will constitute an abnormal use condition and void the

warranty. Stainless steel must be protected on jobsite during construction and must be properly maintained

after the water has been introduced into the water cooler or drinking fountain, or Murdocks’s limited warranty is

void.

LIMITED EXPORT WARRANTY - One year on parts only.

Murdock™ assumes no responsibility for use

of void or superseded data. © Copyright

Murdock Mfg., City of Industry, CA Member of

Morris Group International. Please visit

for most current

specifications.

www.murdockmfg.com

7109-709-001 Date: 07/05/17

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

BF3 & BF4 Series

Semi-Recessed Bottle Filler

MURDOCK

15125 Proctor Ave.

City of Industry, CA

91746 U.S.A.

Phone 800-591-9360

626-336-4561

Fax 626-855-4894

www.murdockmfg.com

Federal

Public Law

111-380

(No Lead)

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

7109-709-001 Date: 07/05/17

Page 2 of 14

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

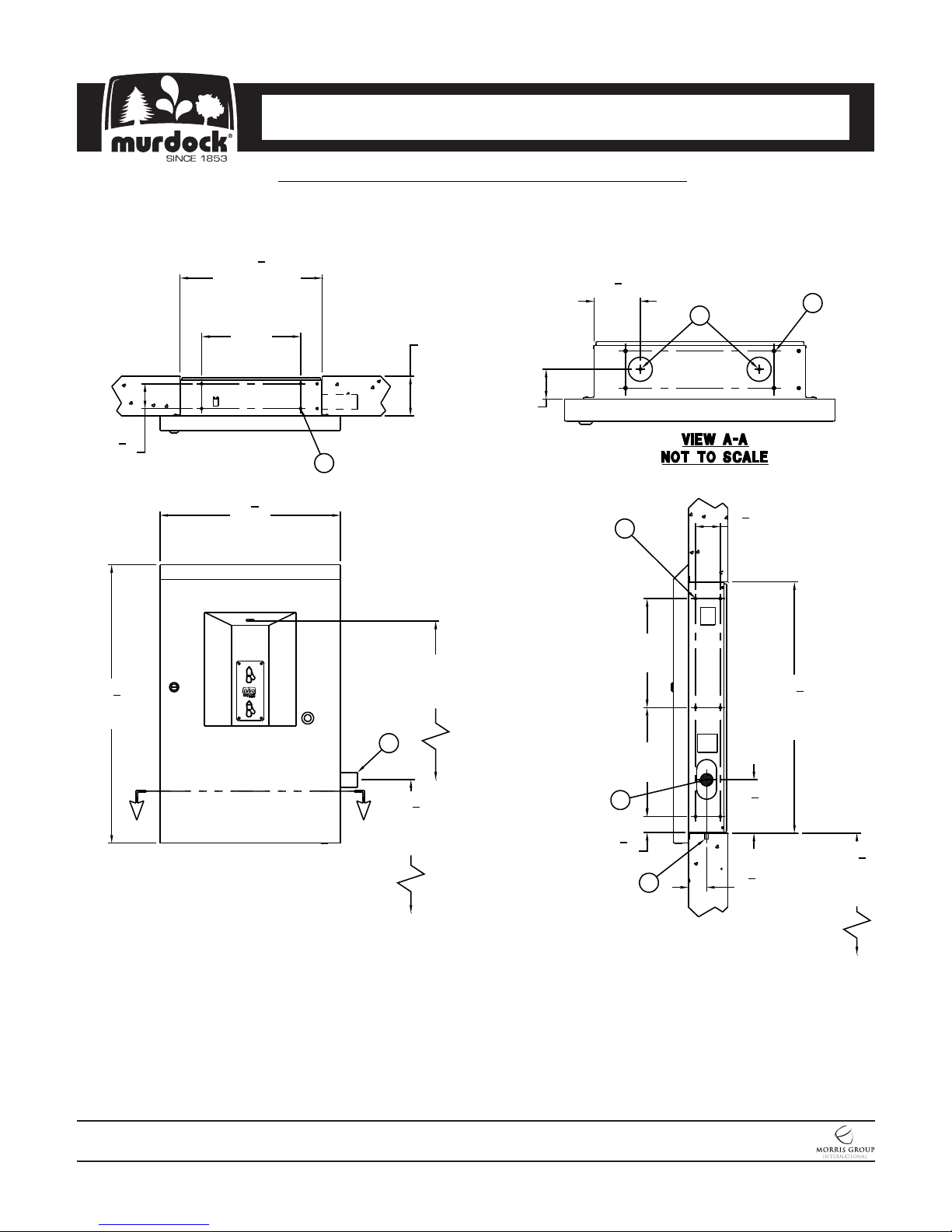

BF3 ROUGHING-IN AND DIMENSIONAL DRAWING

Prior to roughing consult with local, state, and federal codes for proper installation.

10"

(255)

143

(365)

BLOCKOUT

(101)

Min.

(64)

281

(714)

181

(464)

44"

(1118)

A.F.F.

281

(724)

A.F.F.

(80)

Typ.

(50)

A A

11"

(280)

11"

(280)

(137)

(48)

(41)

253

(645)

BLOCKOUT

(64)

GENERAL DIMENSIONS:

1. ALL DIMENSIONS ARE IN INCHES (MM)

2. STOP VALVE NOT PROVIDED

NOTE: RIGHT, LEFT, AND REAR WASTE ORIENTATION

ARE OPTIONAL IF NEEDED FOR CALLOUTS INDICATED **.

A. 1/4" PUNCHING, 20 PLACES FOR

ANCHORING HARDWARE BY OTHERS

B. 3/8" NCT SUPPLY INLET

C. 1-1/4" O.D. WASTE OUTLET

** C

231

(588)

A.F.F.

** C

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

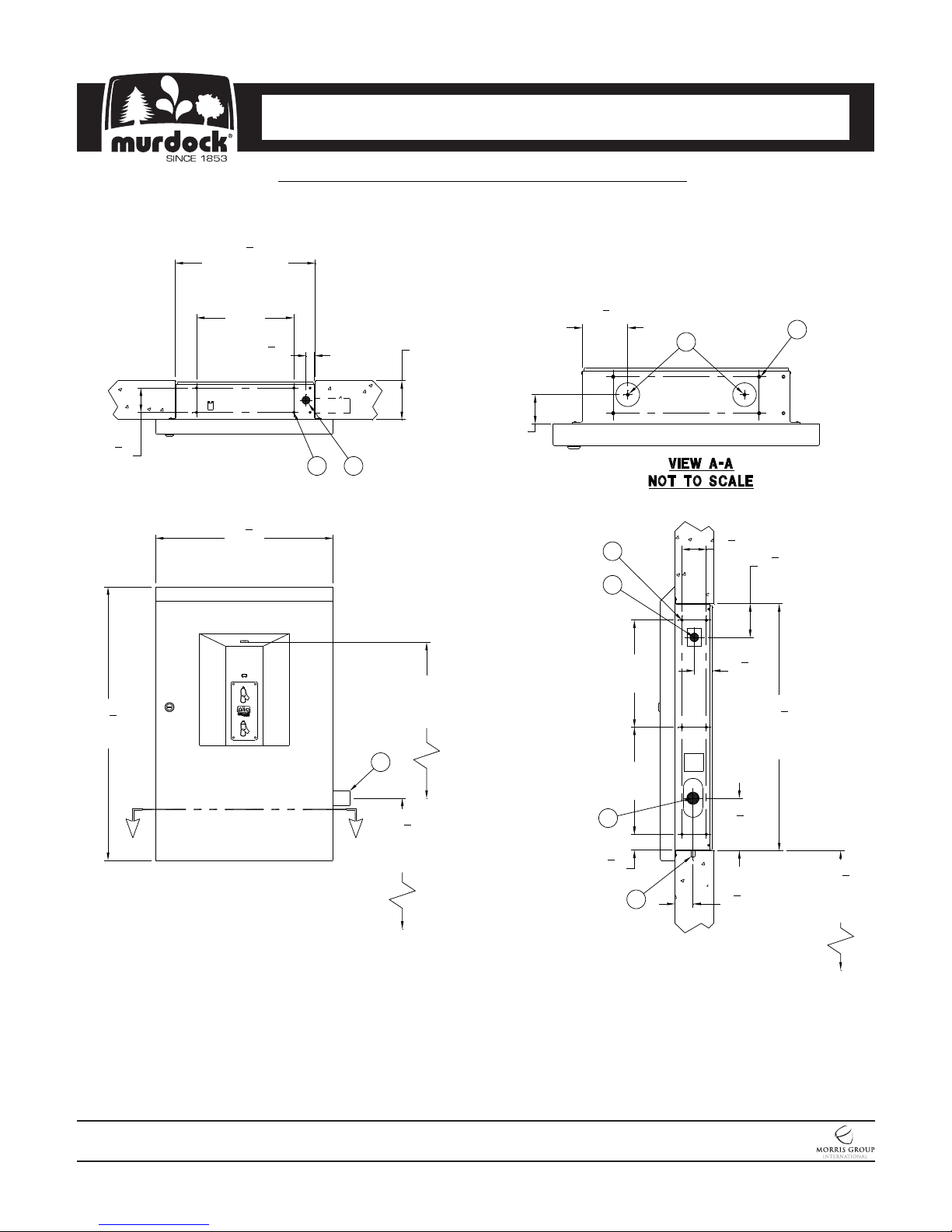

BF4 ROUGHING-IN AND DIMENSIONAL DRAWING

Prior to roughing consult with local, state, and federal codes for proper installation.

10"

(255)

143

(365)

BLOCKOUT

(101)

Min.

(64)

(80)

Typ.

(50)

A A

11"

(280)

11"

(280)

(137)

(48)

(41)

253

(645)

BLOCKOUT

(64)

GENERAL DIMENSIONS:

1. ALL DIMENSIONS ARE IN INCHES (MM)

2. STOP VALVE NOT PROVIDED

NOTE: RIGHT, LEFT, AND REAR WASTE ORIENTATION

ARE OPTIONAL IF NEEDED FOR CALLOUTS INDICATED **.

A. 1/4" PUNCHING, 20 PLACES FOR

ANCHORING HARDWARE BY OTHERS

B. 3/8" NCT SUPPLY INLET

C. 1-1/4" O.D. WASTE OUTLET

D. ELECTRICAL SERVICE ROUGH

(48)

(89)

** C

231

(588)

A.F.F.

(22)

ALT

** C

281

(714)

181

(464)

44"

(1118)

A.F.F.

281

(724)

A.F.F.

7109-709-001 Date: 07/05/17

Page 3 of 14

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

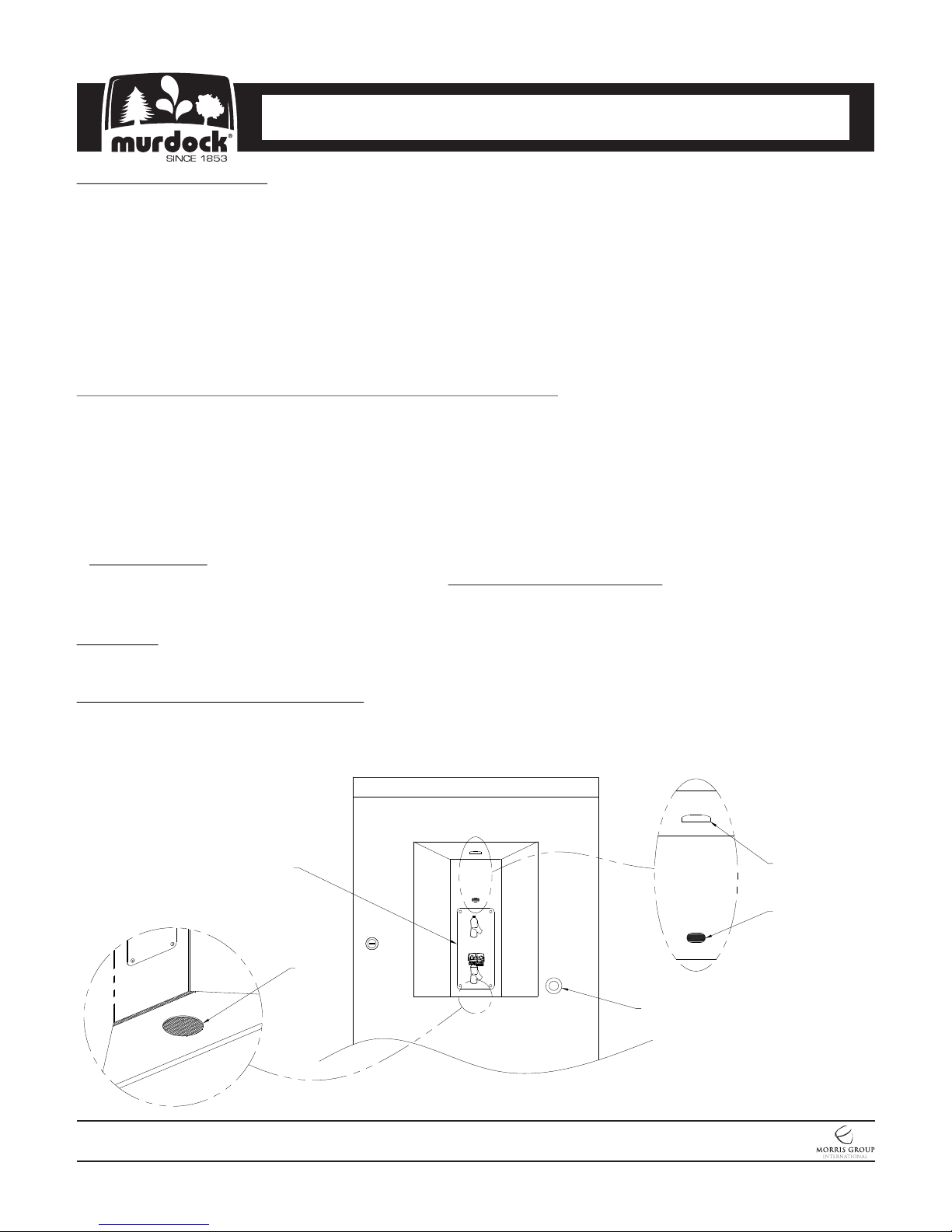

PRIOR TO INSTALLATION:

1. Read all installation instructions carefully, before proceeding.

2. Carefully remove fixture from packaging, preventing scratching or damage.

3. Provide mounting surface, sufficient to support the fixture and loads on the fixture.

4. Provide rough-ins as shown on the roughing-in and dimensional drawing, including water supply, drain pipe

and gravel drain well. (See page 2 for rough-in details)

5. Unlock and swing open the hinged door assembly to expose internal components. Disconnect 1/4” O.D.

polyethylene tube and 5/8” O.D. overflow waste connection from the hinged door assembly. Then remove the

hinged door assembly from mounting frame by unlatching insert clip hinges.

8. Completely flush water supply lines of all foreign debris, before connecting to the fixture.

INSTALLATION: (see drainage & mounting roughing-in pg. 2 or 3)

1. Insert mounting frame into the rough-in block out and secure using 1/4-20 UNC mounting hardware

(Provided by others)

2. Make up the 3/8” O.D. Copper inlet supply connection.

3. Loosen slip nuts to orientate P-trap to desired direction then tighten slip nuts and make up 1-1/4” O.D. waste

connection.

4. Attach hinged door assembly to mounting frame by latching insert clip hinges. Make necessary adjustments to

hinges to prevent door from rubbing on wall when opening. Refer to door hinge manufacture for adjustment

instructions.

4.FOR -BF4 ONLY Make up power connections to the ground, neutral & hot within the electrical box.

NOTE: BEFORE PERFORMING STEP 5 REFER TO ELECTRICAL INSTALLATION ON PAGE 6.

5. Test for leaks and proper operation, and then install the door using the hinges provided.

START UP:

Air within the bottle filler system or the structure supply piping will cause an irregular spout outlet stream until

purged out by incoming water. Press and hold pushbutton until steady water stream is achieved.

SENSOR OPERATION INSTRUCTIONS:

Hold container to be filled just below the sensor in the center of the filler spout and then move the container

upward and water flow will start automatically. When the container is almost filled, lower the container below

the sensor until the water stops flowing. (see label on the bottle filler)

7109-709-001 Date: 07/05/17

Page 4 of 14

Aluminum Name Plate

Sensor (BF4)

Fill Spout

Drain

Hemispherical

Pushbutton (BF3)

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

HAND OPERATION INSTRUCTIONS:

Hold container to be filled just below the filler tube in the center of the unit, then push pushbutton. When the

container is almost filled, release the pushbutton.

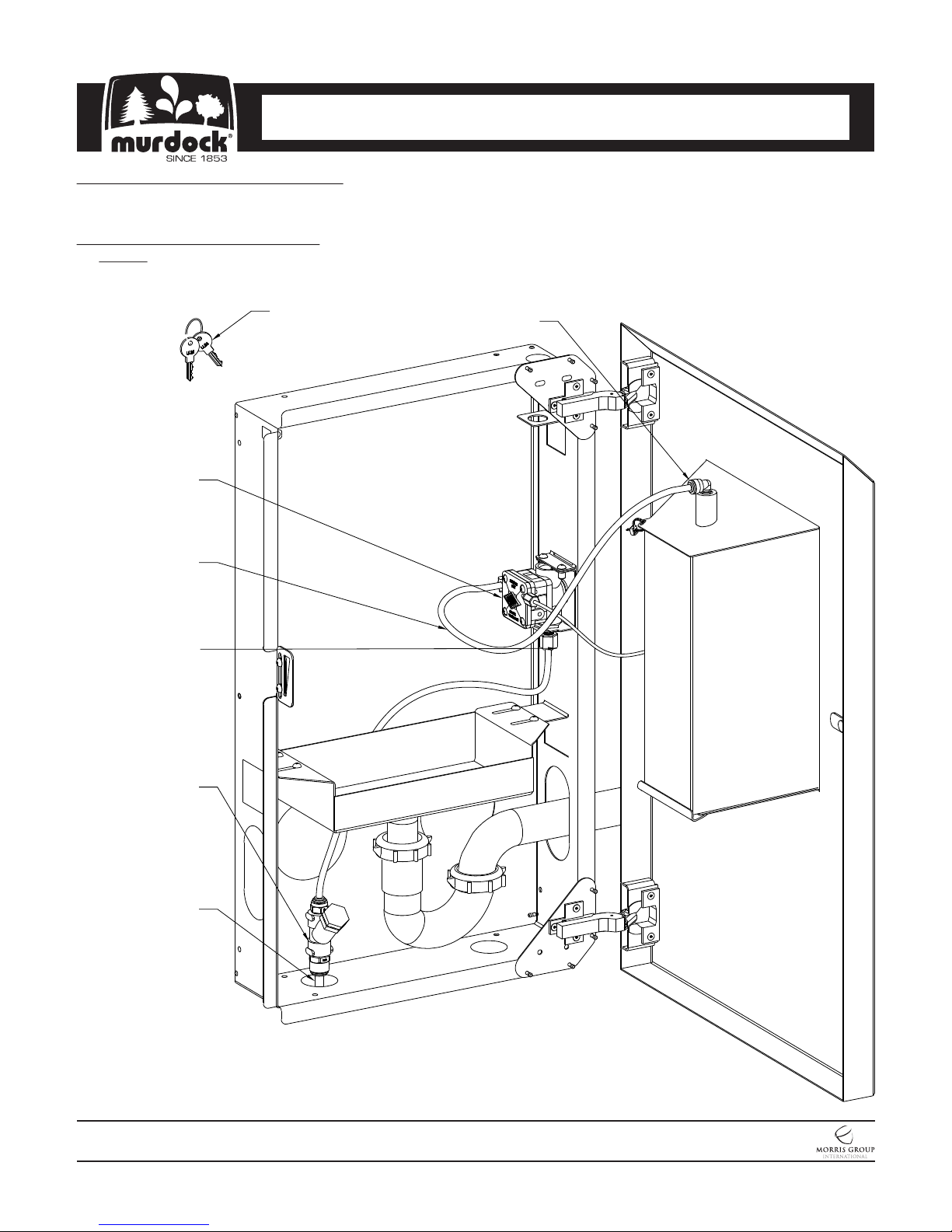

WATER TUBING CONNECTIONS:

NOTE: Insulation on all water tubes not shown (all PE water tubes are insulated).

7109-709-001 Date: 07/05/17

Page 5 of 14

3/8" O.D.

Copper Inlet

18" PE Tubing

"Y" Strainer

Air-Control Valve

Inlet Fitting

Air-Control Valve

Outlet Elbow

Fill Spout

Keys

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

ELECTRICAL INSTALLATION:

NOTE: PLUG IN POWER IS A STANDARD FEATURE.

1A. Plug-In Operation: Plug transformer provided into GFCI protected electrical service, used by the semi-

recessed bottle filler. Plug in transformer to power supply and connect to red sensor wire.

FOR -BAT BATTERY OPERATION OPTION.

1. -BAT Battery Operation: Peel off paper backing from hook & loop pads then press battery holder firmly

in place. (See Ref. Below). Connect the battery holder wires to the red sensor wires. Unit requires six

AA, alkaline or lithium batteries (not included). Note: When the battery holder is connected, the unit

active.

2. Connect the blue sensor wires to the solenoid valve wires.(See Below)

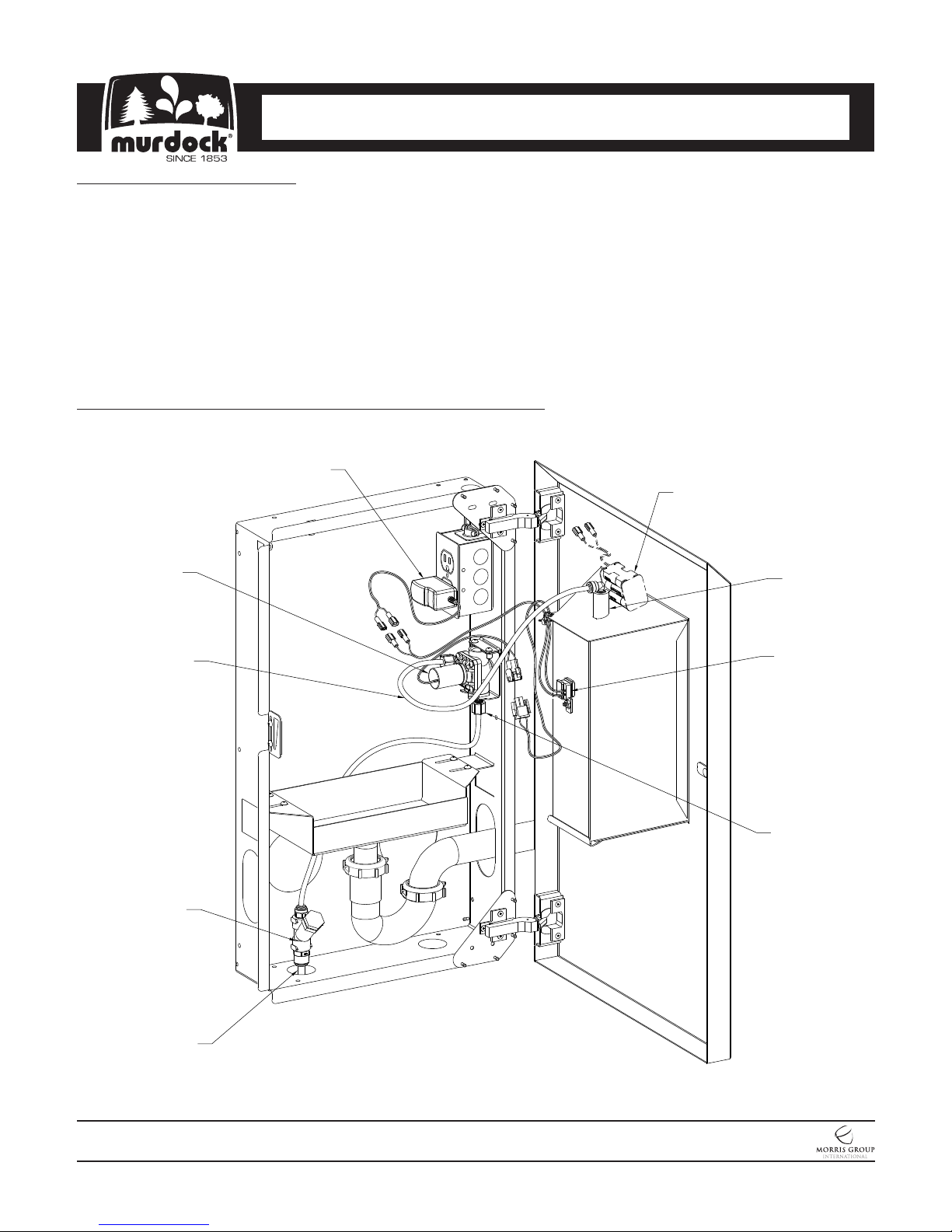

TRANSFORMER WIRING AND WATER TUBING CONNECTIONS:

7109-709-001 Date: 07/05/17

Page 6 of 14

Plug-In Transformer

18" PE Tubing

3/8" O.D.

Copper Inlet

"Y" Strainer

Sensor

Solenoid Valve

Inlet Fitting

Solenoid Valve

Outlet Elbow

Optional -BAT

9V Battery Pack

Fill Spout

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

7109-709-001 Date: 07/05/17

Page 7 of 14

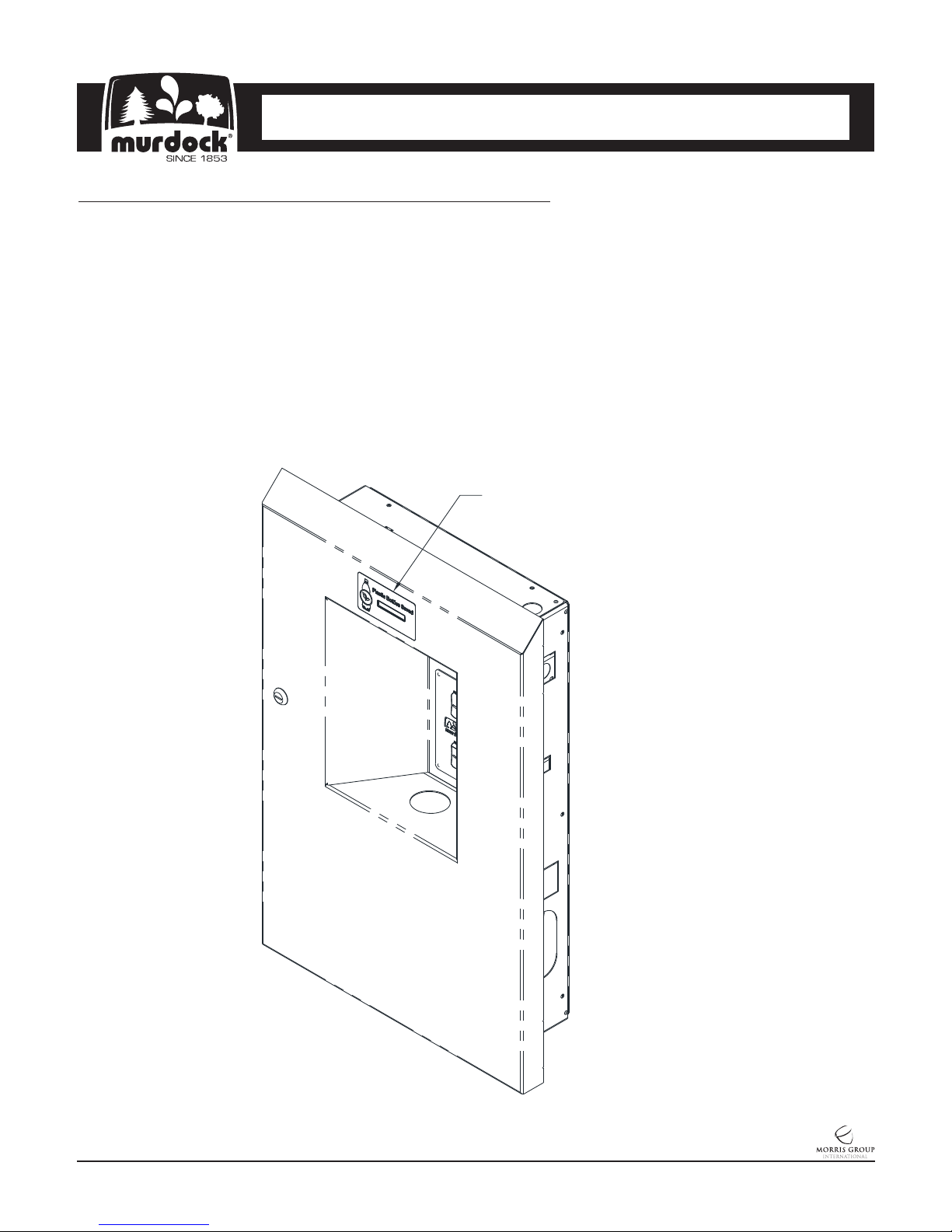

BOTTLE COUNTER ADJUSTING & RESETTING INSTRUCTIONS:

NOTE: Bottle Counter Has Multiple Functions

Reset/ Mode Button

• Counts refilled bottles, otherwise purchased

• Adjustable for Units with and without filters

• “REPLACEMENT FILTER” alert function

• Alert reset, when filter is replaced

Description

Illuminated LCD display, counts bottles, and has a filter replacement alert function

Bottle Counting Function

The software applies a flow volume of approximately 16.9 fl oz (volume in standard size plastic water

bottle) to each bottle counted. If the flow volume is less than 16.9 fl oz there will be no count but the

volume will accumulate, so that part way through the next cycle the total bottle count will change.

ILLUMINATED LCD DISPLAY

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

7109-709-001 Date: 07/05/17

Page 8 of 14

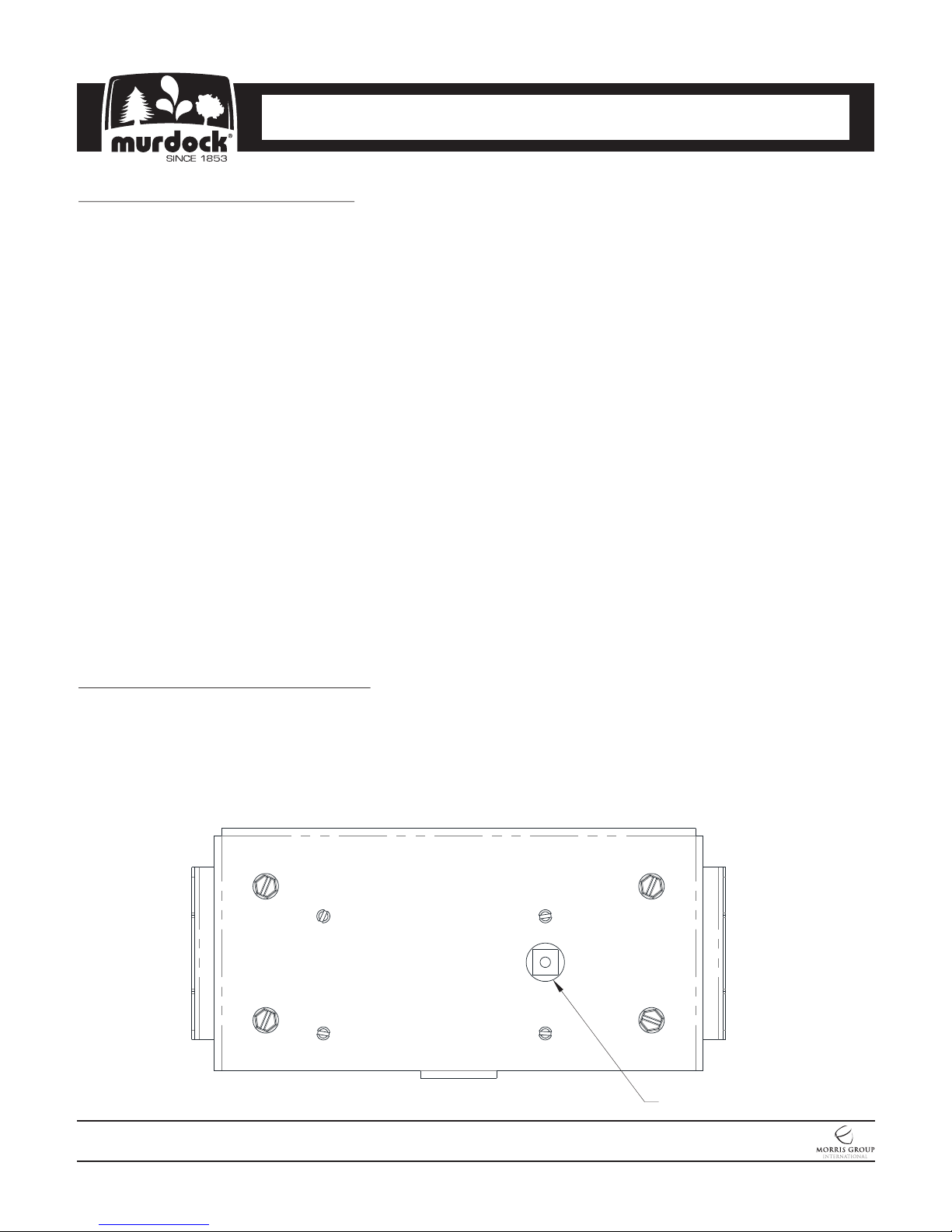

RESET/MODE BUTTON

FILTER REPLACEMENT FUNCTIONS:

NOTE: When the volume accumulates to 1500 gallons (recommended maximum filter flow volume)

the “REPLACE FILTER” alert will appear on the display every time the bottle filler is activated.

Counter Modes

Located on the back of the display you will find the reset button for the mode settings. The Reset/Mode

selection button is accessible by removing the top of the bottle filler, then locate the large hole in the

back of the display mounting bracket. Use your finger or nonconductive implement to depress the

Reset/Mode Selection Button.

!!!DO NOT USE SHARP OR METAL IMPLEMENTS!!!

With this reset button, you are able to indicate whether or not the unit has a filter or does not have a

filter. The reset button will also take away the “REPLACE FILTER” alert once the filter has been

replaced.

Systems With or Without Filter

• Depress the Reset/Mode selection button for 6

Seconds, the number of seconds will count up on the

display.

• At the end of the 6 seconds, “FLTR YES” or “FLTR NO”

WILL APPEAR on the display.

• “FLTR YES” means that there is a filter in the system

and a “REPLACE FILTER” alert WILL APPEAR on the

display when the maximum filter flow volume is reached.

• “FLTR NO” means that there is no filter in the system

and a “REPLACE FILTER” alert WILL NOT APPEAR

on the display.

• Release button when the option required is on the

display (Filter Yes or No)

CLEARING “REPLACE FILTER” ALERT:

NOTE: This Function only applies if the system as a filter

• Replace old filter with new filter.

• Depress the Reset/Mode selection button for 2 SECONDS

• The “REPLACE FILTER” will no longer appear on the display

• Test by actuating the bottle filler, alert will not appear.

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

7109-709-001 Date: 07/05/17

Page 9 of 14

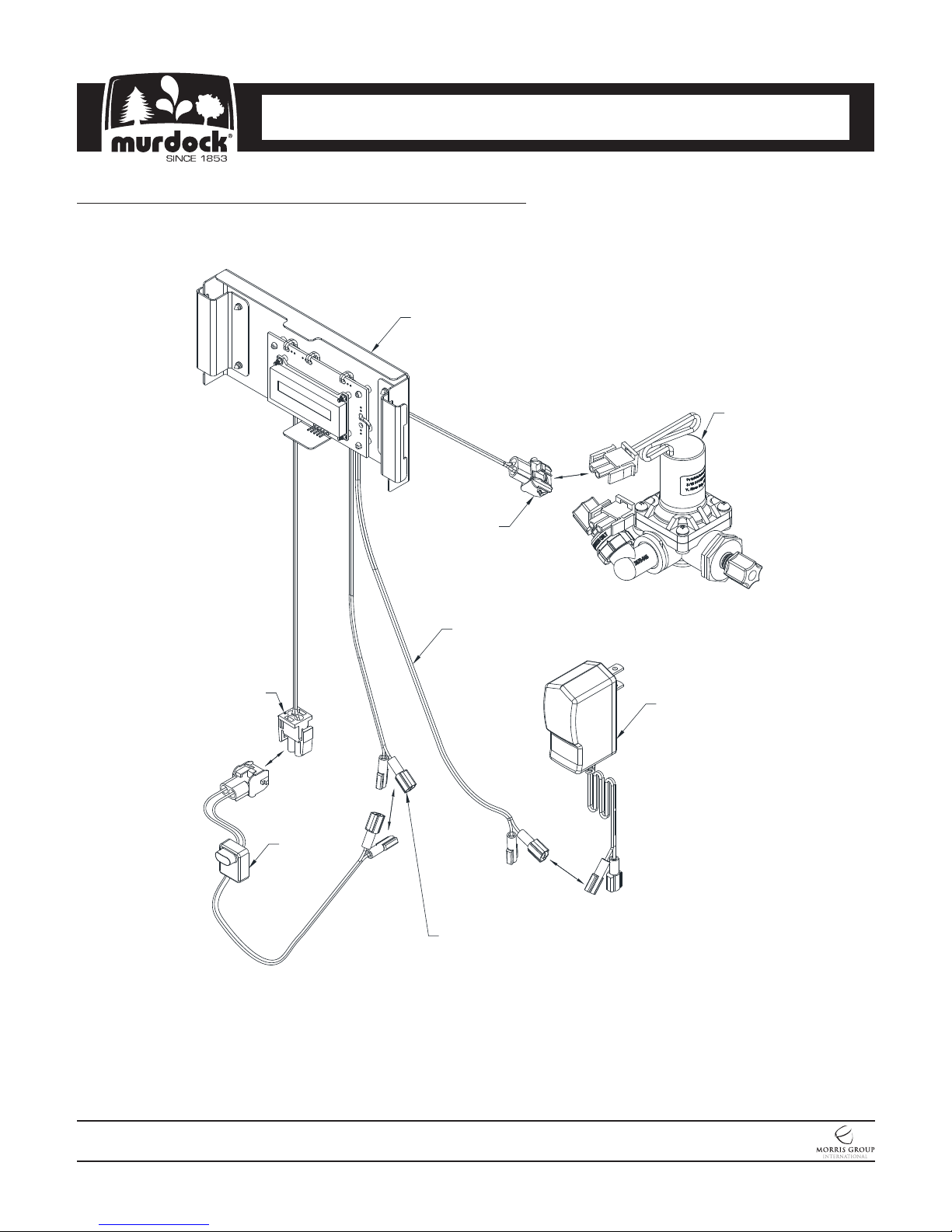

SOLENOID

CONNECTION

POWER SUPPLY CONNECTION

(BLACK CABLES)

SENSOR CONNECTION

(BLACK & RED CABLES)

SENSOR CONNECTION TRANSFORMER

SOLENOID VALVE

BOTTLE COUNT DISPLAY

SENSOR

BOTTLE FILLER & BOTTLE COUNTER CONNECTIONS:

MURDOCK MFG. • 15125 Proctor Avenue • City of Industry, CA 91746 USA

Phone 800-453-7465 or 626-333-2543 • Fax 626-855-4860 • www.murdockmfg.com Member of

I N S TA L L AT I O N / M A I N T E N A N C E I N S T R U C T I O N S

Semi-Recessed Bottle Fillers

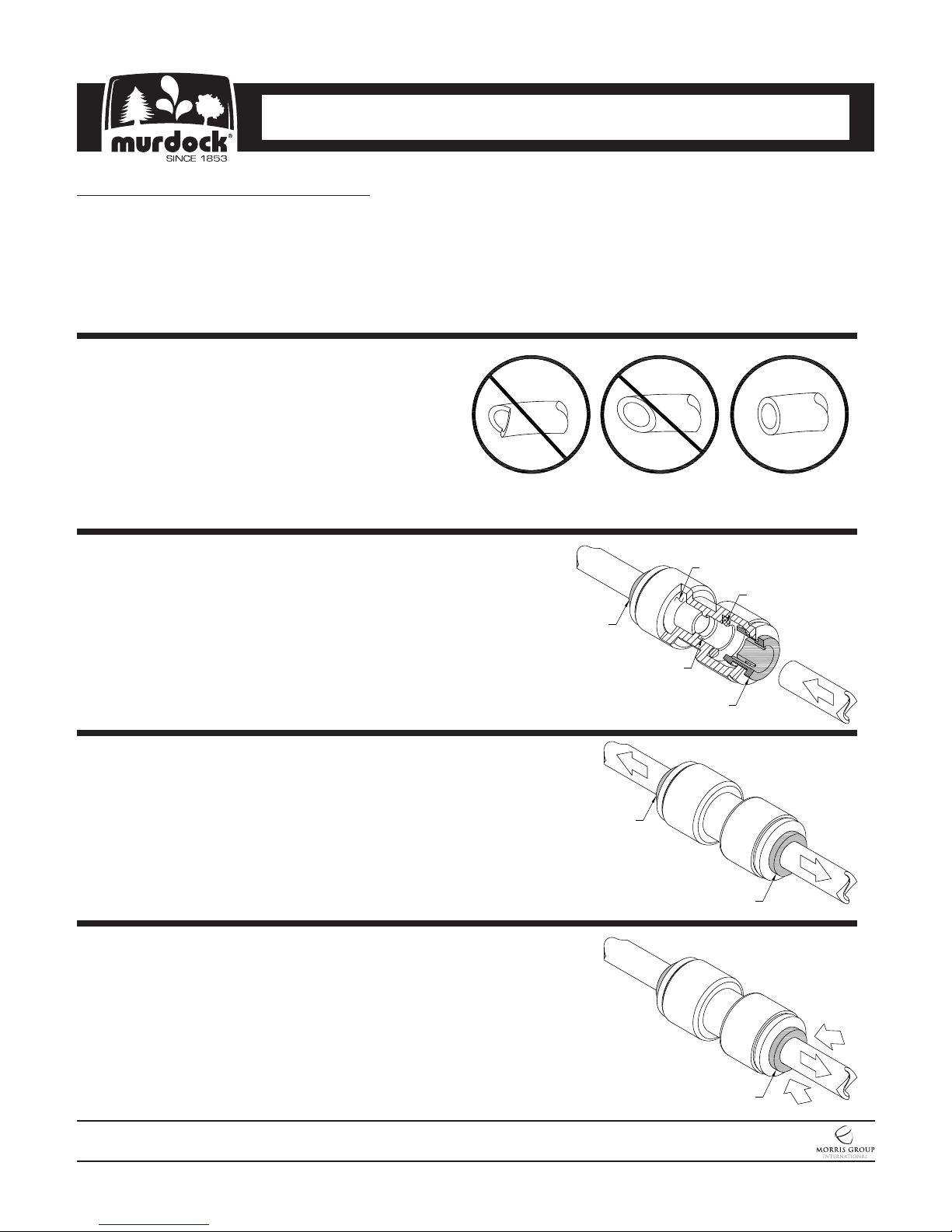

PUSH-IN FITTING INSTALLATION

NOTE: FITTINGS AND TUBE SHOULD BE KEPT

CLEAN, BAGGED AND UNDAMAGED PRIOR

TO INSTALLATION.

2. Pull on the fitted tubing to ensure it is secure.

Tube should not come free from the fitting. Water

test the connection assembly prior to leaving the

site to ensure there are no leaks.

DISCONNECTING THE TUBE:

To disconnect the tube from the fitting ensure that

the water line is depressurized. Push collet square

towards the push-in fitting body and hold. While

holding the collet in, pull on the PE tubing to remove

from the push-in fitting.

TO CUT TUBE:

Cut to fit length of 1/4” PE tubing and remove any

burrs or sharp edges. Ensure that the outside

diameter is free from score marks. Tube ends

should be square.

INSERTING THE TUBE:

1. Firmly and fully insert the tubing end into the

push-in fitting up to the tube stop located

approximately ½” deep.

COLLET

O-RING

TUBE STOP

COLLET

7109-709-001 Date: 07/05/17

Page 10 of 14

Questo manuale è adatto per i seguenti modelli

Indice

Altri manuali Murdock Distributore d'acqua

Murdock

Murdock A511.5 Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A171.8-UG-D1-BFS Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A171.8 Series Manuale utente

Murdock

Murdock A171.8FGVR Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A171 Series Manuale utente

Murdock

Murdock A171-UG-SO Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock BF158 Series Manuale utente

Murdock

Murdock H2O To Go BF15 Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock BF2 Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A171.8-UG-SO Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A172108F-UBL Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A172.8FGVR Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A611.8 Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A172.8-UG Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock H2O To Go BF12 Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock BF1 Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A611108F-G Istruzioni per l'installazione e il funzionamento

Murdock

Murdock AI81.8 Series Manuale utente

Murdock

Murdock A172.8-UG-D1-BFS Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock BF11 Series Istruzioni per l'installazione e il funzionamento

Murdock

Murdock A171.8-SOC Series Manuale utente

Manuali Distributore d'acqua popolari di altre marche

Monarch Water

Monarch Water ULTIMATE MINI AQUA HE Manuale utente

Haier

Haier HLM-109B Manuale utente

abc

abc Fleck 5600SXT Manuale utente

GE GXOF18G Istruzioni operative

Kenmore

Kenmore 625.385560 UltraFilter 650 Manuale utente

Innova

Innova CEV+ Guida rapida

Aries

Aries Hydra DI Manuale

GE GNCF02H Manuale utente

ProFlo

ProFlo PFB Series Manuale utente

Hydrotech

Hydrotech 89DF HIM Manuale utente

A.O. Smith

A.O. Smith FREZYA 300S Manuale utente

Frakco

Frakco Travelsoft RV 2400HD Manuale utente

GE GXSF30V Istruzioni operative

Avanti

Avanti WD31EC Manuale utente

Avanti

Avanti WD360 Manuale utente

BRIO

BRIO CLCTTL520 Guida utente

3M HCD-1 Manuale utente

Elkay

Elkay EFHFA8_2CJO Manuale di installazione
