-- 7 --
T1725e

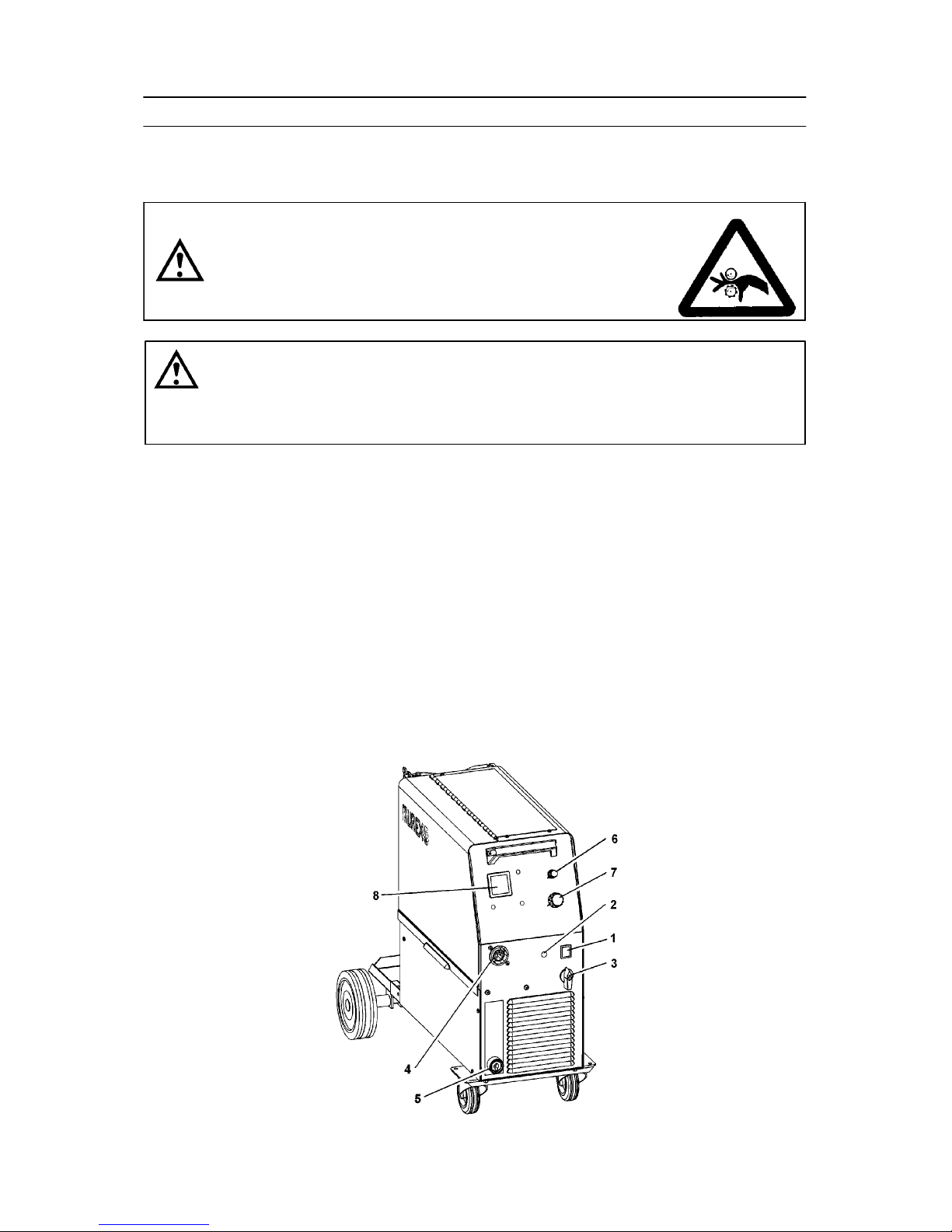

Tradesmig 201 Tradesmig 251

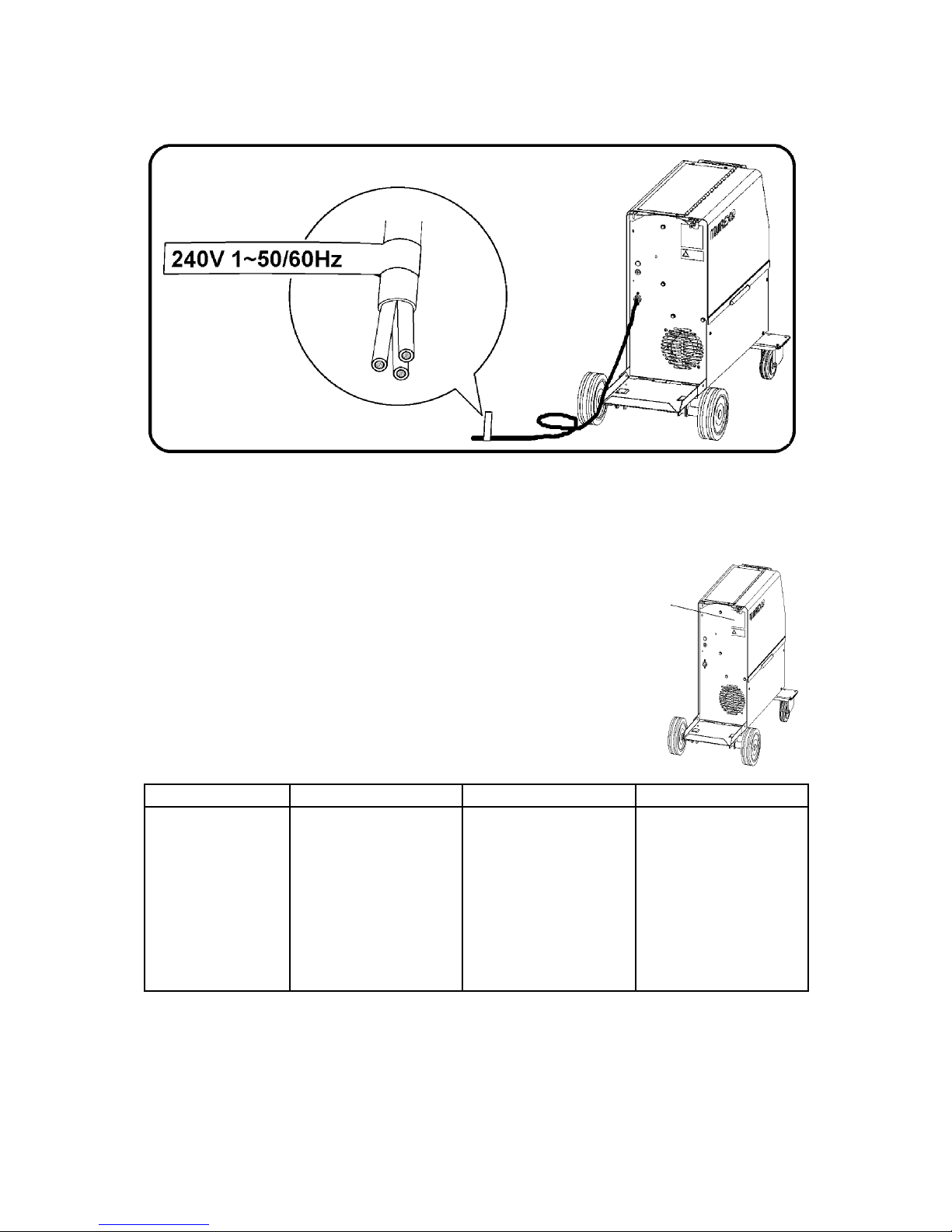

Voltage 230--240V, 1∼50 60Hz 230--240V, 1∼50 60Hz
Permissible load at
100% duty cycle 90A/18,5V 110A/19,5V
60 % duty cycle 115A/19,7V 140A/21,0V
@ % duty cycle 185A/23,3V @ 23% 200A/24,0V @ 30%
20 % duty cycle 200A/23,0V 250A/21,0V
Setting range (DC) 30A/15,5V--185A/23,3V
(200A/23,0V)
40A/16,0V--200A/24,0V
(250A/21,0V)
Open circuit voltage 19,6--44,9V 19,0--41,5V
Open circuit power 120W 200W
Power factor at max load 0,89 0,92
Control voltage 42V, 50/60Hz 42V, 50/60Hz
Wire feed speed 1,0--17m/min 1,9--19m/min
Burnback time 0,02--0,25 0--0,25
Spot welding 0,2--2,5 0,2--2,5
Welding gun connection EURO EURO
Wire dimension range 0,6--1,0(Fe)
1,0(Al)
0,8--1,0(cored)
0,8--1,0(CuSi)
0,6--1,2(Fe)
1,0--1,2(Al)
0,8--1,2(cored)
0,8--1,0(CuSi)
Max diameter weight
of wire bobin
300mm/15kg 300mm/15kg

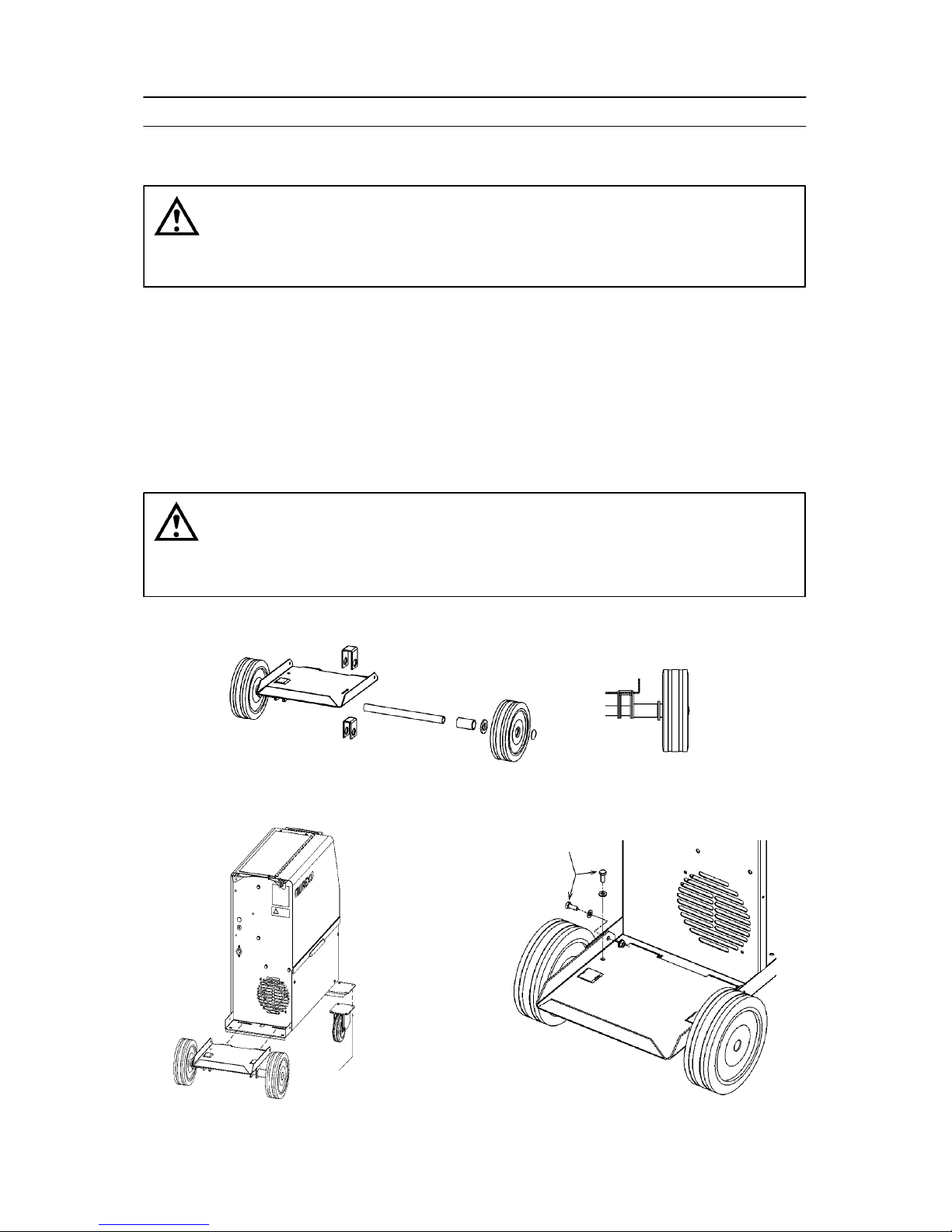

Dimensions lxwxh 860x420x730 860x420x730
Weight 70kg 92kg
Operating temperature --10 ÷+40oC --10 ÷+40oC
Enclosure class IP 23 IP 23
Application classifica-
tion
Duty cycle
The duty cycle refer to the time a a percentage of a ten--minute period that you can weld at a cer-
tain load without overloading.
Enclosure class
The IP code indicate the enclo ure cla , i. e. the degree of protection again t penetration by olid
object or water. Equipment marked IP23 i de igned for indoor and outdoor u e.
Application class
The ymbol indicate that the power ource i de igned for u e in area with increa ed
electrical hazard.
