Mustek MDC 3500 Manuale utente
Multi-Functional
Digital Camera
User Guide
ENDEFRITES
Table of Contents
Identifying the Parts
Preparation ....................................................................................... 2
Loading Batteries ......................................................................... 2
Attaching the Strap ....................................................................... 3
Loading the SD/MMC Card .......................................................... 3
Camera Settings
Record Mode .................................................................................... 4
Resolution Button ......................................................................... 4
Flash Button ................................................................................. 4
Self-Timer Button ......................................................................... 4
Menu Button ................................................................................. 4
Playback Mode ................................................................................. 5
Menu Button ................................................................................. 5
Taking Pictures
How to take pictures and short movies? ........................................... 6
How to playback pictures and short movies? ................................... 6
On the LCD display ...................................................................... 7
On a TV ........................................................................................ 7
How to delete pictures and short movies? ........................................ 8
ii Digital Camera User Guide
Connecting to a Computer
Modes and Functions ....................................................................... 9
For PC ............................................................................................... 9
Driver Installation .......................................................................... 9
Getting Connected to the Computer ............................................ 10
Mass Storage Mode ..................................................................... 10
PC Camera Mode ......................................................................... 10
For MAC ............................................................................................ 10
Specifications ...................................................................... 11
Digital Camera User Guide iii
Digital Camera User Guide 1
Identifying the Parts
1. Power button
2. Shutter button
3. Self-timer LED
4. Flash
5. Photo Sensor
6. Viewfinder
7. Video port
8. USB port
9. Macro select dial
10. Lens
11. Mode button
12. LCD On/Off
13. LCD display
14. Menu/Left/Exit button
15. Resolution/Up button
16. Flash/Right/Multi-
image button
17. Self-timer/Down
button
2Digital Camera User Guide

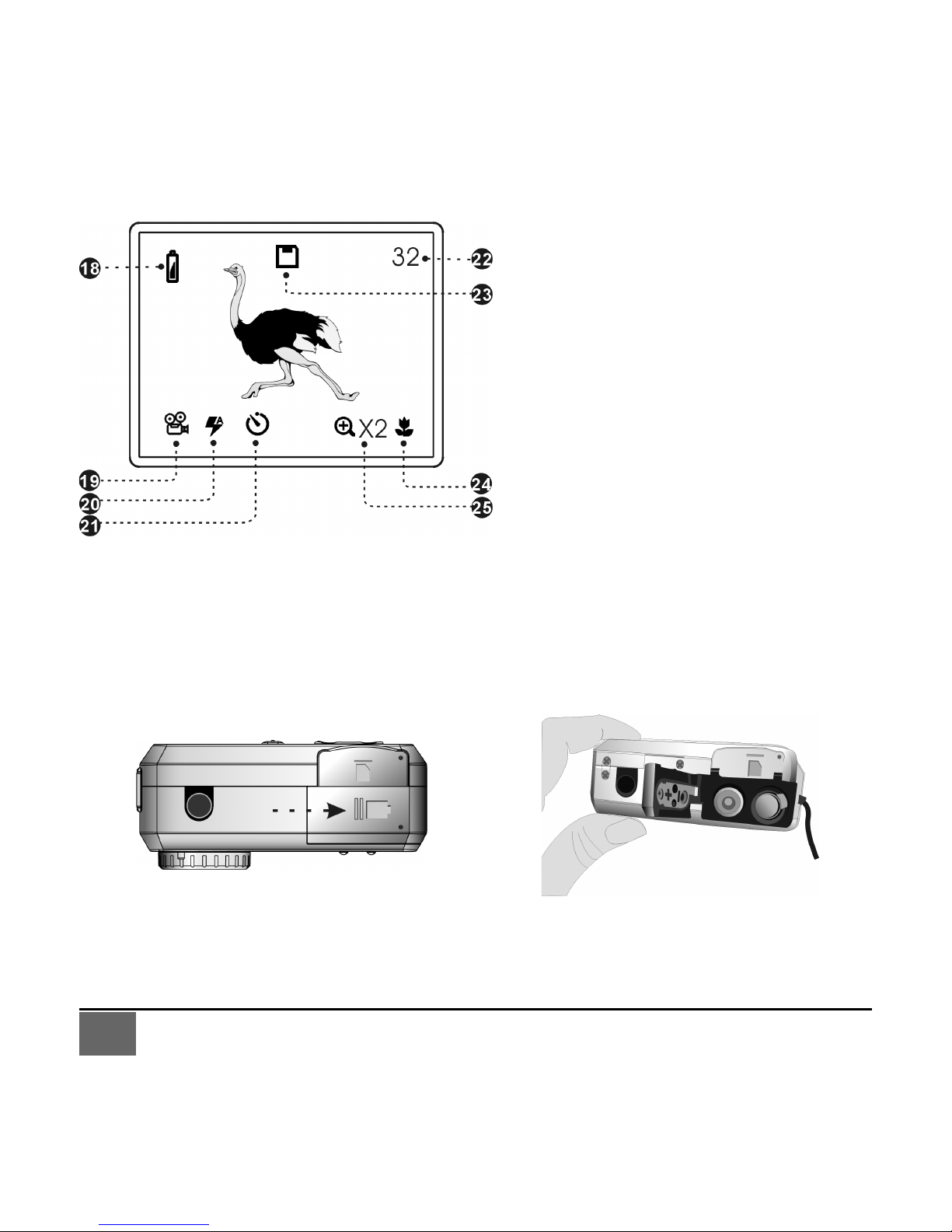

18. Battery indicator
19. Resolution indicator
20. Flash indicator
21. Self-timer indicator
22. Picture remaining
23. Memory card indicator
24. Macro mode
25. Zoom indicator
Preparation
Loading Batteries
“Slide door in the direction
of arrow”
“Insert batteries as shown
above”
Digital Camera User Guide 3
Attaching the Strap
Loading the SD/MMC Card
“Insert the thin end of the strap
into the strap holder”
“Pass the other end of the
strap through the loop of thin
cord and pull tight”
“Open the card slot cover” “Insert the card as shown
above”
4Digital Camera User Guide
Camera Settings
Record Mode
Press the below buttons to select your desired settings. When a
setting is selected, it will be recorded inmediately.
OFF
ON
AUTO
RED-EYE
FINE
HIGH
LOW
VIDEO
Resolution Button
Press the button to circle
through the settings.
Flash Button
Press the button to circle
through the settings.
Self-Timer Button
Press the button to circle
through the settings.
Self-timer on
Self-timer off
Menu Button
Press the button to enter
OSD menu. Use the /
buttons to select or button
to change or button to exit
menu.
Digital Camera User Guide 5
ZOOM: 1X-->2X-->4X AUTO SHUTDOWN:
1Min-->2Min-->5Min
QUICK REVIEW: OFF--
>ON INFORMATION: ON--
>OFF
EXPOSURE: AUTO--
>+1-->+0.5-->-0.5-->-1 VIDEO OUT: NTSC--
>PAL
White Balance: AUTO--
>DAYLIGHT--
>CLOUDY--
>FLUORESCENT--
>TUNGSTEN
DATE: MM/DD/YY
Long Exposure: OFF--
>1X-->2X-->3X-->4X TIME: HH/MM/SS
SOUND: ON-->OFF RESTORE SETTING:
NO-->YES
Menu Button
Press the button to enter OSD menu. Use the / buttons to
select or button to change or button to exit menu.
DELETE ONE: NO-->YES
DELETE ALL: NO-->YES
FORMAT: NO-->YES
ZOOM: 1X-->2X
Playback Mode
6Digital Camera User Guide
Taking Pictures
How to take pictures and short movies?
To take pictures, do the following:
1 . Power on the camera and make sure you are in the Record
mode.
2 . Position the subject in the viewfinder.
* You can also frame or preview images on the LCD display while
it’s powered-on.
3 . Press the Shutter button.
To make short movies, do the following:
1 . Power on the camera and the LCD display.
2 . Press the Resolution button to select VIDEO.
4 . Press the Shutter button to start recording. To stop record-
ing, press the Shutter again.
How to playback pictures and short movies?
To playback pictures, do the following:
1 . Power on the camera.
2 . Set the camera to Playback mode.
Digital Camera User Guide 7
On the LCD display
1 . Power on the camera.
2 . Set the camera to Playback mode.
3 . Select the picture marked with a icon and then press the
Shutter button to play.
On a TV
1 . Power on the camera and the LCD display.
2 . Select NTSC or PAL from the OSD menu.
3 . Connect one end of the Video cable into the VIDEO port of your
camera and the other end into the VIDEO IN port of the
television.
4 . Turn on the TV.
* Select “Video” as the TV input.
5. Set the camera to Playback mode.
6 . Press the / buttons to select the video and then press the
Shutter button to play.
3 . Press the / buttons to review your pictures.
* You can review up to 4 images at a time by pressing button.
To playback short movies, do the following:
