MuxLab 500044 Manuale utente

8495 Dalton Rd, Montreal, Quebec, Canada. H4T 1V5

Tel: (514) 905-0588 Fax: (514) 905-0589

Toll Free (North America): (877) 689-5228

E-mail: videoease@muxlab.com URL: www.muxlab.com

Specifications

Environment

Audio HiFi Muxlab Balun User

Device Targeted

Installation of multiple audio receiver using Muxlab Audio Balun

HiFi and Audio Matrix.

Compatible TX Unit

500210, 500028

Compatible RX Unit

500219, 500028

Compatible mounting

hardware

M500902, M500900, M500910, M500915

Cabling Requirement

Any 4-pair straight cable Cat5, 5E or 6 UTP.

Connectors

Four RJ45 connectors.

RJ45 Pin Configuration

Pin 1+2, 3+6 for audio

Maximum distance

Total distance (all length must be added): 3250ft (1km)

Temperature

Operating: -40° to 60°C (-40° to 140°F)

Storage: -40° to 85°C (-40° to 185°F)

Humidity

Maximum 95% (non-condensing)

Enclosure

ABS UL94HB fire retardant plastic

Dimensions

6 x 5.5 x 2.5 cm (2.4” x 2.25” x 1.0”)

Weight

50g (2 oz.)

Warranty

Lifetime

Order Information

M500044 Stereo Analog Audio Splitter

ANALOG STEREO AUDIO

SPLITTER 1X3

500044

Quick Installation Guide

Overview

The Analog Stereo Audio Splitter allows one analog source using either the Muxlab

analog audio balun (500028) or Muxlab Audio Matrix Switch (500210) to be connected

passively to up to three receivers using Muxlab’s Analog Audio Balun (500028) over

CAT 5e/6 cabling.

Applications

Installation of multiple audio receiver using Muxlab Audio Balun HiFi, Audio Matrix

and Balun Amplifier.

All manuals and user guides at all-guides.com

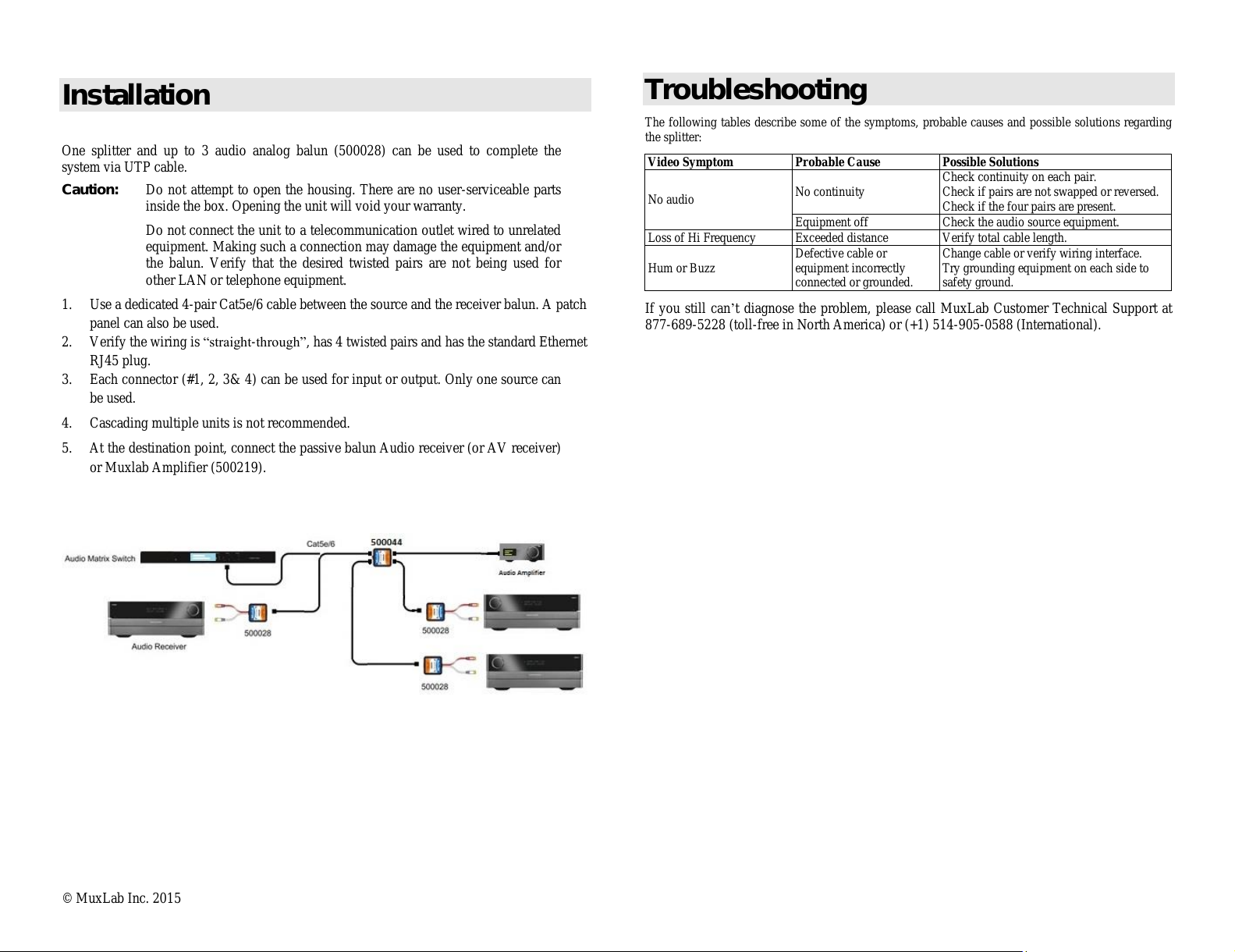

Installation

One splitter and up to 3 audio analog balun (500028) can be used to complete the

system via UTP cable.

Caution: Do not attempt to open the housing. There are no user-serviceable parts

inside the box. Opening the unit will void your warranty.

Do not connect the unit to a telecommunication outlet wired to unrelated

equipment. Making such a connection may damage the equipment and/or

the balun. Verify that the desired twisted pairs are not being used for

other LAN or telephone equipment.

1. Use a dedicated 4-pair Cat5e/6 cable between the source and the receiver balun. A patch

panel can also be used.

2. Verify the wiring is “straight-through”, has 4 twisted pairs and has the standard Ethernet

RJ45 plug.

3. Each connector (#1, 2, 3& 4) can be used for input or output. Only one source can

be used.

4. Cascading multiple units is not recommended.

5. At the destination point, connect the passive balun Audio receiver (or AV receiver)

or Muxlab Amplifier (500219).

Troubleshooting

The following tables describe some of the symptoms, probable causes and possible solutions regarding

the splitter:

Video Symptom

Probable Cause

Possible Solutions

No audio

No continuity

Check continuity on each pair.

Check if pairs are not swapped or reversed.

Check if the four pairs are present.

Equipment off

Check the audio source equipment.

Loss of Hi Frequency

Exceeded distance

Verify total cable length.

Hum or Buzz

Defective cable or

equipment incorrectly

connected or grounded.

Change cable or verify wiring interface.

Try grounding equipment on each side to

safety ground.

If you still can’t diagnose the problem, please call MuxLab Customer Technical Support at

877-689-5228 (toll-free in North America) or (+1) 514-905-0588 (International).
