mxr WA44 Manuale utente
Wylde Audio Overdrive
Celebrate the 20th anniversary of the explosive
collaboration between Dunlop and Zakk Wylde with
the MXR Wylde Audio Overdrive. Custom built for
Zakk’s loud, tough, and relentless ris and leads, this
muscular stomp box will transform your amp into
a heavy, chunky crunch machine.
WA44
jimdunlop.com/wa44
®
WA44 | MXR®Wylde Audio Overdrive 2

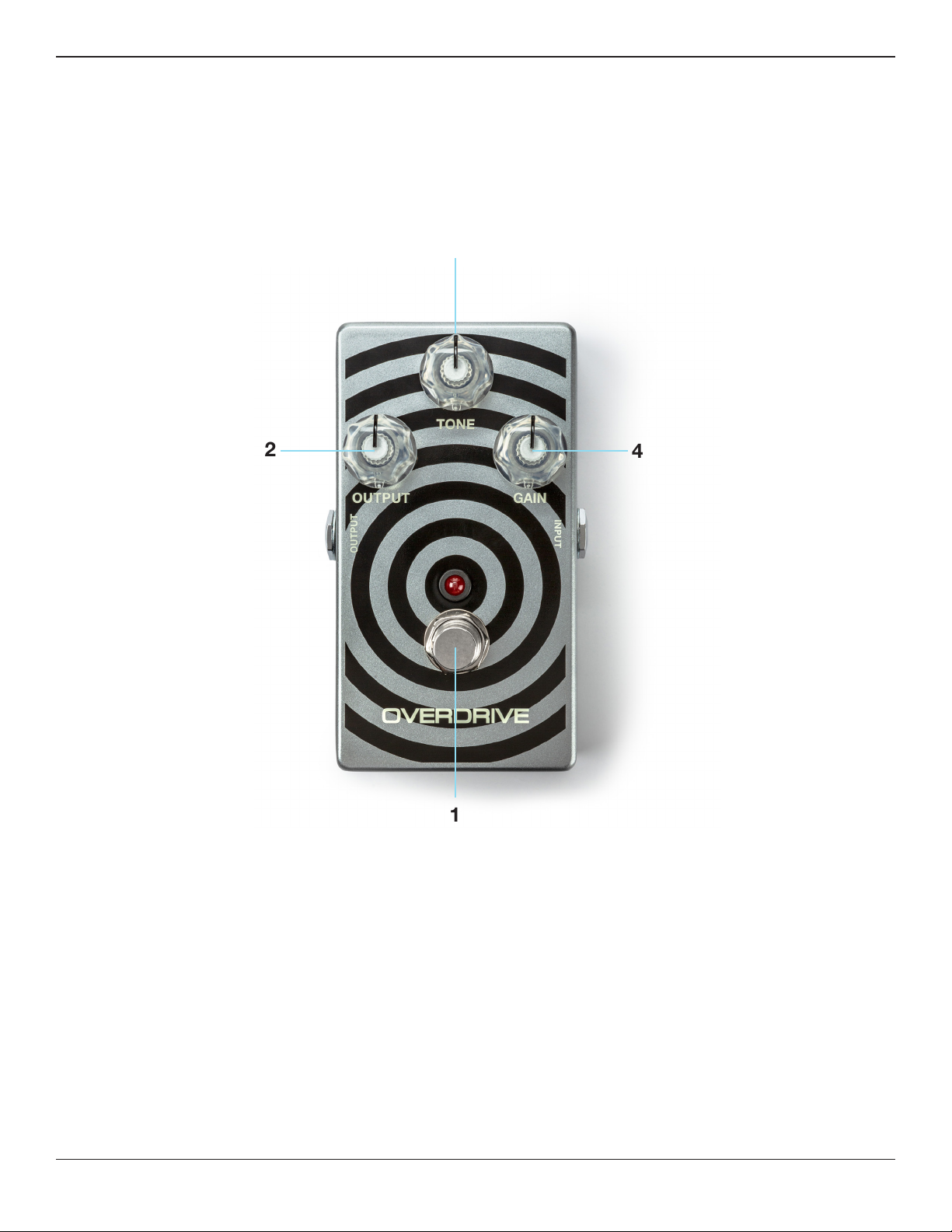

1FOOTSWITCH toggles eect on/bypass (red LED indicates on)
2 OUTPUT knob adjusts overall eect volume
3TONE knob adjusts overdrive EQ
4GAIN knob adjusts overdrive intensity
3
24
External Controls
1
WA44 | MXR®Wylde Audio Overdrive 3
Basic Operation
1. Run a cable from your guitar to the WA44’s INPUT jack
and run another cable from the WA44’s OUTPUT jack to your
amplier.
2. Start with all knobs at 12 o’clock. Turn the eect on by
depressing the footswitch.
3. Rotate OUTPUT knob clockwise to increase eect volume
or counterclockwise to decrease it.
4. Rotate TONE knob clockwise for a brighter tone or
counterclockwise for a warmer tone.
5. Rotate GAIN knob clockwise to increase overdrive
intensity or counterclockwise to decrease it.
The MXR®Wylde Audio Overdrive is powered by a single
9-volt battery (remove bottom plate to install), a 9-volt AC
adapter such as the Dunlop ECB003, or an MXR® Brick™
Series power supply.
Power Directions
WA44 | MXR®Wylde Audio Overdrive 4
Specications
Input Impedance 1 MΩ
Output Impedance 7.5 kΩ
Nominal Input -22 dBV
Noise Floor* -88 dBV
Bypass Hardwire
Current Draw 2.2 mA
Voltage Requirements 9 volts DC
* A-weighted
