myPhone HaloX Manuale utente
© myPhone 2015. All rights reserved. myPhone HaloX PL
USER S MANUAL
myPhone HaloX
1
© myPhone 2015. All rights reserved. myPhone HaloX PL
myPhone HaloX set contains:
Before you begin to use you myPhone
HaloX check if all of these items can be
fund in the box:
myPhone HaloX phone,
battery,
charger,
charging base,
microUSB cable,
user manual,
Contact your retailer if one of the abo e
items is missing.
There is an IMEI sticker on the box. Keep
it for further use (warranty, identification
in case of theft, etc.)
Keep it away from water and children.
2
© myPhone 2015. All rights reserved. myPhone HaloX PL
Tech. specification:
Frequency range: 900 / 1800 MHz; and
GPRS
One SIM card nest;
Size: 121 x 58 x 14 mm (L*W*H);
Touch panel and L D display: 3.5” size
diagonally, constructed using G+F
technology, can display 262 thousands of
colours;
amera:
oPicture resolution: max. 2Mpix;
oRecording mo ies: 480 x 320 px
resolution, 3 frames per second.
H-free loudspeaker;
Battery capacity: 1400 mAh, 5.18 Wh;
Wieght – device and battery: 115 g;
Box weighs:
3
© myPhone 2015. All rights reserved. myPhone HaloX PL
oNet: around 272 g;
oGross: around 344 g;
MicroSD memory card support: up to
32 GB;
Available sockets: 5-pin microUSB and
3.5 mm miniJack.
Memory available for user: around 3MB
harger specs.:
oInput: 100-240 V~, 50/60 Hz, 150 mA;
ooutput: 5.0 V , 500 mA;
This cellphone can fit up to 500 contacts
into it’s memory.
We suggest to mount a microSD memory
card to increase a ailable memory for
pictures and music.
FM radio will work without plugging
earphones in, but you may ha e to use
4
© myPhone 2015. All rights reserved. myPhone HaloX PL
them in order to use them as an antenna.

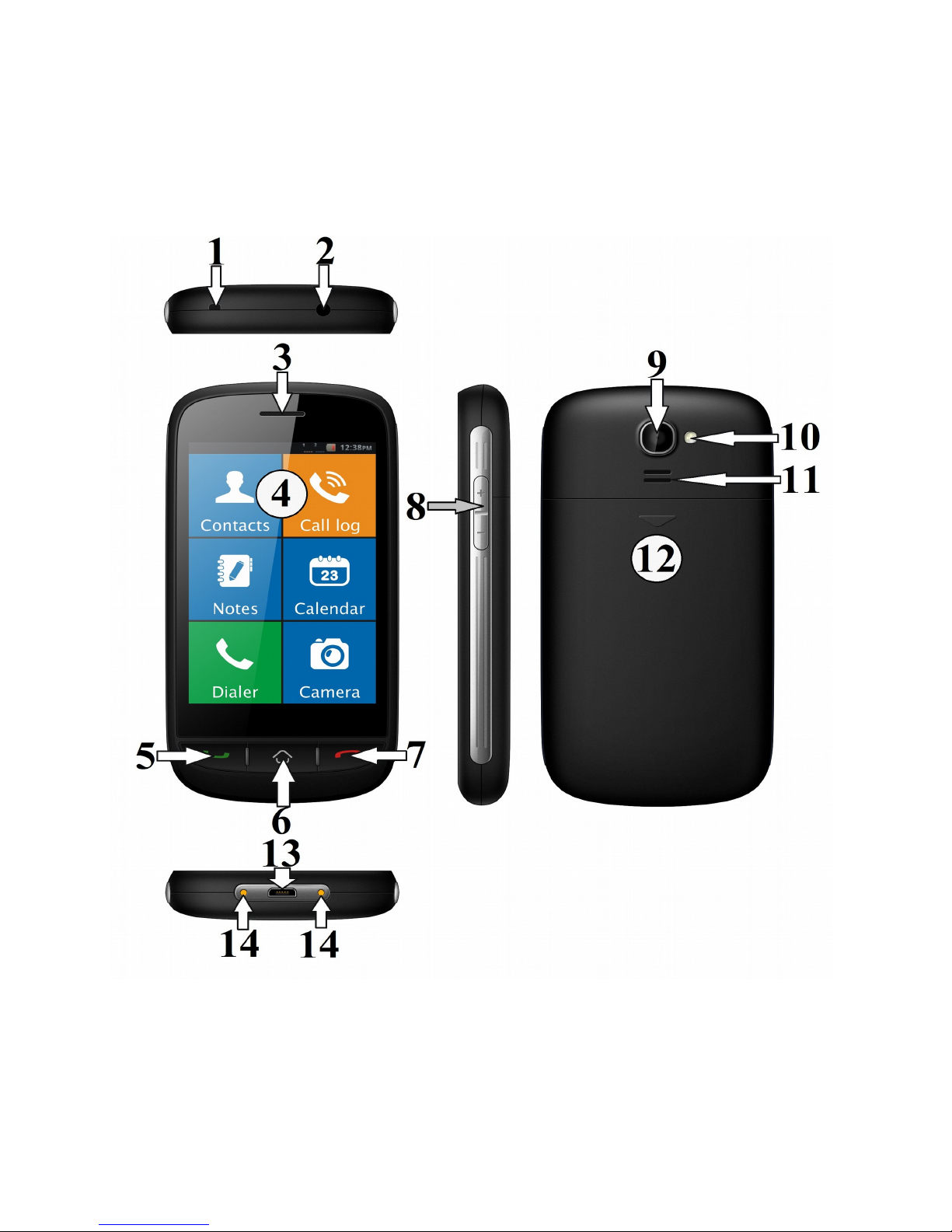

FUNCTIONS AND VIEW
5
© myPhone 2015. All rights reserved. myPhone HaloX PL
1. „Leash” mount nest.
2. 3.5 mm miniJack socket.
3. Internal „handset” speaker.
4. Touch screen 3.5”
To mo e around and use the phone
use swipe and touch gestures similar
to that used in smartphones.
5. „Green phone” button used to
recei e calls.
6. „Home” button.
Used to jump immediatelly to the
mainscreen from where er you are.
7. „Red phone” button.
Used to cancel options, reject and
end calls. Pressing it in a menu will
ha e a “go back one le el” effect.
Pressing it in the main screen will
6
© myPhone 2015. All rights reserved. myPhone HaloX PL
cause the screenlock to take effect.
8. Volume control buttons.
This phone allows olume control o er
media, incoming call ringtones, and
the call itself.
9. Camera lens.
10. LED diode. Used as a flashlight, or
a camera flash.
11. External speaker.
12. Back co er.
Turning the phone on/off
In order to turn the phone on, press and
hold the „red phone” button for about 3
seconds. To turn the phone off do the
same on the main screen, screen must
be unlocked.
7
© myPhone 2015. All rights reserved. myPhone HaloX PL
Mounting the SIM and microSD card
To mount the SIM card in – take the back
co er (12) off – there is a downwards
pointing arrow on it. Push it in and then
swipe down.
The SIM card must be inserted in such
a manner as shown in the figures - on
and next to the SIM slot.
To unlock the microSD slot push it to the
right side and it will open up. Insert the
microSD card and close the slot. You can
8
SIM nest
Battery
connectors
MicroSD
card
socket
© myPhone 2015. All rights reserved. myPhone HaloX PL
lock it by pushing it to the left.
Insert the battery but pay attention to the
correct orientation, it should be
impossible to insert the battery wrong, but
be careful because you can still break the
battery connectors – these should be
adjacent to those on the battery in order
to fit into it.
Charge the de ice before you turn it on.
In case of any problems with the battery
the de ice must be sent to myPhone
ser ice center. Contact your retailer.
Replace the back co er now and charge
the de ice
Charging
*WARNING: connecting the charger
forcefully and incorrectly may seriously
damage your de ice. Such damage does
not fall under warranty rules and may
9
© myPhone 2015. All rights reserved. myPhone HaloX PL
lead to warranty cancellation.
To charge the phone use only the
pro ided charger. After properly plugging
the charger you will see this icon (or
alike), a red diode will light up in the left
upper corner of the phone. Plug the
adapter out from the wall plug and then
unplug it from the phone.

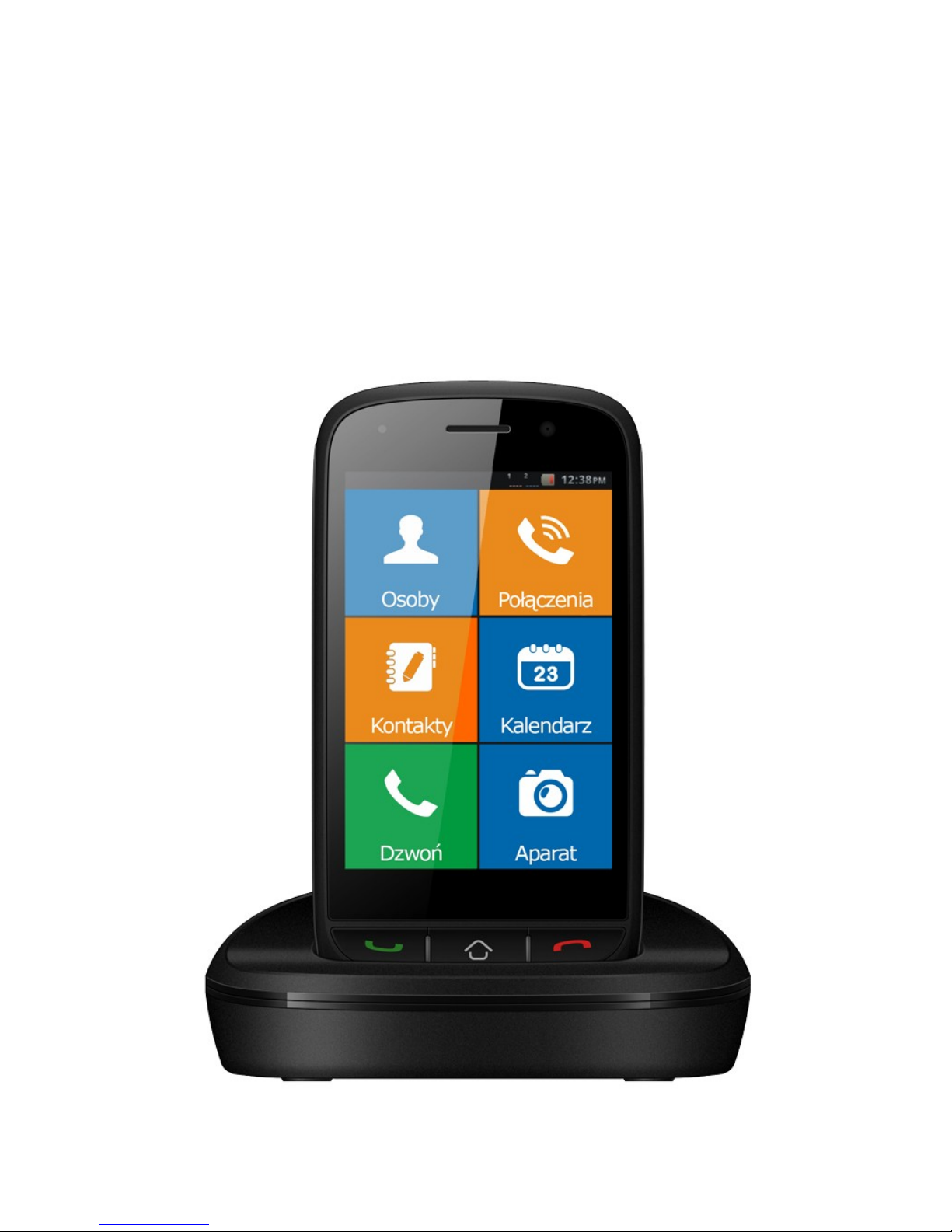

If you want to use the charging base
Plug in the charger’s USB connector into
the back of the charging base. A diode
should light up.
Place the phone in the charging base as
shown in the picture on the next page:
