T6RadiatorSeries

InstallationGuide

Revised1/14

T6-T

T6 - CENTRALLY CONNECTED RADIATOR

T6 Radiator Series

MYSON Table of Contents

Before You Begin ..........................................................................3

Bottom Center Connections .......................................................4-5

Side Connections …...................................................................6-7

Optional Piping Arrangements ......................................................8

Wall Bracket Installation ...........................................................9-11

Diverter Valve Installation …………………………………………..12

“H” Valve Specifications …………………………………………13-14

System Start-Up & Maintenance .................................................15

Myson, Inc. Limited Warranty

Myson, Inc warrants the following products against defects in material and workmanship to the

original owner for the duration listed from date of installation or three months after date of shipment,

whichever comes first.

The remedy in all cases shall be to repair or replace the product at Myson’s discretion upon

verification of a factory defect. If replacement is required, and an exact replacement product is no

longer available, Myson reserves the right to furnish a similar product of equal value.

NO REMOVAL, SHIPPING OR INSTALLATION EXPENSES ARE REIMBURSIBLE

The original purchaser is responsible for determining the suitability of the Myson product for their

installation. Installation and troubleshooting should be performed by a competent technician with

knowledge of hydronic heating and/or basic electricity.

Damages occurring during shipment, transit, storage or handling, abuse, neglect, accident,

misapplication, improper water source or connection, fire, flood or other Acts of God are not

covered. Freight damage claims MUST be made within 10 days of receipt from Myson.

No Exceptions.

STEEL PANEL RADIATORS — SELECT, T6, DÉCOR, COLUMN AND BENCH The

duration of warranty for steel panel radiators is 5 Years.

What is covered:

•Painted finishes will not peel or flake from the surface of the radiator.

•The body of the radiator and its welded joints will not leak when the product is properly

installed and maintained according to Myson’s instructions.

What is not covered:

•Rust occurring from improperly sealed threaded connections or oxygen corrosion.

•Electrolytic corrosion caused by failure to flush the system properly after initial

installation.

T6 Radiator Series

Before You Begin

INSPECT FOR DAMAGE

NOTE: Inspect for concealed shipping damage. Damage claims MUST be reported within 10 days of receipt.

NO EXCEPTIONS. Call 1-800-698-9690.

INSPECT FOR COMPLETENESS

Unpack the T6 carefully to avoid damage or loss of parts.

The T6 radiator includes:

Wall Brackets (2) for 16” through 63” width radiators, (3) for 70” and 78” width radiators

(2) Adapters for ½” copper compression (standard) or ½” PEX (optional)

The following are factory installed:

(2) Solid Plugs

(1) Air Vent

(1) Valve insert (Thermostatic Control optional)

APPLICATION

Myson T6 radiators must only be used in a pumped, closed loop hydronic heating system. DO NOT

INSTALL ON A STEAM OR GRAVITY HOT WATER SYSTEM. T6 radiators are designed and

constructed for a maximum working pressure of 145 PSI and no more than 230 degrees F water temperature.

Please consult national and local codes for specific restrictions that may be imposed on your installation.

Position radiators away from the circulating pump to avoid either excess pressure that could force water out

the air vent or suction which cold draw air into the system. The preferred positioning for the T6 radiator is

below a window where it can minimize downdrafts from glazed areas.

Panel radiators may be hot to the touch. Generally, the surface temperature is 10 to 12 degrees Fahrenheit

below the system water temperature. Care must be taken to consider the room occupant’s ability to sense or

understand that radiators may be hot. Should radiator surface or system water temperature be an issue, please

contact Myson at 1-800-698-9690 for information on the Myson LST radiators. LST (Low Surface

Temperature) Radiators can be a viable solution where temperature is a safety concern.

CONNECTIONS

There are two very different connection options for the T6 radiators, and the instructions are separated in the

booklet.

Bottom Center Connections: These connections must be used for the internal thermostatic valve to work. The

inlet must be the left hand connection as you face the front of the radiator. For series connection (maximum 2

GPM), HV-A or HV-S bypass valves may be used.

Side Tappings: The T6 may be connected like a conventional panel radiator. This arrangement negates the

effectiveness of the internal thermostatic valve. It will be necessary to cap the bottom center connections with

brass caps. The TRV insert should be removed and replaced with one of the plugs furnished with the radiator.

T6 Radiator Series

Center Connections

PIPING CONSIDERATIONS

T6 radiators are to be connected to one of the following piping systems: Home Run, Two Pipe

Reverse Return, or Monoflo. See page 8 for basic illustrations.

A limited number of T6 radiators may be connected in series using “H” Series By-Pass Valves. The

circuit must be limited to 2 GPM Maximum. See page 12.

Installation Using Center Connections

Center connections MUST be used in order for the built-in thermostatic valve to function.

The supply MUST be on the left hand side as you face the front of the radiator.

Each pipe center is one inch (1”) either side of the centerline of the radiator and 2 5/8” from the

finished wall.

Remove the two plastic paint caps from the center connections and connect either ½” copper pipe

using the compression adapters (p/n 101-68-44) or ½” PEX using the optional PEX adapters (p/n

164-68-50).

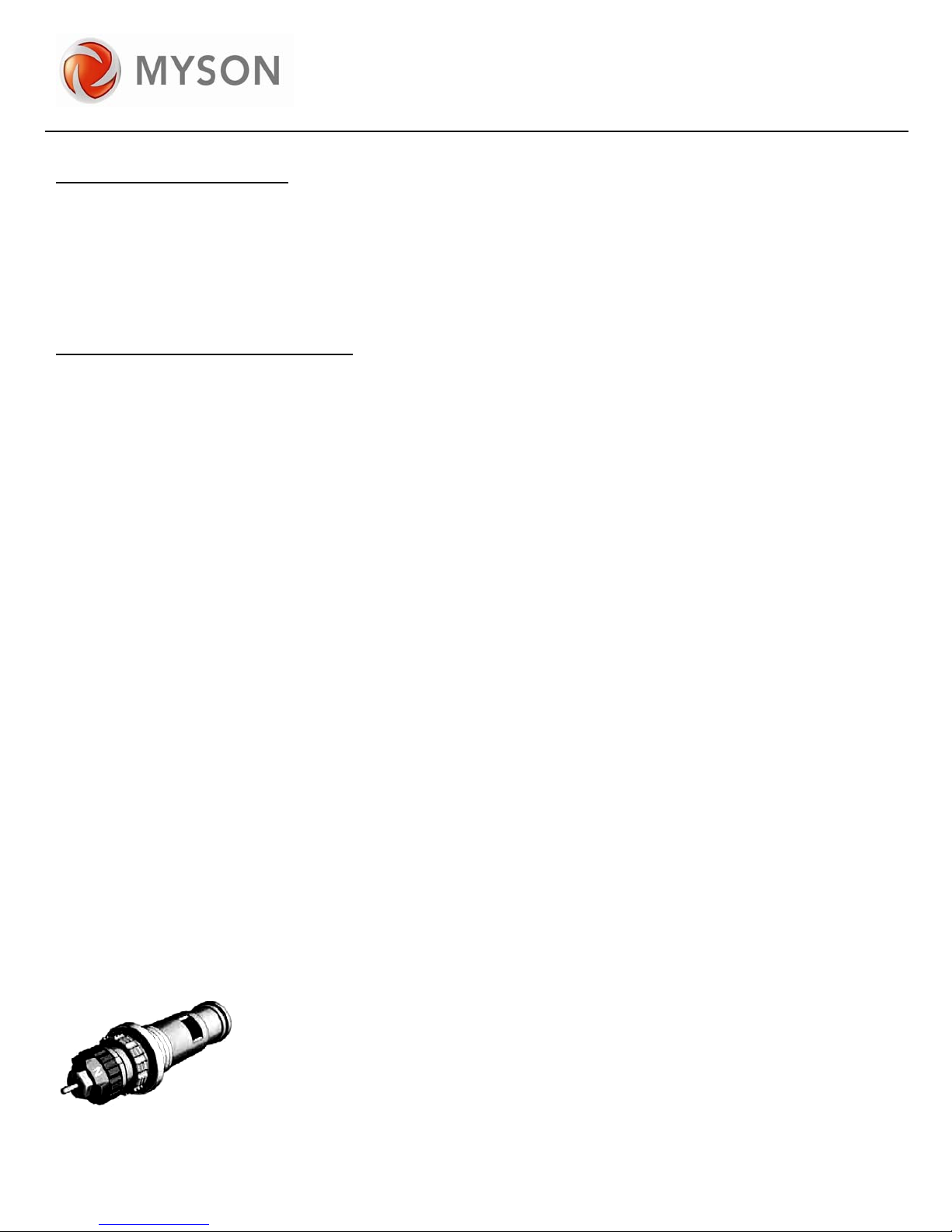

The thermostatic valve insert is located in the right hand upper tapping of the radiator, and the air

vent is located in the left hand upper tapping. Each may be moved to the opposite side if desired.

Thermostatic room control may be achieved by using the optional Herz TS head available from

Myson, or any Danfoss RA series control (by others).

Thermostatic Valve Inserts are color coded according to factory presets, which correspond to

radiator size. Presetting helps with system balance by limiting the maximum flow to the radiator

according to BTUH output.

Insert settings are based on 158 degree F. inlet water with a 30 degree temperature drop across the

radiator, and may be adjusted for less or more flow.

Color of Insert Preset Setting BTUH

White 1.1 1 1,700

Black 3.9 2 2,700

Green 5.2 3 3,400

Blue 6.5 4 4,100

Red N 5 5,500

6 6,850

7 8,200

RadiatorT6Series

CenterConnections(cont)

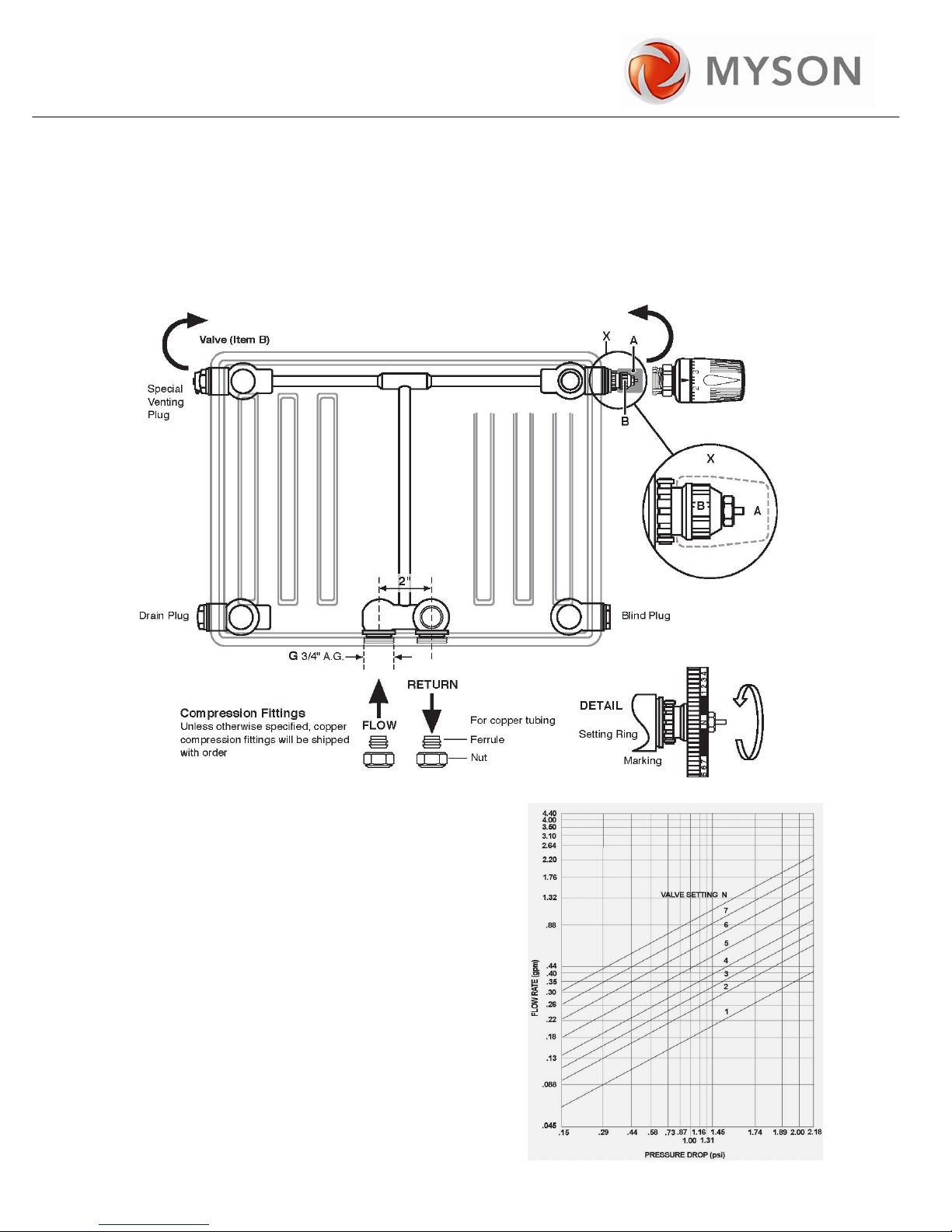

Swapping the right-hand side built-in valve to the left-hand side is no problem at all at

any time.

Radiators are delivered with protective caps. After removing the protective cap

(pos. A) the following thermostat heads can be fitted directly to the built-in v

(pos. B): “RA 2000”, “RAW” by Danfoss, “VK” by Heimeier, “D” by Herz,

“thera DA” by MNG and “UNI XD” by Oventrop.

alve

Setting Information

•Bottom center connections must be used for

internal valve function.

•Remove Site Cap or Probe Element.

•Turn the Setting Ring counter-clockwise to t

desired presetting—the setting value (1, 2, …

7, N) must be positioned above the mark.

•Presetting can be selected in grades of 0.5

between 1 and 7. Presetting is released in the

setting “N”.

T6 Radiator Series

Optional Side Valve Connections

Installation Using Side Connections

Note:

Center connections MUST be used in order for the internal distribution tubing and the built-in

thermostatic valve to function.

The T6 IVC Radiator is designed to be connected using the bottom connections. If necessary the

radiator may be installed using the side tappings although a better alternative is to use Myson’s

Select Series Radiators. For more information please contact Myson at 800-698-9690.

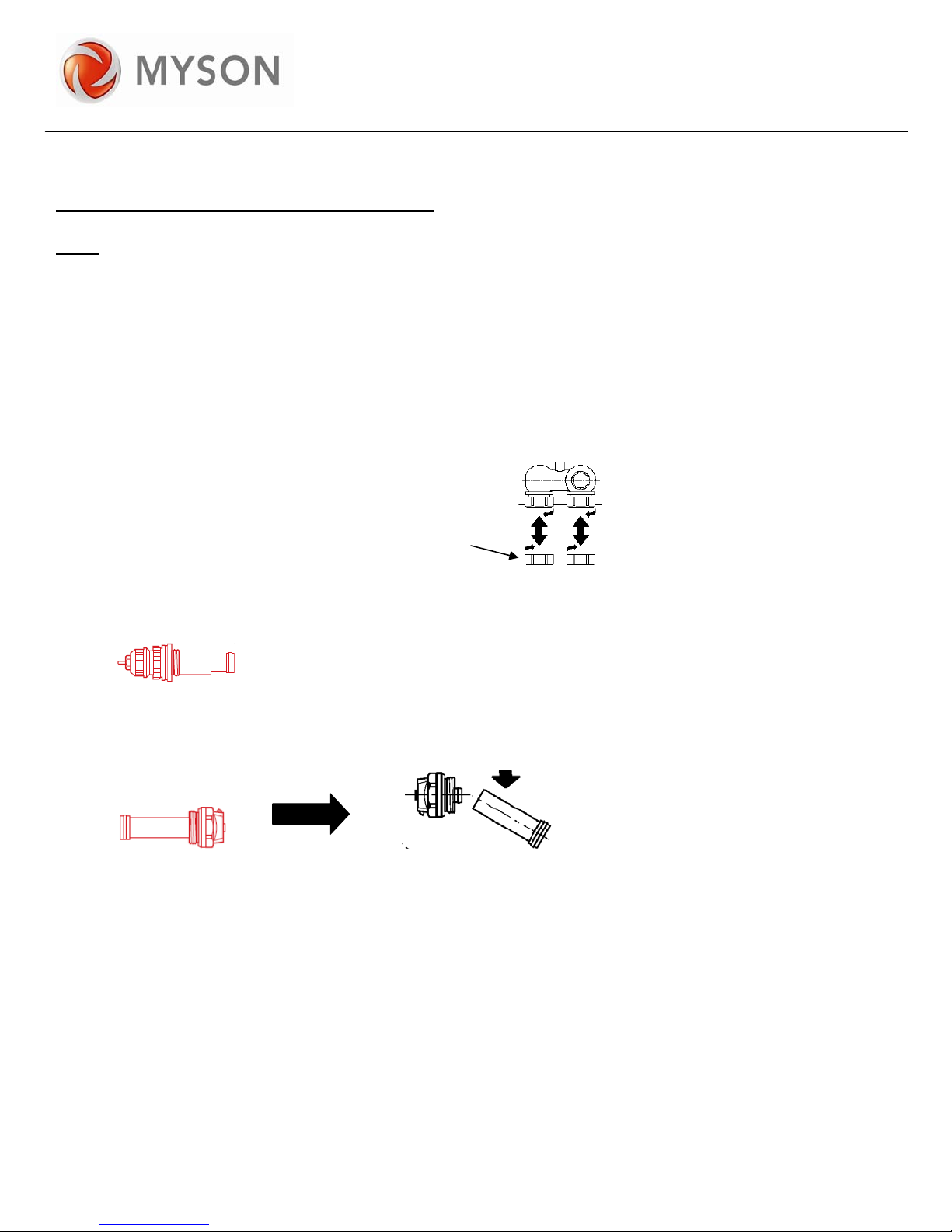

Preparing the T6 Radiator for side connections.

•Remove the two plastic caps from the bottom center connections and discard.

•Replace with nickel plated brass caps, PN: T6BCC.

T6BCC

•Remove one of the blanking plugs from one of the lower side tappings.

•Remove the thermostatic valve insert.

•Replace with the blanking plug removed from one of the lower side tappings.

•Remove the air vent assembly, separate and discard the black extension piece.

•Replace the modified air vent in the top tapping. (Air vents should always be positioned on

the return side of the radiator.)

•Make sure all tappings are clean and free of debris before proceeding with valve installation

shown on page 7.

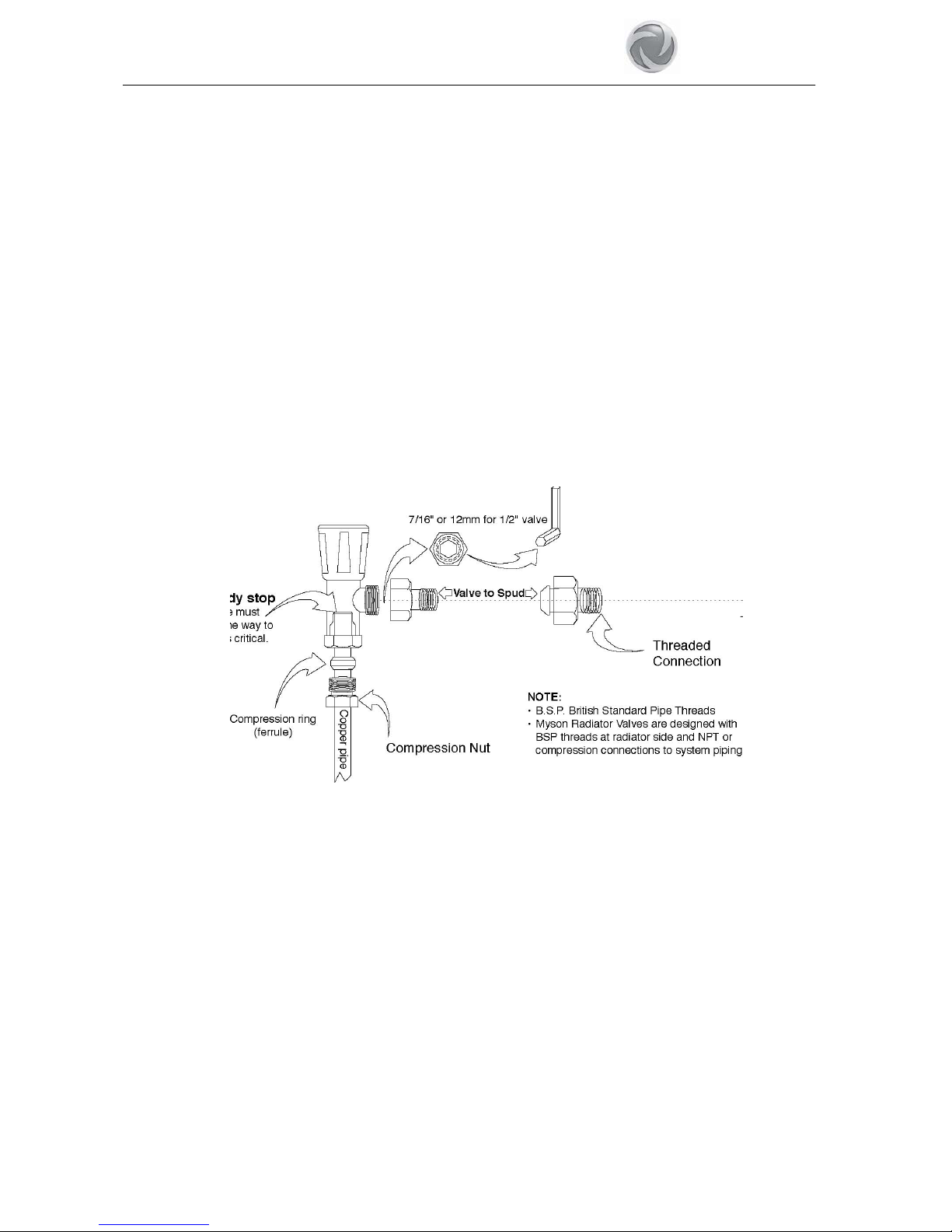

Step 3 Using accepted trade practices assemble and wrench tighten fittings until

proper alignment is obtained.

Optional Side Valve Installation

Valve body stop

Copper pipe must

extend all the way to

stop. This is critical.

Applies to installation using side tappings.

Myson products are designed to be installed by professional trades people. Myson instructions

are meant to be thorough; however it is assumed that the installer has the appropriate

technical knowledge related to building codes, standard trade practices, and proper use of the

tools of the trade. Should a homeowner without such knowledge or skill take it upon

him/herself to attempt the installation, Myson will not be responsible for any damages, injuries

or unsatisfactory performance of the Myson product used.

MYSON

T6 Radiator Series

NOTE: MYSON products have BSP male and female threads. BSP threads are a straight

running thread NOT tapered like NPT. Myson Radiator Valves are designed with BSP

threads at radiator side and NPT or compression connections to system piping.

Step 1 Clean all threaded surfaces (both external and internal).

Step 2 Apply teflon tape or pipe dope to the male threads, leaving the first thread exposed.

If using pipe dope, also apply to the female threads of the radiator. Common practice

to seal BSP threads is to use heavy duty teflon tape, such as is used to seal gas pipe

fittings, or anaerobic pipe dope.

Threaded

Connection

 

T6 Radiator Series

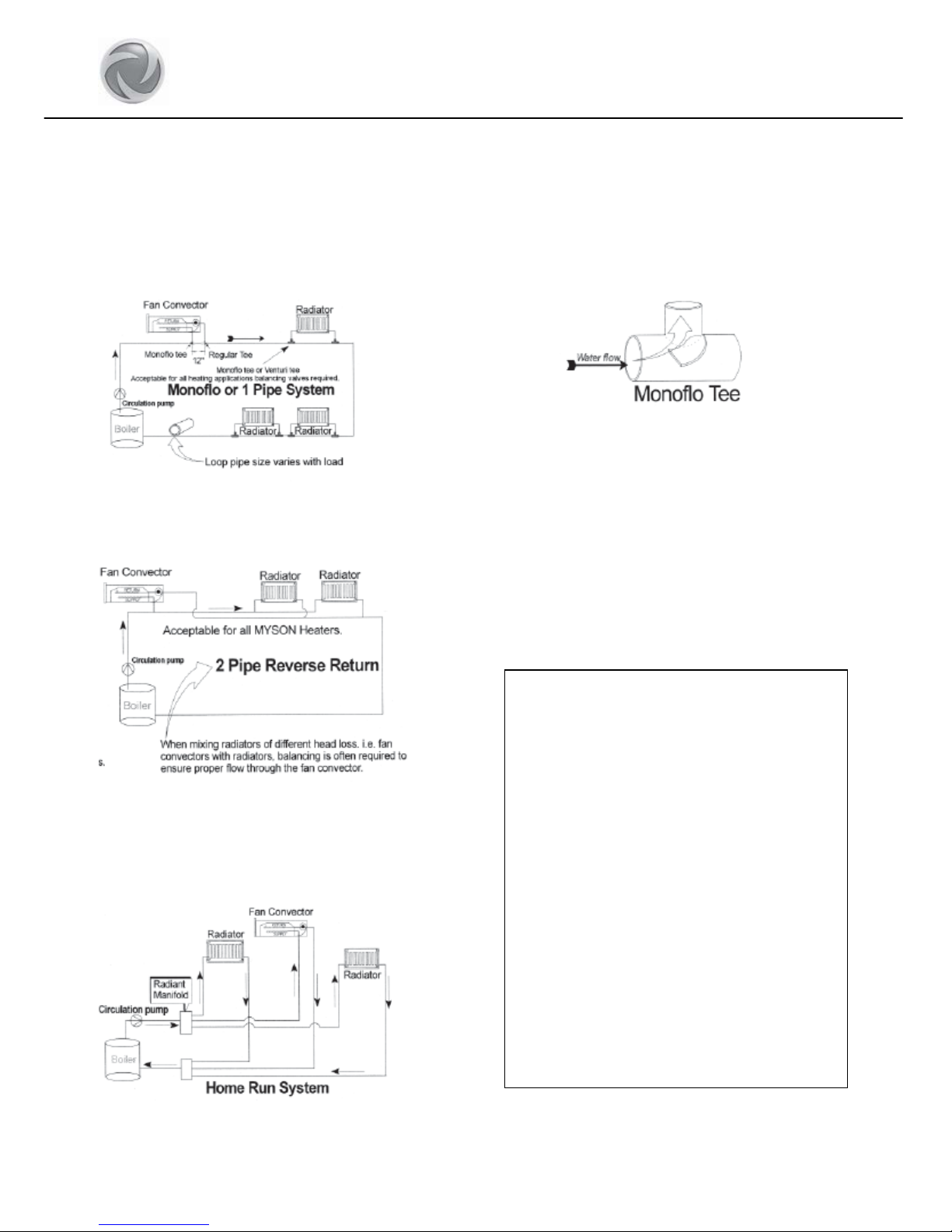

MYSON Optional Piping Arrangements

The following drawings are general

examples. They are diagrammatic only.

Consult a certified heating professional

for your specific application.

General information on the use of Monoflo tees:

•Scoop type is placed on the supply

•Venturi type on the return

•If heating unit is below main or more than 4

feet horizontally from the main, use two

monoflo tees facing each other

TheT6radiator is designedtobeconnected

usingthe2”ccbottomcenterconnections.

Theseconnectionsutilizetheefficientuseof

specialinternalpipingandtheincluded

internalThermostaticRadiatorValve.The

“HomeRunSystem”pipingwithamodulating

circulatoristhemostefficientinstallation

method.Thebottomcenterconnectionsalso

workwellwiththe“Monoflo(1Pipe)System”.

Ifconnectedinseries(“SeriesLoop”)an“H”

styleby‐passvalvemustbeusedandthecircuit

mustbelimitedto2gpm.Thismethodisnot

recommended.

TheT6radiatormayalsobeinstalledusingthe

alternateendpaneltappings,howeverthiswill

rendertheinternalpipingandTRVnon‐

erationalandisnotrecommended.

T6 Radiator Series

Solid Wall Bracket Installation

ATTENTION: For the correct installation of radiators it is essential that the fixing of the radiator is

carried out in such a way that it is suitable for intended use AND predictable misuse. A number of

elements need to be taked into consideration including the fixing method ussed to secure the radiator

to the wall, the type and condithion of the wall itself, and any additional potential forces or weights,

prior to finalizing the installation.

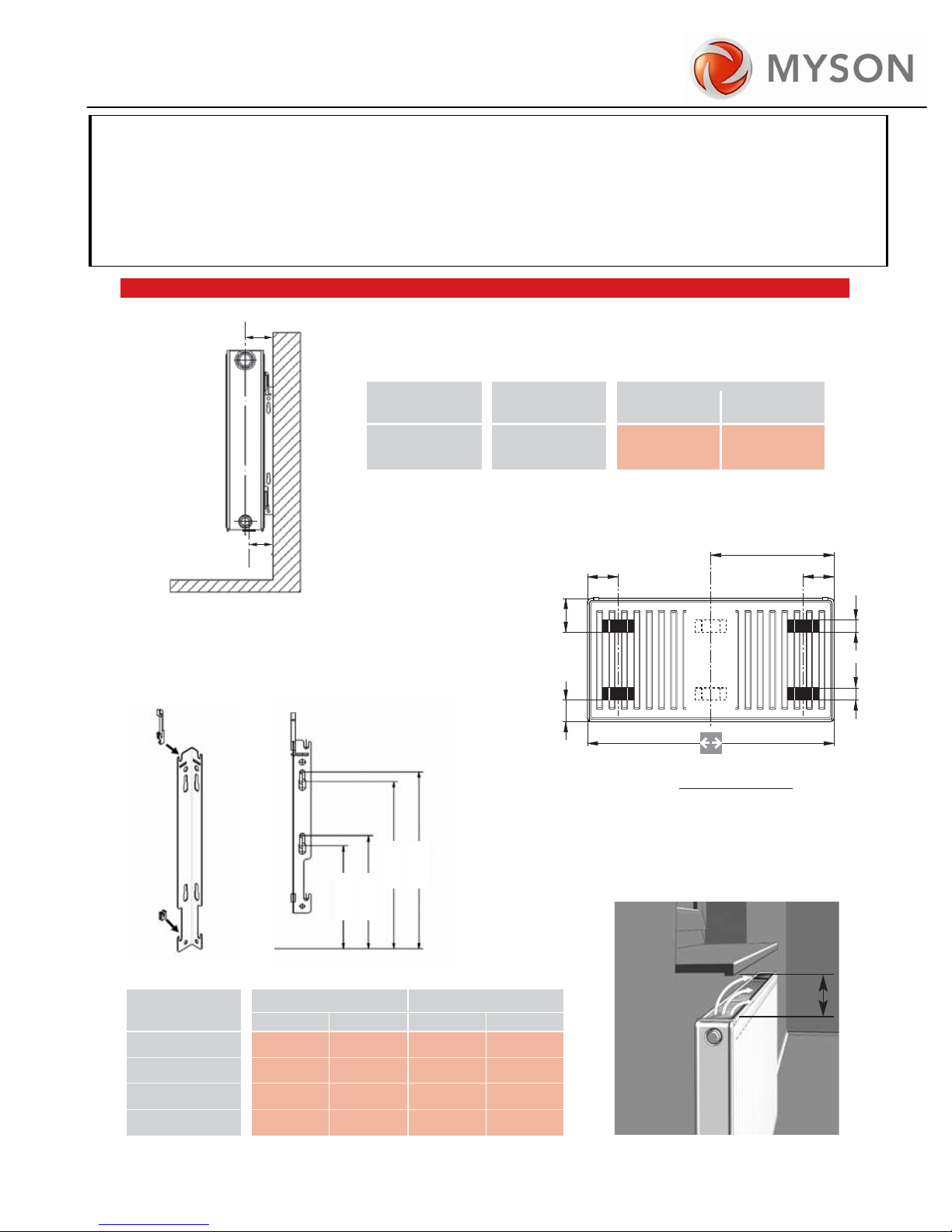

Mounting Positions, Dimensions and Wall Brackets

Y = Wall to side connection.

Z = Wall to centre bottom connection.

Nominal Height

(in)

(in)(in)

2 5/8

3 3/8

Type

TK2

Wall Bracket

Nominal Height

(in)

5 5/8

5 7/16

9 3/8

13 5/16

17 1/4

6 3/16

9 15/16

13 7/8

17 13/16

B(in)A (in)B(in)

A (in)

1-1/16"

B M8

B M6

A M8

A M6

11/16"

Plastic insert

12 - 24

45/16

315/16

23/4

19/16

Y = Overall length

for all radiators from

an overall length of

707/8" and longer.

19/16

Right

T + 10% = OA

T = Radiator

width

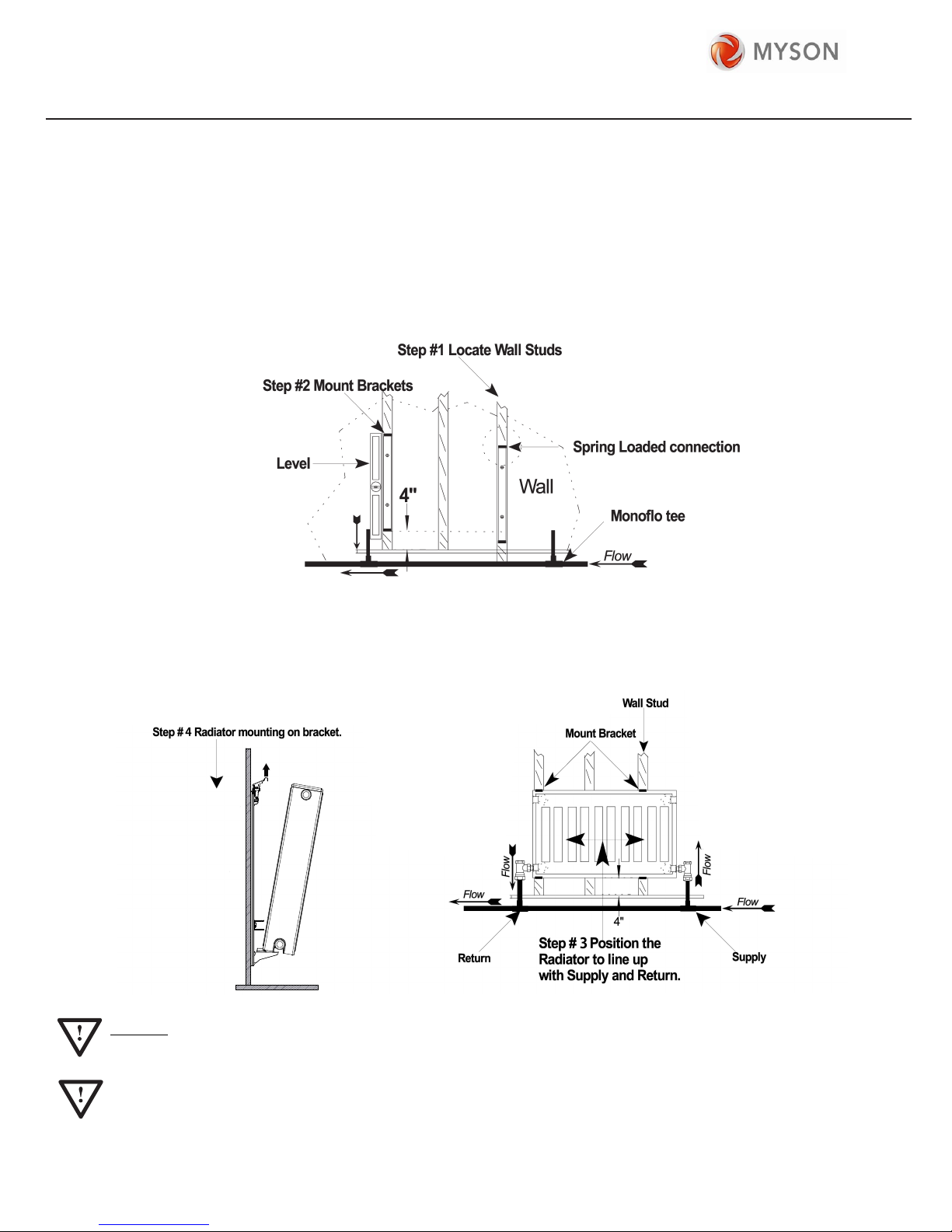

Step 1 Locate studs in wall where the radiator is to be mounted.

Step 2 Mount the brackets so the radiator is a minimum of 4 inches off the floor.

• Failure to allow 4” minimum clearance below radiator can significantly reduce

radiator performance.

• Attach brackets firmly to the studs using appropriate hardware making sure

the spring loaded connection on brackets is on top.

•All Select Radiators use 2 brackets except as noted on page 9.

• Use a level to assure bracket is plumb.

Step 4To install the radiator on the brackets, set the bottom edge of the rear panel on the bottom

part of the bracket then gently lift and snap the top clip into the grille of the radiator.

Many MYSON products are in excess of 70 pounds. Care should be taken to have help to lift

larger radiators into place to avoid lifting injuries.

T6 Radiator Series

Conventional Wall Installation Using Optional EZ-Brackets)

NOTE: For mounting instructions of the T6 radiator using the new style EZ

brackets please refer to the instructions included with the brackets.

Step 3 Position radiator to line up with the supply and return pipes.

Indice

Altri manuali Myson Stufa

Myson

Myson WHISPA III 5000 Manuale utente

Myson

Myson SLIM-LINE RC Manuale utente

Myson

Myson T621-3-92 Manuale utente

Myson

Myson HEK Manuale utente

Myson

Myson T6 IVC Series Manuale utente

Myson

Myson 40G Manuale utente

Myson

Myson KICKSPACE 500 DUO Istruzioni per l'installazione

Myson

Myson Kickspace 500E Manuale utente

Myson

Myson LO-LINE RC 6-4 Manuale utente

Myson

Myson Finesse EC Guida rapida

Myson

Myson 6-4 Manuale utente

Myson

Myson Kickspace 500 Manuale utente

Myson

Myson Kickspace 500E ECO Istruzioni per l'installazione

Myson

Myson Kickspace 500 Istruzioni per l'installazione

Myson

Myson WHISPA III 5000 WM Manuale utente

Myson

Myson DÉCOR KH11 Manuale utente

Myson

Myson WHISPA III 12000 RCU Manuale utente

Myson

Myson Kickspace 500E Manuale operativo e di manutenzione

Myson

Myson ULOW-E2 Guida rapida

Myson

Myson iV080 Manuale utente

Myson

Myson iVector S2 Manuale utente

Myson

Myson Kickspace 500 Manuale operativo e di manutenzione

Myson

Myson 2-Pipe Manuale utente

Myson

Myson Kickspace 600E Manuale utente

Manuali Stufa popolari di altre marche

oventrop

oventrop Regucor Series Manuale utente

Blaze King

Blaze King CLARITY CL2118.IPI.1 Manuale utente

ELMEKO

ELMEKO ML 150 Manuale utente

BN Thermic

BN Thermic 830T Manuale utente

KING

KING K Series Guida

Empire Comfort Systems

Empire Comfort Systems RH-50-5 Guida rapida

Well Straler

Well Straler RC-16B Manuale utente

EUROM

EUROM 333299 Manuale utente

Heylo

Heylo K 170 Manuale utente

Eterna

Eterna TR70W Manuale utente

Clarke

Clarke GRH15 Manuale di istruzioni

IRSAP

IRSAP The Radiator Company Ovali Manuale utente

Empire Heating Systems

Empire Heating Systems WCC65 Manuale utente

Wetekom

Wetekom 92 86 43 Manuale utente

Desa

Desa SPC170-F Manuale utente

Watlow

Watlow Watrod Electric Tubular Heaters Manuale utente

Haverland

Haverland ECO-DRY GPS Series Manuale elenco delle parti

Stelpro

Stelpro ASILVC2060 Series Manuale utente
