Nady Systems PCL-800 Manuale utente
RACK LIGHTS
POWER CONDITIONER & LIGHT MODULE
1800 WATTS CAPACITY
PULLPULL
MIN MAX
OVER
VOLTAGE STANDARD
VOLTAGE
DIMMER REAR OUTLETS
ON
OFF
Congratulations!
PCL Series
Power Conditioners
For advanced RF/EMI noise filtering and the quietest
operation of your equipment...
• Triple mode varistor surge and spike protection
• Eight rear outlets (with room for 4 “wall warts”)
controlled by a front panel switch
• 15 amp rating (1800 W) with rear panel circuit
breaker (UL)
• Two added front panel slide-out, swiveling lights for
rack illumination and dimmer controls to adjust
lamp brightness (PLC-810 and PLC-815 only)
• Large LED numeric meter that displays incoming
AC line voltage and 2 voltage condition indicators-
standard voltage and over voltage (PLC-815 only)
• Rugged single rack space metal housing for maxi-
mum reliability
Date of Purchase
Dealer’s Name
City
State
Zip
Model#
Serial #
You have purchased on of the finest professional power
conditioners on the market today. This unit was devel-
oped using the expertise of professional sound engineers
and working musicians. You will find your new unit has
superior performance and greater flexibility than any
other power conditioner in its price range.
Read this manual carefully to get the most out of your
new unit. Thanks for selecting NADY AUDIO for your
choice in power conditioners.
2
PCL-800 Power conditioner
PCL-810 Power conditioner with dimmable
front-panel slide-out lights
PCL-815 Power conditioner with lights and
AC meter display
Features
Features ............................................................ 2
Warning............................................................ 3
Controls, functions, and
connections........................................................ 4
Installation and operation.................................... 6
Specifications .................................................... 7
CONTENTS
3
Controls, functions, and connections
FRONT PANEL
1. POWER SWITCH
Outlet switch (with built-in LED ON indicator) activates protection and filtration to all back panel outlets. To turn
the unit ON or OFF, press the upper or lower portion of this button.
2. 2 RETRACTABLE RACK LIGHTS
Pull out for illumination and swivel to desired angle
3. LIGHT SWITCH
Activates rack illumination
4. DIMMER CONTROL
Use to control the intensity of the illumination. Turning clockwise increases the light output.
5. DIGITAL VOLTMETER READOUT
Displays incoming AC line voltage
6. VOLTAGE LED METER
Separate green and red LEDs monitor the incoming voltage range. The green LED indicates voltage is in the
normal operating range. The red LED lights when the voltage exceeds 125V, indicating that the supplied power
is out of range for normal operation.
4
RACK LIGHTS
POWER CONDITIONER & LIGHT MODULE
1800 WATTS CAPACITY
PULLPULL
MIN MAX
OVER
VOLTAGE STANDARD
VOLTAGE
DIMMER REAR OUTLETS
ON
OFF
2
4
31
56
26

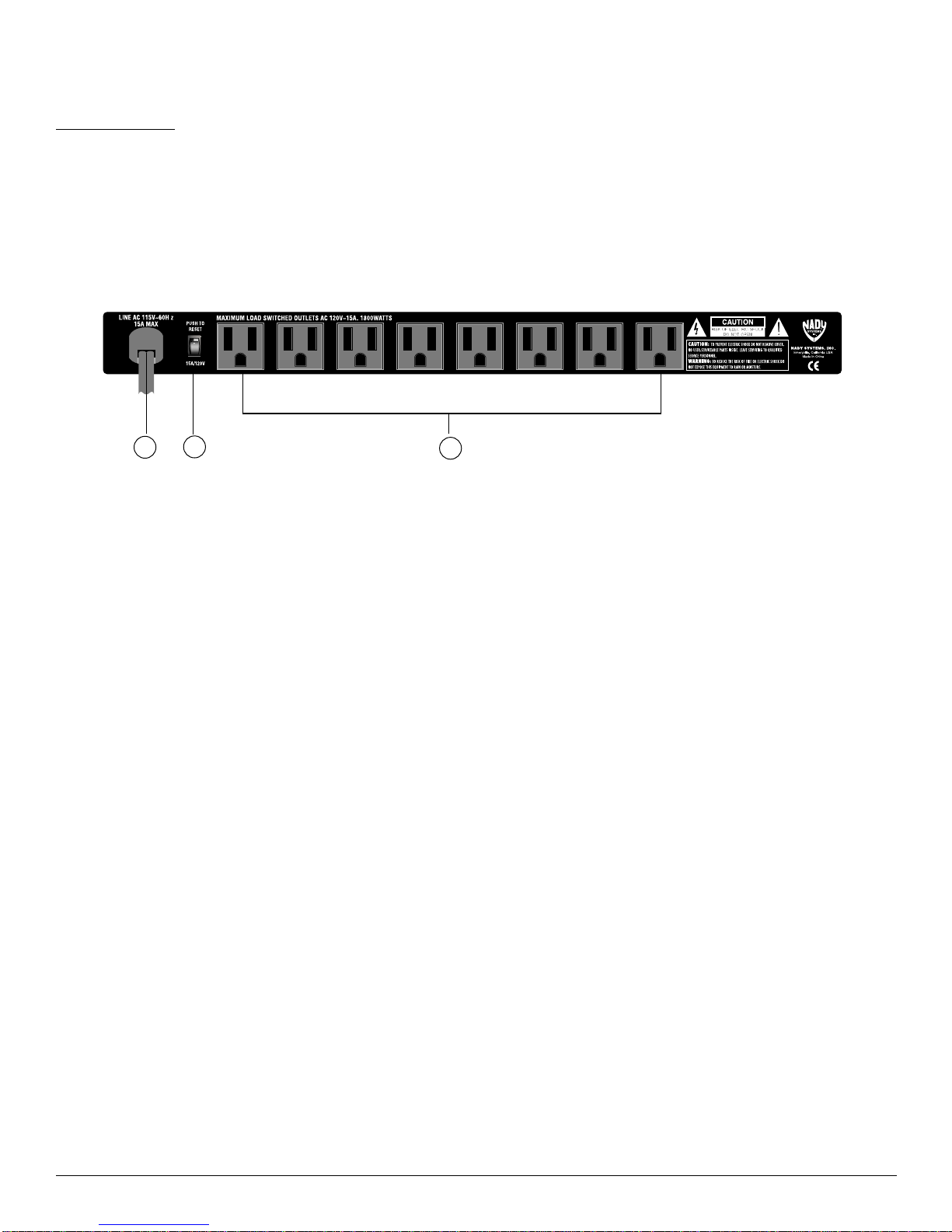

REAR PANEL
7. POWER CORD
Heavy duty 14-guage power cord for connection to the AC power mains (~115V/60Hz)
8. CIRCUIT BREAKER
Resettable 15 amp thermal circuit breaker
9. 8 REAR PANEL OUTLETS
EMI/RFI filtered, spike/surge protected and switched
5
789
6
1. The PCL Series conditioners are the perfect accessories for any rack mount system. Install in the top slot of a
standard 19-inch rack, and the 8 switched AC outlets on the rear panel will provide full safety protection to all
your rack equipment. These conditioners protect your delicate electronic equipment by combining a high
voltage varistor surge and transient suppressor with an RFI/EMI interference filter. The filter helps prevent noise
from fluorescent lights, motors, and similar sources of “electronic pollution” from contaminating the AC feed to
your senitive video, audio, vtr or computer circuits.
2. Plug Power Cord (7) into a standard grounded 115V outlet
3. Plug sensitive electronic equipment into the 8 Rear Panel Outlets (9)
4. Turn Outlet Power Switch (1) to “ON” position. Lit LED indicates conditioned power to the connected
equipment.

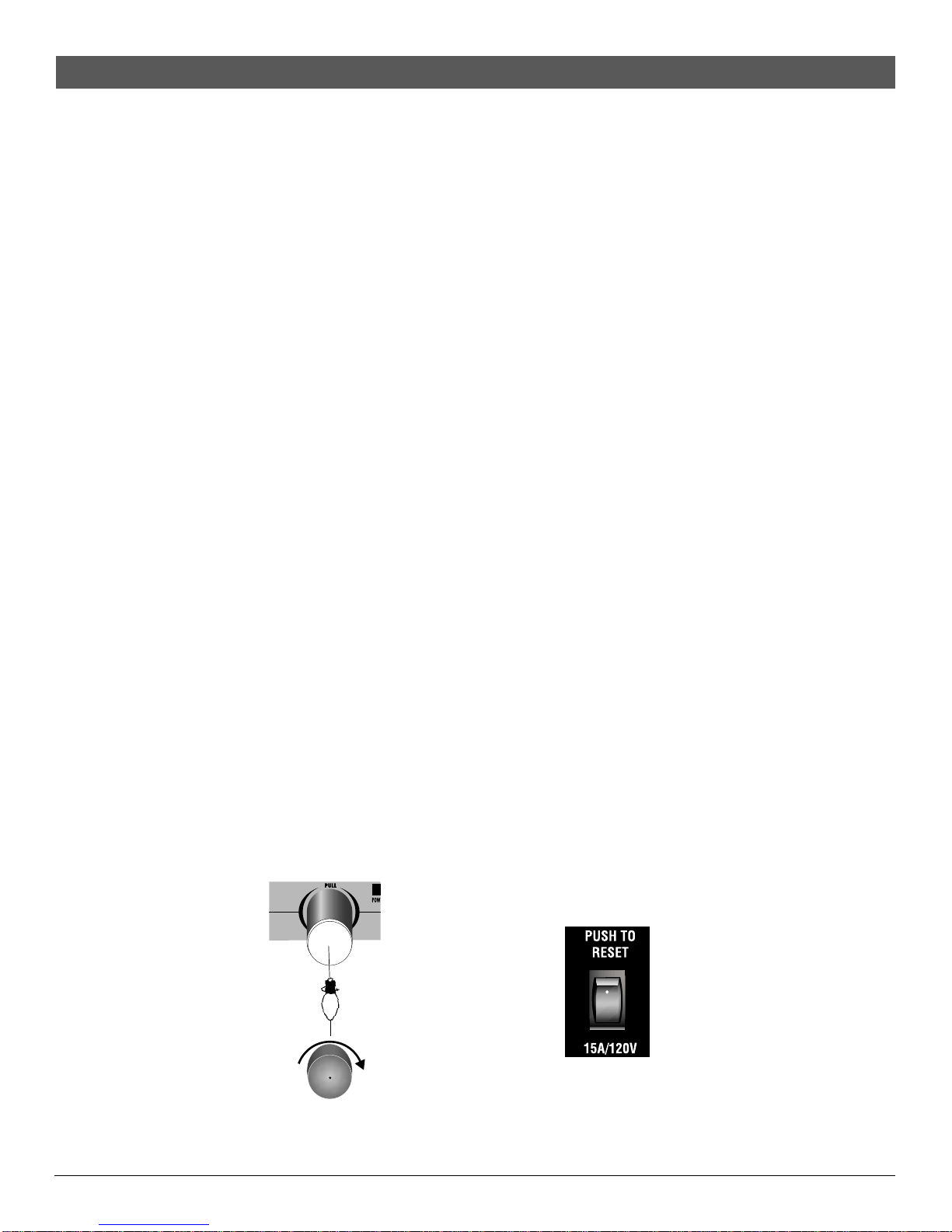

5. For discreet illumination of your rack equipment on stage, in studios, and in other dark locations (PCL-
810/815 only), pull the 2 Retractable Rack Lights (2) out and adjust the Dimmer Control (4) for the lamp
brightness desired (see fig.1 below). The lights swivel and can be adjusted to the proper angle for your appli-
cation. The lamps are supplied with standard 5W night-light bulbs. If you find the heat from the bulbs exces-
sive, reduce the setting of the Dimmer Control or substitute lesser wattage bulbs. You can easily replace the
bulbs without removing the unit from the rack by unscrewing the cap on the end of each light tube. (Note: Be
careful not to push the tubes in while the caps are unscrewed.)
6. The Digital Voltmeter Readout (5) (PCL-815 only) is calibrated to a nominal 117 VAC at the factory.
No adjustments are necessary.
7. The Digital Voltmeter Readout (5) automatically displays incoming voltage when the Power Cord (7)
is connected.
8. MAXIMUM LOAD: The PCL Series Power Conditioners 8 Rear Panel Outlets are rated at 15 amps total load
(or 1800W at 120VAC). If this maximum load is exceeded, the Circuit Breaker (8) will trip, cutting off power
to all connected equipment in your rack. If this happens, reduce the load by unplugging one or more units
from the power conditioner, and push the circuit breaker to reset it (see fig.2 below).
Installation and operation
fig.2
fig.1
Specifications
PROTECTION PROVIDED High voltage varistor surge and transient suppressor,
RFI/EMI interference filtration
OUTLET CONNECTORS 8 standard 3-prong grounded AC receptacles
POWER CONSUMPTION Maximum 1800W/15A load
POWER SOURCE ~120VAC/60 Hz
CIRCUIT BREAKER 15A thermal type
LAMPS (PCL-810/815) 5W (two)
DIMENSIONS 19” X 1.75” X 7.3”
(483 X 44 X 185mm), 1U rack height
WEIGHT PCL-800 4.45 lbs (2.0 Kg)
PCL-810 4.5 lbs (2.05 Kg)
PCL-815 4.55 lbs (2.07 Kg)
For improvement purposes, specifications, design and appearance subject to change without prior notice
7
