NAIM ND 555 Manuale utente

Quick Start uide

ND 555

Quick start guide

1What’s in the box

1x 1x

1x 2x

BNC to RCA adaptor

Hi-Line lead

(5-5pin DIN) Burndy leads

Bluetooth

antenna

Wi-Fi

antenna

Cleaning cloth

ND 555

Document pack

AAA batteries

Remote handset

Wi-Fi

antenna

socket

USB

Wi-Fi

antenna

socket

Bluetooth

antenna

socket

Back

Front

USB

USB Digital

output

Digital

inputs

Network

Wi-Fi

antenna

socket

et to know your streamer

These front and back diagrams show the operational features and sockets

of your new ND 555.

Play/Pause

Input selection

Favourites

Power/

Standby

Display

Remote

output

round

switch

Power

inputs

Analogue

output

(phono)

Analogue

output

(DIN)

Play/Pause

Input selection

Favourites

3The remote

Navigation

Favourites Inputs

Multiroom

Battery

compartment

on reverse

Power/Standby

Volume

Mute

Skip forward

Skip back

Back

Home

Play/Pause

Now playing

Display on/off

Clock

Options

4Simple set up

You will need a hi-fi system, a router with Wi-Fi connected

to the internet and a smart phone or tablet. You will also need a network

cable, digital and analogue Burndy cables and CD555 PS power supply unit.

www

Router Tablet or

smart phone

Hi-fi system

CD555 PS

(Power supply unit)

Digital and Analogue 555 PS Burndy cables

Network

cable

Wi-Fi

5Remove transit screws

On the underside of your ND 555 you will find four transit screws.

These need to be removed before installation into your hi-fi system.

Unscrew anti-clockwise.

Make sure you keep the transit screws safe as they will need to be replaced

if the player is to be carried any distance, packed or

shipped in the future.

WARNIN: the player must not be inverted either

during or after transit screw removal

6Connection and power

(A) Firstly turn off your hi-fi system. (B) Connect the Ethernet network cable

from router to ND 555 (if unavailable connect 2 x Wi-Fi antennae instead)

and 1 x Bluetooth antenna to the rear of the ND 555. (C) Connect the ND 555

to the CD555 PS using both Burndy leads. (D) Use the Hi-Line lead

(5-5pin DIN) to connect to the pre-amplifier of your hi-fi system.

(E) Switch on the ND 555 by pressing the power button on the front

of the CD555 PS. (F) Turn your hi-fi system back on.

ND 555

CD555 PS - Power supply

Power

connection

Hi-Line lead to

pre-amplifier

NB: markers

for different

burndy cables

Power off your

hi-fi system

Output 1 2

Input 1 2

Power on your

hi-fi system

Switch on

CD555 PS

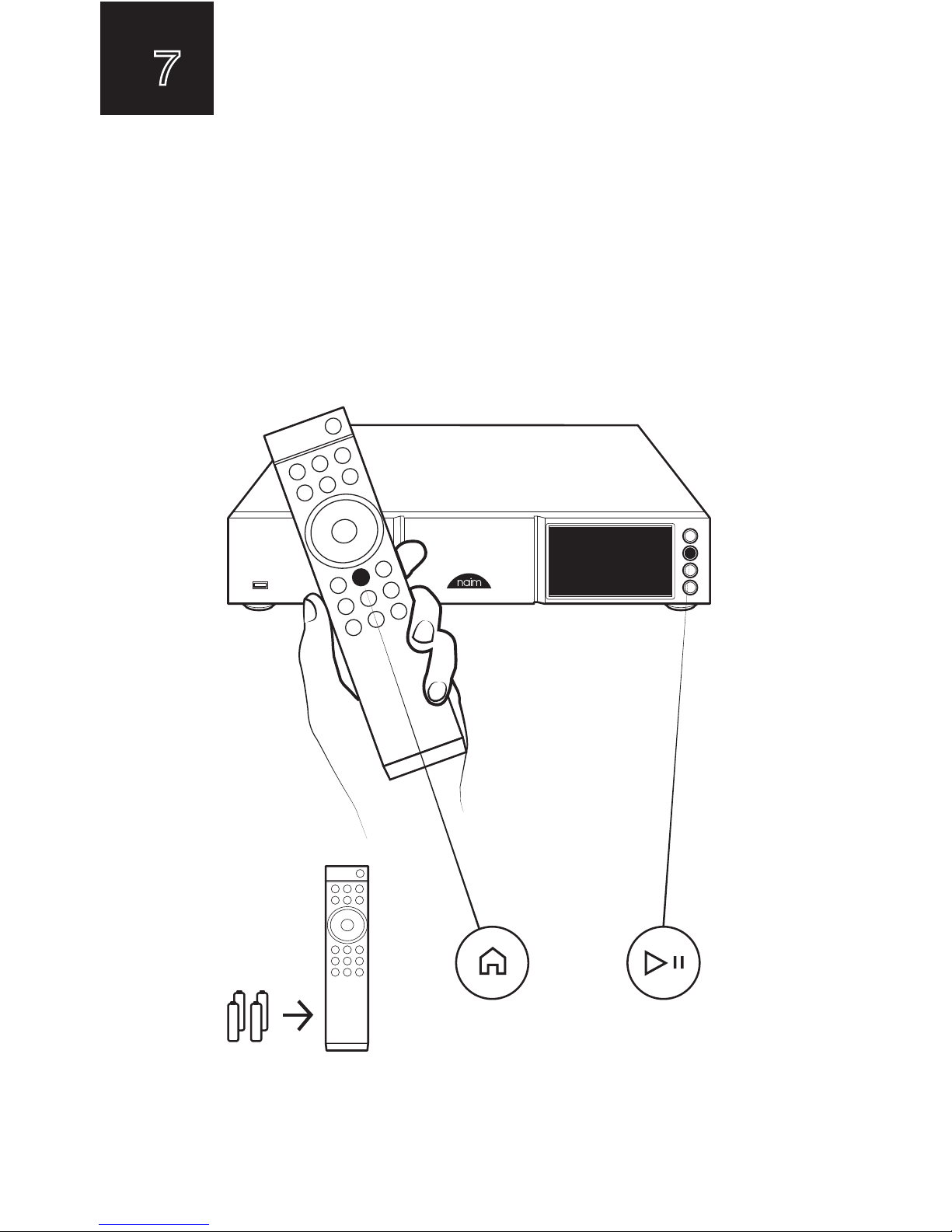

7Pairing the remote

Once your unit is powered and on, you will need to pair the remote.

To do this, press the play button on the front panel, then press and hold

the remote control home button for 3 seconds. The remote is now paired

to the unit and ready to use.

Press and hold

Home button

Press play

on front panel
