OPERATING GUIDE for your

GEM-K2AS KEYPAD

ARMED

COMPUTERIZED SECURITY SYSTEM

STATUS

GEMINI

R1 2 3

B 4 5 6

C 7 8 9 0

AC ON READY

NEXT / YES

PRIOR / NO

AREA

OI280A 4/03

The GEM-K2AS is a “smart” user-

friendly, interactive menu-driven keypad

designed for your Napco control panel.

Its alphanumeric screen will not only

display the status of your system, but will

also give you step-by-step instructions to

guide you through all operations.

This booklet contains important

information about the operation of your

system with this GEM-K2AS Keypad.

Read it carefully and keep it handy for

future reference. Check the Glossary for

an explanation of terms that may be

unfamiliar to you.

You'll probably find subjects

mentioned in this booklet that do not

apply to your system. Napco control

panels have such a wide variety of

features that few security systems, if any,

will ever need them all. Your alarm

professional has chosen appropriate

features for your particular needs.

Regardless of how your system has

been configured, rest assured that it has

been carefully designed and engineered

to the highest industry standards. To

assure optimum safety and security,

familiarize yourself with this equipment.

Periodically check its condition and state

of readiness by testing it at least once a

week in both the ac/battery and battery-

only modes (ask your alarm professional

how to make these tests).

INTRODUCTION

IMPORTANT - TEST YOUR SYSTEM WEEKLY

Test your sounding device.

1. While disarmed, enter your User Code and press R.

2. Answer NO (press Q) until “Bell Test Yes/No” appears in the

window.

3. Press YES (P) to execute the test. The alarm will sound for

about two seconds.

•If the alarm does not sound or sounds weak, call for service.

Test your telephone line

(Turn On Telephone Test programmed? !YES !NO)

1. Notify your Central Station of the impending test.

2. While disarmed, enter your User Code and press R.

3. Answer NO (press Q) until “TurnOn TelTst Yes/No" appears in

the window.

4. Press YES (P) to send a test code to the central station.

•If the test is not successful, “E03 COMMFL” will display, indicating

a communication failure. Call for service.

Note: Any subsequent successful transmission will clear an “E03

COMMFL” system trouble.

TABLE OF CONTENTS

Section Page

KEYPAD CONTROLS & INDICATORS............................................ 4

ARMING AWAY: SETTING THE ALARM WHEN LEAVING ............6

ARMING STAY: PROTECTING YOURSELF AT HOME ................. 9

TURNING OFF THE ALARM (DISARMING) WHEN RETURNING... 11

FIRE PROTECTION......................................................................... 13

FUNCTION MENU ........................................................................... 17

CENTRAL-STATION MONITORING ................................................ 22

ADVANCED FEATURES ................................................................. 23

PROGRAMMING ............................................................................. 25

KEYPAD MESSAGES...................................................................... 28

GLOSSARY ..................................................................................... 32

SYSTEM TROUBLE ERROR CODES ............................................. 35

TO SILENCE AN ALARM, ENTER YOUR

CODE, AND PRESS U.

FOR SERVICE, CALL: _____________________

CENTRAL STATION: _____________________

EXIT DELAY: ___________________________

ENTRY DELAY: _________________________

FIRE ALARM SOUND*:

_____________________________________

BURGLAR ALARM SOUND*:

_____________________________________

KEYPAD FIRE ENABLED? !YES !NO

KEYPAD PANIC ENABLED? !YES !NO

KEYPAD AUX. ENABLED? !YES !NO

*FIRE HAS PRIORITY OVER BURGLARY.

KEYPAD CONTROLS & INDICATORS

ARMED

COMPUTERIZED SECURITY SYSTEM

STATUS

GEMINI

R1 2 3

B 4 5 6

C 7 8 9 0

AC ON READY

AREA

PRIOR / NO

NEXT / YES

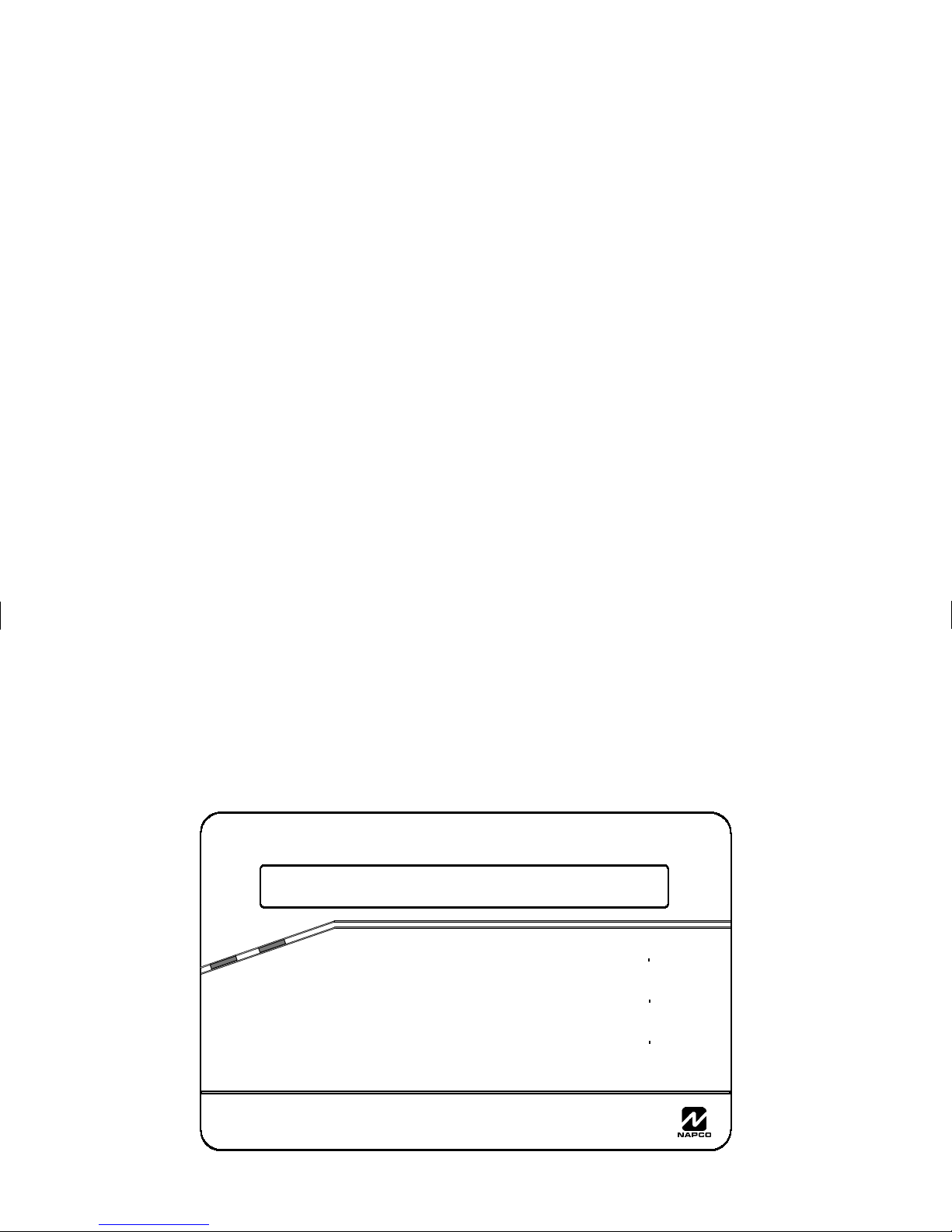

KEYPAD CONTROLS & INDICATORS

Window. Displays system status

messages, zone descriptions, etc.

STATUS Light. Lights (green) to

indicate that the system is ready

for arming. If a zone is not

secured the light will be off and

the zone will display in the

window. If a zone has been

bypassed, the STATUS light will

blink while armed.

ARMED Light. Lights (red) to

indicate that the system is armed.

If an alarm has occurred, the

ARMED LED will be flashing.

MENU Button. Selects available

system functions as displayed in

the window. The selected function

is executed by pressing the U

button.

BYPASS Button. (1) Deactivates

selected zones from the system.

(2) Unbypasses a bypassed zone

(GEM-P9600/3200 panels only).

RESET Button. (1) Resets

various system troubles, displays,

etc. (See text.) (2) Resets

residential smoke detectors.

Numerical Keys (1-9, 0). Used to

enter codes, zone numbers, etc.

ENTER Button. Entry key.

Causes the entered code or

selected function to be executed.

STAY Button. (1) Bypasses all

Interior Zones simultaneously

("STAY Mode") to allow free

movement within the premises.

Hold down Pwhen the

system is armed in "STAY Mode"

to cancel entry delay on Exit/Entry

Zones, causing an instant alarm

upon violation. (2) Scrolls the

window display forward (NEXT).

(3) Answers “YES” to questions in

the window display.

AWAY Button. (1) Arms all zones

in the system, with display

indicating the exit time remaining.

(2) Scrolls window display

backward (PRIOR). (3) Answers

“NO” to questions in the window

display.

AREA Button (G). Selects

other areas and is used with

emergency buttons.

Emergency Buttons. Used with

the Gbutton to signal an

emergency, as follows:

Press the 7and the G

buttons for Fire Emergency.

Press the 8and the G

buttons for Auxiliary Emergency.

Press the 9and the G

buttons for Police Emergency.

ARMING AWAY: SETTING THE ALARM WHEN LEAVING

ZONES FAULTED

02 BACK DOOR

BYPASSED BYPASSED

BYPASSED 02 BACK DOOR

Arming the System

Note: The keypad will autoscroll messages that are longer than one line.

1Check the keypad. The green STATUS light must be on in order to arm. If the

green light is off, “FAULT” will display in the window followed by the number of

each faulted zone. Note each problem zone and secure it by closing a window,

door, etc. When all zones are secure, the green STATUS light will turn on and the

window will display “READY”.

Bypass faulted zones. If you cannot locate or repair the problem yourself, call

for assistance. If you cannot get immediate help, bypass the problem zone(s)

from the system by pressing B, then the zone number (or vice versa). Note:

Bypassed zones are unprotected. If armed with zones bypassed, be sure to have

the system checked as soon as possible.

2Arm the system. Enter your code and press Q. The green STATUS light will

go off, the red ARMED light will turn on and the window will alternately display

“EXIT" and "XX SEC" (where “XX” represents the exit time remaining, in 10-

second steps). Note: If you enter an invalid code, the keypad will display “Wrong

Code”.

3Leave the premises. Leave through the exit door before exit time expires.

AC ON

READY

AC ON

FAULT/

ZONE 02

BYPASSED AC ON

READY

AC ON

EXIT/

XX SEC

ARMING AWAY: SETTING THE ALARM WHEN LEAVING

Priority Arming. If you attempt to arm with a faulted Priority Zone, a 3-second tone

will sound at the keypad, and "CAN'T ARM" will display in the window, indicating that the

trouble(s) must be corrected before the panel can be armed. A zone selected as Priority

Zone with Bypass (check your Alarm Plan) may be bypassed if in trouble. If the problem

cannot be corrected immediately, press C, then arm the panel. A 3 second beep will

sound at the panel to indicate arming with a Priority Zone in trouble. Be sure to have the

trouble repaired as soon as possible.

Silence Alarm. If you enter your code while the alarm is sounding the message

"CAN'T/ARMSIL" will be displayed. The system will silence the alarm and will be ready

to be armed again.

Alarm Sounding. If you are attempting to arm with Easy Arm (Optional) and the

alarm is sounding, "CAN'T ARMSND" will be displayed. The alarm will not silence. Only

a valid User Code will silence the alarm.

System Trouble. If you enter your User Code with a system trouble present, the

message "CAN'T ARMRST" will be displayed. To arm, press Cand the system trou-

bles should disappear.

AC ON

CAN'T/

ARM

AC ON

CAN'T/

ARMZNF

AC ON

CAN'T/

ARMSIL

AC ON

CAN'T/

ARMSND

TROUBLE

AC ON

CAN'T/

ARMRST

ARMING AWAY: SETTING THE ALARM WHEN LEAVING

If you attempt to arm with a “TROUBLE” display (alternating with a system trouble error code), a 3-

second tone will sound at the keypad. (See SYSTEM TROUBLE ERROR CODES for descriptions of

codes). The window will display “CAN'T ARM”. If you cannot correct the problem immediately,

pressing Cwill enable you to arm in this condition. Be sure to call for service as soon as possible.

Area Arming (Optional)

Some systems may be divided, or partitioned, into smaller independent subsystems, which are

referred to as Areas. In a system that has been partitioned into multiple areas, one or more area

may be armed while others remain disarmed. In a multi-area system, the area number will be

indicated by the right-most digit.

Manager's Mode The Manager's Mode, if enabled, provides quick access to other areas without

the system status display. (This is NOT a high-security feature).

To arm any area:

1. Press the numerical key representing the area number.

2. Press Gfollowed by U. In effect, you will now "be" in that area.

3. Enter your User Code followed by Qto arm or disarm the area. Note: Your code

must be valid in that area.

4. Press Gfollowed by Uto return to the home area.

Global Arming (For GEM-P9600/3200 panels only). To arm all areas simultaneously (including the

area you are in), press 9, G, enter your code and press U.

If any zone is not secured, the keypad will alternately display "CAN'T ARM / AREA #", where "#"

identifies the number of the area(s) in trouble. All problem zones in the respective area(s)

must be secured or bypassed before the area can be armed. Note: If a system trouble is

indicated, the system cannot be armed using this method.

To disarm all areas, press 0, G, enter your code and press U.

TROUBLE

AC ON

SYSTBL/

EXX-XX

TROUBLE

AC ON

CAN'T/

ARM

AC ON

READY1

AC ON

CAN'T/ARM/

AREA#

Arming in STAY Mode

Interior Zones, when bypassed, allow free movement within the premises while the protection of

armed perimeter zones is maintained. Enter your code, then press P. The red ARMED

light will turn on and the green STATUS light will blink, indicating zones bypassed. After the exit

time has elapsed, the window will display "ARMED".

Easy Exit (Optional - Easy Exit programmed? !YES !NO)

Your system may have been programmed for Easy Exit, which allows a user to exit the premises

while the system is armed STAY. By activating Easy Exit while the system is armed STAY, the

Exit Delay countdown will take place, during which time you are permitted to leave through the exit

door. The Easy Exit Delay time will be identical to the Exit Delay time the system gives you each

time it is armed STAY. This will allow, for example, an early morning commuter to exit the house,

without having to disarm and rearm the system, awaking the family.

!Press Uto activate Easy Exit on your system. (GEM-P3200/GEM-P9600 V20 or greater, GEM-P816/P1632 V9A or greater)

ARMING STAY: PROTECTING YOURSELF AT HOME

BYPASSED INTERIOR

AC ON

READY

BYPASSED

AC ON

SYSTEM

READY

ARMING STAY: PROTECTING YOURSELF AT HOME

Instant Protection

When retiring for the evening, after all family members are home, you can cancel the entry

delay on the Entry Zone(s). Then, when armed, opening the entry door will cause an

immediate alarm. (When arming, exit delay will remain in effect).

1. To cancel the entry delay while on the premises, press and hold down Pfor 2 seconds after arming.

2. When armed, the window will display “SYSTEM ARMED” and the red ARMED light will flicker rapidly to indicate instant protection.

(“SYSTEM ARMED I” will appear for the GEM-P9600/3200 panels).

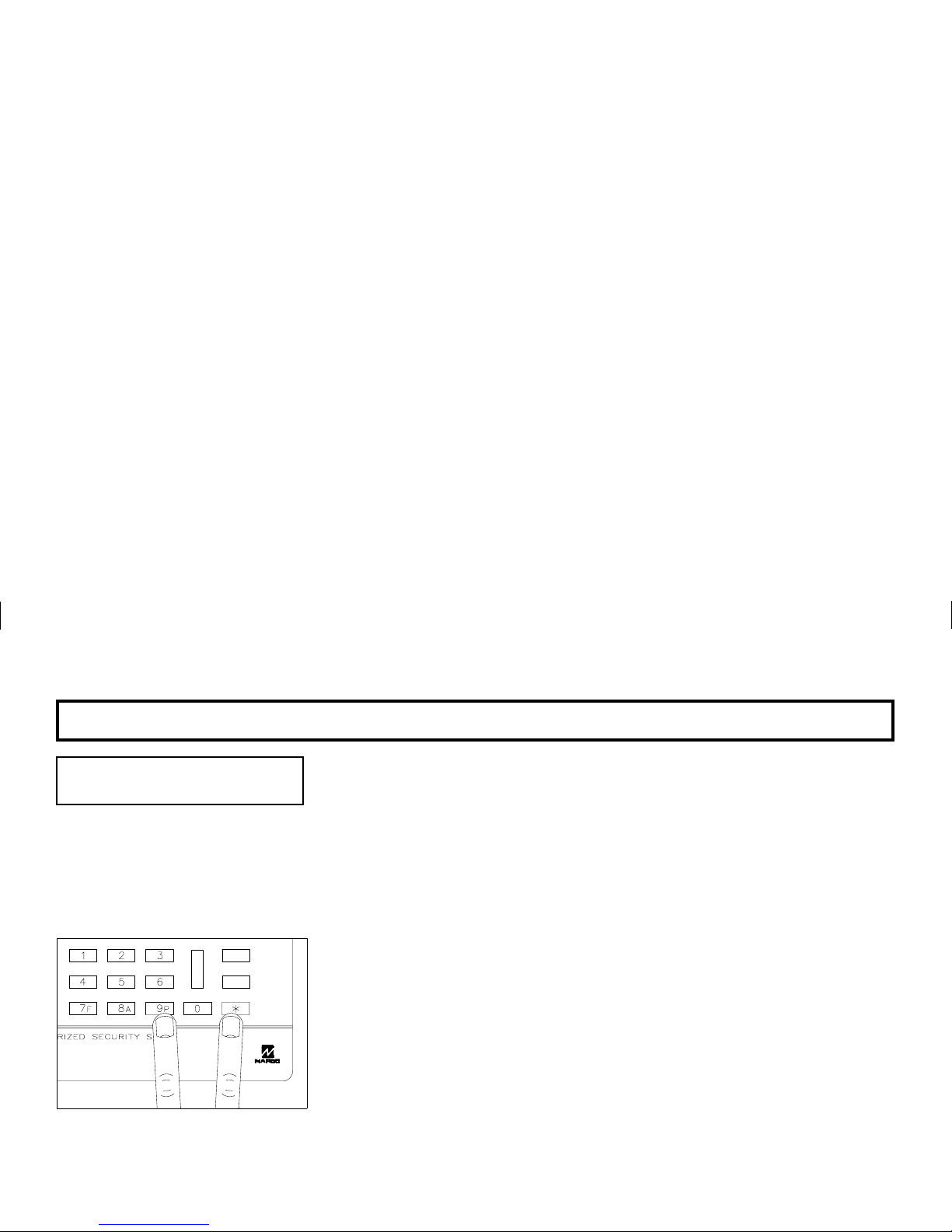

Emergency Buttons (Only available if programmed)

The Blue Emergency Buttons (7,8& 9), if programmed, are always active,

whether the system is armed or disarmed. The emergency signal will only be transmitted

when an Emergency Button and Gare pressed at the same time.

•Fire Emergency Simultaneously press 7and Gto alert the central station of a fire

emergency. *(Fire Emergency programmed? !YES !NO)

•Auxiliary Emergency Simultaneously press 8and Gto alert the central station of

an Auxiliary emergency. *(Auxiliary Emergency programmed? !YES !NO)

•Police Emergency Simultaneously press 9and Gto alert the central station of a

police emergency. *(Police Emergency programmed? !YES !NO)

INSTANT ON

AC ON

ARMED

STAY

AWAY

Indice

Altri manuali NAPCO Tastiera

NAPCO

NAPCO Gemini GEM-P816 Manuale utente

NAPCO

NAPCO GEM-RP8LCD Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1016E KEYPAD Manuale utente

NAPCO

NAPCO Gemini GEM-K3DGTL Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1016 LCD KEYPAD Manuale utente

NAPCO

NAPCO RP1016LCD Manuale utente

NAPCO

NAPCO Gemini GEM-RP3DGTL Manuale utente

NAPCO

NAPCO Gemini GEM-RP2ASe2 Manuale utente

NAPCO

NAPCO GEM-DK1CA Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1016E KEYPAD Manuale utente

NAPCO

NAPCO Gemini GEM-K4 Manuale utente

NAPCO

NAPCO GEM-RP1Ca Manuale utente

NAPCO

NAPCO RP1016LCD Manuale utente

NAPCO

NAPCO LIBRA DXK4RF-319 Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1016 LCD KEYPAD Manuale utente

NAPCO

NAPCO Gemini GEM-RP4C Manuale utente

NAPCO

NAPCO Gemini GEM-TOUCH K Series Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP1016E KEYPAD Manuale utente

NAPCO

NAPCO GEM-RP2AS Manuale utente

NAPCO

NAPCO RP1054D KEYPAD Manuale utente

NAPCO

NAPCO Gemini GEM-RP2ASe2 Manuale utente

NAPCO

NAPCO MAGNUM ALERT RP3000 KEYPAD Manuale utente

NAPCO

NAPCO GEMINI C Series Manuale di installazione

NAPCO

NAPCO Gemini GEM-RP3DGTL Manuale utente

Manuali Tastiera popolari di altre marche

BFT

BFT SELETTO Manuale utente

Micro Id

Micro Id MP7G3BL Manuale di istruzioni

WindowMaster

WindowMaster WLI 130 Manuale utente

ACT

ACT ACT PRO 1030 Manuale utente

Cardin

Cardin SSB Series Manuale utente

Harman Kardon

Harman Kardon KP 1 Manuale utente

Chamberlain

Chamberlain KPR2000 Guida utente

CYP

CYP CR-KP1 Manuale utente

Aeware

Aeware k-35 Series Guida di riferimento

Aritech

Aritech CS-175 Series Manuale utente

GE NetworX NX-1600E Series Manuale utente

Lenze AC Tech

Lenze AC Tech MC SERIES Manuale utente

Burg Wächter

Burg Wächter secuENTRY 7711 Manuale utente

Aeware

Aeware in.k450 Manuale utente

Lenze

Lenze EPM-H410 Manuale utente

Toshiba

Toshiba RKP007Z Manuale utente

Gemini

Gemini GEM-DXK1 KEYPAD Manuale utente

Russound

Russound MDK-C5 Manuale operativo
