2WI1024J 2WAY-UNIVKF Installation Instructions

NAPCO introduces the new 2WAY-UNIVKF, the security industry’s only universal bi-

directional Keyfob with LCD status display and integral mini sounder, supported by a

revolutionary 2-way receiver.

Designed to be compatible with most major control panel brands, including NAPCO's

Gemini and Magnum and others such as ADEMCO, DSC and more, this 2-Way Keyfob is

super-miniaturized for portability yet packs tremendous sales potential and consumer market

appeal.

System Status is indicated through 7 intuitive ICONS (a lock, a house, a flame, etc.) on the

LCD display, accompanied by corresponding beep sequences on its mini sounder. Providing

both easily understood visual and audible feedback, the user always knows with certainty that

the system has carried out their command.

In addition to the many standard commands it can issue the system, it can also control up to 2

groups of lighting control, such as X-10, and up to 2 separate Garage Doors.

NAPCO 2WAY-UNIVKF keyfobs are also sold in a kit with the 2-way receiver, Model

2WAY–UNIVKFKIT. Each receiver supports up to 7 keyfobs.

2WAY-UNIVKF - The 2-Way Universal LCD Keyfob that puts the power of a keypad in your pocket.

Easy LCD ICON Indicators

Burglar Alarm

Fire Alarm

Armed - Away

Armed - Stay

Armed - Instant

Armed - Zones Bypassed

Disarmed - Zones Faulted

Disarmed - System Ready

Transmit

System Trouble

Note: Grey ICON indicates pulsing

THE FOLLOWING STATEMENT IS REQUIRED BY THE FCC.

INSTRUCTION TO THE USER (if device contains a digital device)

This equipment has been tested and found to comply with the limits for a class B digital device, pursuant to part 15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment

generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions, may cause

harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installa-

tion. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the

equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

* Reorient or relocate the receiving antenna.

* Increase the separation between the equipment and receiver.

* Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

* Consult the dealer or an experienced radio/TV technician for help.

This equipment has been certified to comply with the limits for a class B computing device, pursuant to FCC Rules. In order to main-

tain compliance with FCC regulations, shielded cables must be used with this equipment. Operation with non-approved equipment

or unshielded cables is likely to result in interference to radio and TV reception. The user is cautioned that changes and modifica-

tions made to the equipment without the approval of manufacturer could void the user's authority to operate this equipment.

2WAY-UNIVKF_WI1024J.19_I...

page 2

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

General Description

The 2WAY-UNIVKF is a miniature

remote control device which provides

wireless control of the security system

and confirms system status visually and

audibly with an LCD ICON display and

mini sounder. It is keypad bus

compatible with the NAPCO Gemini

Series control panels as well as the

Ademco Vista 10, 20, 40 & 50 series. It

is also universally compatible with any

control panel which offers keyswitch

arming with an armed status output.

Keypad Bus compatible control panels:

NAPCO: GEM-P816

GEM-P1632

GEM-P3200

GEM-P9600

Ademco: Vista 10

Vista 20

Vista 40

Vista 50

Vista 4 0

For additonal information and details on

universal operation, see system

overview on page 4.

Features

•3 Form C Relay Outputs

•Arm/Disarm

•Panic

•Garage Door Control

•Lighting Control or Second Garage Door

control

Specifications

•Input Voltage: 12V DC Nominal

•Input Current: 40mA standby, 90mA max.

(all relays active)

•Operating Temperature: 0-49°C (32-120°F)

•Maximum # of KeyFobs supported: 7

•Dimensions:

•Receiver: 6 3/4“ X 3 5/8” X 1 1/2”

•KeyFob: 2 “ X 1 3/8” X 1/2”

•Relay Contact Rating: 1A @ 24 VDC

•KeyFob Battery: 1.5V Alkaline AAA size

•Frequency: 433.92 Mhz

•Operating Range: 750 feet (open air)

TABLE OF CONTENTS

Section Page

GENERAL DESCRIPTION..............................................3

SYSTEM OVERVIEW .....................................................4

WIRING DIAGRAM/ CONFIGURATION .........................5

CONTROLS AND AUDIBLE INDICATORS.....................6

VISUAL INDICATORS ....................................................7

BUS MODE WIRING AND CONFIG ...............................8

BUS MODE ENROLLING KEYFOBS.........................9-11

BUS MODE ENROLLING USER CODES................12-14

BUS MODE GARAGE DOOR & SPECIAL APPS ........15

BUS MODE - TYPICAL APPLICATIONS .....................16

UNIVERSAL MODE WIRING ARM/DISARM/PANIC ....17

UNIVERSAL MODE ENROLLING KEYFOBS...............18

UNIVERSAL MODE ARM / ALARM SENSE.................19

UNIVERSAL MODE WIRING FOR STAY MODE..........20

UNIVERSAL MODE GARAGE DOOR CONTROL........21

CHANGING THE KEYFOB BATTERY..........................21

UNIVERSAL MODE - TYPICAL APPLICATIONS .........22

WARRANTY..................................................................24

For Technical Assistance, Contact the NAPCO

Toll Free Helpline  (800) 645-9440

NAPCO Security Systems, Inc.

333 Bayview Avenue, Amityville, New York 11701

For Sales and Repairs, call Toll Free: (800) 645-9445

2WAY-UNIVKF_WI1024J.19_I...

page 3

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

4WI1024J 2WAY-UNIVKF Installation Instructions

SYSTEM OVERVIEW

The 2WAY-UNIVKF is compatible with virtually any control

panel, either through keypad bus operation or universal

mode operation. When used on a panel on which it is bus-

compatible, full functionality is realized, including lighting,

appliance and X10 control. When used in the Universal

Mode, functionality is dependent on the feature set of the

control panel, such as a keyswitch arm zone for arm /

disarm capability, an armed output to provide an Armed

indication, a steady bell output for an alarm indication, etc.

This manual is divided into 3 sections which are marked on the

outer border of each page - General Information (pages 2-7),

Bus Mode Operation (pages 8-16) and Universal Operation

(pages 17-23). After reviewing the General Information section

for an overview of the system, refer to the section which

applies to the type of installation at hand, Bus or Universal.

Each section includes 3 mandatory steps (marked at the

top of the page) which must be completed to achieve an

operational system. All other steps are optional.

General Information

Universal Mode Features

Keyfob Commands Required Control Panel Feature

•Arm / Disarm Keyswitch arm zone or input

(Momentary)

•Stay Mode Arming Automatic Interior Bypass

•Panic 24 hour panic zone

•Garage Door Control Standard

Keyfob Indicators Required Control Panel Feature

•Armed / Disarmed Armed output or lug (high or low)

•Armed Stay Automatic Interior Bypass

•Alarm Steady bell output (high or low)

•Alarm Memory Steady bell output (high or low)

•Fire Alarm Pulsing Bell output (high or low)

Use these tables to determine the Keyfob functionality

you can expect from the control panel’s features.

Bus Mode Features

Keyfob Commands

Arm / Disarm

Stay Mode Arming

Arming with Instant Protection

Panic

Garage Door Control

Appliance Control 1 / † Relay Group 1 Control

Garage 2 or Appliance Control 2/ † Relay Group 2 Control

Keyfob Indicators

Armed

Armed Stay

Armed Instant

Armed / Zones Bypassed

Disarmed / System Ready

Disarmed / Zones Faulted

Alarm

Alarm Memory

Fire Alarm

System Trouble

† NAPCO GEM-P3200 & P9600 only

2WAY-UNIVKF_WI1024J.19_I...

page 4

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

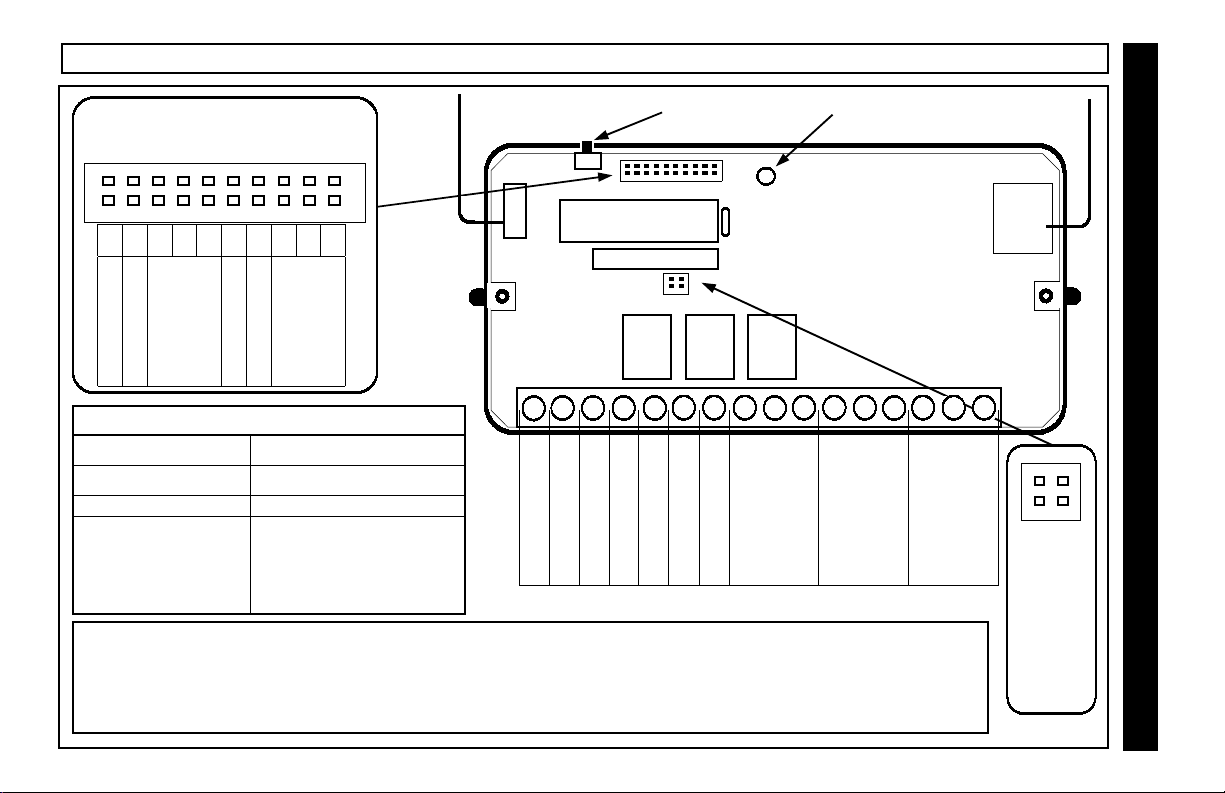

WIRING DIAGRAM AND SYSTEM CONFIGURATION

Invert Alarm Sense A

Invert Armed Sense B

General Information

KeyFob Enroll Mode Rapid Flash

User Code Enroll Mode Rapid Flash / Pulse

Universal Mode Steady

Bus Mode Pulsing

If not pulsing in Bus Mode,

check the following:

--Keypad not programmed

--Bus wiring incorrect

Receiver LED Indications

Mounting the Receiver

The 2 way receiver should be mounted in a location which is centrally located within the area of anticipated usage. It is

not recommended that the receiver be installed in an attic or mounted within 24 inches of any metallic objects.

Installation in a basement will result in reduced range. It should not be mounted in the control panel enclosure. The

receiver must be positioned with the antennas pointed up.

RES

RE4

RE3

RE2

RE1

R2T

Reserved J1

Invert Stay PGM J2

Relay 2 momentary J6

Reserved J7

J10

System Configuration Jumpers

Keypad

Address

Jumpers

See

page 8

Panel

Type

Jumpers

See

page 8

A B

Enroll Mode Push Button Receiver LED

•

1 2 3 4 5 6 7 8 9 10

1 2 3 8

5 6 7 12

9 10 11 16

13 14 15

RED +12V DC

BLACK Ground

GREEN RX

YELLOW TX

Armed Sense Input

Alarm Sense Input

PGM

N/O

COM

N/C

N/O

COM

N/C

N/O

COM

N/C

Relay 1

Keyswitch

Arm

Relay 2

Panic Relay 3

Garage

Door

2WAY-UNIVKF_WI1024J.19_I...

page 5

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

6WI1024J 2WAY-UNIVKF Installation Instructions

# of

Beeps

Status

1 Armed

2 Disarmed

3 Armed,

Stay mode

4 Armed, zones

bypassed

5 † System Trouble

6...

(repeats)

Alarm !

Audible Indicators

Each time a command is

issued, the KeyFob’s mini

sounder will issue an

audible confirmation beep

with the visual indication.

CONTROLS AND INDICATORS

General Information

ON/OFF ∗

AND

Press ON/OFF and ∗simultaneously to

activate lighting or other special application.†

†Bus Operation Only

Press STATUS to

update the display

with the current

system status.

The proper icon(s)

will appear, accom-

panied by the appr-

opriate beep(s). (see

Audible Indicators)

The icon(s) will

automatically go out

in about 6 seconds.

STATUS

Press ON/OFF to arm or

disarm the alarm system.

Hold Down ON/OFF to Arm

the system in STAY mode.

Press and hold again to acti-

vate Instant arming.

ON/OFF

Hold Down PANIC

for 2 seconds to

activate a panic

alarm.

PANIC

∗

Press ∗to open

garage door

Hold Down ∗for 2

seconds to activ-

ate lighting or

other special appl-

ication. †

Hold Down ∗for 2

seconds to open a

second garage

door. †

Controls

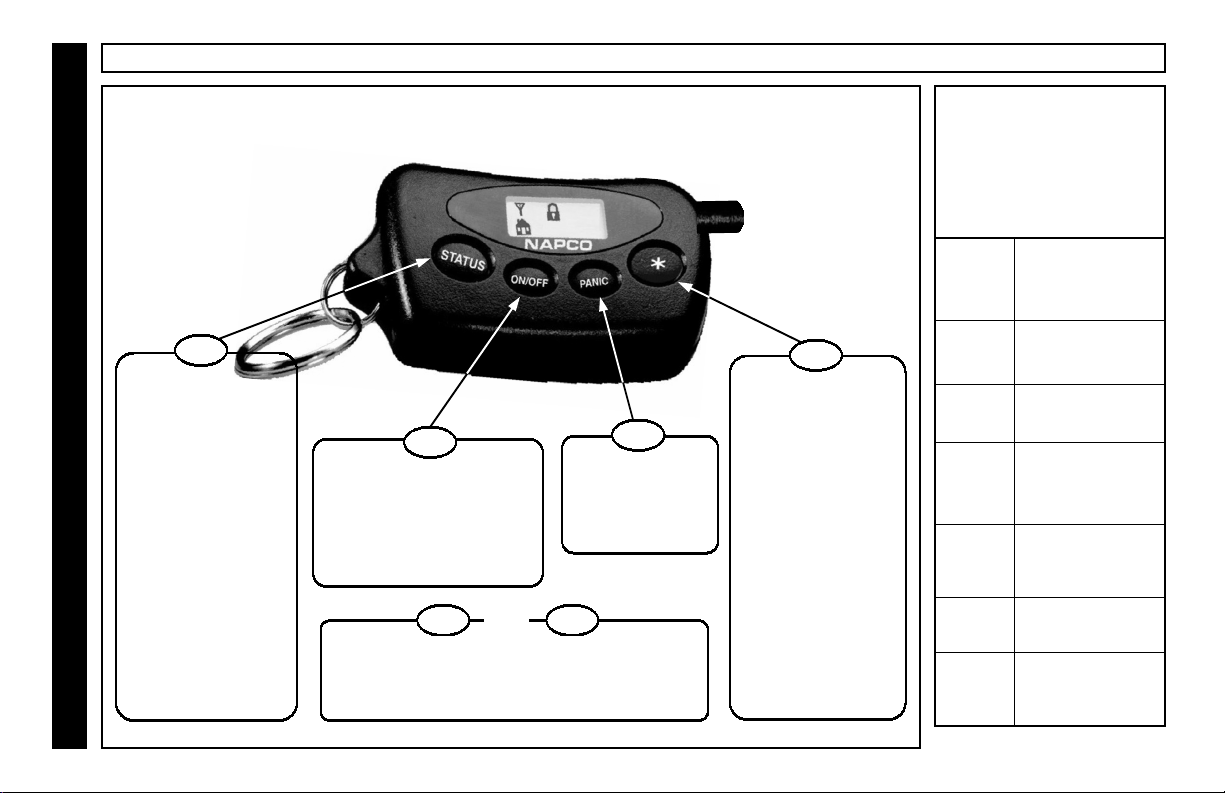

The KeyFob’s 4 command buttons provide complete system control. Commands are issued to

the alarm system by either pressing or holding down (for 2 seconds) the appropriate button.

2WAY-UNIVKF_WI1024J.19_I...

page 6

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

CONTROLS AND INDICATORS

General Information

Visual LCD Indicators

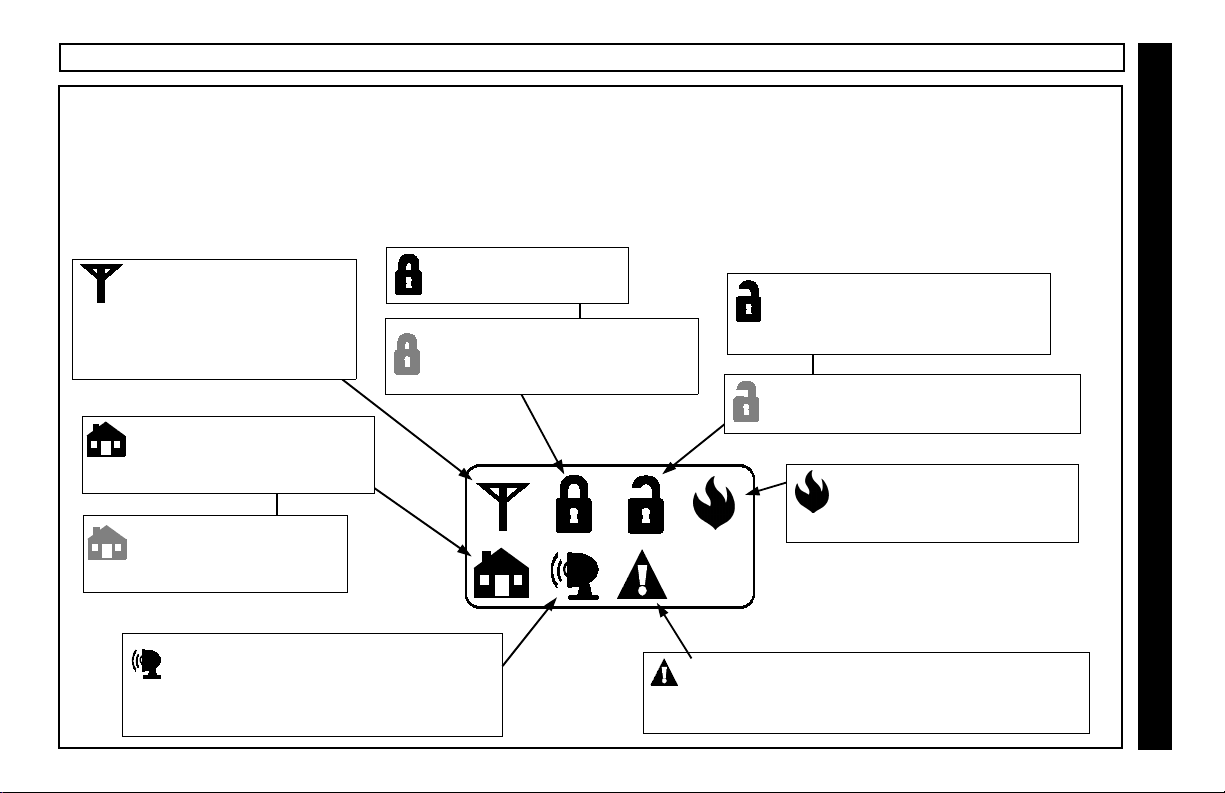

The 2WAY-UNIVKF uses a series of icons to convey the status of the system. Each time the STATUS button is pressed, or

a command is issued, the appropriate icon(s) will display for about 6 seconds. For example, if ON/OFF is pressed to arm

the system, the Armed icon will light in a few seconds to confirm that the command was successfully performed. Below is a

description of each icon indicator. Please note that the icons marked “†” are optional and may not apply to all systems.

System in Alarm / Alarm Memory

(flashing) The system alarm is sounding

or an alarm has occurred while you were

away. Proceed with caution!

System Trouble † The alarm system is in a

trouble condition. Consult keypad and owners

manual for the exact nature of the trouble.

System Ready The system is

disarmed, with all zones secure.

The system is ready to arm.

Zones Faulted †(slowly flashing)

Disarmed, zones faulted.

Stay Mode †The system

is armed with interior zones

bypassed.

Instant Mode †The

system is armed with

Instant protection.

Transmit Each time a

button is pressed the

transmit ICON will light to

indicate that the KeyFob is

transmitting to the receiver.

Armed Bypassed †

(slowly flashing) the system is

armed with zones bypassed.

Armed

The system is armed.

Fire Alarm †(flashing) The

system is in a fire alarm

condition.

2WAY-UNIVKF_WI1024J.19_I...

page 7

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

8WI1024J 2WAY-UNIVKF Installation Instructions

STEP 1 - WIRING AND CONFIGURATION

Wiring

The 2WAY-UNIVKF is compatible with the keypad bus of the

NAPCO Gemini GEM-P816, GEM-P1632, GEM-P3200 and GEM-

P9600 control panels. It is also compatible with the keypad bus of

the Ademco models Vista 10, 20, 40 & 50. Note: For Bus

Operation, DO NOT connect any wires to terminals 5 & 6.

Programming

The Gemini and Ademco Vista 40 & 50 control panels must be

programmed for an additional keypad. For example, if the

installation currently has 2 keypads, an additional keypad, keypad

# 3 must be enabled in programming. This is not required for the

Ademco Vista 10 and 20.

If KeyFob panic is desired, Keypad Panic should be enabled in the

control panel program. For the Ademco Vista 10 and 20, zone 95

must be programmed for 24 Hr Audible or 24 Hr Silent. For the Vista

40 & 50 zone 99 must be programmed for 24 Hr Audible or 24 Hr

Silent.

Configuring the Receiver Address

For the NAPCO Gemini and Vista 40 & 50 bus operation, the

receiver must be addressed to match the address of the additional

keypad enabled in programming above. For example, if the

receiver is to be addressed as keypad 3, refer to the Receiver

Address Chart and install the appropriate address jumpers (J8 off,

J9 ON, J10 ON). This is not required for the Ademco Vista 10 and

20.

Configuring the Control Panel Type

For a bus compatible installations only, refer to the Panel Type

Configuration chart to determine the correct jumper settings for

control panel being used.

RECEIVER

GND+12V TX

1 2 3

RED

BLACK

GREEN

YELLOW

GEMINI PANEL

RECEIVER ADDRESS CHART

KEYPAD

# J8 J9 J10

1 off off off

1 off off ON

2 off ON off

3 off ON ON

4 ON off off

5 ON off ON

6 ON ON off

7 ON ON ON

ADDRESS JUMPERS

PANEL TYPE CONFIG. CHART

PANEL TYPE CONFIG.

JUMPERS

J3 J4 J5

NAPCO GEM-P816, P1632, P3200, P9600 off off off

NAPCO GEM-P816 V10A, P1632 V10A, P3200V30A,

P9600V30A using "K" Series Keypads.

off ON ON

Ademco Vista 10, 20 off off ON

Ademco 40, 50 off ON off

RECEIVER

GND

+12V TX

1 2 3

RED

BLACK

GREEN

YELLOW

ADEMCO PANEL

Bus Mode Operation

2WAY-UNIVKF_WI1024J.19_I...

page 8

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

STEP 2 - ENROLLING KEYFOBS--With NAPCO "Classic" Keypads

Enrolling and Removing KeyFobs

Each KeyFob must be enrolled into the receiver. The following procedure is used to enroll the unique RF ID number

stored in the non-volatile memory of each KeyFob into the receiver memory.

1 Arm system from any keypad

2 Disarm system from any keypad

3 Press 1114 Don keypad The Enroll Mode LED will flash rapidly.

The keypad will give error beeps - ignore.

4 Press the ∗button on KeyFob 1 The KeyFob will sound a single confirmation beep.

.... Repeat for each KeyFob to be enrolled

Press Con Keypad Exit Enroll Mode - the Enroll Mode LED will start to slowly pulse.

The KeyFob will give a series of beeps and the unlock icon will

display.

•The Keyfob Enroll Mode may also be entered / exited by pressing the the Enroll Mode Push Button on the top of the

receiver. See page 18 for more information.

•To Remove a lost KeyFob from the system: Enter and then exit the Keyfob Enroll Mode (Arm and disarm the

system, enter 1114 Dand then press C). All keyfobs will be deleted from the system.

For NAPCO "K Series" Keypads, see pages 10 and 13.

For Ademco Keypads, see pages 11 and 14

Bus Mode Operation

NAPCO "Classic" Keypads NAPCO "K Series" Keypads

GEM-RP1CAe2, GEM-RP2ASe2,

GEM-RP3DGTL

GEM-K1CA, GEM-K2AS,

GEM-K3DGTL, GEM-K4RF

2WAY-UNIVKF_WI1024J.19_I...

page 9

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

10 WI1024J 2WAY-UNIVKF Installation Instructions

STEP 2 - ENROLLING KEYFOBS--With NAPCO "K Series" Keypads

Enrolling and Removing KeyFobs

Each KeyFob must be enrolled into the receiver. The following procedure is used to enroll the unique RF ID number

stored in the non-volatile memory of each KeyFob into the receiver memory.

1 Arm system from any keypad

2 Disarm system from any keypad

3 Press 1114 Uon keypad

The Enroll Mode LED will flash rapidly.

The keypad will give error beeps - ignore.

4 Press the ∗button on KeyFob 1 The KeyFob will sound a single confirmation beep.

.... Repeat for each KeyFob to be enrolled

Press Con Keypad Exit Enroll Mode - the Enroll Mode LED will slowly pulse. The

KeyFob will give a series of beeps and the unlock icon will

display.

•The Keyfob Enroll Mode may also be entered / exited by pressing the the Enroll Mode Push Button on the top of the

receiver. See page 18 for more information.

•To Remove a lost KeyFob from the system: Enter and then exit the Keyfob Enroll Mode (Arm and disarm the

system, enter 1114 Uand then press C). All keyfobs will be deleted from the system.

For NAPCO "Classic" Keypads, see pages 9 and 12.

For Ademco Keypads, see pages 11 and 14

Bus Mode Operation

NAPCO "Classic" Keypads NAPCO "K Series" Keypads

GEM-RP1CAe2, GEM-RP2ASe2,

GEM-RP3DGTL

GEM-K1CA, GEM-K2AS,

GEM-K3DGTL, GEM-K4RF

2WAY-UNIVKF_WI1024J.19_I...

page 10

Wednesday, July 06, 2005 14:05

Composite

www.BevanSecurity.Com

Altri manuali per 2WAY-UNIVKF

Indice

Altri manuali NAPCO Avviamento remoto

NAPCO

NAPCO 2WAY-UNIVKF Manuale utente

Manuali Avviamento remoto popolari di altre marche

AstroStart

AstroStart 803U Manuale utente

Durite

Durite 0-649-20 Manuale

EINHELL

EINHELL BT-PS 1000 Manuale

Linear

Linear ACCESS AK-21 Specifiche tecniche

Soundstream

Soundstream TARANTULA RS.2 Manuale utente

Jaycar Electronics

Jaycar Electronics MB3752 Manuale utente

Ultra Start

Ultra Start 72 Series Manuale utente

ADS

ADS FLASHLOGIC FLRSVW1 Manuale utente

Selecta

Selecta JS012 Manuale utente

Black Widow Security

Black Widow Security BW RAS 400 Manuale utente

Vector

Vector Power City DK080706 Supplemento

Code Alarm

Code Alarm CA-535 Manuale utente

Ozito

Ozito OJS-800 Manuale utente

Profi-Partner

Profi-Partner 46387 Manuale utente

EZ STARTER

EZ STARTER EZ-45 Manuale utente

Viper

Viper 4204 Manuale utente

Essex Electronics

Essex Electronics KE-1701 Manuale utente

EINHELL

EINHELL EGS 3600 Manuale
