IM-UGC665 ASSEMBLY INSTRUCTIONS

INSTRUCTIONS D’ASSEMBLAGE IM-UGC665

Use this manual in conjuncon with your main manual to properly assemble your built-in grill. Refer to the

main manual for operang, cleaning, and maintenance instrucons. This grill is designed for non-combusble

enclosures only, and must be installed and serviced by a qualied installer to local codes.

An d’assembler correctement votre gril encastré, veuillez vous référer à ce manuel ainsi qu’au manuel principal.

Consultez ce dernier pour les instrucons d’opéraon, de neoyage et d’entreen. Ce gril convient uniquement

à des cabinets INCOMBUSTIBLES et il doit être installé et entretenu par un installateur qualié en respectant les

codes locaux.

GARDER CE LIVRE POUR RÉFÉRENCES FUTURES

Wolf Steel Ltd.

214 Bayview Drive,

Barrie, Ontario, CANADA L4N 4Y8

[email protected]

Wolf Steel Europe BV

Poppenbouwing 29-31, 4191 NZ Geldermalsen,

CCI No. 51509970, THE NETHERLANDS

inf[email protected]

www.napoleongrills.com N415-0464 APR 18.18

N570-0038 (1/4”-20 X 1/2”)

x2 N450-0008 (1/4”-20)

3/8” (10mm)

www.napoleongrills.com

N415-0464 APR 18.18

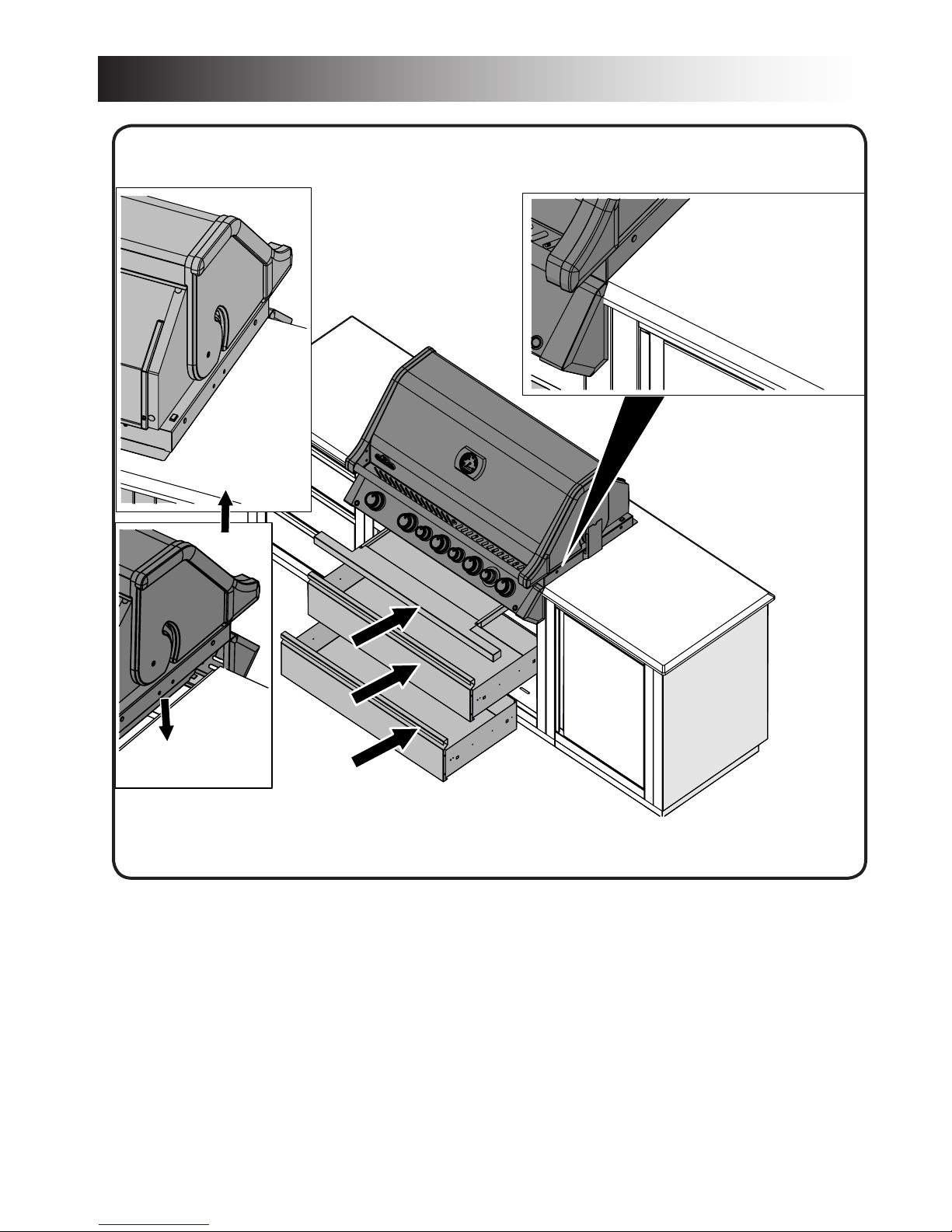

APPLIQUER UN PEU DE SILICONE À

CHAQUE AILETTE POUR FIXER EN

PLACE.

APPLY A DAB OF SILICONE TO EACH

FLANGE TO SECURE IN PLACE.

www.napoleongrills.com N415-0464 APR 18.18

Power Supply

Alimentaon électrique

(Not Included)

(Pas Inclus)

www.napoleongrills.com

N415-0464 APR 18.18

www.napoleongrills.com N415-0464 APR 18.18

ITEM NO.

PART NUMBER

DESCRIPTION

IM-UGC665/QTY.

N010-0678

ASSY, PANEL ISLAND MODULE

N610-0010L

SLIDE, DRAWER ISLAND MODULE (1SET)

N475-0392

PANEL, REAR ISLAND MODULE

N525-0050

RAIL, TOP ISLAND MODULE

N570-0086

SCREW, AB THREAD 14 x 1/2 HEX HEAD WASHER

N010-0682

ASSY, DRAWER ISLAND MODULE 2

N525-0023

RAIL, BOTTOM ISLAND MODULE

N570-0031

SCREW,LEVELING 5/16-18 X 1.5 THRDS

N010-0840

ASSY, BASE BOTTOM ISLAND MODULE

N585-0051

SHIELD, DRAWER DRIP

N485-0007

PLUG, BLK ACETAL

www.napoleongrills.com

N415-0464 APR 18.18

ITEM PART NUMBER DESCRIPTION 665

1N010-0678-CN side panel le / panneau avant gauche x

2N010-0678-CN side panel right / panneau avant droite x

3 N475-0392-CN1HR back panel / panneau arrière x

4N525-0060-CN1HR top rail / support superior x

5N570-0086 screw , #14 x 1/2” / vis #14 x 1/2” x

6 N010-0682-CN drawer assembly / assemblage du roir x

7 N525-0023-CN1HR boom rail / support inférieur x

8N570-0031 leveling foot / mise à niveau du pied x

9 N010-0581-CN1HR boom shelf / tablee inférieur x

10 N585-0051-CN1HR drawer dripshield / écran an-égouement pour roir x

11 N570-0013 screw, #8 X 5/8” / vis #8 X 5/8” x

N105-0012 1.5” bushing / bagues de porte 1.5” x

N415-0464
