Nasco Life/form Basic Buddy Manuale utente

ONLINE: NascoHealthcare.com

E-MAIL: [email protected]

PHONE: 1.800.431.4310

ADDRESS: 901 Janesville Ave.

Fort Atkinson, WI 53538

HEALTHCARE

Basic Buddy®

Simulator

INSTRUCTION MANUAL

5-Year Warranty

AVAILABLE SUPPLIES

LF03677U Basic Buddy®Foam Compression Cylinder

LF03676U Basic Buddy®Head Screws, Pkg. of 5

LF03690U Basic Buddy®Chest with Foam Adult Compression Block

LF03691U Basic Buddy®White Base

LF03692U Basic Buddy®Head Only

LF03693U Basic Buddy®CPR Manikin

LF03694U Basic Buddy®CPR Manikins, Pkg. of 5

LF03695U Basic Buddy®CPR Manikins, Pkg. of 10

LF03729U Basic Buddy®Lung Installation Tool, Pkg. of 4

LF03696U Basic Buddy®Airways , Pkg. of 100

LF03697U Nylon Carrying Bag (holds 5 Basic Buddy®® CPR Manikins)

MAINTENANCE

The old lung bag should be removed whenever a new student will be working on the Basic Buddy®manikin.

Gently pull the lung out of the chest and mouth through the neck opening to avoid contaminating the manikin.

Insert a new lung for each new student.

If you have purchased either the LF03694U, Basic Buddy®5-Pack or the LF03695U, Basic Buddy®10-Pack,

refer to Figure 9 for the proper packing arrangement of five fully assembled manikins into the LF03697U, nylon

carrying bag.

Figure 9

CLEANING

Heads:

Heads can be cleaned by any of the following methods:

• Wash heads with soap and water. Then soak 10 minutes in a bleach/water solution (one cup of bleach mixed

with one gallon of water), OR

• Sanitize with alcohol wipes.

Bodies:

The bodies can be cleaned by any of the following methods:

• A bleach/water solution (one cup of bleach with one gallon of water), OR

• Sanitize with alcohol wipes or any other sanitizing agents.*

*Manikin bodies are foam based and are not waterproof. They should not be submerged in water.

HC18000028INM10.indd 1-2 8/27/18 1:42 PM

INSTALLING THE LUNG BAG

Insert the lung installation tool into the lung bag. (See figure 4.) Then insert the bag and tool together into the

manikin’s mouth while feeding it through the head down to the chest. (See figure 5.) Continuing feeding the tool

and the lung bag into the chest cavity until the tool stops against the inside of the chest cavity. (See figure 6.)

Remove the lung tool. Make sure the airway lies directly beneath the airway cutoff ridge of the head. Fold the bar-

rier flaps of the lung bag over the face. (See figure 7.) Your Basic Buddy

is now set up for child CPR simulation.

ABOUT THE SIMULATOR

The Life/form®Basic Buddy®CPR Manikin is the most realistic, economical manikin available for the

training of CPR skills. Features include sanitary airway system, head tilt, realistic chest rise, child and adult

compression resistance, palpable landmarks, and a lightweight and compact design. Five-year warranty.

LIST OF COMPONENTS

• Base

• Chest

• Head

• Aluminum Screw Post

• Adult Compression Block

• Package of 10 Lung Bags

• Lung Installation Tool

SET UP

Your Basic Buddy®Manikin is shipped disassembled. Simply follow these easy steps to assemble your manikin.

ATTACHING THE COVER TO THE BASE

Place the chest on top of the base and lock it into

place at the three points indicated. (See figure 1.)

ATTACHING THE HEAD TO THE BASE

Place the head over the neck area of the base

and insert the aluminum screw post through the

corresponding holes in the head and the base.

(See figure 2.) Now insert the mounting screw into

the end of the aluminum screw post and tighten.

(See figure 3.) Figure 1

Figure 2 Figure 3

Figure 4 Figure 5

Figure 6 Figure 7

Figure 8

ADULT CPR SET UP

To set up you Basic Buddy®for adult CPR simulation, simply roll the manikin on its side and insert the adult

compression block. (See figure 8.) Removing the adult compression block will change your manikin back to the

child compression resistance.

HC18000028INM10.indd 3-4 8/27/18 1:42 PM

INSTALLING THE LUNG BAG

Insert the lung installation tool into the lung bag. (See figure 4.) Then insert the bag and tool together into the

manikin’s mouth while feeding it through the head down to the chest. (See figure 5.) Continuing feeding the tool

and the lung bag into the chest cavity until the tool stops against the inside of the chest cavity. (See figure 6.)

Remove the lung tool. Make sure the airway lies directly beneath the airway cutoff ridge of the head. Fold the bar-

rier flaps of the lung bag over the face. (See figure 7.) Your Basic Buddy

is now set up for child CPR simulation.

ABOUT THE SIMULATOR

The Life/form®Basic Buddy®CPR Manikin is the most realistic, economical manikin available for the

training of CPR skills. Features include sanitary airway system, head tilt, realistic chest rise, child and adult

compression resistance, palpable landmarks, and a lightweight and compact design. Five-year warranty.

LIST OF COMPONENTS

• Base

• Chest

• Head

• Aluminum Screw Post

• Adult Compression Block

• Package of 10 Lung Bags

• Lung Installation Tool

SET UP

Your Basic Buddy®Manikin is shipped disassembled. Simply follow these easy steps to assemble your manikin.

ATTACHING THE COVER TO THE BASE

Place the chest on top of the base and lock it into

place at the three points indicated. (See figure 1.)

ATTACHING THE HEAD TO THE BASE

Place the head over the neck area of the base

and insert the aluminum screw post through the

corresponding holes in the head and the base.

(See figure 2.) Now insert the mounting screw into

the end of the aluminum screw post and tighten.

(See figure 3.) Figure 1

Figure 2 Figure 3

Figure 4 Figure 5

Figure 6 Figure 7

Figure 8

ADULT CPR SET UP

To set up you Basic Buddy®for adult CPR simulation, simply roll the manikin on its side and insert the adult

compression block. (See figure 8.) Removing the adult compression block will change your manikin back to the

child compression resistance.

HC18000028INM10.indd 3-4 8/27/18 1:42 PM

ONLINE: NascoHealthcare.com

E-MAIL: [email protected]

PHONE: 1.800.431.4310

ADDRESS: 901 Janesville Ave.

Fort Atkinson, WI 53538

HEALTHCARE

Basic Buddy®

Simulator

INSTRUCTION MANUAL

5-Year Warranty

AVAILABLE SUPPLIES

LF03677U Basic Buddy®Foam Compression Cylinder

LF03676U Basic Buddy®Head Screws, Pkg. of 5

LF03690U Basic Buddy®Chest with Foam Adult Compression Block

LF03691U Basic Buddy®White Base

LF03692U Basic Buddy®Head Only

LF03693U Basic Buddy®CPR Manikin

LF03694U Basic Buddy®CPR Manikins, Pkg. of 5

LF03695U Basic Buddy®CPR Manikins, Pkg. of 10

LF03729U Basic Buddy®Lung Installation Tool, Pkg. of 4

LF03696U Basic Buddy®Airways , Pkg. of 100

LF03697U Nylon Carrying Bag (holds 5 Basic Buddy®® CPR Manikins)

MAINTENANCE

The old lung bag should be removed whenever a new student will be working on the Basic Buddy®manikin.

Gently pull the lung out of the chest and mouth through the neck opening to avoid contaminating the manikin.

Insert a new lung for each new student.

If you have purchased either the LF03694U, Basic Buddy®5-Pack or the LF03695U, Basic Buddy®10-Pack,

refer to Figure 9 for the proper packing arrangement of five fully assembled manikins into the LF03697U, nylon

carrying bag.

Figure 9

CLEANING

Heads:

Heads can be cleaned by any of the following methods:

• Wash heads with soap and water. Then soak 10 minutes in a bleach/water solution (one cup of bleach mixed

with one gallon of water), OR

• Sanitize with alcohol wipes.

Bodies:

The bodies can be cleaned by any of the following methods:

• A bleach/water solution (one cup of bleach with one gallon of water), OR

• Sanitize with alcohol wipes or any other sanitizing agents.*

*Manikin bodies are foam based and are not waterproof. They should not be submerged in water.

HC18000028INM10.indd 1-2 8/27/18 1:42 PM

Indice

Altri manuali Nasco Attrezzature mediche

Nasco

Nasco Life/form LF01155U Manuale utente

Nasco

Nasco Life/form LF03699U Manuale utente

Nasco

Nasco Life/form LF03769U Manuale utente

Nasco

Nasco Life/form LF03593U Manuale utente

Nasco

Nasco Life/form LF01167U Manuale utente

Nasco

Nasco Life/Form ADULT CRiSis LF03965U Manuale utente

Nasco

Nasco Life/form LF00855U Manuale utente

Nasco

Nasco Life/form LF00933U Manuale

Nasco

Nasco Life/form LF00901U Manuale utente

Nasco

Nasco Life/form LF00995U Manuale utente

Nasco

Nasco Life/form Airway Larry Manuale utente

Nasco

Nasco Life/Form LF00984U Manuale utente

Nasco

Nasco Life/form LF01025U Manuale utente

Nasco

Nasco LF01280U Manuale utente

Nasco

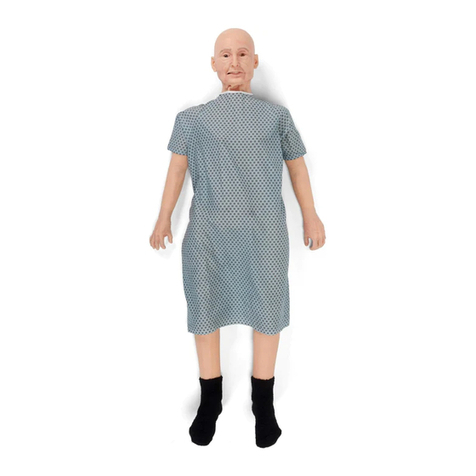

Nasco TERi LF04300 Manuale utente
