GETTING STARTED GUIDE
NI USB-7856R
R Series for USB Multifunction RIO with Kintex-7 160T FPGA
Français Deutsch 日本語 한국어 简体中文
ni.com/manuals
This document explains how to install and configure National Instruments USB-7856R.
Safety Guidelines
Caution Do not operate the NI USB-7856R in a manner not specified in this user
manual. Product misuse can result in a hazard. You can compromise the safety
protection built into the product if the product is damaged in any way. If the product
is damaged, return it to National Instruments for repair.
Electromagnetic Compatibility Guidelines
This product was tested and complies with the regulatory requirements and limits for
electromagnetic compatibility (EMC) as stated in the product specifications. These
requirements and limits are designed to provide reasonable protection against harmful
interference when the product is operated in its intended operational electromagnetic
environment.
This product is intended for use in residential, commercial, and industrial locations. However,
harmful interference may occur in some installations or when the product is connected to a
peripheral device or a test object. To minimize interference with radio and television reception
and prevent unacceptable performance degradation, install and use this product in strict
accordance with the instructions in the product documentation.
Furthermore, any changes or modifications to the product not expressly approved by National
Instruments could void your authority to operate it under your local regulatory rules.
Caution To ensure the specified EMC performance, you must install the included
snap-on ferrite bead onto the DC power cord of the power supply as described in this
document.
Caution To ensure the specified EMC performance, operate this product only with
shielded cables and accessories.
Unpacking the Kit
Caution To prevent electrostatic discharge from damaging the device, ground
yourself using a grounding strap or by holding a grounded object, such as your
computer chassis.
1. Touch the antistatic package to a metal part of the computer chassis.
2. Remove the device from the package and inspect the device for loose components or any
other sign of damage.
Caution Never touch the exposed pins of connectors.
Notify NI if the device appears damaged in any way. Do not install a damaged device.
3. Unpack any other items and documentation from the kit.
Store the device in the antistatic package when the device is not in use.
Verifying the Kit Contents
Verify the following components are in your kit.

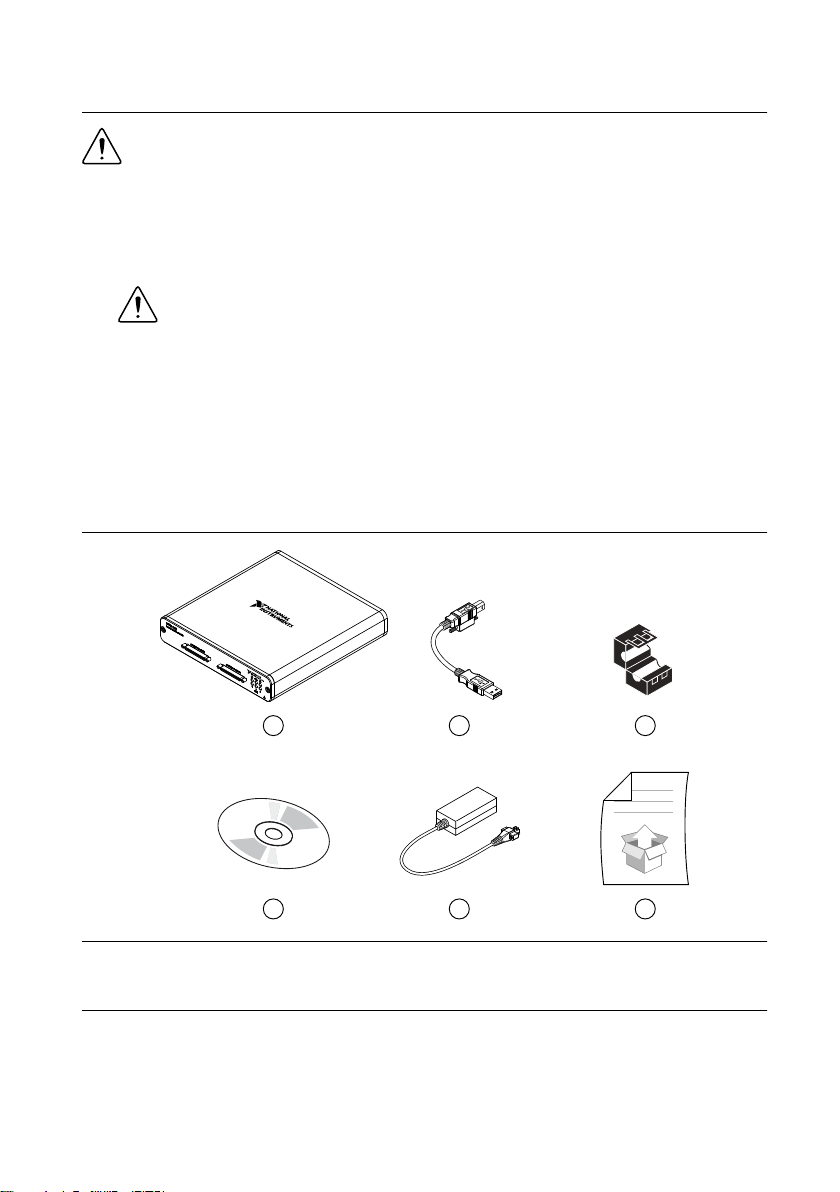

Figure 1. Kit Contents for the NI USB-7856R
3
6
2
5
1
4
1. NI USB-7856R Module
2. USB Cable
3. Ferrite Bead
4. NI-RIO Media
5. Power Supply
6. Getting Started Guide
2 | NI USB-7856R Getting Started Guide | ni.com
Installing Software
You must be an Administrator to install NI software and devices on your computer. Before
connecting the hardware, install the software in the following order.
1. Install the driver software using either the media included in your kit or by downloading
the latest version from ni.com/downloads.
2. Follow the instructions in the installation prompts.
a) Windows 8/7/Vista users may see access and security messages during installation.
Accept the prompts to complete the installation.
3. When the installer completes, a dialog box asks if you want to restart, shut down, or
restart later. Select Restart.
Installing the Hardware
Connecting the USB Cable
USB modules can be connected directly to the host PC, to a powered USB hub, or to an NI
PXI or PXI Express chassis featuring a USB port.
1. Connect the USB cable to the NI USB-7856R using the cable device port.
2. Connect the other end of the USB cable to the host PC, powered hub, or chassis.
3. Use the jackscrew on the locking USB cable to securely attach the cable to the NI
USB-7856R.
Powering the Module
Caution To ensure the specified EMC performance, install the included snap-on
ferrite bead onto the DC power cord of the power supply in accordance with the
instructions provided.
1. Install the ferrite bead by opening the housing and looping the power supply once through
the center of the bead. Ensure the ferrite bead is as close to the end of the cable as
practical.
2. Close the ferrite bead until the locking tabs engage securely.
NI USB-7856R Getting Started Guide | © National Instruments | 3

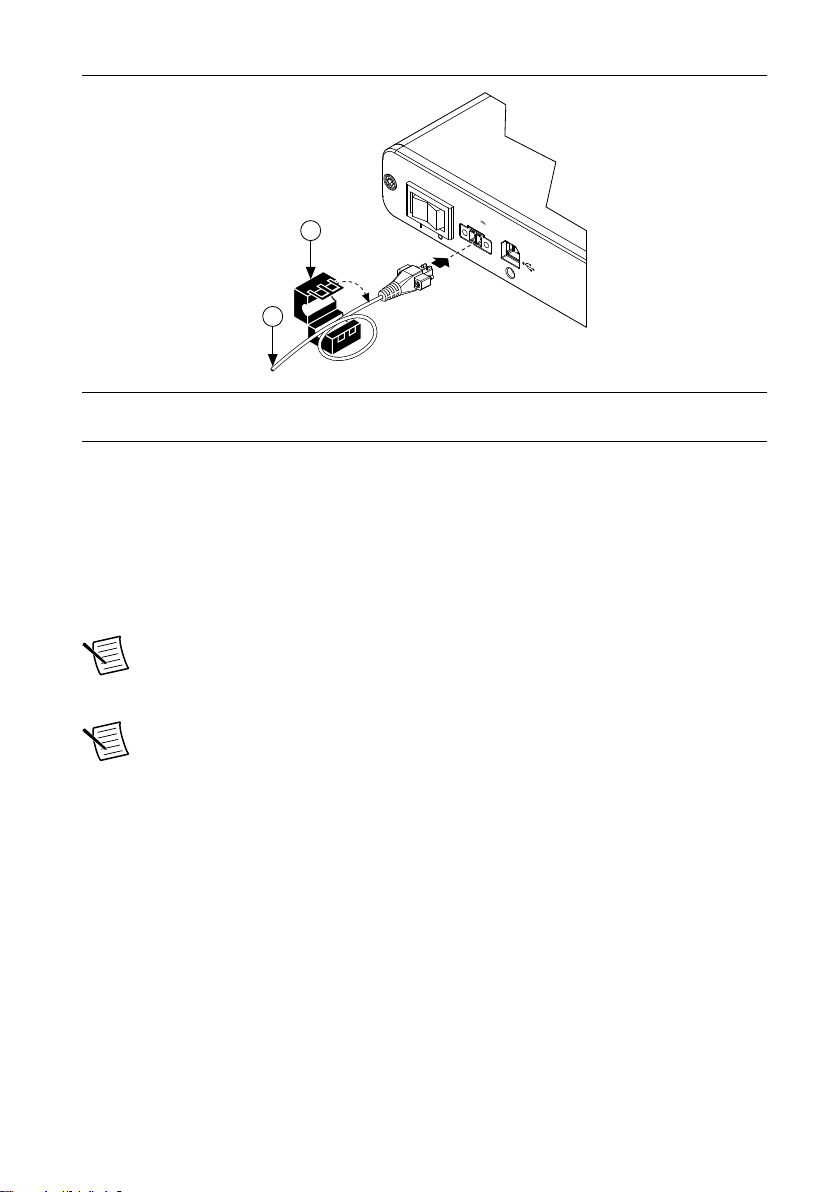

Figure 2. Installing the Ferrite Bead
x1
2
1
9-30 V
C V
20 W MAX
1. Power Supply
2. Ferrite
3. Connect the power supply to the NI USB-7856R.
4. Connect the other end of the power supply to a user-supplied power cord.
5. Connect the user-supplied power cord to the appropriate power source.
6. Turn the power switch on the NI USB-7856R to the on position.
USB Device Security Cable Slot
The security cable slot allows you to attach an optional laptop lock to your NI USB-7856R.
Note The security cable is designed to act as a deterrent, but might not prevent the
device from being mishandled or stolen. For more information, refer to the
documentation that accompanied the security cable.
Note The security cable slot on the USB device might not be compatible with all
laptop lock cables.
Refer to the documentation that accompanied the security cable for installation
instructions.
Verifying Hardware Installation
You can verify that the system recognizes the USB device by using Measurement &
Automation Explorer (MAX).
1. Launch MAX by navigating to Start»All Programs»National Instruments»MAX or by
clicking the MAX desktop icon.
2. Expand Devices and Interfaces.
3. Verify that the device appears under USB Devices.
If the device does not appear, press <F5> to refresh the view in MAX. If the device does
not appear after refreshing the view, visit ni.com/support for troubleshooting
information.
4 | NI USB-7856R Getting Started Guide | ni.com
Connecting Signals
The following figure shows the I/O connector pin assignments and locations for the NI
USB-7856R.
Caution To ensure the specified EMC performance, operate this product only
with shielded cables and accessories.
Note NI is not liable for connections that exceed any of the maximum ratings
of input or output signals on the NI USB-7856R and on the computer chassis.
For the maximum input and output ratings for each signal, refer to the NI
USB-7856R Specifications, available at ni.com/manuals.

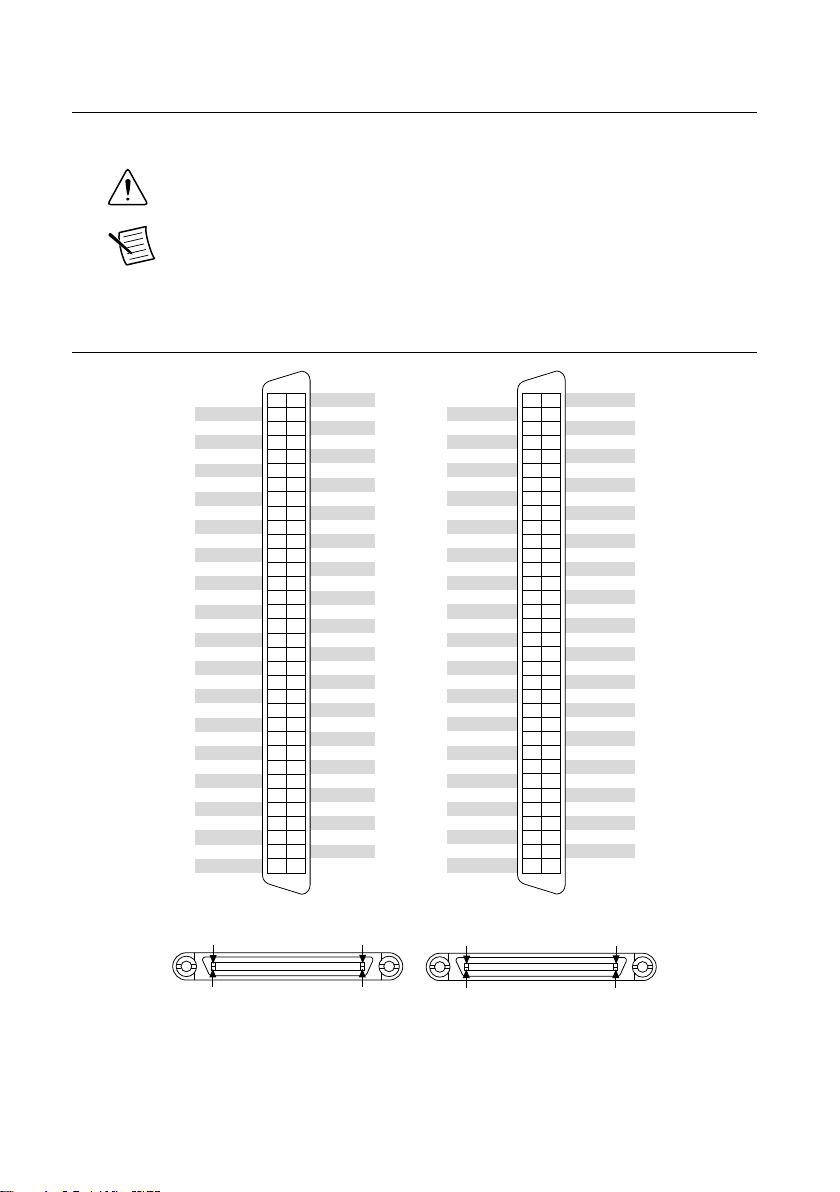

Figure 3. NI USB-7856R Connector Pin Assignments and Locations
DIO30
GND
DIO28
GND
DIO26
GND
DIO24
GND
DIO22
GND
DIO20
GND
DIO18
GND
DIO16
GND
DIO14
GND
DIO12
GND
DIO10
GND
DIO8
GND
DIO6
GND
DIO4
GND
DIO2
GND
DIO0
GND
GND
GND
DIO31
DIO29
GND
GND
DIO25
GND
DIO23
GND
DIO27
GND
DIO21
GND
DIO19
GND
DIO17
GND
DIO15
GND
DIO13
GND
DIO11
GND
DIO9
GND
DIO7
GND
DIO5
GND
DIO3
GND
DIO1
GND
GND
GND
68 34
67 33
66 32
65 31
64 30
63 29
62 28
61 27
60 26
59 25
58 24
57 23
56 22
55 21
54 20
53 19
52 18
51 17
50 16
49 15
48 14
47 13
46 12
45 11
44 10
43 9
42 8
41 7
40 6
39 5
38 4
37 3
36 2
35 1 +5V
DIO0
DIO1
DIO2
DIO3
DIO4
DIO5
DIO6
DIO7
DIO9
DIO11
DIO13
DIO15
AO7
AO6
AO5
AO4
AO3
AO2
AO1
AO0
AISENSE
AI7+
AIGND6
AI6+
AI5+
AIGND4
AI4+
AI3+
AIGND2
AI2+
AI1+
AIGND0
AI0+
+5V
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DGND
DIO8
DIO10
DIO12
DIO14
AOGND7
AOGND6
AOGND5
AOGND4
AOGND3
AOGND2
AOGND1
AOGND0
NC
AI7–
AIGND7
AI6–
AI5–
AIGND5
AI4–
AI3–
AIGND3
AI2–
AI1–
AIGND1
AI0–
68 34
67 33
66 32
65 31
64 30
63 29
62 28
61 27
60 26
59 25
58 24
57 23
56 22
55 21
54 20
53 19
52 18
51 17
50 16
49 15
48 14
47 13
46 12
45 11
44 10
43 9
42 8
41 7
40 6
39 5
38 4
37 3
36 2
35 1
CONNECTOR 0
(DIO)
CONNECTOR 1
(MIO)
TERMINAL 34
TERMINAL 68
TERMINAL 1
TERMINAL 35
TERMINAL 34
TERMINAL 68
TERMINAL 1
TERMINAL 35
The +5 V terminals on the I/O connector supply +5 V referenced to GND. Use these terminals
to power external circuitry. The NI USB-7856R is protected from overvoltage and overcurrent
NI USB-7856R Getting Started Guide | © National Instruments | 5
conditions. Refer to the NI USB-7856R User Manual, available at ni.com/manuals, for
more information.
Where to Go Next

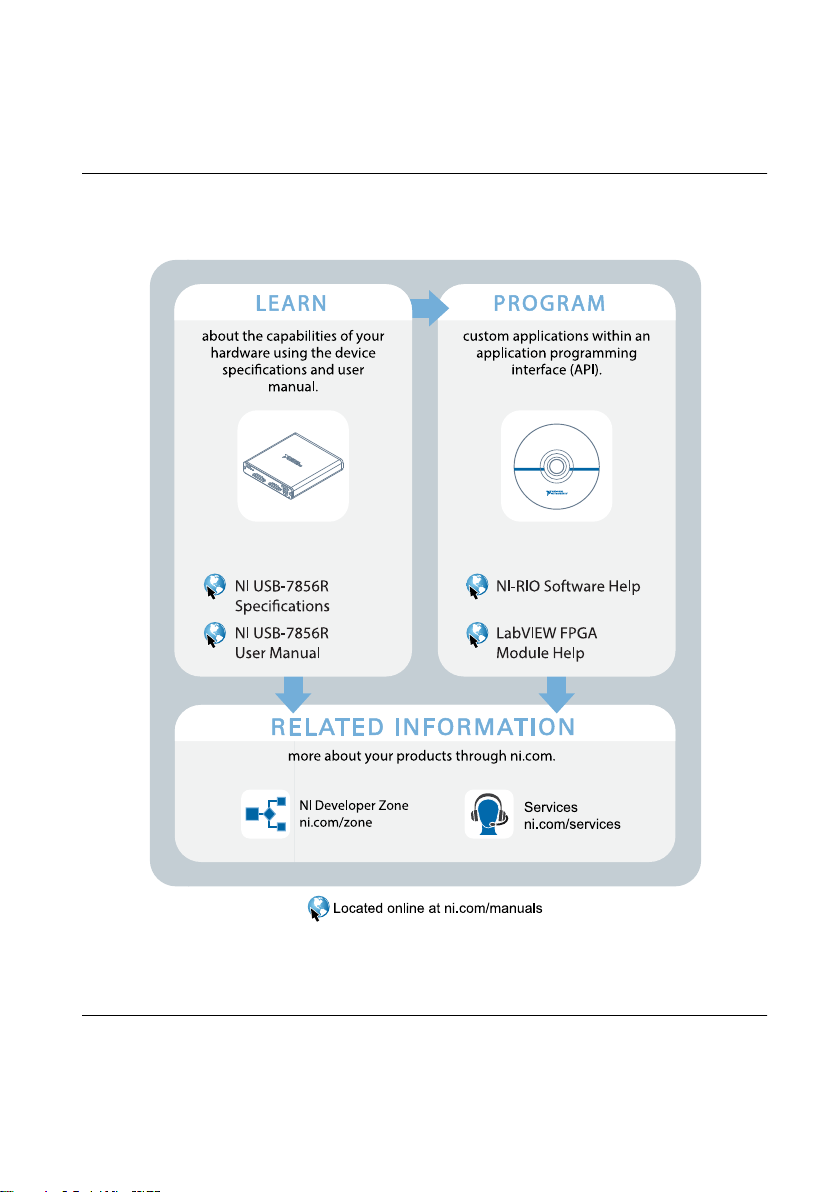

Refer to the following figure for information about other product tasks and associated
resources for those tasks.
Where to Go for Support
The National Instruments Web site is your complete resource for technical support. At ni.com/
support you have access to everything from troubleshooting and application development self-
help resources to email and phone assistance from NI Application Engineers.
6 | NI USB-7856R Getting Started Guide | ni.com
National Instruments corporate headquarters is located at 11500 North Mopac Expressway,
Austin, Texas, 78759-3504. National Instruments also has offices located around the world to
help address your support needs. For telephone support in the United States, create your
service request at ni.com/support and follow the calling instructions or dial 512 795 8248. For
telephone support outside the United States, visit the Worldwide Offices section of ni.com/
niglobal to access the branch office Web sites, which provide up-to-date contact information,
support phone numbers, email addresses, and current events.
NI USB-7856R Getting Started Guide | © National Instruments | 7
Refer to the NI Trademarks and Logo Guidelines at ni.com/trademarks for information on National Instruments trademarks.
Other product and company names mentioned herein are trademarks or trade names of their respective companies. For patents
covering National Instruments products/technology, refer to the appropriate location: Help»Patents in your software, the
patents.txt file on your media, or the National Instruments Patent Notice at ni.com/patents. You can find information about
end-user license agreements (EULAs) and third-party legal notices in the readme file for your NI product. Refer to the Export
Compliance Information at ni.com/legal/export-compliance for the National Instruments global trade compliance policy and
how to obtain relevant HTS codes, ECCNs, and other import/export data.
© 2013 National Instruments. All rights reserved.
374973B-01 Nov13
Altri manuali per R Series
14
Questo manuale è adatto per i seguenti modelli
1
Indice
Altri manuali National Instruments Hardware di rete
National Instruments
National Instruments PC-DIO-24 Manuale utente
National Instruments
National Instruments NI Vision CVS-1450 Series Manuale utente
National Instruments
National Instruments FieldPoint cFP-RTD-122 Manuale utente
National Instruments
National Instruments NI Vision CVS-1456 Manuale utente
National Instruments
National Instruments GPIB-100A Manuale utente
National Instruments
National Instruments DAQ SCXI-1161 Manuale utente
National Instruments
National Instruments FIELDPOINT cFP-PWM-520 Manuale utente
National Instruments
National Instruments FIELDPOINT cFP-DO-403 Manuale utente
National Instruments
National Instruments DAQ AT-MIO-16X Manuale utente
National Instruments
National Instruments SCB-68 Manuale utente
National Instruments
National Instruments USB Digitizers NI USB-5132 Manuale utente
National Instruments
National Instruments FIELDPOINT FP-1600 Manuale utente
National Instruments
National Instruments RM-4339 Manuale
National Instruments
National Instruments PXI Terminal Block NI TB-2709 Manuale utente
National Instruments
National Instruments GPIB-120A Manuale utente
National Instruments
National Instruments IMAQ PCI-1411 Manuale utente
National Instruments
National Instruments NI-488.2 Manuale utente
National Instruments
National Instruments Fieldpoint cFP-RTD-124 Manuale utente
National Instruments
National Instruments GPIB GPIB-ENET/100 Manuale utente
National Instruments
National Instruments NI Vision PXI-1428 Manuale utente
Manuali Hardware di rete popolari di altre marche
Matrix Switch Corporation
Matrix Switch Corporation MSC-HD161DEL Manuale utente
B&B Electronics
B&B Electronics ZXT9-IO-222R2 Manuale utente
Yudor
Yudor YDS-16 Manuale utente
D-Link
D-Link ShareCenter DNS-320L Manuale utente
Samsung
Samsung ES1642dc Istruzioni per l’uso
Honeywell Home
Honeywell Home LTEM-PV Istruzioni per il montaggio
