Nauticam NA-A2020 Manuale utente
1
2
F
ORWARD
Thank you for your purchase of a NAUTICAM housing.
At NAUTICAM, we pride ourselves in the ability to recogni e the requirements of professional as
well as amateur underwater photographers and fulfill them through the innovative designs of our
products. We strive to achieve a high level of user-friendliness by allowing stress-free installation
and easy operation of all important functions of the camera.
Each housing is individually inspected and water pressure tested to ensure optimum quality.
Please read this manual carefully before using the housing, this will maximi e its performance as
well as its lifetime.
3
T
ABLE OF
C
ONTENTS
Warranty …………………………………………………………………………………………………………….…………………………
4
Precautions ………………………………………………………………………………………………………………………………… 5
Package Contents ……………………………………………………………………………………………….……………………. 7
Specifications …………………………………………………………………………………………………….……………………... 8
Identification of Parts ………………………………………………………………………………………………………………. 9
Opening and Locking the Housing ………………………………………………………………………………………… 13
Preparation of the Housing ……………………………………………………………………………………………………… 15
Installing the Camera ……………………………………………………………………………………………………………….. 20
Switching between LCD and Viewfinder ………………………………………………………………………………. 25
Mounting the Port ……………………………………………………………………………………………………………………… 26
Changing the Viewfinder …………………………………………………………………………………………………….……. 29
Care and Maintenance …………………………………………………………………………………………………………….. 31
Optional Accessories ………………………………………………………………………………………….……………………. 32
4
W
ARRANTY
All NAUTICAM Products are warranted against any material and manufacturing defects for two
years from the date of purchase for consumer use. The warranty period is defined by the invoicing
or payment date by the customer. Alternatively, the warranty period would be assumed from the
day that the product is shipped from our facility. This warranty only applies to products purchased
from authori ed NAUTICAM dealers and does not extend beyond the original retail purchaser.
To return your product for service, please contact your regional authori ed service center(s). Please
note that this warranty only applies when the product is purchased in the territory where the service
center is located.
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper
use and/or poor maintenance; it is the responsibility of the owner to carefully follow the instructions
in our manuals.
NAUTICAM does not hold responsibility for damage, of any nature, to any equipment used with
and/or placed within our products.
NAUTICAM accepts no liability for any loss of captured images or the inability to capture images
even if it is due to the malfunctioning of our products.
Unauthori ed modifications and/or repairs of our products will automatically invalidate the warranty.
5
P
RECAUTIONS
•A water-tight test without the camera inside the housing is highly recommended
when using the system for the first time and after the changing of port and O-ring(s).
•Do not use lubricants from other brands with the silicone rubber O-ring on this
housing, only use the lubricant provided by NAUTICAM.
•Discontinue use immediately should you notice any leakage.
•Store the housing in a robust, shock-proof container during transportation; avoid
transporting with any equipment, such as a camera, inside the housing.
•When travelling by air, do not close the housing as this may lead to a pressure
difference between the atmosphere and inside the housing.
•Care must be taken when opening the housing, as pressure may build up inside the
housing which increases the opening force.
6
•Do not open the product in a wet or sandy environment. Protect the interior from
moisture and debris in order to prevent malfunction or leakage.
•Do not store the product in an environment of high humidity.
•Do not leave the housing and the monitor in direct sunlight for prolonged periods.
•Keep out of reach of children, failure to do so could result in injury.
•Defective products should be shipped to our distributors for service, unauthori ed
disassembling and/or modifications could result in malfunction or leakage.
•Use only recommended battery with this product, do not mix different specifications
or old and new batteries.
•Do not place excessive stress on HDMI cable connector.
•Do not bend or twist HDMI cable.
7
•NA-α2020 Housing
•90120 Spare Silicone Rubber O-ring for Housing
•2x Optical Fiber Mount Caps (Pre-attached)
•2x Stainless Steel Handle Brackets
•2x Handles with Mounting Balls
•Housing Cap
•O-ring Remover
•CR2032 Battery (for vacuum system)
•Lubricant
•Set of Allen keys
•Manual Instruction Card
•
Padded Travel Case
•Shoulder Strap
P
ACKAGE
C
ONTENTS
8
S
PECIFICATIONS
Construction
Housing Body: Aluminum Alloy
Surface Treatment: Hard Anodi ed
Display Window: Abrasion Resistant Polycarbonate
Dimensions
Width: 339mm
Height: 170mm
Depth: 123mm
Weight in Air Approx. 2.71kg
Weight in Water 0.63kg
Depth Rating 100 m
Port Mount N100
Compatible
Port Adaptor
37305 N100 to N120 35.5mm Port Adaptor II
(for NA-A7IV/ α2020)
Compatible
Cameras Sony A9II/A7RIV Camera
Flash Trigger
Mini flash trigger for Sony (compatible with NA
-
A7/A7II/A9/A7RIII/RIV/
α2020)
HDMI Support Nauticam HDMI 1.4 & 2.0 Systems
9
I
DENTIFICATION OF
P
ARTS
Lens Release Button
Port Lock Lever
Port Lock Safety Button
Optical Bulkhead
s
Front Dial
Zoom/Focus Knob
2x
Mounting Balls
Port Alignment Index
Shutter Release Lever

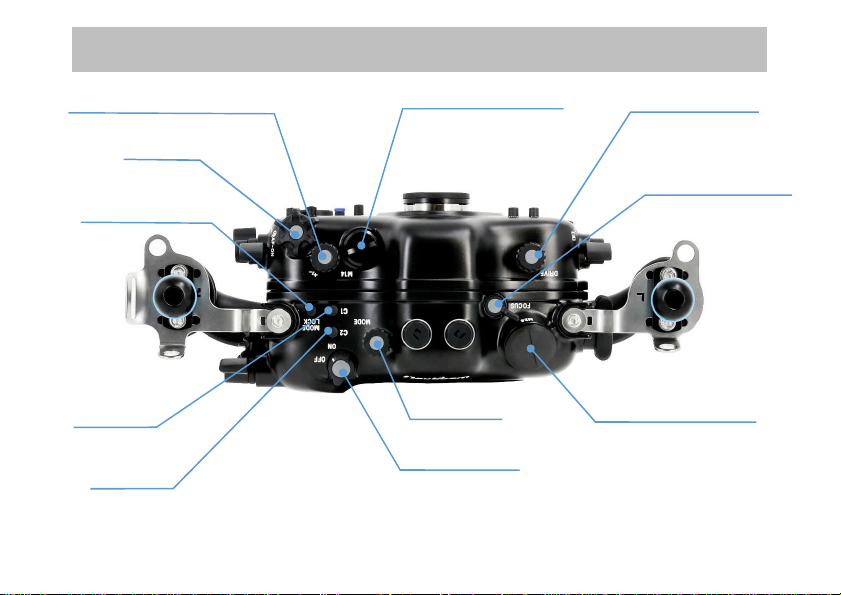

10
Rear
Dial
C1 Button
Exposure Compensation Dial
C2 Button
Mode Lock Button
M14 Accessory Port
Drive Mode Dial
Focus
Mode Lever
M24 Accessory Port
Mode Dial
On/Off Switch
