Nauticam NA-GH2 Manuale utente

Thank you for your purchase of a NAUTICAM camera housing.

At NAUTICAM, we pride ourselves on the ability to recognise the

requirements of professional as well as amateur underwater

photographers and fulfill them through the innovative designs of our

products. We strive to achieve a high level of user-friendliness by

allowing stress-free installation and easy operation of all important

functions of the camera.

Each NA-GH2 and NA-GH2P housing is individually inspected and water

pressure tested to ensure optimum quality.

Please read this manual carefully before using the housing, this will

maximise its performance as well as its lifetime.

1. All NAUTICAM Products are warranted against any material and

manufacturing defects for one year from the date of purchase for

consumer use.

2. NAUTICAM accepts no liability for any damage to and defects in the

housing caused by improper use and/or poor maintenance; it is the

responsibility of the owner to carefully follow the instructions in

this manual.

3. NAUTICAM does not hold responsibility for damage, of any nature,

to any equipment used with and/or placed within the housing.

4. NAUTICAM accepts no liability for any loss of captured images or

the inability to capture images even if it is due to the

malfunctioning or leakage of the housing.

5. This warranty only applies to products purchased from authorised

NAUTICAM dealers and does not extend beyond the original retail

purchaser.

6. Unauthorised modifications and/or repairs of the housing will

automatically invalidate this warranty.

7. To return products for service, please contact our regional

distributor, normally you would need to notify them by email first

and ship them the product by registered mail, along with your

contact details and a brief description of the defect.

1. NA-GH2 housing

2. Optical fibre mount

3. Instruction manual

4. Spare silicone rubber housing o-ring

5. O-ring remover

6. CR2032 battery (for moisture alarm)

7. Lubricant

8. Set of Allen keys

Spare silicone rubber o-ring

Lubricant

Set of Allen keys

CR2032 battery

O-ring remover

Optical fibre mount

with screws

1. A water-tight test without the camera inside the housing is highly

recommended when using the system for the first time and after

the changing of port and O-ring(s).

2. Do not use lubricants from other brands with the silicone rubber O-

ring on this housing, only use the lubricant provided by NAUTICAM.

3. Discontinue use immediately should you notice any leakage.

4. Store the housing in a robust, shock-proof container during

transportation; avoid transporting with any equipment, such as a

camera, inside the housing.

5. When travelling by air, do not close the housing if the port is

installed, as this may lead to a pressure difference between the

atmosphere and inside the housing.

6. Care must be taken when opening the housing, as pressure may

build up inside the housing which increases the opening force.

7. Do not open the product in a wet or sandy environment. Protect

the interior from moisture and debris in order to prevent

malfunction or leakage.

8. Do not store the product in an environment of high humidity.

9. Do not leave the housing and the camera in direct sunlight for

prolonged periods.

10. Keep out of reach of children, failure to do so could result in injury.

11. Defective products should be shipped to our distributors for service,

unauthorized disassembling and/or modifications could result in

malfunction or leakage.

Specifications

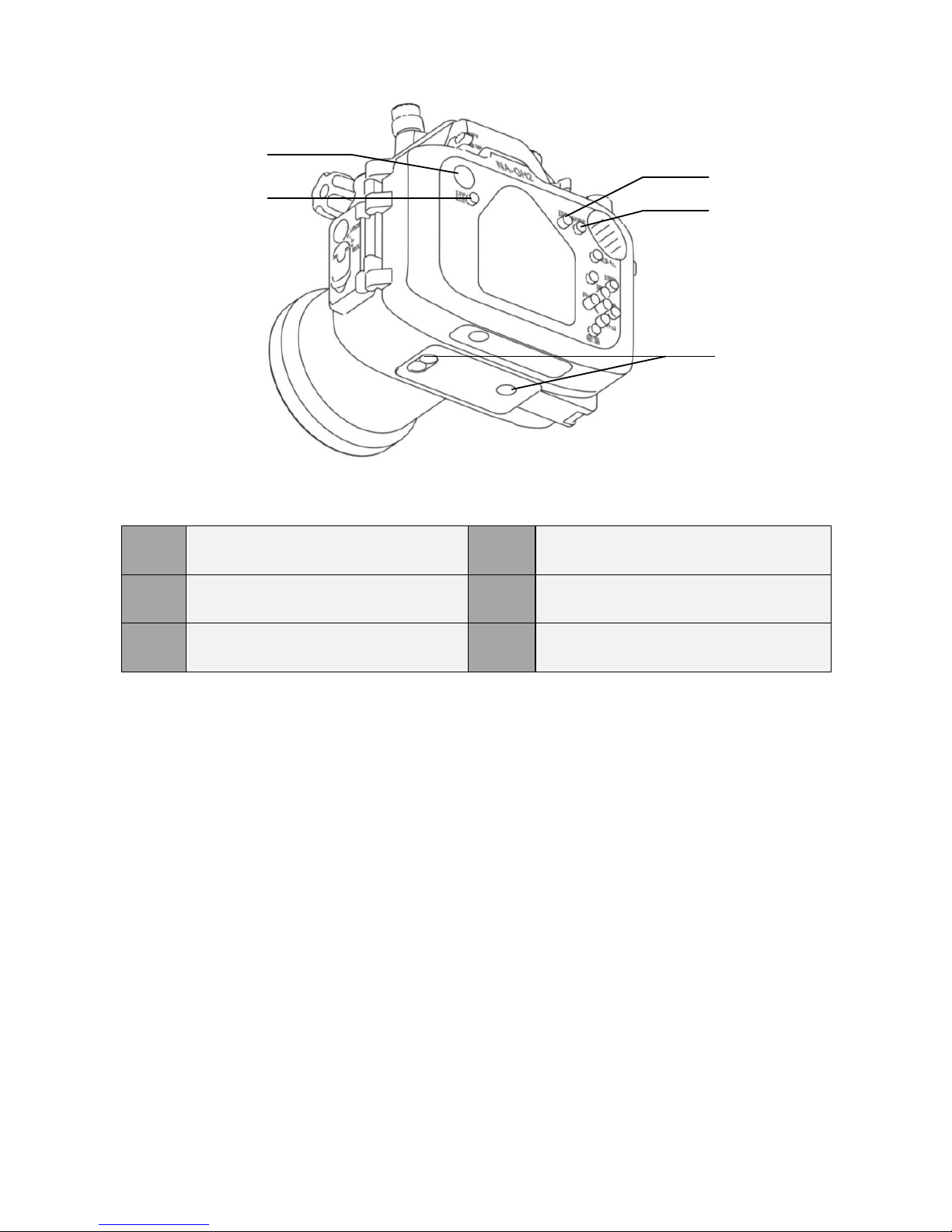

Identification of Parts

Preparation of the Housing

Opening and Locking the Housing

Installing the Camera

Mounting the Port

Care and Maintenance

Construction

Housing body:

Aluminium alloy

Surface treatment:

Hard anodised

Display window:

Abrasion resistant polycarbonate

Dimensions

Width:

190 mm

Height:

155 mm

Depth:

100 mm

Weight

NA-GH2: Approx. 1.24 kg (without camera)

NA-GH2P: Approx. 1.49 kg (without camera)

Buoyancy

NA-GH2: About neutral

NA-GH2P: Slightly negative

Depth rating

NA-GH2: 60 metres

NA-GH2P: 100 metres

Features

Moisture alarm:

Blinking LED and audible alarm

TTL capability:

Optical fibre mount included for

external strobes connection,

utilising the camera’s pop-up flash

as trigger.

Port mount:

Patented easy port installation

system.

Rocker switch:

Enable easy access of the Function

1 and Motion Picture controls.

Flash up/off lever:

Allows the camera’s built-in flash

to be enabled/disabled

underwater.

Mode dial (Top)/

Drive mode dial (Buttom)

Zoom/Focus knob

Function 1 key

Housing lock safety button

Motion picture key

Housing lock

Shutter release lever

Accessory coldshoe

Auto focus mode dial (top)/

Focus mode dial (bottom)

M10 strobe mounting base

Internal flash window

Rear dial mode control button

Flash open lever

Q.Menu buton

M16 accessory socket

Display button

Lens release button

Up/ISO button

Port release safety button

Left/Function 2 button

Port lock/release latch

Right/White balance button

Flash up/Off lever

Menu/Set button

On/Off lever

Down/Function 3 button

Rear dial

Delete/Preview button

Moisture alarm window

AF/AE lock button

LVF/LCD button

1/4”–20UNC tripod socket x 2*

Playback button

* The maximum length of screws that can be

used with the tripod sockets is 4mm
