INTRODUCTION

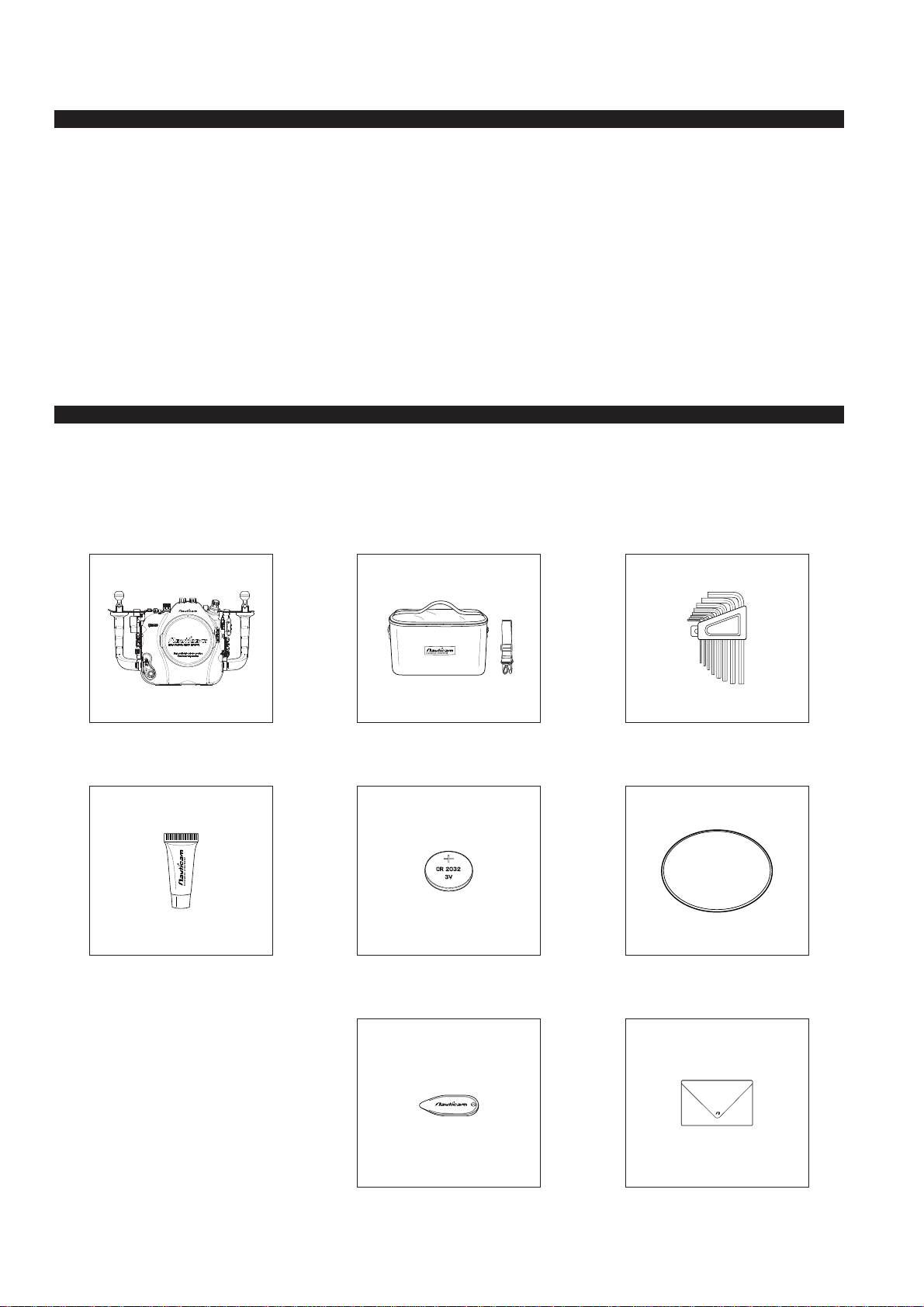

PACKAGE CONTENTS
Thank you for purchasing this Nauticam product.
Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the
product as well as ensuring that you will use the product correctly.
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, contact your local Nauticam dealer.
After purchase, we suggest that
you reuse all packaging materials
for future travelling.
Panasonic CR2032 Battery
(pre-installed for Moisture Alarm)
Spare Main O-ring
Padded Travel Case Allen key set
O-ring Remover Manual Instruction Card
NA-R3
(2 x Handles with Mounting Balls, 1 x Housing Cap,
2 x Optical Fiber Mount Caps, 2 x Stainless Steel Handle Brackets)
Lubricant
IMPORTANTINSTRUCTIONS
Water-tight test of the housing (without
camera inside) before usage is recom-
mended as well as any O-ring renewal
and port change.
Use only Nauticam lubricant on silicone
rubber O-ring.
Discontinue use immediately when there is
a sign of leakage.
Do not expose the housing in direct
sunlight for a prolonged period.
Prevent any sand or dust or water
penetration inside the housing. Be
extra careful when changing lens and
inserting or removing the camera.
This product is not intened for use by
children, or persons with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
are supervised and/or given instruction by
a responsible person concerning use of
the product to ensure that they can use it
safely.
Do not seal the housing when travelling by
air as this may lead to a pressure difference
between the atmosphere and inside the
housing.
Only the accesories speciܪed by
Nauticam must be used. Third-party
accessories may result in malfunctions
or damage to the product.
Do not stretch any O-rings excessively.
Only remove it using Nauticam O-ring
remover.
Do not open the housing in wet or sandy
environment. Protect the housing from
moisture and debris in order to prevent
malfunction or leakage.
1
3
5
7
9
11 12
4
6
8
10
2
Do not attempt to remove parts of the
housing yourself. Repairs must be done
at authorized service centers only.
The housing should be positioned on the a
stable and safe surface on land.
PART NAMES AND FUNCTIONS
TTL Indicator Window Menu button
Rate button Housing unlock button
AE lock button
Quick control button
Set button
Main switch
AF point selection button
Multi selector
Info button
Delete button
1 2
3 4
5
7
9
11
13
6
8
10
12
Rear View
2
1
3
48
6
7
9
10
11
5
A
Moisture alarm window Multi selector - centerA
12 13
PART NAMES AND FUNCTIONS
M14 6-pin bulkhead (M26-M14)
Flash exposure / metering button
M16 Accessory port
Port lock safety button
Port index mark
EF mount lens release button
RF mount lens release button
Optical cable connector
M10 Accessory port
Quick control dial 2
Port locking lever
1/4” Threaded holes
M14 Accessory port
Still photo / movie recording lever
Drive mode / AF selection button
Mode button
Accessory mounting ball
1
5
9
13
15
17
16
2
6
10
14
3
7
11
4
8
12
Top + Front Views
1
45
2
3
89
7
6
10
11
15
16 17
12
13
14
PART NAMES AND FUNCTIONS
Back + Side Views
TTL On/off lever
Playback lever
Shutter release lever
Pv lever
ISO lever
Main dial
Fn 2 lever
1/4” Threaded tripod holes
Magniify/reduce lever
Control ring mount adaptor Fn
M-Fn lever
AF-ON lever
REC lever
Quick control dial 2
Zoom/Focus knob release
Sacriܪcial zinc anodes
Zoom/Focus knob
3
7
11
9
13
15
17
1
4
8
12
10
14
16
5
2
6
2
10
12 13
17
16
14 15
11
1
6
7
8
9
3
45
HOUSING MOUNT
M16 Accessory port
M14 Accessory port
1
2
Compatible accessoriesHousing mount
25625
25017
M16 Vacuum valve II (pushbutton release)
M14 6-pin bulkhead for Canon system
(pre-installed)
25221
25224 M10 Strobe mounting ball
M10 Strobe mounting ball with hole
7
8
8
8
1
3
6
7
M10 Accessory port
1/4” -20 mounting threads
M24 Accessory port
3
4
525017
25077
M14 6-pin bulkhead for Canon system
via a removable M26-M14 adaptor (pre-installed)
HDMI 2.0 cable
17954
25218
Universal tripod plate
Mounting ball set for tripod legs
1/4” -20 mounting threads
M5 Threaded holes
6
8
25228 M5 Strobe mounting ballM5 Accessory ports7
2
5
4
OPENING THE HOUSING
depress housing unlock button
turn housing lock outward
lift up the back housing
*
drawings as illustrations onl
y
1
2
3
CLOSING THE HOUSING
before closing the housing, clean
and lubricate the main O-ring
make sure nothing is caught
between front and back housing
and that they are fully aligned
before locking
turn housing lock inward until you
hear and feel it click into place
housing locked in place securely
1
2
3
*
drawings as illustrations onl
y
PREPARATION FOR USE

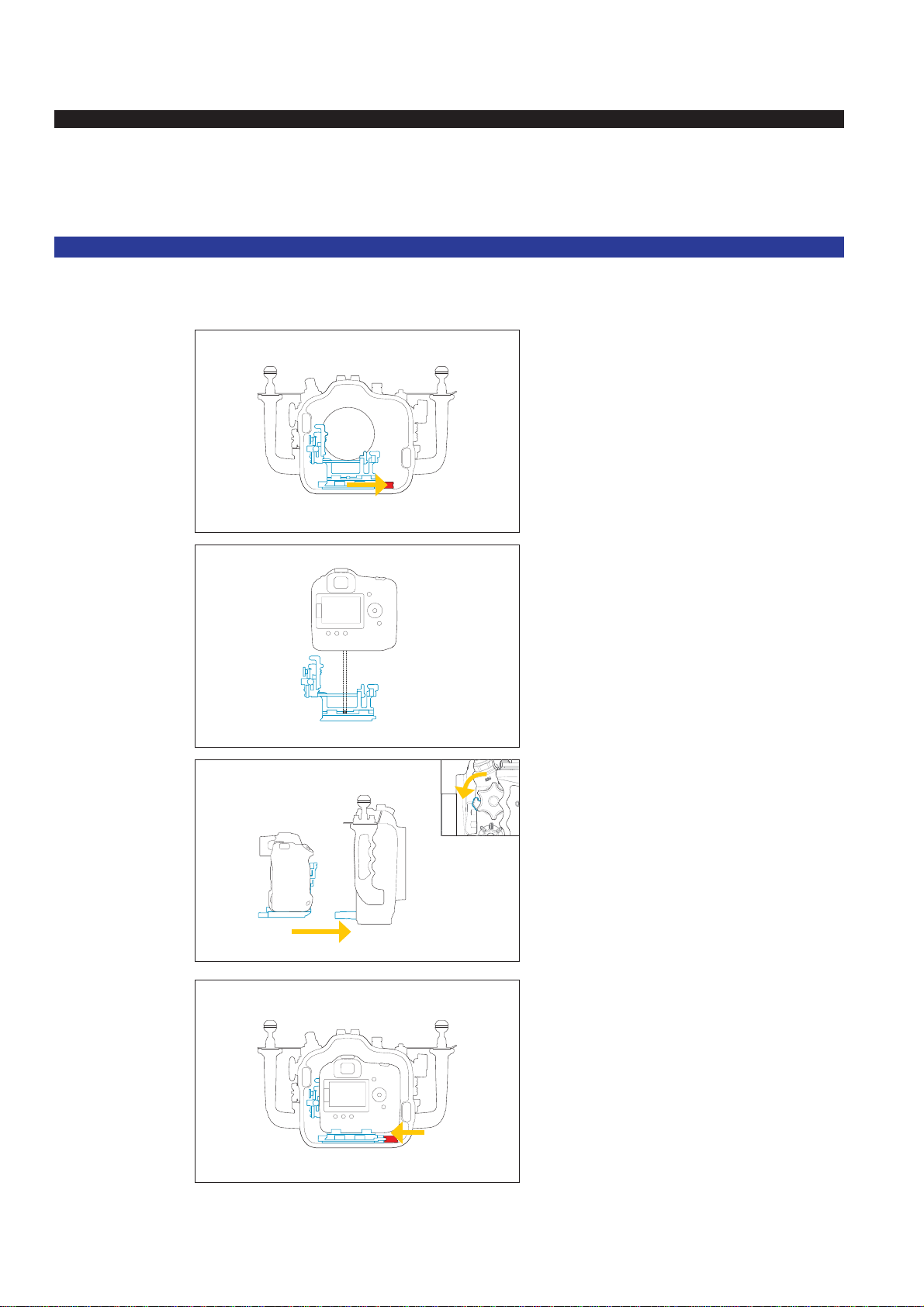

Installing the Camera - housing tray attachment
1
4
2
3
unlock camera tray lever and
remove the tray from the housing
lock camera tray
* rotate the zoom/focus knob release
back in place and make sure the lens
gear it is engaged
attach the camera tray by tightening
the tray screw into the tripod socket
of the camera
*rotate the zoom/focus knob release
before sliding in the camera tray with
camera lens and gears to make sure
the gears won’t be interfered
slide the camera tray back into the
housing along the tray rail
*
drawings as illustrations onl
y
