Nauticam NA-TG7 Manuale utente
NA - TG7
For Olympus Tough TG 5 / 6 / 7 Camera
User Manual
Housing
COMPACT
PN 17820/17821
Introduction 2
2
3
4
7
8
Package Contents
Important Instructions
Part Names and Functions
Housing Mount
Opening the Housing
9Closing the Housing
10Installing the Camera
11Installing the Diffuser
November, 2023
12
13
14
15
Preparation for Use
Care/Storage
Warranty
Specications
2
INTRODUCTION

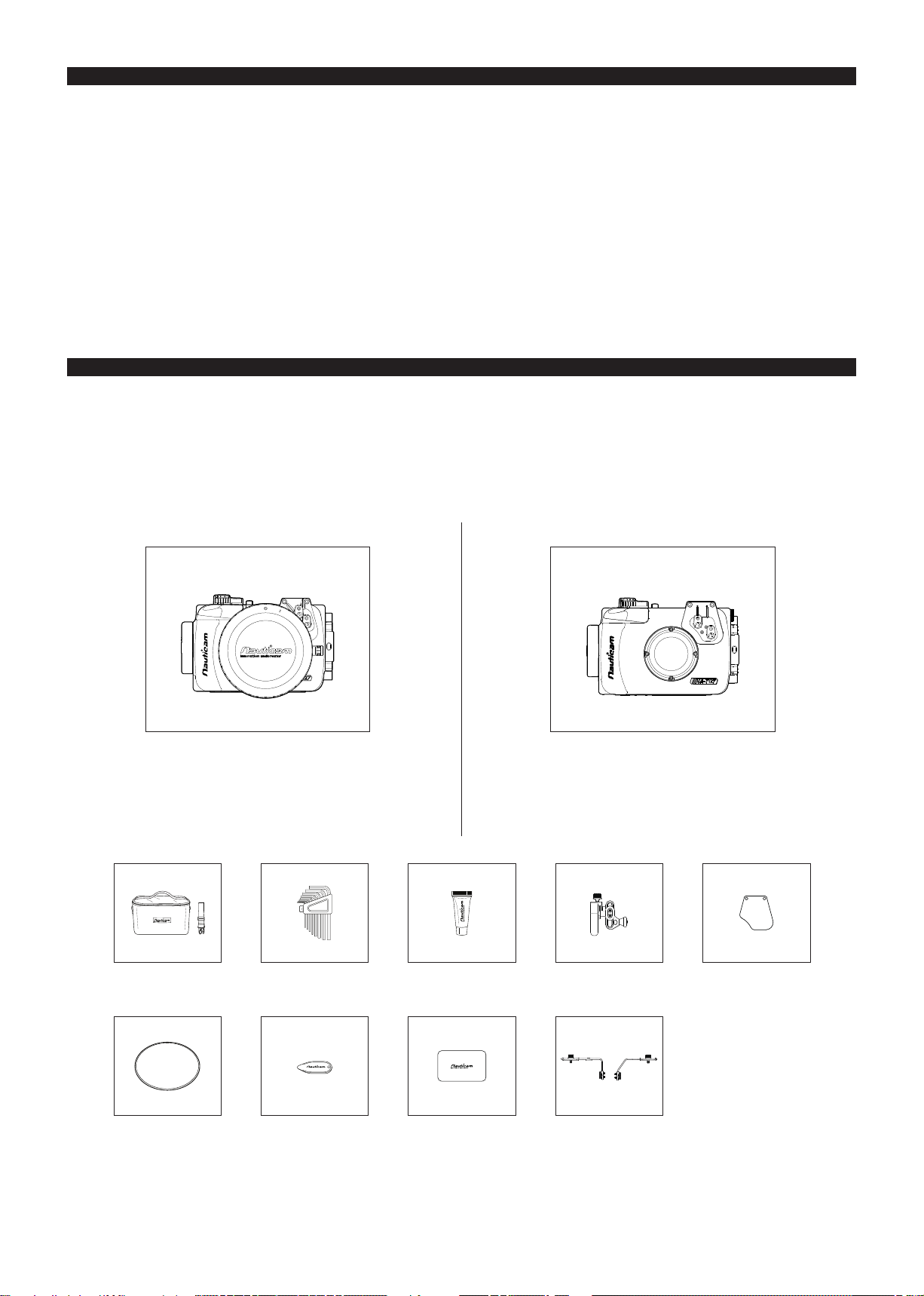

PACKAGE CONTENTS
Thank you for purchasing this Nauticam product.
Before using the product, please read this manual thoroughly to familiarize yourself with full scope of functions on the
product as well as ensuring that you will use the product correctly.
Make sure that you have all the included items listed below before using this product.
If some items are missing or damaged, contact your local Nauticam dealer.
Allen key set Diffuser
Shutter Release
Extension
L & R Handle
Brackets
Padded Travel Case
NA-TG7
with Bayonet Mount
( 2 x Plugs for Optical Fiber Cable Mount,
1 x Bayonet Mount Cap)
NA-TG7
with M52 Mount
( 2 x Plugs for Optical Fiber Cable Mount,
1 x Bayonet Mount Cap)
Lubricant
17820 NA-TG7 Housing (BM) 17821 NA-TG7 Housing (M52)
After purchase, we
suggest that you
reuse all packaging
materials for future
travelling.
Manual Instruction
Card
O-ring RemoverSpare Silicone
Rubber O-ring
#90126
3
IMPORTANT INSTRUCTIONS
Water-tight test of the housing (without
camera inside) before usage is recom-
mended as well as any O-ring renewal
and port change.
Use only Nauticam lubricant on silicone
rubber O-ring.
Discontinue use immediately when there is
a sign of leakage.
Do not expose the housing in direct
sunlight for a prolonged period.
Prevent any sand or dust or water
penetration inside the housing. Be
extra careful when changing lens and
inserting or removing the camera.
This product is not intended for use by
children, or persons with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they
are supervised and/or given instruction by
a responsible person concerning use of
the product to ensure that they can use it
safely.
Do not seal the housing when travelling by
air as this may lead to a pressure difference
between the atmosphere and inside the
housing.
Only the accesories specied by
Nauticam must be used. Third-party
accessories may result in malfunctions
or damage to the product.
Do not stretch any O-rings excessively.
Only remove it using Nauticam O-ring
remover.
Do not open the housing in wet or sandy
environment. Protect the housing from
moisture and debris in order to prevent
malfunction or leakage.
1
3
5
7
9
11 12
4
6
8
10
2
Do not attempt to remove parts of the
housing yourself. Repairs must be done
at authorized service centers only.
The housing should be positioned on the a
stable and safe surface on land.
4

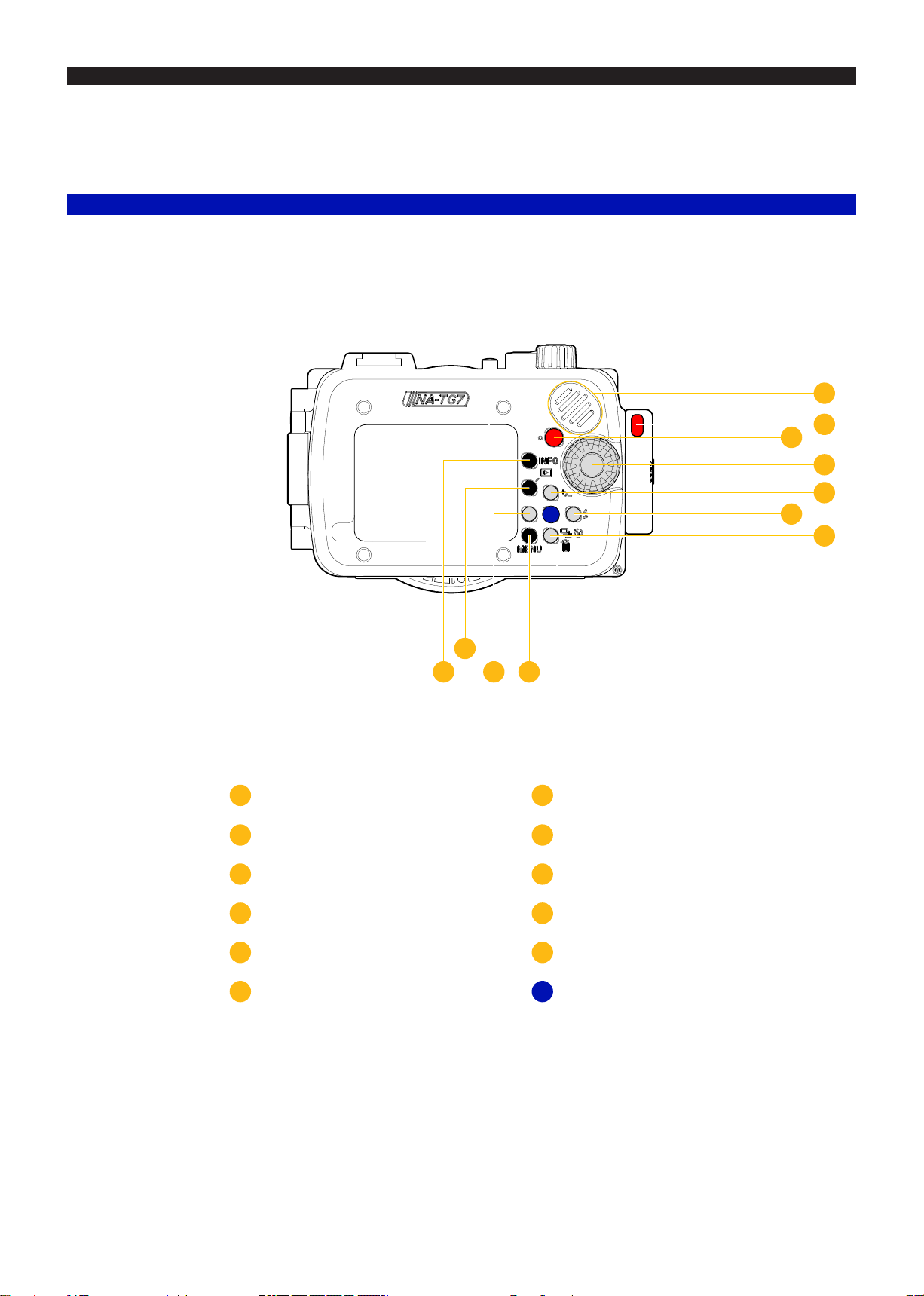

PART NAMES AND FUNCTIONS
Thumb position Housing unlock button
REC button Quick control dial 1
Up/Exposure compensation button
Left/Mode unction button Playback button
Info button
Right/Flash button
Menu button
Quick control dial 1
1 2
3 4
5
7
9
11
6
8
10
Rear View
3
6
7
Menu/Set buttonA
5
4
2
1
89
10
11
A
5

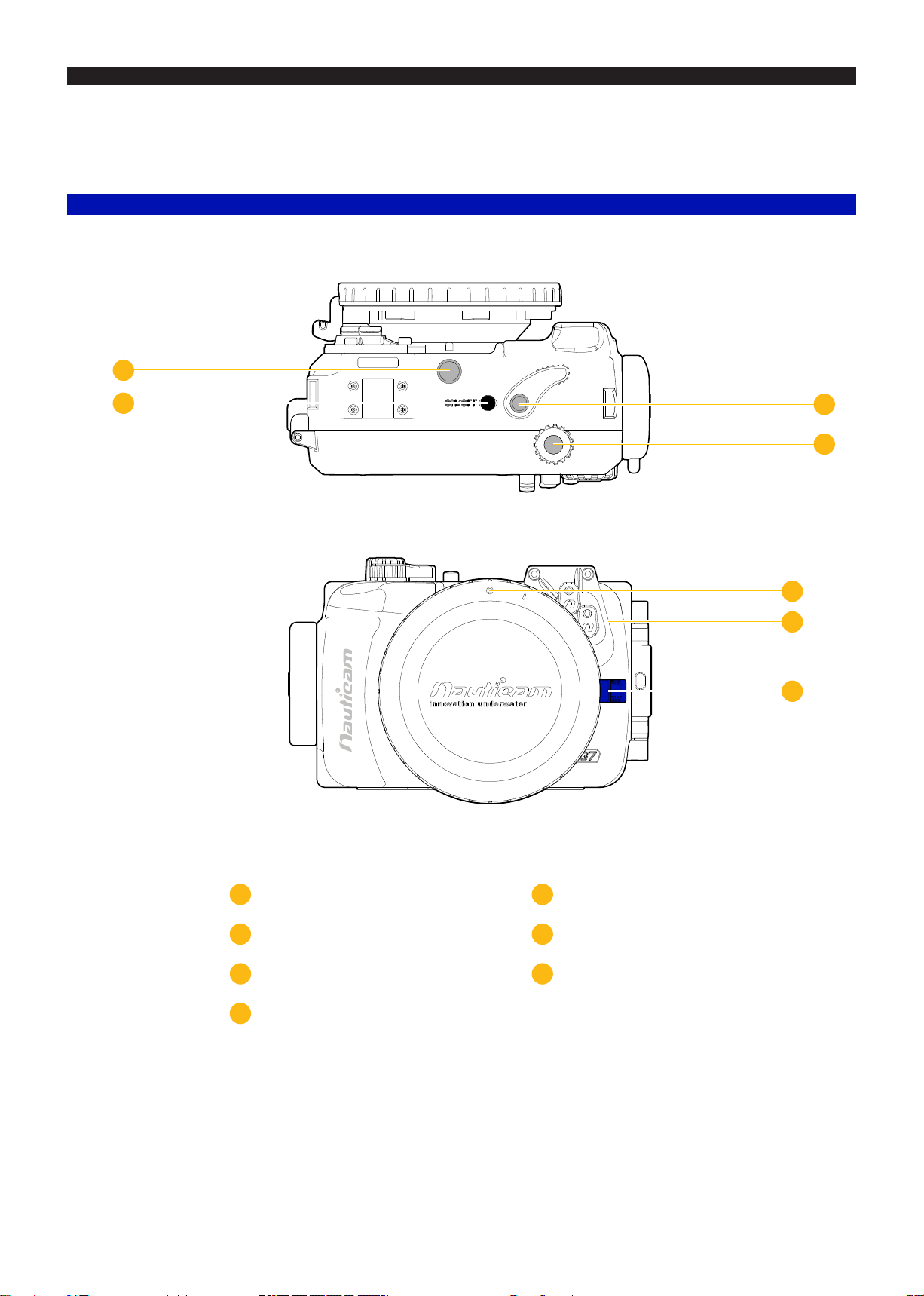

PART NAMES AND FUNCTIONS
M10 Accessory port
Optical bre mount
Lens release button
ON/OFF lever
Zoom/Focus knob release Rear dial
Port index mark
1
5
2
6
7
3 4
Top + Front Views
5
6
7
1
23
4
6

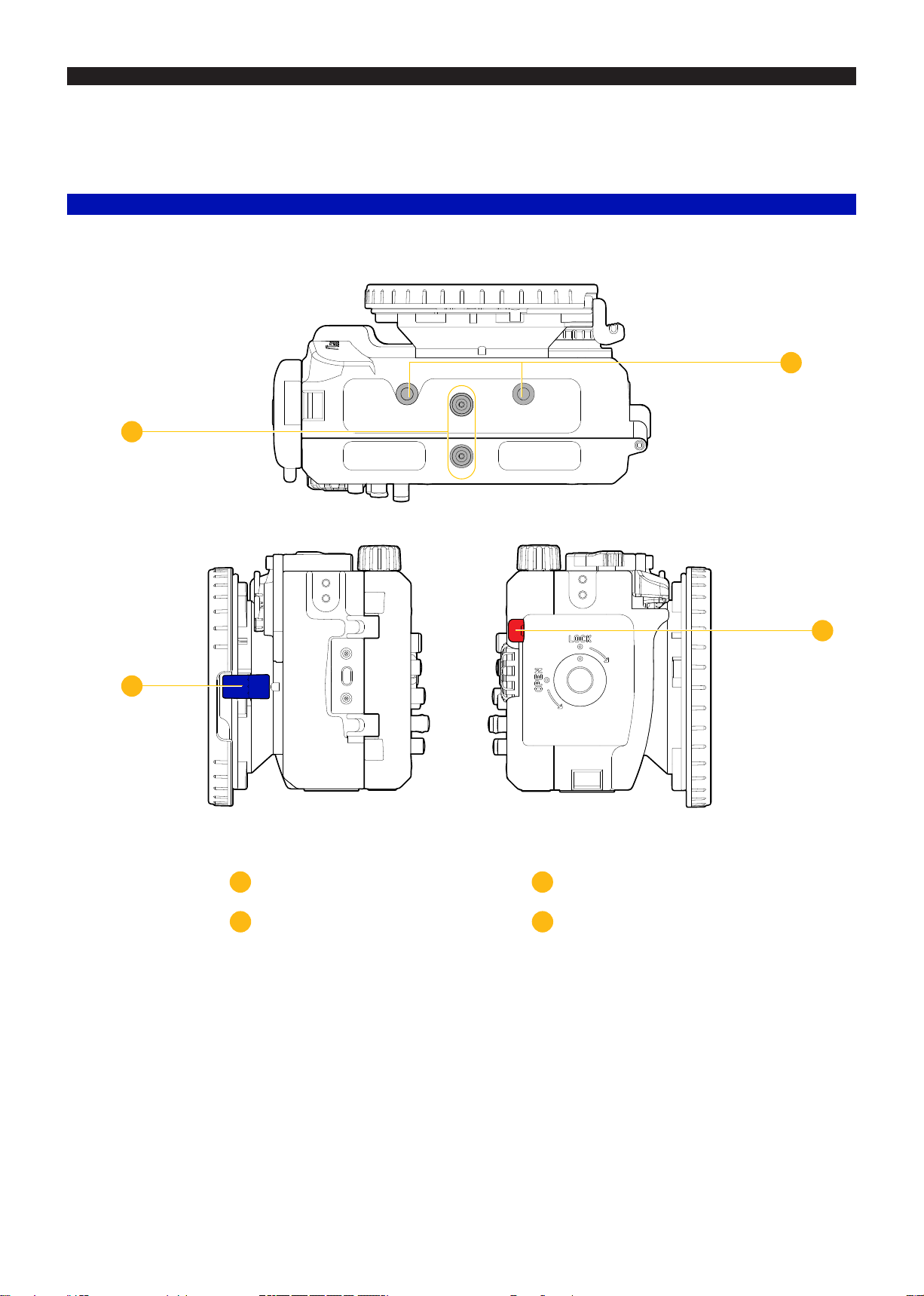

PART NAMES AND FUNCTIONS
Bottom + Side Views
Lens release button Housing unlock button
Sacricial zinc anodes 1/4” Threaded tripod holes
3 4
1 2
4
2
1
3

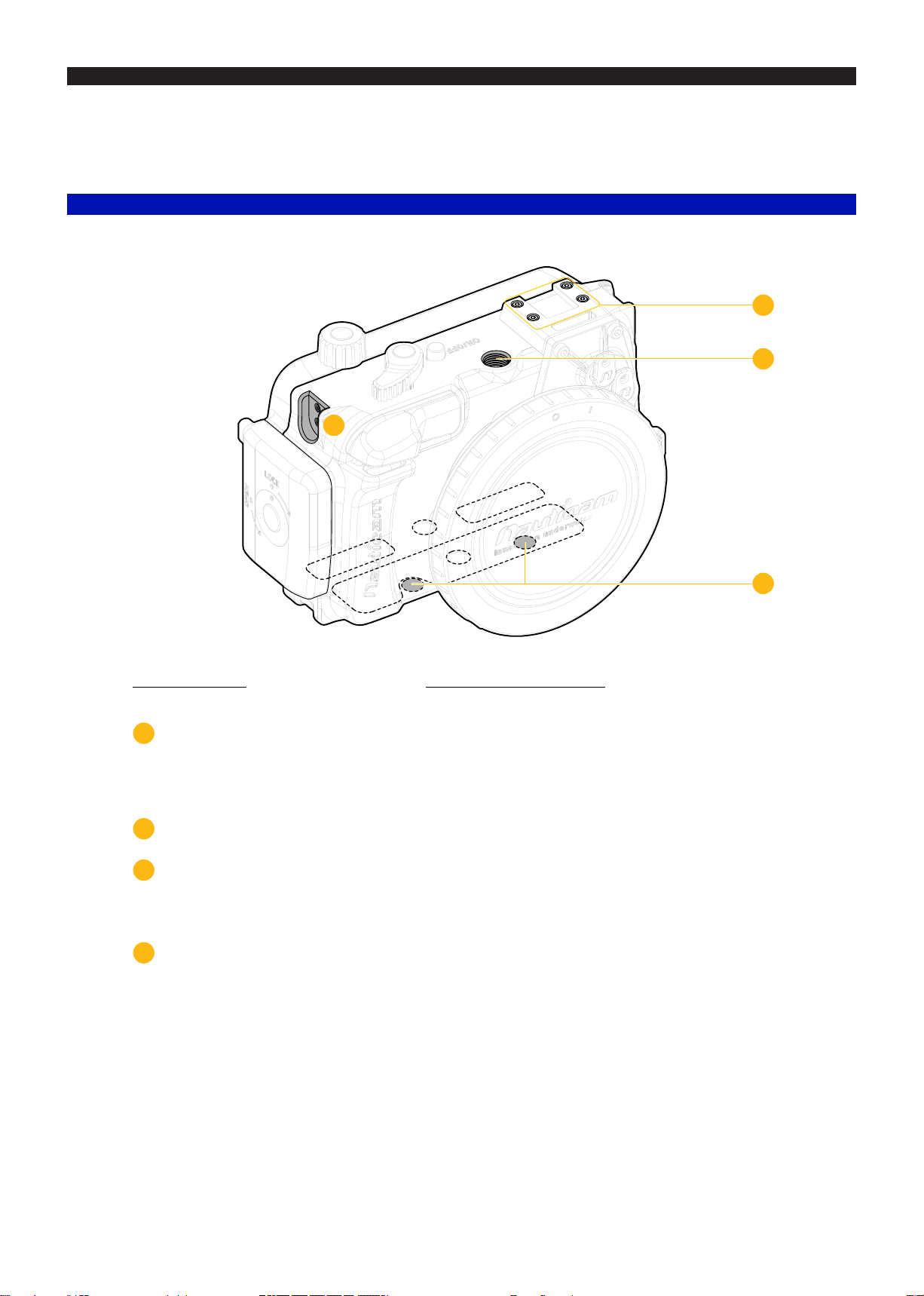

HOUSING MOUNT
Cold shoe
M10 Accessory port
Hand straps and housing tray
1/4” -20 Mounting threads
1
2
3
4
Compatible accessoriesHousing mount
25311
25312
25321
25322
25221
71206
71207
71208
17954
17960
Strobe Mounting Ball for Cold Shoe
Light Mounting Stem for Cold Shoe
Long Strobe Mounting Ball for Cold Shoe
Long Light Mounting Stem for Cold Shoe
M10 Strobe Mounting Ball for Housing
Easitray II with Left Handle
Flexitray II with Left Handle
Adjustable Right Handle II
Universal Tripod Plate
Universal Quadra-pod Plate
2
1
4
3
7
8

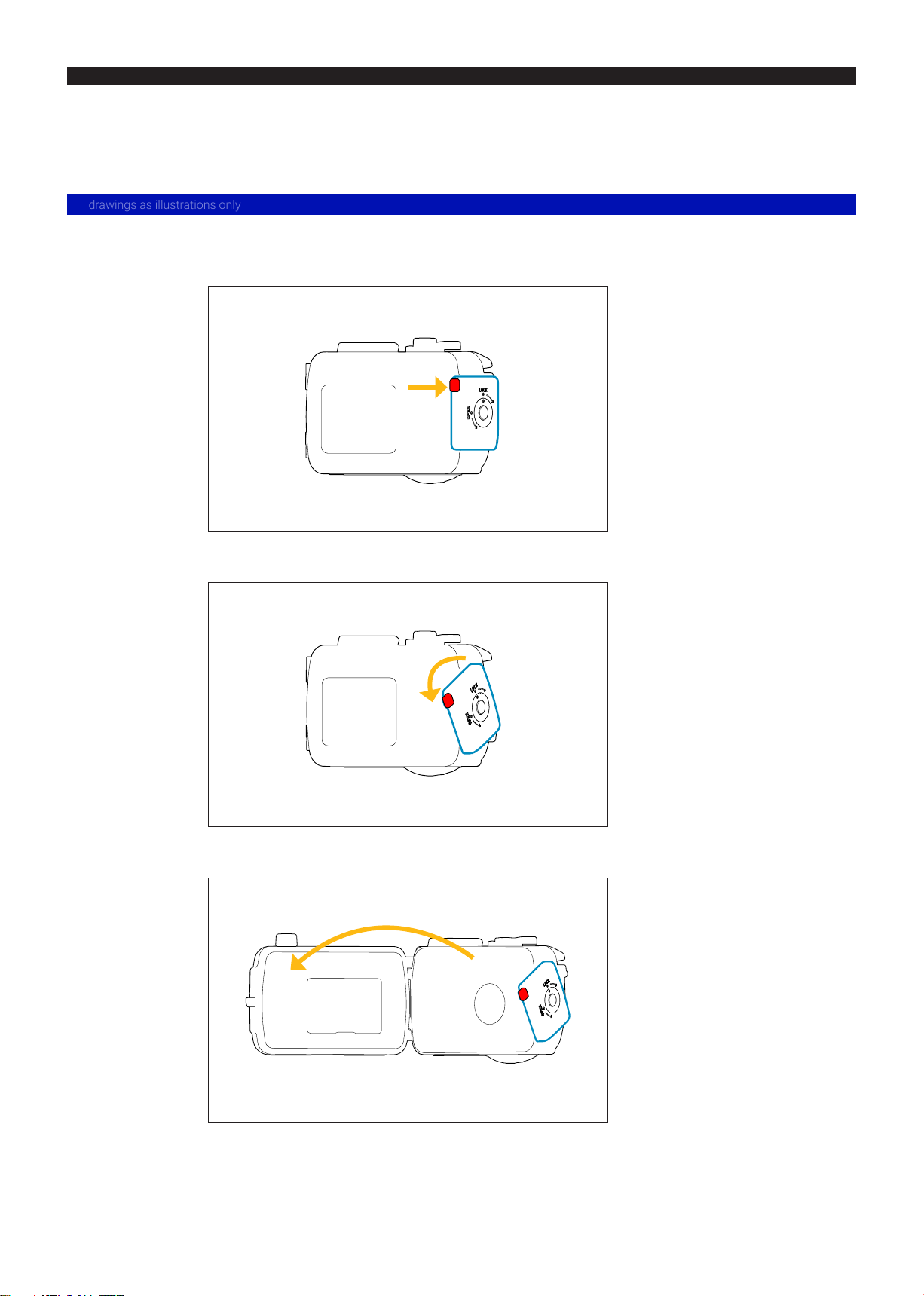

OPENING THE HOUSING
* drawings as illustrations only
1
2
3
depress housing unlock button
turn housing lock latch
anti-clockwise to open the
housing
ip open the back housing
when lock latch is aligned to
‘open’ position
9

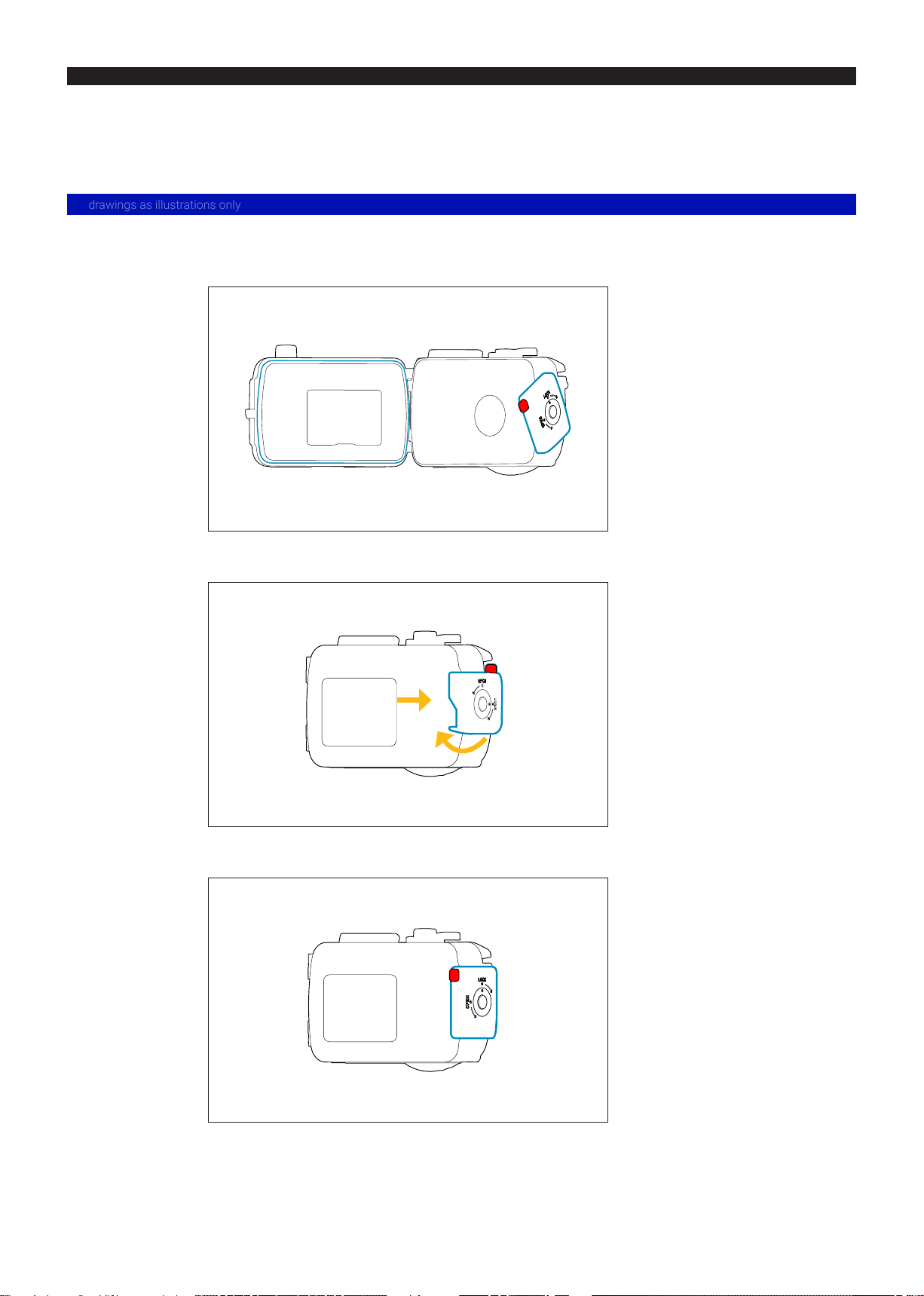

CLOSING THE HOUSING
* drawings as illustrations only
1
2
3
before closing the housing, clean
and lubricate the main O-ring
make sure nothing is caught
between front and back housing
and that they are fully aligned
before locking
main O-ring
insert the housing shaft into the
shaft hole and then rotate the lock
latch clockwise until you hear and
feel it click into place
housing locked in place securely
10

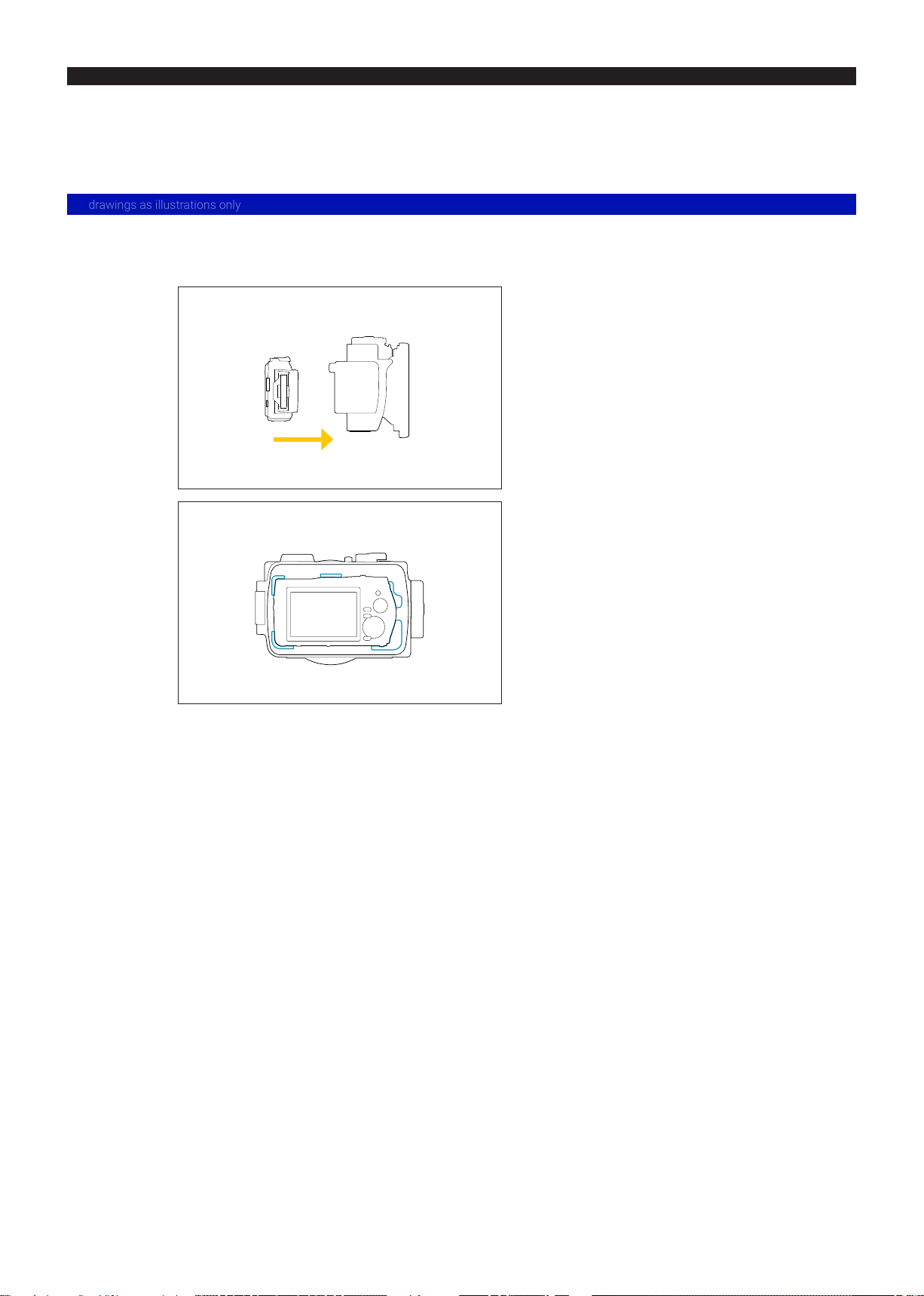

INSTALLING THE CAMERA
1
2
place the camera into the housing
make sure that the housing is engaged
and in-placed with camera holder
* drawings as illustrations only
