Nautilus F3DROW Manuale utente
Model: F3DROW
P/N: 001-4086 Rev A (03/20/07)
Assembly Manual
Commercial Free Weights
Row Tower
Be Strong.™
2
PREFACE/TABLE OF CONTENTS
Thank you for purchasing the Nautilus
®
Commercial Free Weights Row Tower. For more than 30 years Nautilus
®
has been producing the world’s finest fitness equipment used in health clubs and homes around the globe. We
hope this product exceeds your expectations and is a valuable tool for your facility.
Please carefully read through this manual to familiarize yourself with the operation of your new Nautilus
®
Row
Tower. Doing so will help to insure that your users get the most out of your tower, enjoying safe and effective
workouts ahead.
Nautilus, Inc.
World Headquarters
16400 SE Nautilus Drive
Vancouver, Washington, USA 98683
1-800-NAUTILUS
www.nautilus.com
TABLE OF CONTENTS
Safety Precautions/
Product Specifications ..............................3
Before You Assemble.................................4
Hardware and Tools ...................................5
Box Contents ...............................................6
Assembly Guide ..........................................16
Final Check...................................................30
Assembly Complete....................................31
Companion Exercise Equipment...............32
Limited Warranty.........................................33
Important Contact Numbers .....................34
3
Nautilus® Commercial Free Weights Row Tower Assembly Manual
SAFETY PRECAUTIONS/PRODUCT SPECIFICATIONS
IMPORTANT SAFETY INSTRUCTIONS
The following definition applies to the word “WARNING” when used in this manual:
Used to call attention to POTENTIAL hazards that could result in personal
injury or loss of life.
READ ALL INSTRUCTIONS BEFORE USING THE MACHINE.
SAFETY PRECAUTION
Do not lay the machine flat when the weight stack is attached. Permanent damage to the machine will result.
PRODUCT SPECIFICATIONS
User Weight Capacity: 350 lbs / 158.7 kg
Dimensions (assembled): 46.5”w x 75”l x 92”h / 118.1 cm x 190.5 cm x 233.6 cm
Shipping Weight: 391 lbs / 177.3 kg
Net Weight: 351 lbs / 159.2 kg
Power Requirements: Self Generating
7!2.).'
!44%.4)/.
$!.'%2
)--%$)!4%!#4)/.2%15)2%$
#!54)/.
7!2.).'
!44%.4)/.
$!.'%2
)--%$)!4%!#4)/.2%15)2%$
#!54)/.
7!2.).'
!44%.4)/.
$!.'%2
)--%$)!4%!#4)/.2%15)2%$
#!54)/.
For your safety, perform
all assembly steps in the
sequence given. Improper
assembly can lead to injury.
Some components can
be heavy or awkward
to handle. Get help if
necessary.
4
BEFORE YOU ASSEMBLE
Note: Throughout this manual, all references to the left or right
side and to the front or back are made as if you were standing on
a level surface and facing the Row Tower.
Basic Assembly Principals
Here are few basic assembly tips that can make assembly of your
Nautilus®Commercial
Free Weights Row Tower
quick and easy.
1. You can make the assembly process go faster by gathering the
pieces you need for each step prior to starting the step.
2. As a general rule, and for all fasteners on your
Nautilus®
Commercial
Free Weights Row Tower
, turning toward the right
will tighten, turning towards the left will loosen. An easy way to
remember this is by remembering the expression, “Lefty loosey,
righty tighty.”
3. Not all of the tools needed to assemble your Nautilus®
Commercial Free Weights Row Tower are provided.
Refer to
the Tool List. You may find the use of a utility knife or scissors
beneficial during the unpacking and assembly process.
4. It is recommended that you use two people to assemble your
Nautilus® Commercial Free Weights Row Tower.
Positioning Your Nautilus® Commercial Free Weights Row
Tower
Take great care when moving your Commercial Free Weights
Row Tower into place prior to assembly.
The Row Tower is heavy and requires at least two people to
safely move from one location to another. Remove weights before
attempting to move the unit.
5
Nautilus® Commercial Free Weights Row Tower Assembly Manual
REF # DESCRIPTION QTY
1 CLIP, CARABINEER 2
2 PLASTIC PLUG 2
3 SCW-BHCS 0500x1.25 G5-BLKZ 3
4 SCW-BHCS 0500x2 G5-BLKZ 2
5 SCW, BHSC 0500x3 G5-BLKZ 6
6 SCW, BHSC 0500x3.25 G5-BLKZ 4
7 SCW, BHSC 0500x6.5 G5-BLKZ 2
8 SCW, BHSC 0500x6.75 G5-BLKZ 6
9 WSH-FLAT 0500 REGULAR BLKZ 44
10 NUT-NL 0500 G-5 BLKZ 21
11 SCW-BHSC 0375x3, G5-BLKZ 2
12 WSH-FLAT 0375 REGULAR BLKZ 2
13 SCW-SHCS 0250x1.75 G5-BLKZ 1
14 SCREW, BHCS 1/4x.75 TH CUTTING 1
15 WRENCH, ALLEN 5/32 1
16 WRENCH, ALLEN 3/16 1
17 WRENCH, ALLEN 7/32 BLK 1
18 WRENCH, ALLEN 5/16 BLK 1
HARDWARE CARD
HARDWARE NOT TO SCALE
TOOLS
NOT
PROVIDED
3/4” Wrench or Adjustable Wrench
9/16” Wrench or Adjustable Wrench
7/16” Wrench or Adjustable Wrench
5/16” Wrench or Adjustable Wrench
9
1
12
3
7
2
14
6
4
17
18
511
13
10
16
8
15
HARDWARE AND TOOLS
6
BOX #1
REF # DESCRIPTION QTY
1 ROD, STACK GUIDE 2
2 WELDMENT, LEFT UPRIGHT 1
3 WELDMENT, RIGHT UPRIGHT 1
4 WELDMENT, REAR UPRIGHT 1
5 BOX 1, TOP, F3DLATP 1
6 BOX 1, BOTTOM, F3DMIDR 1
7 TUBE, GUIDE ROD STOP 2
8 BUMPER, UPPER GUIDE ROD 4
9 GUIDE ROD BUSHING 2
10 WASHER-FLAT 0750 NARROW BLKZ 2
5
1
4
3
2
6
8
9
10
7
BOX CONTENTS
7
Nautilus® Commercial Free Weights Row Tower Assembly Manual
BOX #2
REF # DESCRIPTION QTY
1 ASSEMBLY, TOP WEIGHT 1
2 WELDMENT, UPPER TRIANGLE, ROW 1
3 ASSEMBLY, LOOSE PARTS, F3DROW 1
4 ASSEMBLY, HARDWARE 1, F3DROW 1
5 BOX 1, BOTTOM, F3AT 1
6 BOX 2, TOP, F3DROW 1
7 STEM PIN, CFW STACK 1
8 ASSEMBLY, STACK PULLEY 1
9 ASSEMBLY, LOWER TRIANGLE 1
10 DROW ASSEMBLY MANUAL 1
6
5
3
8
4
2
9
17
10
BOX CONTENTS
8
BOX #3
REF # DESCRIPTION QTY
1 ASSEMBLY, ROW SEAT 1
2 ASSEMBLY, LOW ROW ATTACHMENT 1
3 BOX 3, TOP, F3DROW 1
4 BOX 3, BOTTOM, F3DROW 1
5 COVER PLATE 1
3
4
5
2
1
BOX CONTENTS
9
Nautilus® Commercial Free Weights Row Tower Assembly Manual
BOX #4
REF # DESCRIPTION QTY
1 BOX 4, TOP, F3DLATP 1
2 BOX 4, BOTTOM, F3DLATP 1
3 ASSEMBLY, MILITARY SEAT 1
1
3
2
BOX CONTENTS
10
WEIGHTS, 10 LB.
3
2
WRAP PLATES IN
ONE PLASTIC BAG
PRESS BUSHINGS INTO
WEIGHT PLATES PRIOR TO SHIPPING
REF # DESCRIPTION QTY
1 BOX, 10LB PLATES 1
2 WEIGHT PLATE, 10LB, BOTTOM 5
3 STANDARD GUIDE ROD/WEIGHT BUSHING 10
BOX CONTENTS
Indice
Altri manuali Nautilus Attrezzature per il fitness
Nautilus
Nautilus NT-CC1 Manuale utente
Nautilus
Nautilus U624 Manuale utente
Nautilus
Nautilus 19-4944 Manuale utente
Nautilus
Nautilus Inspiration Strength NP-B7509 Istruzioni operative
Nautilus
Nautilus F3SU Manuale utente
Nautilus

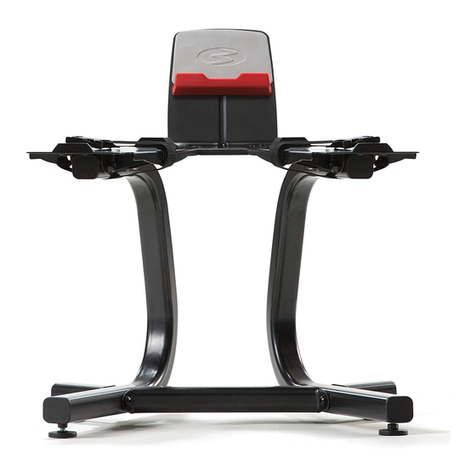

Nautilus Bowflex SelectTech Stand Manuale utente
