Nautilus Be Strong Commerical T912 Manuale utente
Be Strong.™
Model: T912, T914, T916
P/N: 001-6976 Rev A (07/27/2006)
Service Manual
Commerical Series Treadmill
Model: T912
Model: T914
Model: T916
2
ATTENTION!
THIS MANUAL IS INTENDED FOR AUTHORIZED NAUTILUS OR NAUTILUS CERTIFIED
SERVICE PERSONNEL AND NOT FOR THE CONSUMER. THERE ARE NO USER
SERVICEABLE PARTS. SERVICING OF THE NAUTILUS COMMERCIAL SERIES
TREADMILL BY OTHER THAN AUTHORIZED NAUTILUS OR NAUTILUS CERTIFIED
SERVICE PERSONNEL MAY RESULT IN VOIDING OF THE WARRANTY.
FOR DETAILED INSTRUCTIONS AND INFORMATION ON ASSEMBLY AND USE FOR THE
NAUTILUS® COMMERICAL SERIES TREADMILL, MODELS T912, T914 AND T916, REFER
TO THE ASSEMBLY AND OWNER’S MANUALS.
The information contained in this service manual is current as of the date of print.
SECURE LONG HAIR AND LOOSE CLOTHING BEFORE WORKING NEAR THE TREADMILL
WALKING SURFACE OR PULLEYS.
3
Nautilus® Commercial T9 Series Treadmill Service Manual
TABLE OF CONTENTS
SECTION ONE: MAINTENANCE
Viewing Maintenance Information - 5
Model T912 5
Model T914 & T916 5
Routine Maintenance Schedules
Cleaning 6
Adjusting Belt Tension 7
Adjusting Belt Tracking 8
Replacing the Walk Belt 8
Replacing the Contact Heart Rate (CHR) Sensors
(Model T914 & T916 Only) 12
Updating the Console Firmware
Model T912
Model T914 & T916 14
SECTION TWO: CONSOLE CODES
Overview
Model T912 17
Model T914 & T916 19
Console Cardio Codes 20
Service Screen Overview 22
Cardio 23
Owner-Defined Custom 26
Machine Status 31
Diagnostic 33
Maintanence Logs 35
Magnetic Key Limit Access Control 36
SECTION THREE: TROUBLESHOOTING ELECTRICAL
PROBLEMS - MODEL T912
Common Electrical & Electronic Problems 40
Error Reporting 42
Troubleshooting Flowcharts 43
Wiring Schematics and Reference Tables 49
SECTION FOUR: TROUBLESHOOTING ELECTRICAL
PROBLEMS - MODEL T914 & T916
Commom Electrical & Electronic Problems 54
Error Reporting 55
VSD 57
Troubleshooting Flowcharts 58
Electrical Troubleshooting Guide 61
Wiring Schematics and Reference Tables 66
SECTION FIVE: TROUBLESHOOTING MECHANICAL
PROBLEMS
Common Mechanical Problems and Solutions 70
Replacing the Grade Actuator Motor 71
Replacing the Drive Motor 75
SECTION SIX: PARTS LIST AND EXPLODED VIEWS
Model T9.12 79
Model T9.14 93
Model T9.16 107
SECTION SEVEN: APPENDIXES
Appendix A: Required Tools & Lubricants 122
Appendix B: Using a Multimeter 123
Appendix C: International Power Plug Configs 126
Appendix D: Specifications 127
IMPORTANT CONTACT NUMBERS 129
4
Maintenance
1
Contents
Viewing Maintenance Information .........................................5
Routine Maintenance Schedules ...........................................5
Daily ...................................................................................6
Cleaning ................................................................................6
Daily ...................................................................................6
Weekly ...............................................................................6
Treadmill Interior ................................................................6
Adjusting Belt Tension ...........................................................7
Adjusting Belt Tracking ..........................................................8
Replacing the Walk Belt ........................................................8
Replacing the Contact Heart Rate (CHR) Sensors .............13
Updating the Console Firmware ..........................................14
Model T912 ....................................................................14
Model T914 & T916 ........................................................14
SECTION ONE: MAINTENANCE
Section
5
Nautilus® Commercial T9 Series Treadmill Service Manual
Viewing Maintenance Information
Model T912
The total time and distance the treadmill has been in use can be viewed using the Maintenance Screens.
This information can help you schedule treadmill maintenance and check treadmill usage.
To view the treadmill’s total Run-time and total Distance information:
1. Press and hold ENTER and STOP keys on the console for at least 3 seconds.
2. Use the INCLINE UP/DOWN keys to scroll to ConF selection.
3. Press the QUICKSTART key.
4. Use the INCLINE UP/DOWN keys to scroll to view TOTAL HOURS and TOTAL MILES.
Model T914 & T916
In addition to the total time, the distance the T914 or T916 treadmill has been in use can be viewed using
the Machine Status console codes.
To view the treadmill’s run-time information:
1. Press the SPEED UP key on Ergo Bar, then 4, ENTER on the console.
2. The words "Machine Status" will be displayed.
3. Press the SPEED UP key on Ergo Bar, and scroll to "Run Hours".
4. The current Run Hours will be displayed.
5. Press the CLEAR key to exit.
To view the total distance the treadmill has been used:
1. Press the SPEED UP key on Ergo Bar, then 4, ENTER on the console.
2. The words "Machine Status" will be displayed.
3. Press the SPEED UP key on Ergo Bar and scroll to "Distance".
4. The current Distance in the current machine units (Miles/KM) will be displayed.
5. Press CLEAR to exit.
Routine Maintenance Schedules
Performing routine maintenance will help prevent unnecessary wear to the treadmill and/or injury to the
user. The maintenance schedules are meant only to serve as a guide. Depending on where and how the
treadmill is being used, more frequent routine maintenance may be required.
SECTION 1: MAINTENANCE
6
Daily
• Inspect the power cord and walking belt for wear.
• Check the position of the walking belt. Verify it is not rubbing against the frame. The belt should be
evenly spaced on the deck within 0.25 inches of each side rail. Adjust the belt if necessary.
• Check the optional side handrails to ensure they are fastened securely.
• Remove potential hazards from the treadmill area.
Cleaning
Keeping the Nautilus® Commercial series T9 treadmill clean on a regular basis will help to improve
operation and increase the lifespan of the components.
Daily
• Keep the treadmill and controller free of dust and debris. Use a damp sponge to wipe the exteriors
and walking belt; do not soak surfaces. Dry all surfaces thoroughly.
Weekly
• Elevate the treadmill to maximum incline and vacuum the floor under it to prevent excess dust and
dirt from interfering with operation.
• If the magnetic key is being used, check it for rust. If you detect rust, replace the magnet. Rust on
the magnetic key will cause power-up problems.
Treadmill Interior
DANGEROUS VOLTAGES ARE PRESENT UNDER THE TREADMILL HOOD. EXERCISE
CAUTION WHEN PERFORMING SERVICE TO THE ELECTRICAL COMPONENTS UNDER
THE HOOD.
SECTION 1: MAINTENANCE
DRY MOP THE DECK UNDER THE BELT ONLY. DO NOT ADD ANY LUBRICANTS—ADDING
LUBRICANTS CAN RUIN THE PROPRIETARY FRICTION-CONTROL SURFACE.
DO NOT USE DETERGENTS OR CLEANING AGENTS ON ANY PART OF THE DECK.
DO NOT LET LIQUID ENTER THE TREADMILL OR CONTROLLER. IF IT DOES, THE
EQUIPMENT MUST BE INSPECTED AND TESTED FOR SAFETY BY A NAUTILUS®-
APPROVED TECHNICIAN BEFORE IT CAN BE USED AGAIN.
7
Nautilus® Commercial T9 Series Treadmill Service Manual
Figure 1: Adjustment Bolts
SECTION 1: MAINTENANCE
DO NOT OVERTIGHTEN THE WALKING BELT. DO NOT TORQUE ADJUSTMENT SCREWS
BEYOND 80 IN-LBS (9 N-M) MAXIMUM. OVERTIGHTENING THE BELT WILL REDUCE
BELT LIFE AND DAMAGE THE ROLLER BEARINGS.
Depending upon the treadmill environment, dust and or lint can accumulate under the hood. Clean the
interior of the treadmill following the procedure below:
1. Turn the treadmill circuit breaker off, and unplug the treadmill power cord.
2. Remove the two (2) screws on the treadmill hood.
3. Lift off the hood.
4. Clean inside the unit.
5. Reinstall the hood and the two (2) screws.
6. Plug in the treadmill power cord, and switch on the treadmill circuit breaker.
Adjusting Belt Tension
Adjust the belt tension whenever the belt slips or
moves unsteadily during operation by following the
steps below:
1. Start by loosening the two (2) adjustment bolts
(see Figure 1).
2. With the walking belt loose, place two marks
35 inches (89 cm) apart on each side of the belt
near the edge. The belt must be loose enough for you to move it from side-to-side on the front or
rear roller (see Figure 2).
3. Turn the adjusting bolts clockwise by equal amounts until the marks are between 35-3/16 inches
and 35-5/16 inches apart. Proper tension for the walking belt is between .5%–.6%. This should
be about six full turns of each adjustment bolt from the point where the belt begins to stretch.
Important: Do not exceed 35-5/16 inches.
35.0"
35.0"
Figure 2
(89 cm)
(89 cm)
8
4. Test the belt by running on the belt at about four (4) mph. Hold the handrail lightly and resist the
belt movement with your feet.
5. If you feel the belt slip on the front roller, increase the tension of each adjustment bolt by 1/2 turn
and re-test. If you feel the belt slip again, check the tensioner adjustment.
Adjusting Belt Tracking
Perform this procedure whenever the belt moves to one side or the other. Stay off the belt when adjusting
the tracking.
1. Start the treadmill at minimum speed and grade.
2. Increase speed to six (6) mph, and make the following adjustment:
2.1. If the belt moves to the right, turn the right adjustment bolt 1/4-turn clockwise.
2.2. If the belt moves to the left, turn the left adjustment bolt 1/4-turn clockwise.
3. After making an initial adjustment, run the treadmill for five (5) minutes and observe how the
belt tracks. If the belt continues to move away from the center, adjust the appropriate side until
properly centered.
Replacing the Walk Belt
Perform this procedure whenever the walk belt is still too loose after adjusting the tension or when the
belt is worn or frayed.
SECTION 1: MAINTENANCE
DO NOT USE ALL YOUR WEIGHT TO RESIST THE BELT MOVEMENT. TOO MUCH
RESISTANCE APPLIED TOO LONG (MORE THAN TWO SECONDS) MAY SHUT DOWN
THE SYSTEM. (VARIOUS ERROR MESSAGES WILL APPEAR IF THIS OCCURS. CYCLE
POWER TO RESUME NORMAL OPERATION.)
DO NOT CUT THE BELT—DOING SO WILL CAUSE THE REAR ROLLER TO FALL AND SNAP
THE ALIGNMENT PINS ON THE END CAP.
9
Nautilus® Commercial T9 Series Treadmill Service Manual
1. Remove the Treadmill Hood
1.1 Turn the treadmill circuit breaker off, and unplug the power.
1.2 Remove the Front Trim, Right Lower Cover, Left Lower Cover, and Top Motor Covers.
2. Remove the Rollers

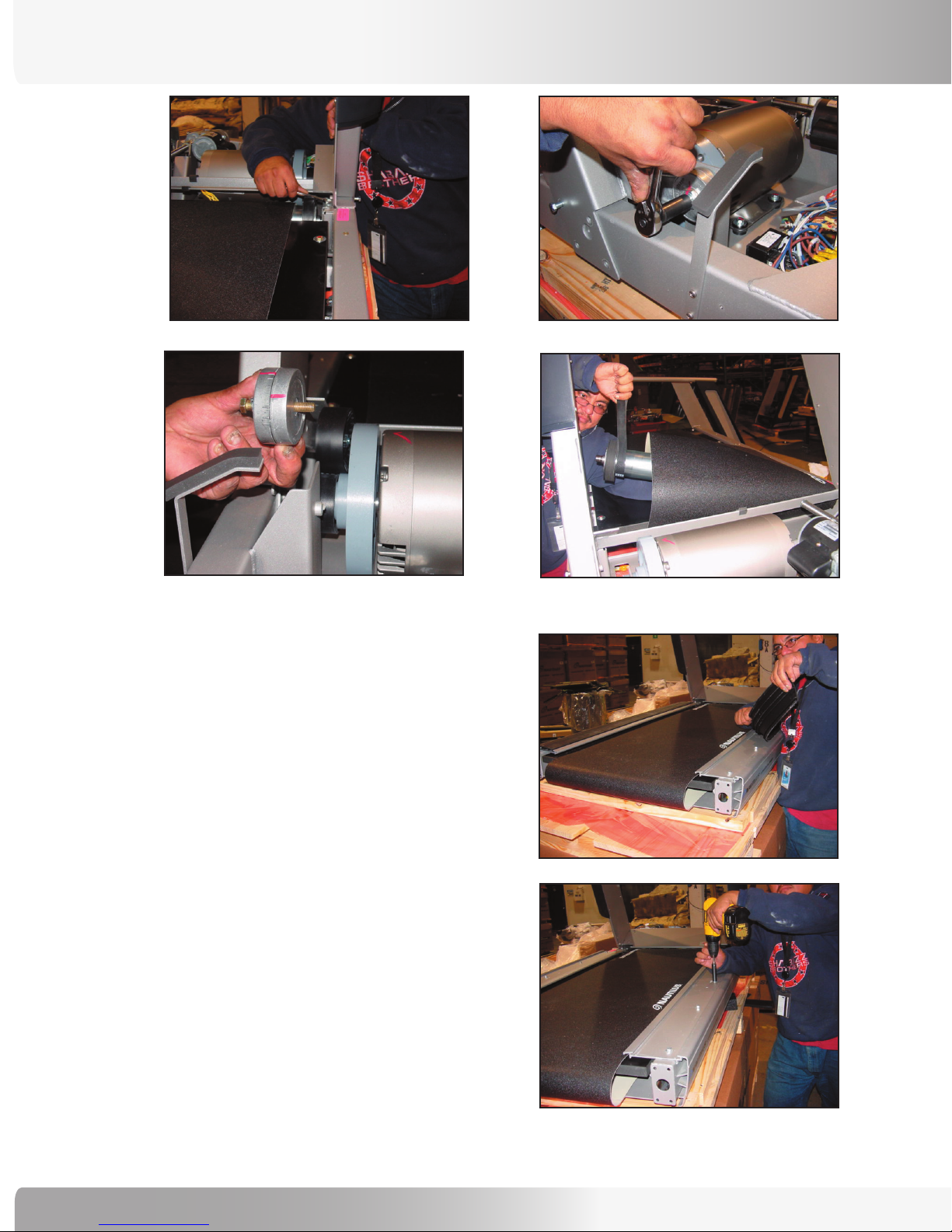

2.1 Remove the left and right end caps (see Figure 2.1 and
2.2).
2.2 Carefully slide the roller out from the machine (see
Figure 2.3).
2.3 Remove the Kick Plate and four (4) screws (see Figure
2.4).
2.4 Remove the Pivot Bolt on the left and right side of the
Upright Weldment (see Figure 2.5).
2.5 Remove the screw from the Front Roller Retaining
Bracket on the left and right side, then remove the
brackets (see Figure 2.6).
2.6 Remove the Bolt and Tensioner assembly from the frame (see Figure 2.7 and 2.8).
2.7 Slide the Front Roller over to the left, then use the belt to lift and slide out the roller from the
machine (see Figure 2.9).
SECTION 1: MAINTENANCE
Figure 2.3
Figure 2.4 Figure 2.5
Figure 2.1
Figure 2.2
10
3. Removing the Deck

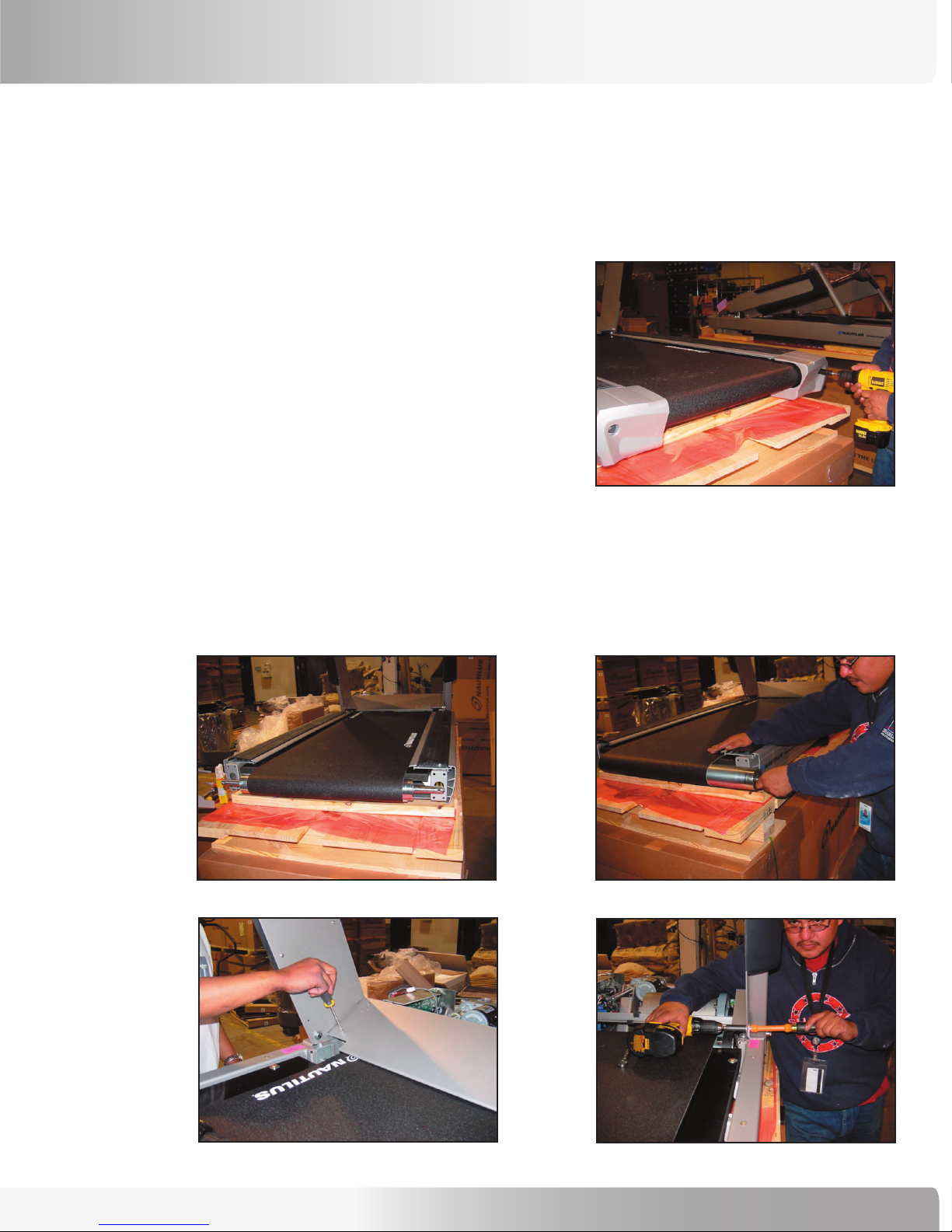

3.1 Remove the right and left Rubber Side Extrusion
exposing the Side Rail Bolts (see Figure 3.1).
3.2 Remove the right Side Rail Bolts and Side Rail exposing
the Deck Bolts, then repeat for the left side (see Figure
3.2).
3.3 Remove the left side Deck Bolts, then repeat for the
right side (see Figure 3.3).
3.4 Lift and slide the Walk Deck out and replace if needed
(see Figure 3.4).
3.5 Reverse steps when re-installing the Walk Deck.
IMPORTANT: When reattaching the Walk Deck with the
Deck Bolts, apply a small amount of Loctite
#243 on the threads and torque to 15 in. lbs.
SECTION 1: MAINTENANCE
Figure 2.6 Figure 2.7
Figure 2.8 Figure 2.9
Figure 3.1
Figure 3.2
Altri manuali per Be Strong Commerical T912
2
Questo manuale è adatto per i seguenti modelli
2
Indice
Altri manuali Nautilus Tapis roulant
Nautilus
Nautilus PRO SERIES TREADMILLS T7.14 Manuale utente
Nautilus
Nautilus StairMaster ClubTrack 2100 Series Manuale utente
Nautilus
Nautilus Be Strong Commerical T912 Manuale utente
Nautilus
Nautilus Trimline T523 Manuale utente
Nautilus
Nautilus T7.16 Manuale utente
Nautilus
Nautilus T618 Manuale utente
Nautilus
Nautilus T684 Manuale utente
Nautilus
Nautilus T9 Series Manuale operativo
Nautilus
Nautilus T618 Manuale utente
Nautilus
Nautilus NTR300 Manuale utente
Nautilus
Nautilus Be Strong Commerical T916 Istruzioni per l'installazione e il funzionamento
Nautilus
Nautilus Sport Series Manuale utente
Nautilus
Nautilus Be Strong Commerical T916 Manuale utente
Nautilus
Nautilus Sport Series T516 Manuale utente
Nautilus
Nautilus M-7001 A Manuale di installazione e funzionamento
Nautilus
Nautilus PRO T7.14 Manuale utente
Nautilus
Nautilus T624 Manuale utente
Nautilus
Nautilus Be Strong Commerical T916 Manuale utente
Nautilus
Nautilus T628 Manuale utente
Nautilus
Nautilus Commercial Series TreadClimber TC916 Manuale utente
