NNG-Toyota 4
Navigation interface for select Toyota vehicles
NTV-KIT596
NTV-DOC227
Toyota 4 Navigation System Installation
1 | P a g e
2014 –2015 Highlander (non-apps Pioneer Radio)
2015 Camry (non-apps Pioneer Radio)
** Toyota 4 navigation system only compatible to vehicles listed above. All
compatible radio should be non-apps radio (basic Pioneer radio with 6.1” touch
screen). Please verify the radio has no APPS button on front plate for this system to
install and work properly. **
WARRANTY DISCLAIMER NOTICE! Radio removal, disassembly, installation of Navigation
Electronics, and Radio re-assembly / re-installation is the responsibility of the installer. It is recommended
that you contact a professional installer that is experienced with proper work methods involving electronics
and knowledgeable of specific procedures for radio disassembly, Navigation Electronics installation, and
re-assembly / re-installation of the Radio Head Unit in the vehicle. INSTALLATION DAMAGE TO
THE VEHICLE RADIO HEAD UNIT IS EXPRESSLY NOT COVERED UNDER THE PRODUCT
WARRANTY.
To avoid dangerous distractions that may lead to an accident, the driver should never operate the system
while the vehicle is in motion. Before installing the product, the seller should inform the end-user of
proper use and compliance with the proper instructions and all states and federal laws.
Before beginning your installation, familiarize yourself with the installation instructions and the Navigation
system components.
CAUTION: It is advisable to disconnect the negative battery cable for 3 minutes before beginning
installation, to avoid unintended air bag deployment. Note and record any anti-theft radio codes prior to
disconnecting.

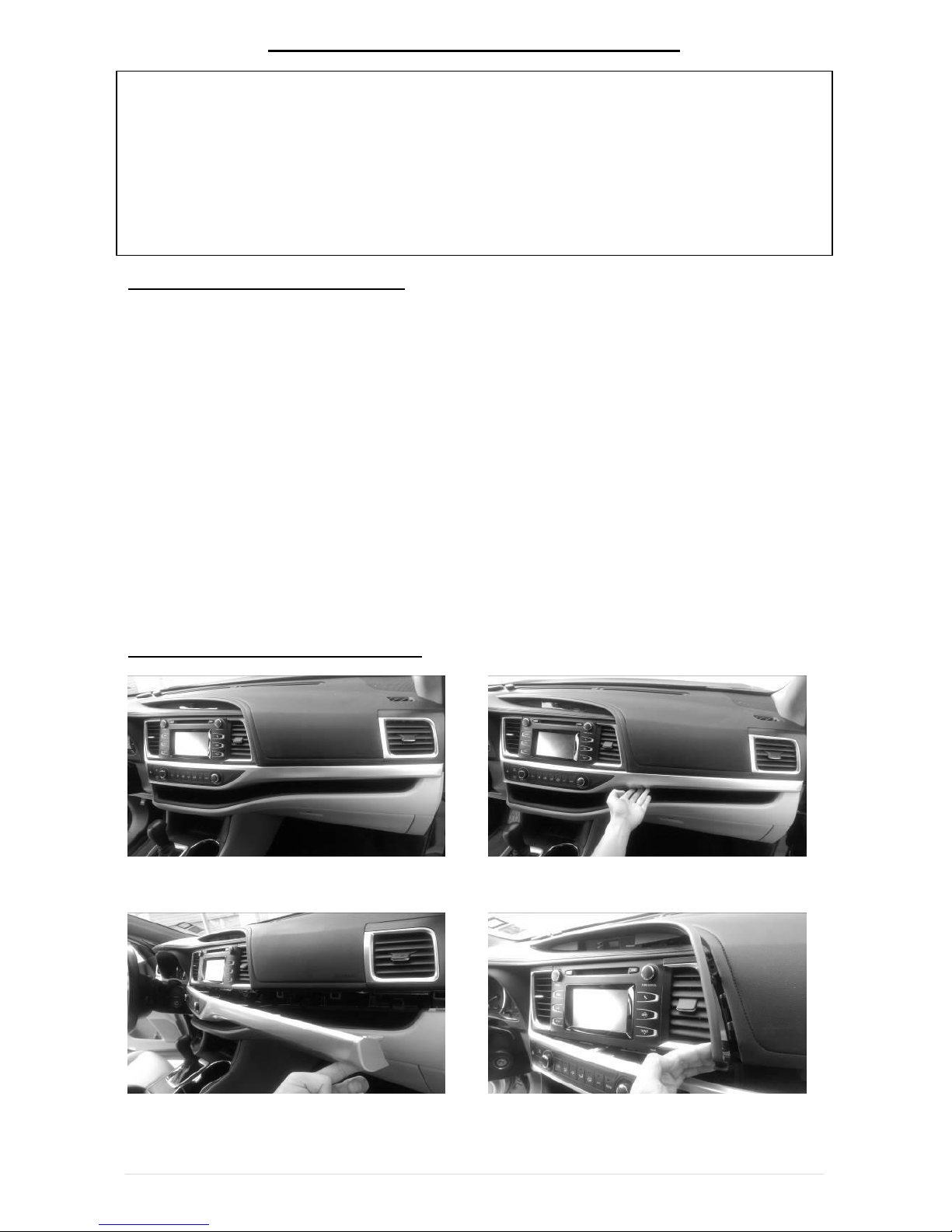

Highlander Dash / Radio Removal
Factory Radio / Dash Pull and remove bottom trim piece by hand
Pull and remove A/C control with trim Pull and remove top trim piece by hand
NTV-DOC227
Toyota 4 Navigation System Installation
2 | P a g e

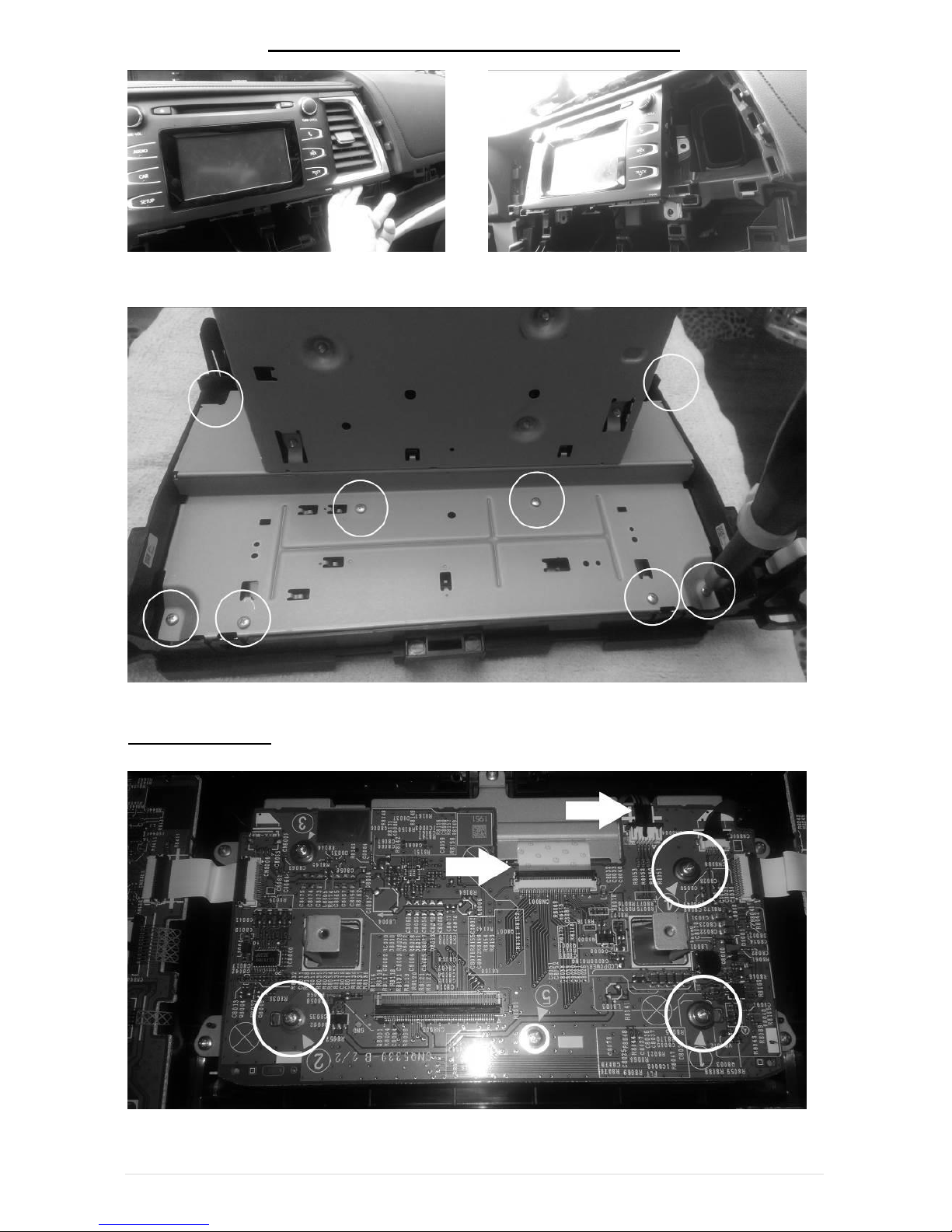

Remove both air vents from dash Remove (4) 10 mm bolts from radio bracket
Remove radio brackets from both side and remove (8) small screws from back plate
PCB Installation
Remove (3) screws as indicated and release (2) ribbons cables from sockets carefully
NTV-DOC227
Toyota 4 Navigation System Installation
3 | P a g e

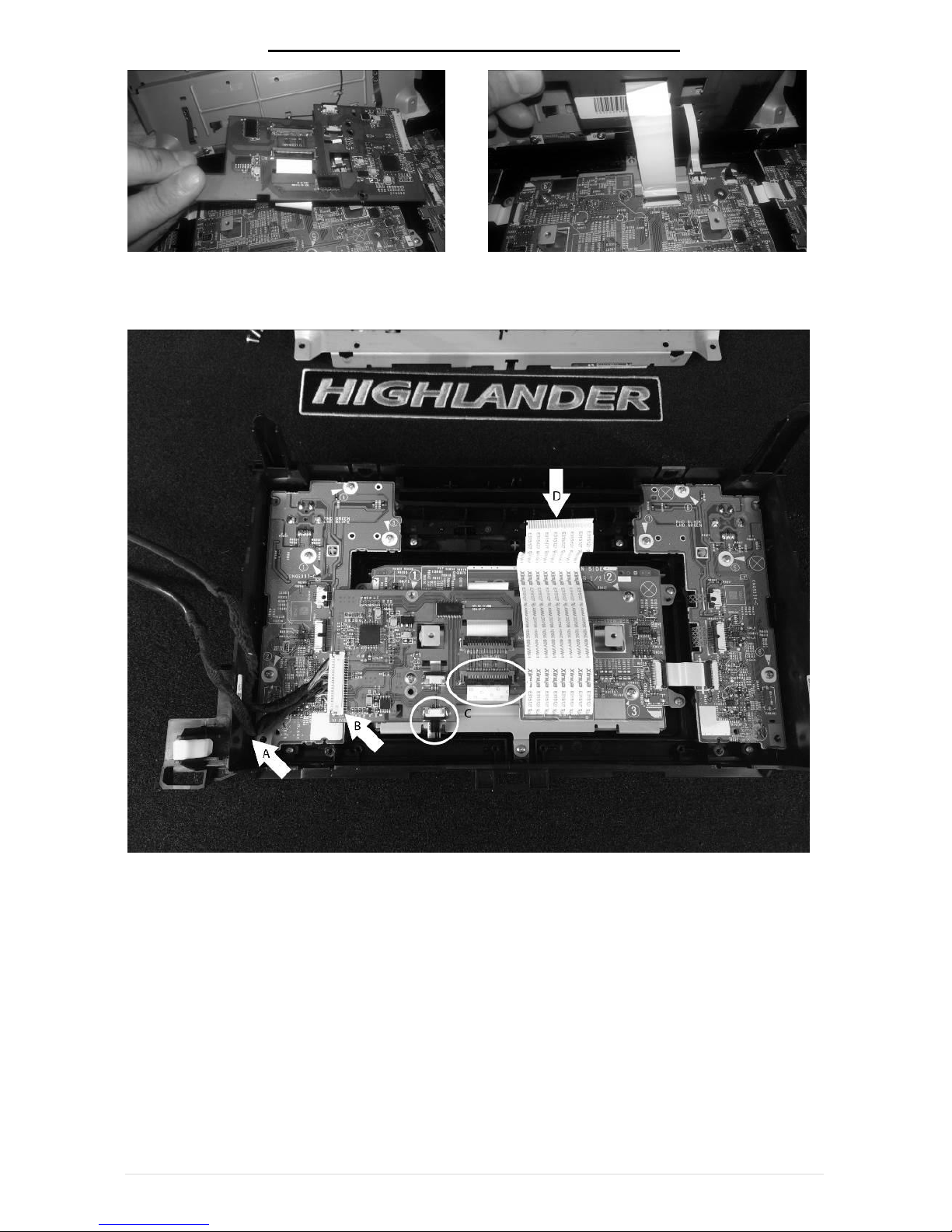

Carefully route supplied PCB ribbon cable thru the slot. Then connect both display and touch
ribbon cable to factory board as shown
Connect factory ribbon cables to the PCB as shown above and secure the board with supplied
studs and screws
A + B Connect the 2in1 cable to the socket with METAL pin facing up and route cable to
the left bottom as indicated
C Connect the factory ribbon cables to PCB. Align properly ensure fully seated inside
of sockets
D Factory connecting ribbon cable to radio chassis should be routed under the PCB as
shown
NTV-DOC227
Toyota 4 Navigation System Installation
4 | P a g e

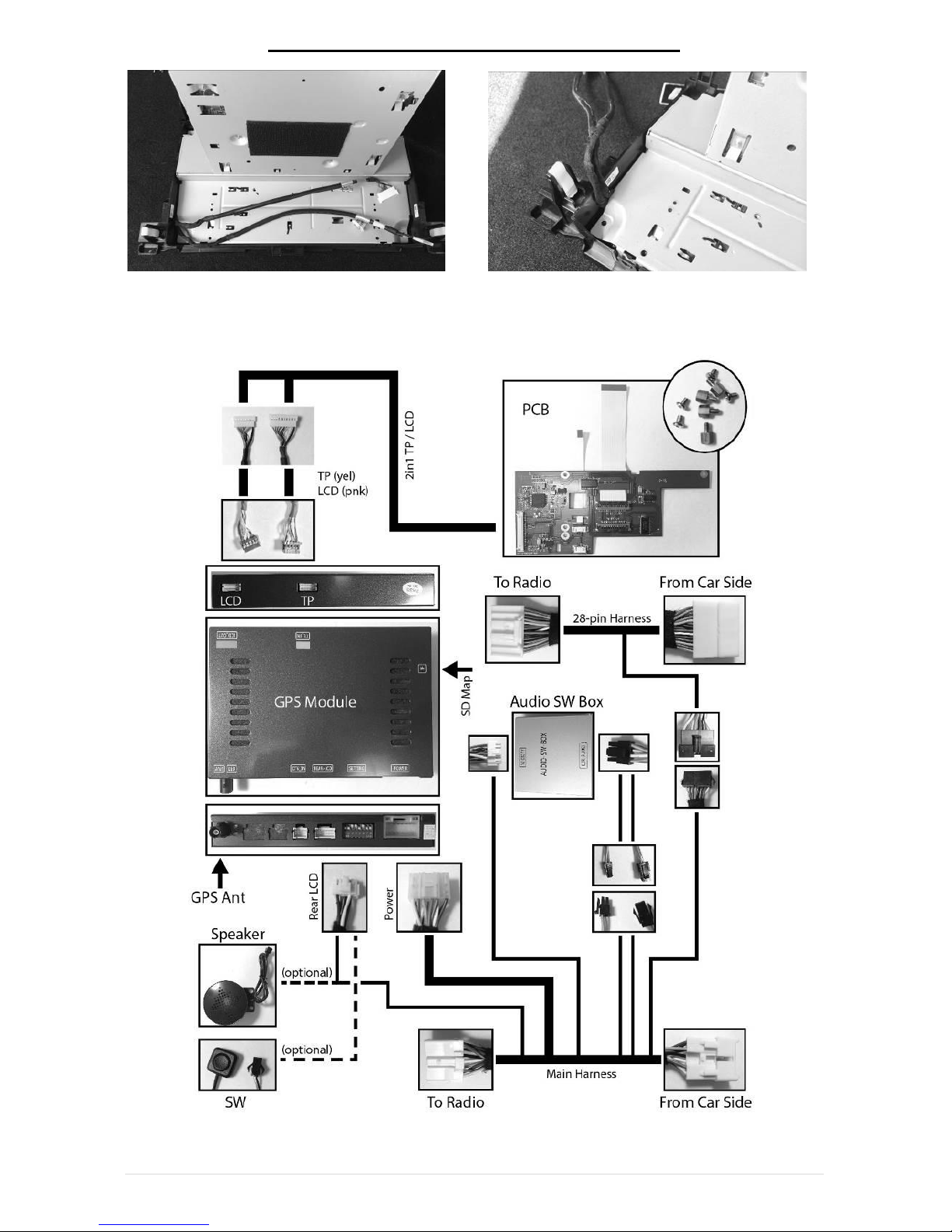

2in1 cable should exit the radio as shown. There is a small gap for it. Be carefully not to
interfere with the screw hole as it might damage the cable when put screw back in.
Refer to previous page for system wiring connections
NTV-DOC227
Toyota 4 Navigation System Installation
5 | P a g e
Connect GPS Antenna to GPS Module (best GPS Antenna location is under passenger
side A-pillar cover, on top of dash)
Test system thoroughly before re-assemble of the radio and dash
Test reverse camera function
Test driver side speaker integration function (mute and voice from navigation software)
Trouble Shooting
Please follow all the steps in this installation manual, failure to do so might
void the product warranty and damage the factory radio
Power
GPS Module has (2) led lights as indicators when system is power on.
Both led lights should lit with good power. If any of the light is
dimmed, you should check for B+ and ACC power sources.
Display
No Display
1. There are two led lights at the GPS module to indicate data
and power. If led lights are OFF and radio is ON, check the
power fuse inside the black box from the main harness
2. Check all wiring connectors for any loose connection
3. Check all wiring shielding for any damage during the
installation process
4. Check all wiring for any type of damage
5. Check PCB ribbon cables for loose, misalignment, or
damage
No Touch Response
1. Check both Radio mode and NAV mode for touch responses
2. Check led lights for power and data indications
3. Check 2in1 TP/LCD IN cable for any loose connection, or
damage
4. Check PCB ribbon cables for loose, misalignment, or
damage
No GPS software loaded, touch screen alignment screen occurred
