USER M ANUAL DRONE-WF20

To help get you started, please refer to t he quick connection guide below

Action Drone Indicator Remote Indicat or

1 Turn on Drone Fast then slow flash -

2 Turn on Remote Slow flash Slow RED flash

Connection (Thrott le up then down before begin)

3 Connection successful Solid light RED light off

4 Press launch / land but ton, then throt tle up t o take off

5 Press the launch / land butt on / throt tle dow n to land

Note:

Drone Double flashes Drone not paired

Drone Fast flashes Flat batt ery / Cannot connect

USER M ANUAL DRONE-WF20

SAFETY PRECAUTIONS

Keep t he batt ery away from heat sources such as fire and sun

Store t he batt ery in a cool dry place

When recharging, only use t he bat tery charger intended for t hat purpose

Don’t over-charge the batt ery

Don’t charge the batt ery for more than tw o hours

Don’t leave a charging batt ery unattended

Please read t hrough the manual before use and st ore for later reference.

Please store small part s in a place well out of the reach of small children

Keep all body part s away from the drone while t he rot or blades are spinning

Never t ry to repair internal circuitry. This product has no serviceable parts

Keep small parts out of reach of children as they can be a choking hazard.

Do not rush your flight. Alw ays st ay in control.

After flight, turn the DRONE off first , then t urn the cont roller off.

Do not fly your Drone in prohibited areas, such as near airport s or near/ above people

Children should operate a drone only wit h adult supervision

Always keep sight of your drone while flying and resist t he urge t o fly t oo high

Always t urn the power off on the controller and DRONE w hen not in use.

BATTERY PROTECTION

This DRONE is equipped wit h low-voltage protection. When a bat tery is low on charge, the program med

cont rol system w ill st op the DRONE’s rotors. The batt ery will then need re-charging before use

M AINTENANCE

Clean the DRONE w it h a clean, dry soft cloth only. To avoid irreparable damage, keep the DRONE dry

and away from w ater such as rain. Check the DRONE and accessories for damage before flight . If

damage is found, do not use t he DRONE unt il it is repaired.

REM OTE CONTROL BATTERY INSTALLATION

Remove t he batt ery cover screw using the

supplied screw driver. Remove t he battery

cover and insert 4 X 1.5V AAA batt eries,

according to indicat ed polarit y (bat t eries

not included). Reatt ach t he cover and

tighten the screw.

Note: Batt ery inst allation should be done

under adult supervision. Do not mix old and new batteries inside the controller.

USER M ANUAL DRONE-WF20

CHARGING YOUR DRONE BATTERY

Connect your drone battery to a USB charger, such as a PC, using t he supplied USB cable. You can also

remove t he batt ery from the drone for charging. (See det ails below .)

Note: The bat tery is fully charged once the GREEN st at us indicat or on t he batt ery turns off.

HOW TO REM OVE THE BATTERY FROM THE DRONE

Depress both t op and bot t om locking latches toget her and carefully slide t he

bat tery out.

USER M ANUAL DRONE-WF20

REM OTE CONTROL

No.

Function

Description

Power

Indicator

Illuminates w hen power is turned on

Connection

indicator Flashes RED during t he connection process. Turns off when connected.

Camera Indicator

(Not available on

this model)

The light w ill blink once while t aking picture and remain on while recording

video (Not available on this model)

Take picture

record video

(Not available on

this model)

Press one t ime for taking picture, press for 3 seconds for recording video

(Not available on this model)

4 Flip

ush

the control stick in

(

as opposed to up or down). A

repeating

BEEP will

then sound alerting you that you are in FLIP mode. Then, use the right cont rol

stick to flip the drone in the selected direction. Once the flip is complet e, the

BEEP sound will stop. Repeat t his process for multiple flips.

Right St ick

rive

the drone forwards, backwards, left or right

Trim butt on

(See explanat ion below)

Trim butt on

(See explanat ion below)

8 Headless mode

Press once

to select

headless mode

. Press

again t o

exit

headless

mode.

Not e: Headless mode will always drive t he drone forwards, no mat t er which

way the front of the drone is facing.

9 One key ret urn

funct ion

Drives the drone back t o it s

original st art

area

(manua

l landing then required)

Note: The DRONE and user must stay in the same orientat ion from each

ot her, in order for t his function t o operate correctly.

Trim butt on

(See explanat ions below )

Left Stick

M ove up and down to control speed and side t o

side to rot at e

12 Speed Select

Press

in (as opposed to up or down) There are 3 different speeds; slow ,

medium and fast . These are indicated by one, two or three BEEPs)

13 Unlock / Take off /

Land / Emergency

Press once to unlock the drone and to start the rotors for take-off.

Press after your flight , to land t he drone.

Not e: During flight press and hold for 5 seconds for an emergency stop.

9 8

USER M ANUAL DRONE-WF20

SIM PLE OPERATING STEPS

BASIC OPERATION CONTROLS

Note: When the drone is flying t owards you, t he control directions are reversed.

Check t he left stick is in

t he cent er posit ion.

Turn on the cont roller

sliding the power but t on

across

Turn on the DRONE. (The

LED light on the drone w ill

flash rapidly

then, slowly

)

Place t he DRONE

on a level posit ion.

Slowly p

ush the

left stick

then

down. A double beep will sound

(w hen successful). The LED light on

the drone w ill t hen remain on. The

DRONE is ready to fly.

Press t he start

butt on

to start flying. Press

again after your flight

to begin your landing.

USER M ANUAL DRONE-WF20

AUTO TRIM FUNCTION

Press both cont rol sticks down and left t o 45 degree circle (image

right) for 10 second. The indicators on the drone will begin to

flash rapidly. When complet e, t he indicators will t hen st op flashing.

M ANUAL TRIM FUNCTION

From time t o t ime your drone can

benefit from a t rim adjust ment. Trim

adjustment can be used t o keep your

drone hovering in t he same place,

w hich is especially useful w hile t aking

phot os or manoeuvring in t ight

places.

Forw ard

ackw ard

Trim

Left / Right

rot at ion Trim Left / Right

side Trim

USER M ANUAL DRONE-WF20

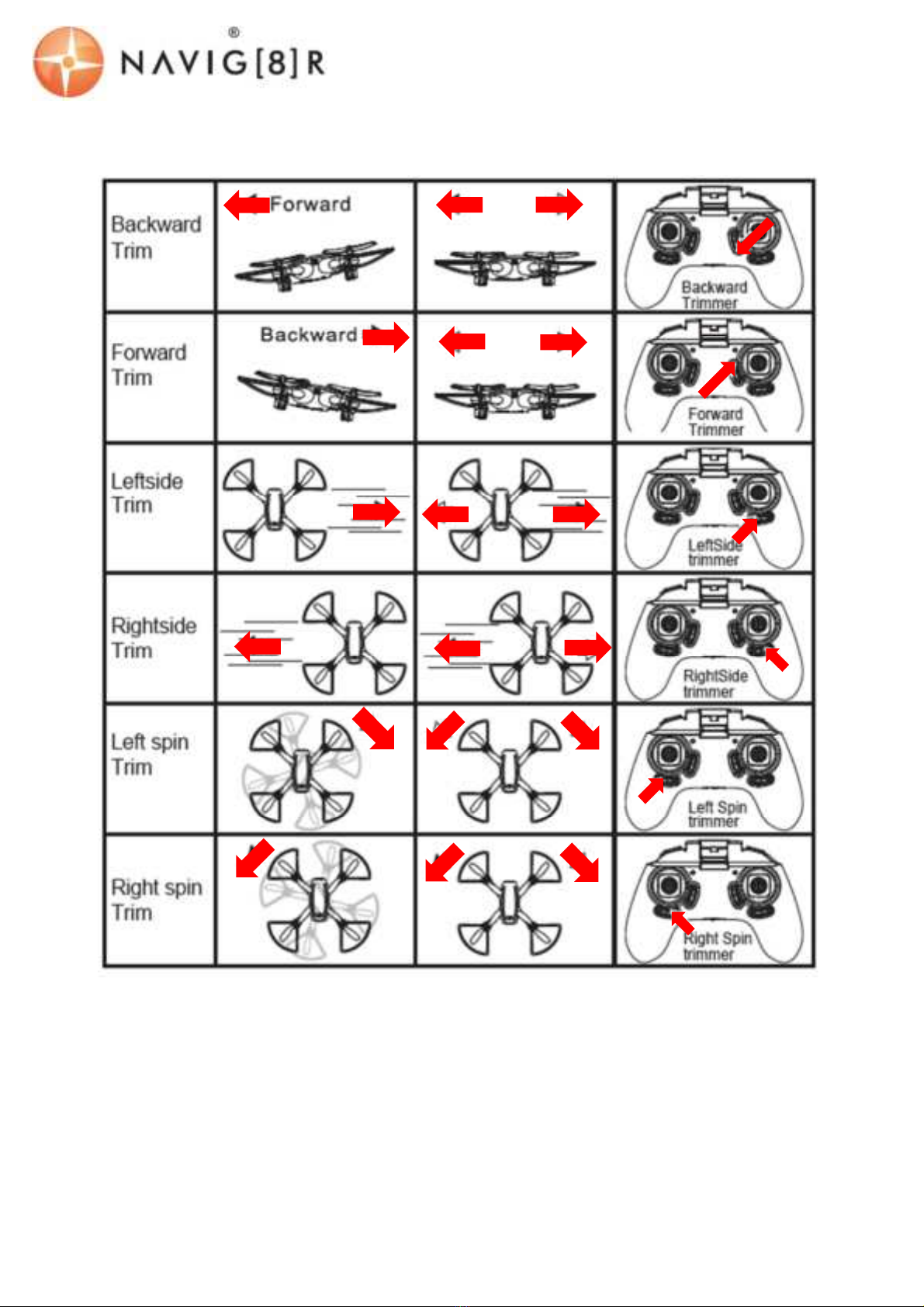

M ANUAL TRIM EXPLAINED

USER M ANUAL DRONE-WF20

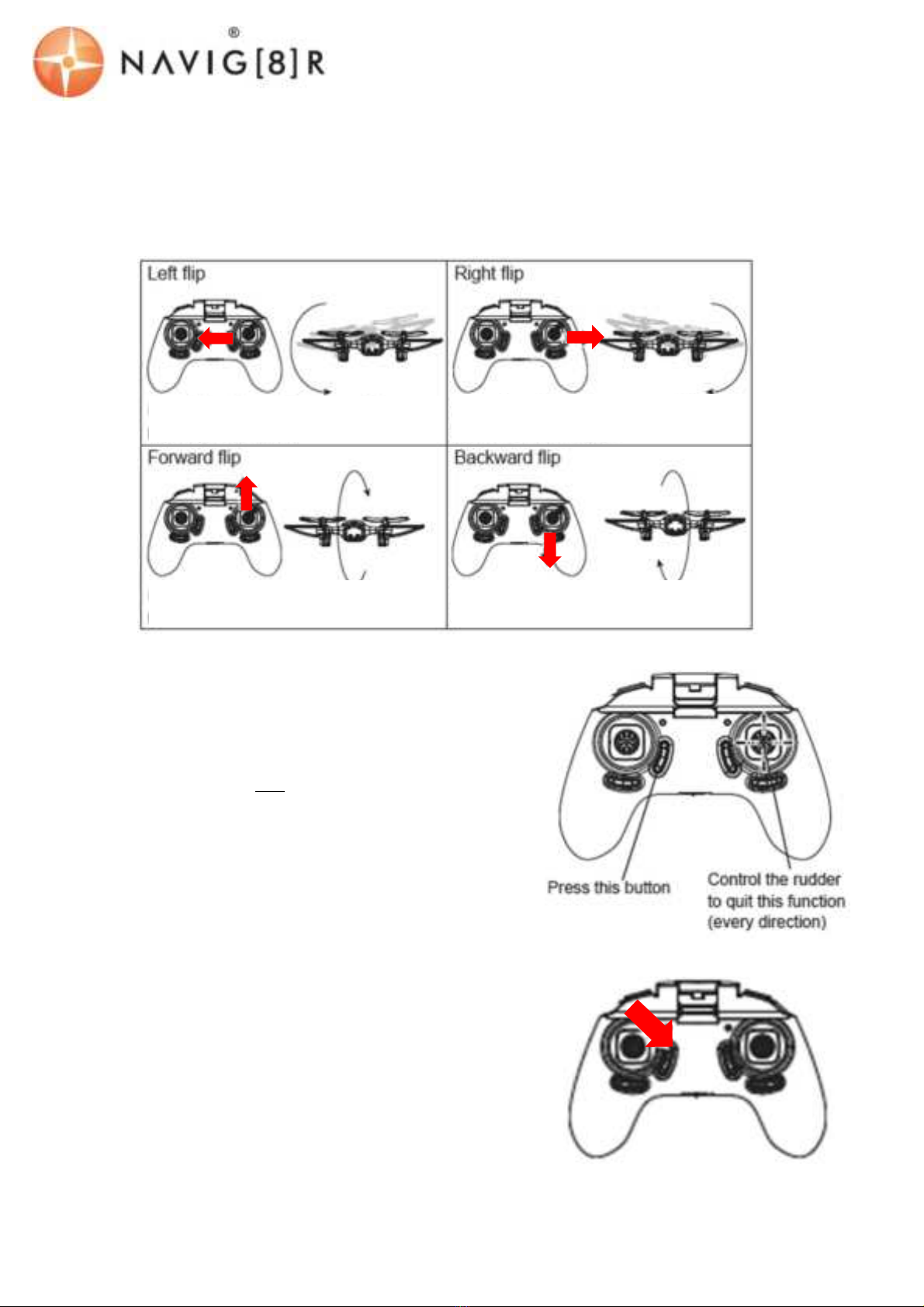

TRICKS: FLIPS & ROLLS

Press the right stick in once (as opposed to up or down) A continuous beep w ill t hen sound. Then m ove

the right stick again in t he direct ion you w ish the drone t o flip (Left , right, forwards or backw ards)

Note: Before you perform a flip t rick, alw ays make sure you have enough space bot h above and below

your DRONE.

ONE KEY RETURN FUNCTION

Press t he but ton as depict ed (right) for one key ret urn. You

can move the cont rol stick in any direction t o cancel t his

command.

Note: When t he drone is first turned on and the LED

indicat ors st op flashing, t his is when t he drone set s t he

forward facing side as the front of t he drone. If t he drone

isn’t pointing t he right w ay at t ake off, it will not be able t o

effectively ret urn to the start area. If you w ant t o reset the

front direction, you need to t urn your Drone off t hen on again

to reset .

HEADLESS FUNCTION

In headless mode, t he drone w ill alw ays fly forward if flow n

forward (and in any ot her direct ion) regardless of which way

the drone is facing. Essentially, t his feat ures removes the

drone’s awareness of orient at ion w hen it has been rotat ed.

To enter t his mode, press the controller but ton as depict ed

(right). A beep w ill cont inuously sound as a reminder. You are

then t hen in headless flying mode. To quit this mode, just press

the same butt on again. A beep w ill sound as confirmat ion.

Press the right stick in, and t hen steer t o

the left

Press t he ri

ght stick in, and then st eer t o

the

right

Press the right stick in, and t hen steer t o

the

front

Press t he right st ick in, and then st eer t o

the

rear

USER M ANUAL DRONE-WF20

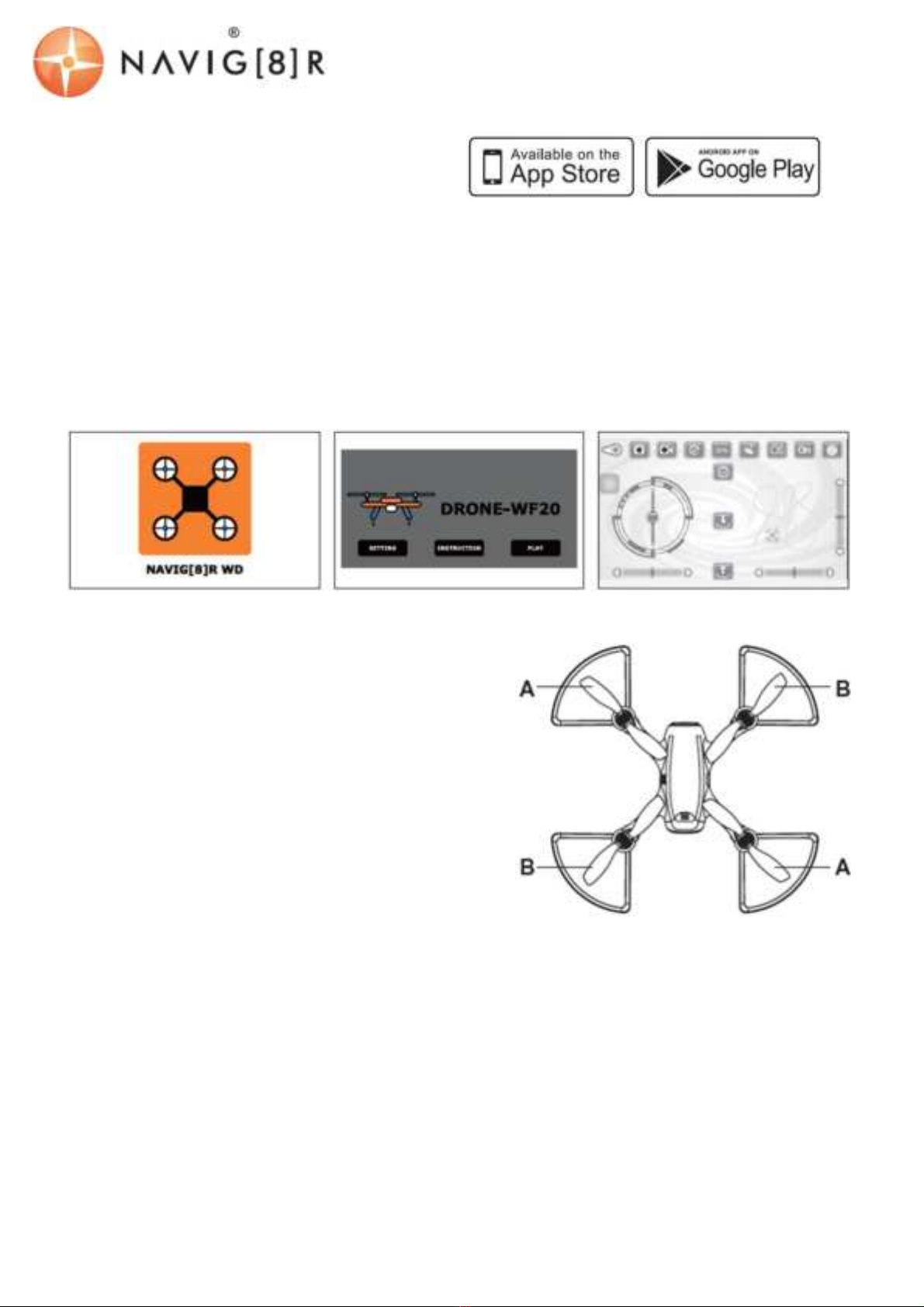

APP DOW NLOAD AND INSTALLATION

Visit t he App St ore (for Apple devices) or Google

Play (for Android Devices).

Search for and inst all “ NAVIG[8]R WD” or

“ HELICUTE 720P FPV”

CONNECTING YOUR DRONE

Ensure you have a Wi-Fi connection on your smart device and that it is t urned on.

Find t he Wi-fi net work called “ NAVIG[8]R WD” or “ HELICUTE 720P FPV”

Click t he connect button

Open your App and press the “ Play” icon

The cont rol panel will t hen display as t he screen shots below.

A streaming image w ill t hen finally appear on screen.

REPLACING DAM AGED BLADES

Your drone w ill come wit h 4 replacement propellers, t wo

type “ A” and t wo t ype “ B” . Use the supplied screwdriver

to remove the rot ars. Att ached t he new propeller then,

tighten back down t he screws.

Note: "A" and "B" will be mark on your drone, next t o t he

propellers.

SPECIFICATIONS

Batt ery requirements for remote: 4 X 1.5V “ AAA” size bat teries (not included)

USER M ANUAL DRONE-WF20
