Navman W300 Manuale utente
Setting options
NAVMAN
Press and hold to enter setup
Press repeatedly to step through the setting options.
Press both buttons together ( ) to start or stop editing
a setting option.
While editing, press or repeatedly to step through selectable states,
or increase/decrease values. Press and hold the appropriate button to
increase/decrease values quickly.
Set (12hr)
lets you set 12hr or 24hr time format
Set (31-12)
lets you set dd-mm or mm-dd date format
Beep
When beep is «ON» a beep will sound when the buttons
are pushed.
Set units (Kg)
lets you set weight units to «kg» or «lb»
User (weight)
lets you enter a value for your weight
This value will be used to calculate calories burned.
Set units (kcal)
lets you set energy units to «kcal» or «kJ»
These units are used to display energy burned in Cal mode.
Set units (km/h)
lets you set speed units to «km/h» or «mph»
Distance is displayed in units corresponding to the speed units, i.e. if you
choose «km/h» for speed units, then distance is displayed in «km».
Set offset
lets you adjust the W300 to display local time
The date is displayed to ensure that time adjustments are made in the
correct direction, i.e. both correct time and correct date should be
displayed. GPS signals must be obtained to set local time.
Press and hold to leave setup
W300 — Settings
Use the settings
NAVMAN W300 — Settings
settings editing details
KEY
= press this button
= press this button
= press both buttons together
edit accept
beep beep
beep ON
beep OFF
set units (km/h)
set units (mph)
set units (km/h)
set offset
set 12hr
set 31-12
set 24hr
set 12-31
set units (km/h)
set (12hr) set (12hr)
set (31-12)set (31-12)
time (date)
set units (kg)
set units (kg)
set units (lb)
set units (kg)
user (weight)
set units (kcal)
set units (kcal)
set units (kJ)
set units (kcal)
edit accept
edit accept
edit accept
edit accept
edit accept
edit accept
�
�
user (weight)
edit accept
�
�
Normal operating modes
Press to start normal operation
Press repeatedly to step through the modes (hold to
cycle automatically through modes).
Speed
shows session distance, current speed and pace
Speed (AVG)
shows session distance, average speed and pace
Odometer
shows total distance
Calories
shows calories burned
Clock
shows the current time and date
(You may need to adjust the settings to display your local time.)
Timer
shows session time
The timer starts automatically whenever you start moving and stops
whenever you stop moving.
Press and hold to shut down the W300
NAVMAN W300 — Modes
Use the modes
*
KEY
= press this button
= press this button
= press both buttons together
= press and hold both buttons together
NAVMAN W300 — Modes
AVG
8 7 2
3
Cal
modes operating details
Speed (AVG)
Odometer
Speed
Timer
Calories
clear all session data*
Clock
clear odometer only
clear calories only
clear all session data*
(*Does not clear odometer.)
�
�
�
�
�
�
clear all session data*
clear all session data*
QUICK START GUIDE
NOW YOU KNOW.
Be outdoors
The W300 is not intended for operation indoors or under
water as it uses Global Positioning System (GPS) satellites to
get time and date information, and to calculate distance and
speed. For best results, always use the W300 outdoors with
an unobstructed view of the sky.
L
1. Turn D-ring anti-clockwise and slide enclosure cover down to open battery
enclosure.
2. Insert battery with «» end as indicated inside enclosure.
3. Replace enclosure cover (ensuring lugs at the bottom of the cover are aligned
with slots in the enclosure surround), turn D-ring clockwise to seal.
Get ready
Step 1
Fit the battery
Fit the W300
The W300 is designed to be worn on the left upper arm.
You may wish to adjust some of the settings prior to fitting.
For best performance:
General use = Alkaline
Below 5 oC = NiMH
!
The control buttons, and (as shown above) are pressed
separately or together to turn the unit «ON» and «OFF», cycle
through modes, and select mode options.
Know the buttons

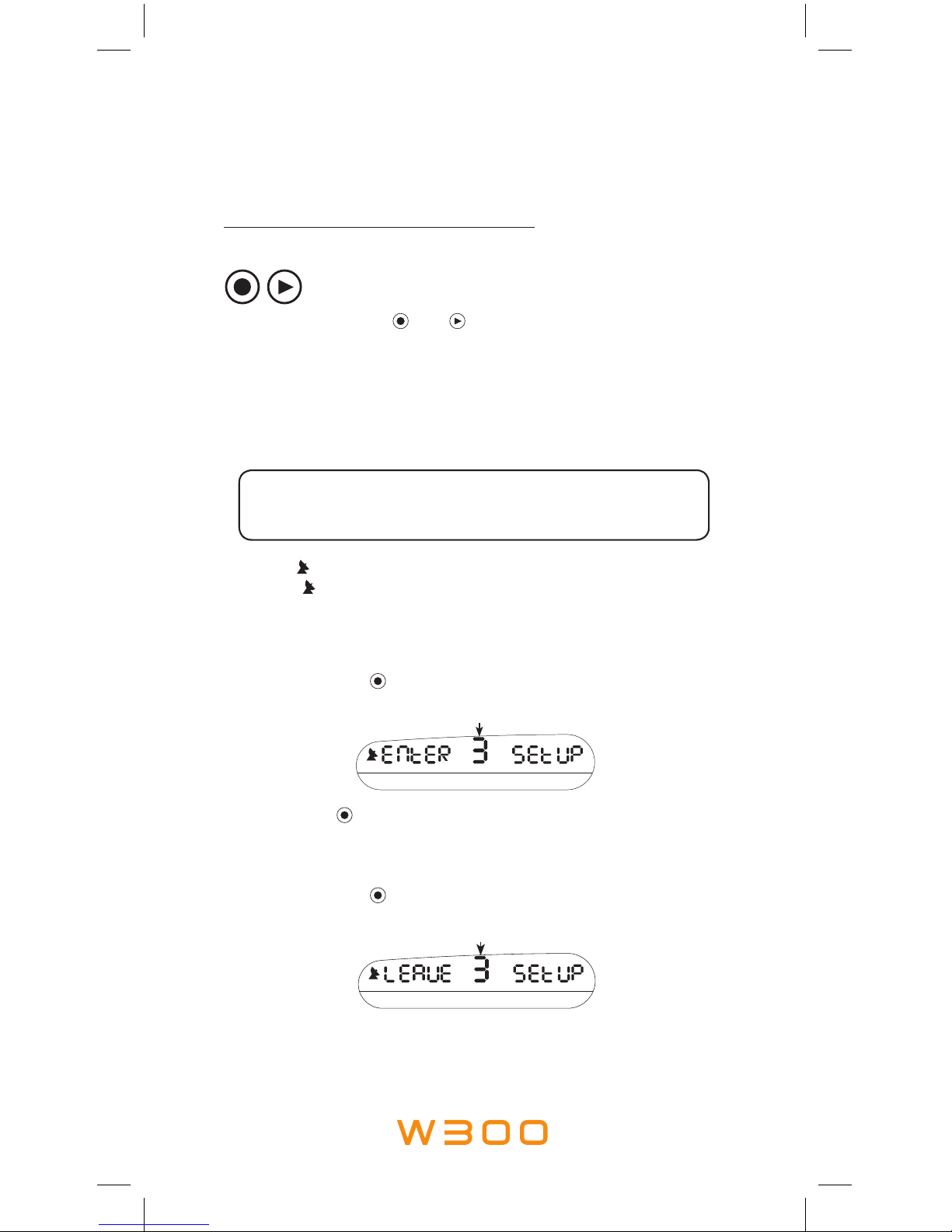

Get set
Step 2
!Always enter setup first if you wish to change settings.
To enter setup after starting normal operation, you must
shut down and re-start the W300.
Flashing icon = seeking GPS signals
Constant icon = GPS signals obtained
Startup could take up to 80 seconds to get all satellite data.
If you release before the counter reaches zero, the W300
will immediately start normal operation.
For details about system settings see over page or consult User Guide.
Press and hold to leave setup
counter
counter
After leaving setup, the W300 automatically starts normal
operation displaying the speed mode first.
Enter setup
Press and hold to enter setup
Know the startup options
1. enter setup
2. start normal operation
Start normal operation
Press to start normal operation
When starting directly into normal operation W300 will start in
the mode it was in at last shutdown.
The W300 automatically operates whenever you are moving
and pauses operation while you are stationary. Modes are
accessed in the following order:
PACE
Go
Step 3
Mode icons appear in the lower section of the screen. While
in Speed mode you can monitor session distance, current
speed and current pace. You can also clear session data.
While in Speed mode
Press and hold to clear all* session data (*Does not clear
odometer.)
Press to go to next mode
When you want to shut down the W300
Press and hold
Now you know.
speed mode icon
session distance current pace
current speed
For details about modes, see over page or consult User Guide.
Mode example (speed)
ClockTimer
Speed Speed AVG Odometer
Calories
AVG
Cal
8 7 2
3
LA000540A © 2005 Navman NZ Ltd. All rights reserved. "Sport.Tool" and "Now you know" are trademarks of Navman NZ Ltd.
