nawras E5 II Manuale utente
1
Thank you for choosing Nawras E5 II Wi-Fi modem
Nawras E5 II Wi-Fi modem is a high-speed packet access (HSPA) USB
modem You can connect E5 II with the USB interface of a computer, or via
Wi-Fi It is a multi-mode wireless terminal for SOHO (Small Office and
Home Office) and business professionals connecting up to 5 users
wirelessly and can access Internet, send and receive emails, SMS, manage
your phonebook contacts, check balance, recharge and even subscribe to
our Prepaid Internet products
Note:
The supported functions and actual appearance are subject to product
purchased The following pictures are displayed for illustration
purpose only For details of your product selection, consult your
service provider
This guide briefly describes the function of the device For advance
configuration, see Help on web management page of E5 II modem by
logging to http://192 168 1 1
2
E5 II can be kept in a reasonable closed environment such as handbag
or laptop bag, however if the ambient temperature increases as a
safety precaution the device will switch off automatically or disconnect
In such event please restart your device
Getting to Know Your E5 II
Packing List

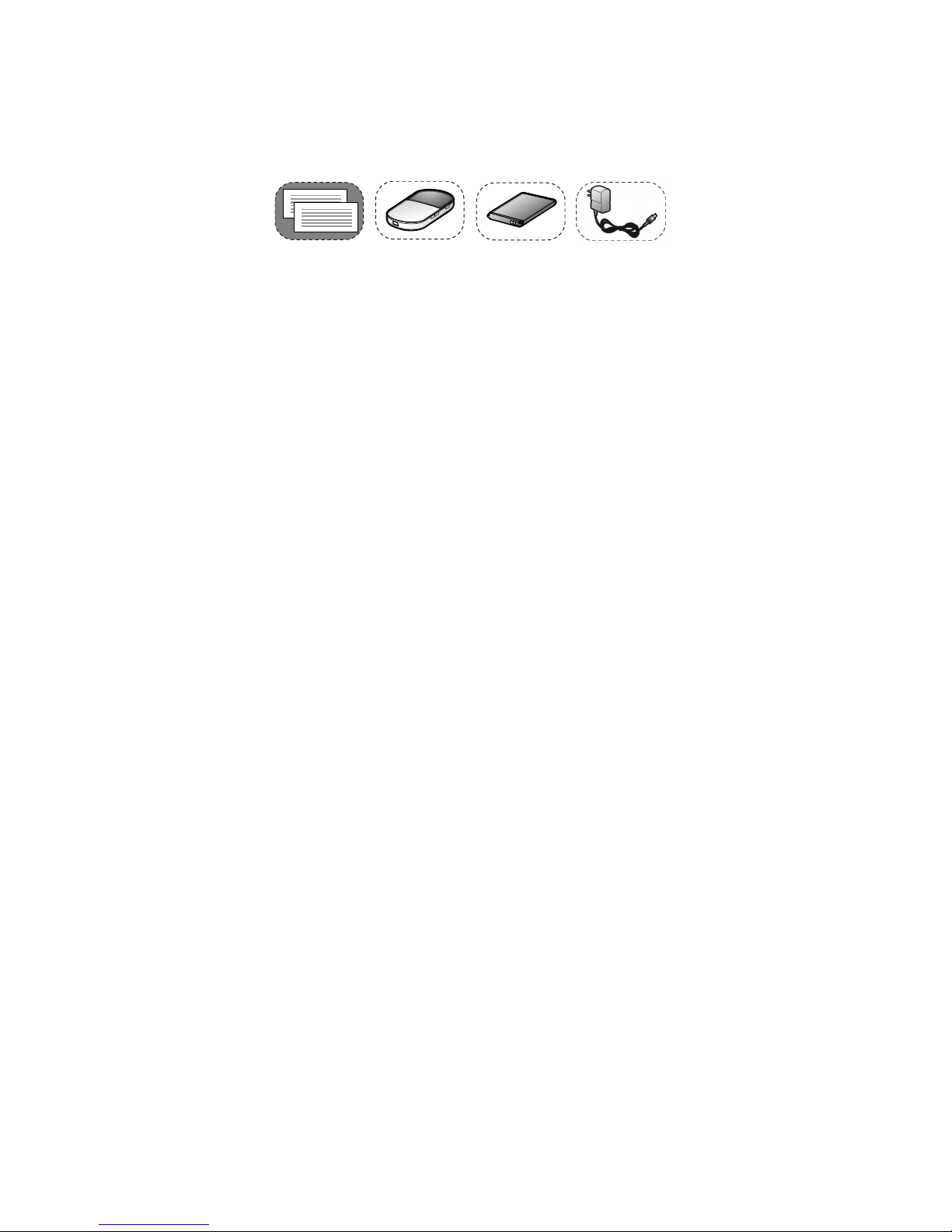

The E5 II box contains the following items If any of the items are lost or
damaged, contact your local dealer
3
Quick Start
Safety
Information
Main unit Battery Power adapter
& data cable
Application Scenarios
The Wi-Fi device or computer can be connected to the Internet through the
E5 II The actual connecting procedure depends on the operating system
of the Wi-Fi device or computer You can perform the connection
operations as prompted

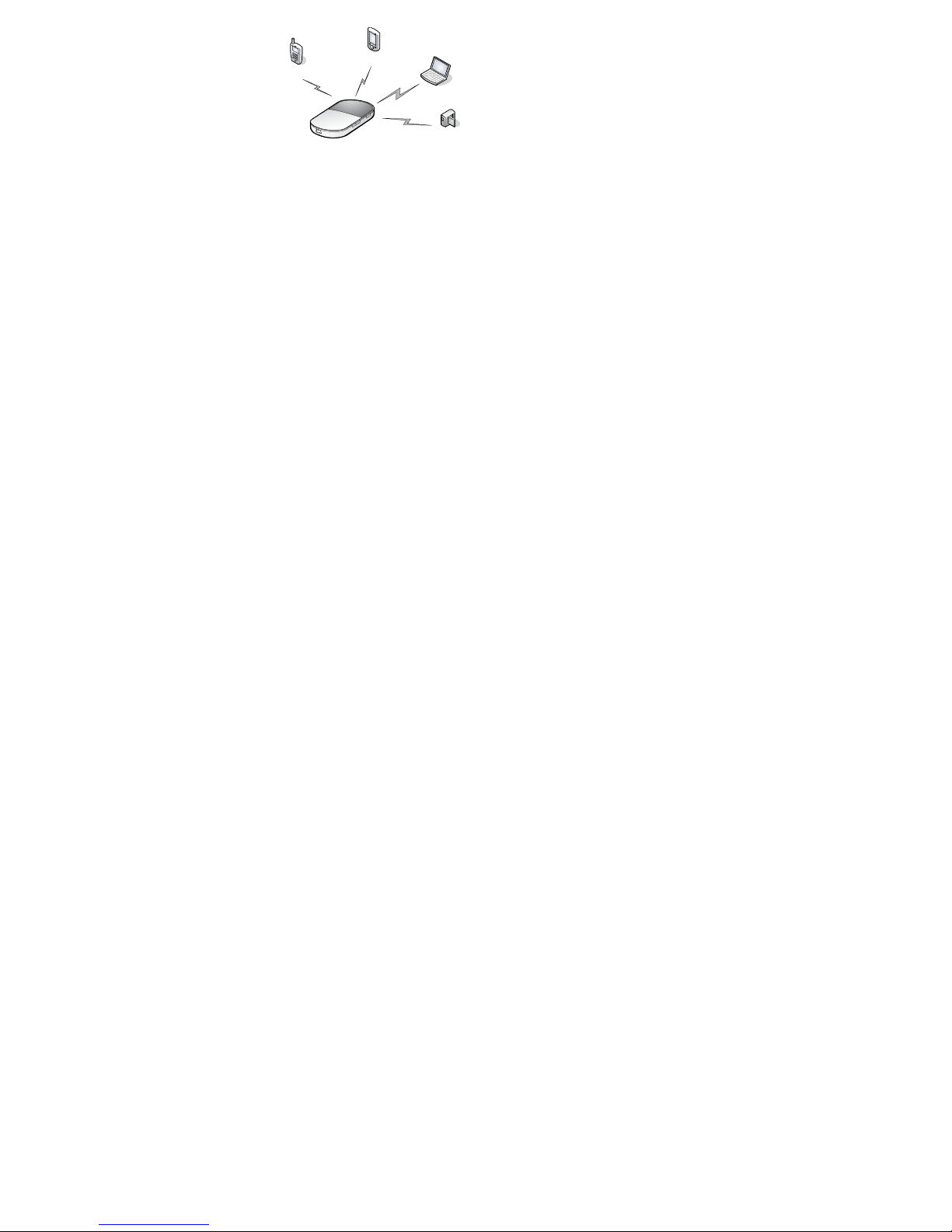

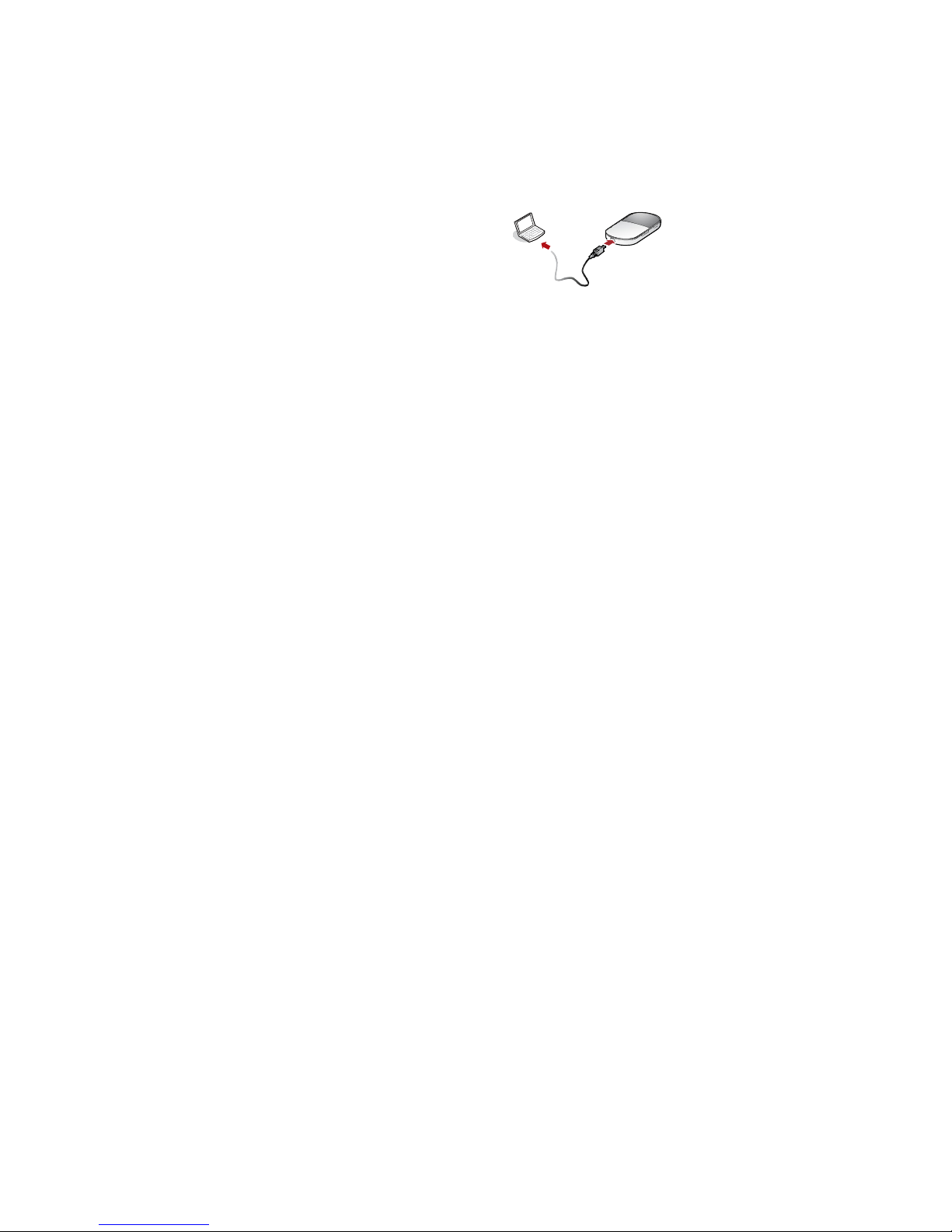

Scenario 1: Multi-device access via Wi-Fi Scenario 2:
One-device access via USB
4
Laptop
Digital camera
Game machine
Smart phone
Scenario
: Multi-device access via Wi-Fi and USB at the same time
5
Smart phone
Game machine
Laptop
Digital camera
7
2
1
3
4
5
6
8
7

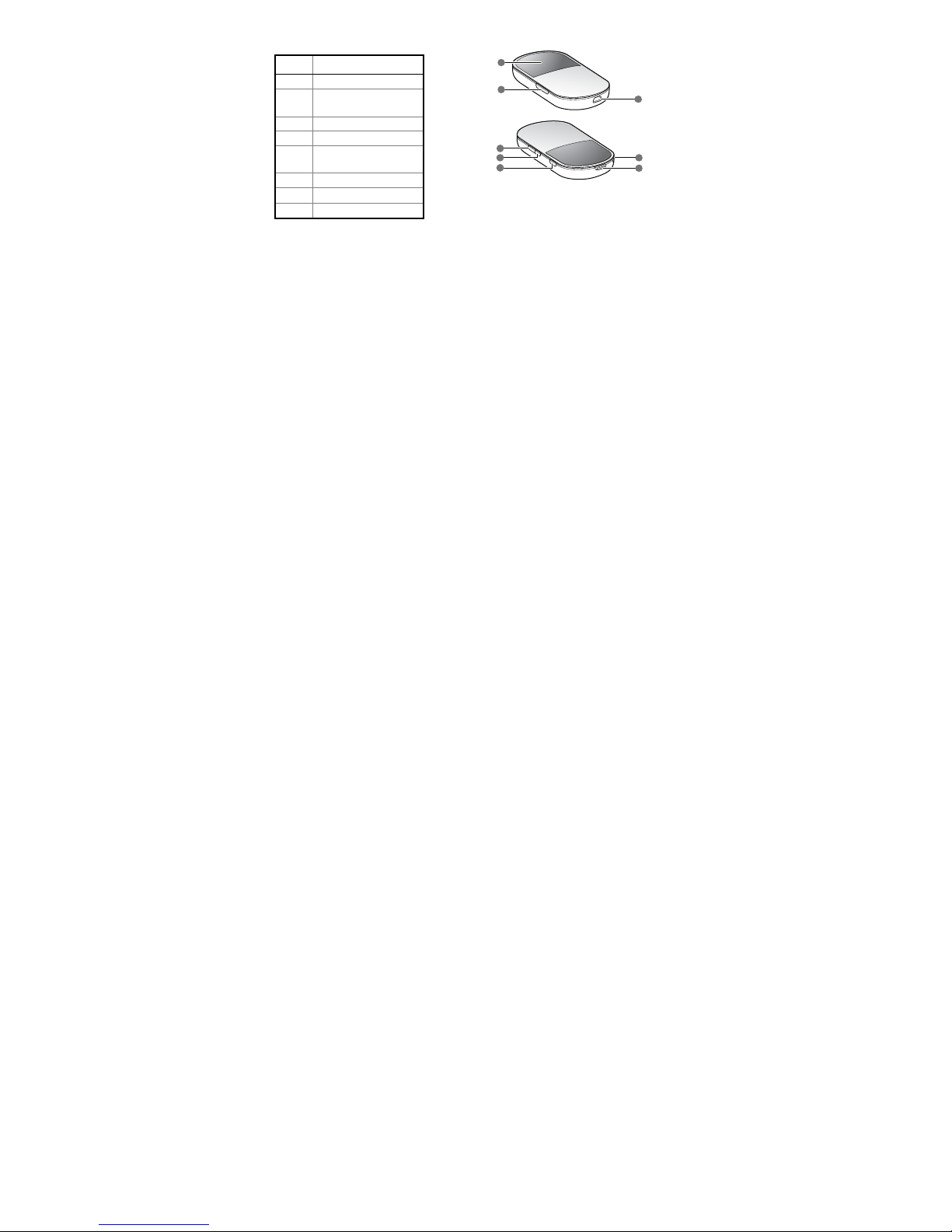

Appearance
No.
Item
1
Screen
2
microSD card
slot
USB
port
4
Power
button
5
Wi
-
Fi
/WPS
button
6
Dial
ing
button
7
Strap hole
8
Battery
button
Wi-Fi: Wireless Fidelity
WPS: Wi-Fi Protected Setup
8
7
8
1
2
4
3
5
6
Screen
No.
Item
1
Signal s
trength
2
Network
Wi
-
Fi
enabled
Number of devices
connected
4
I
nternet connection
5
New messages
Number of new messages
6
P
ower level
7
Roaming stat
e
8
M
: Manual mode
A: Auto mode
9
efore you start
Before inserting the SIM card and battery, please
note down Wi-Fi network name (SSID) and password
(Wi-Fi key) which is printed on the label next to SIM
card slot
Installing the SIM card and the battery

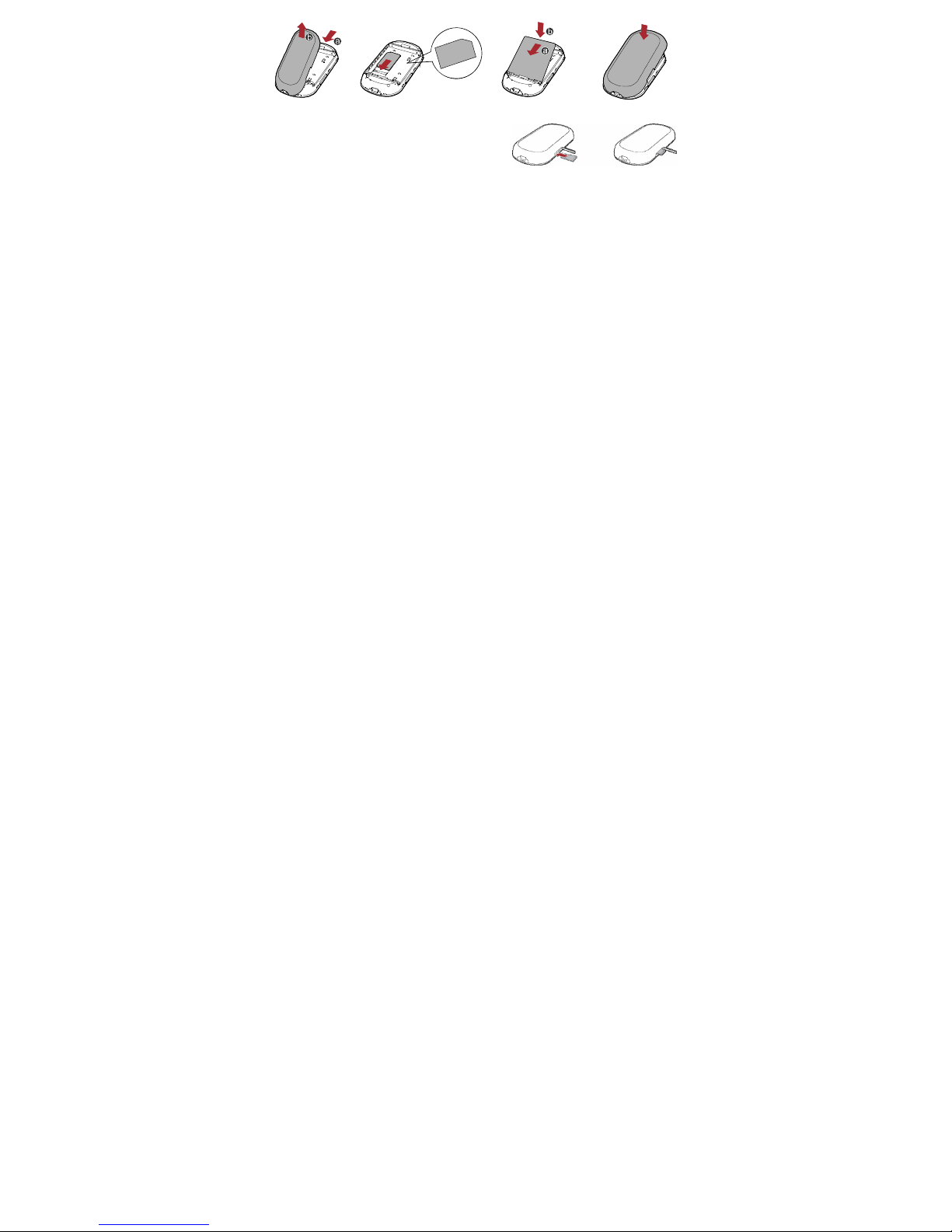

Hold the E5 II modem with USB connector facing down and press the top
button to remove the back cover and battery and insert the SIM as shown
10
1
234
Installing the microSD card

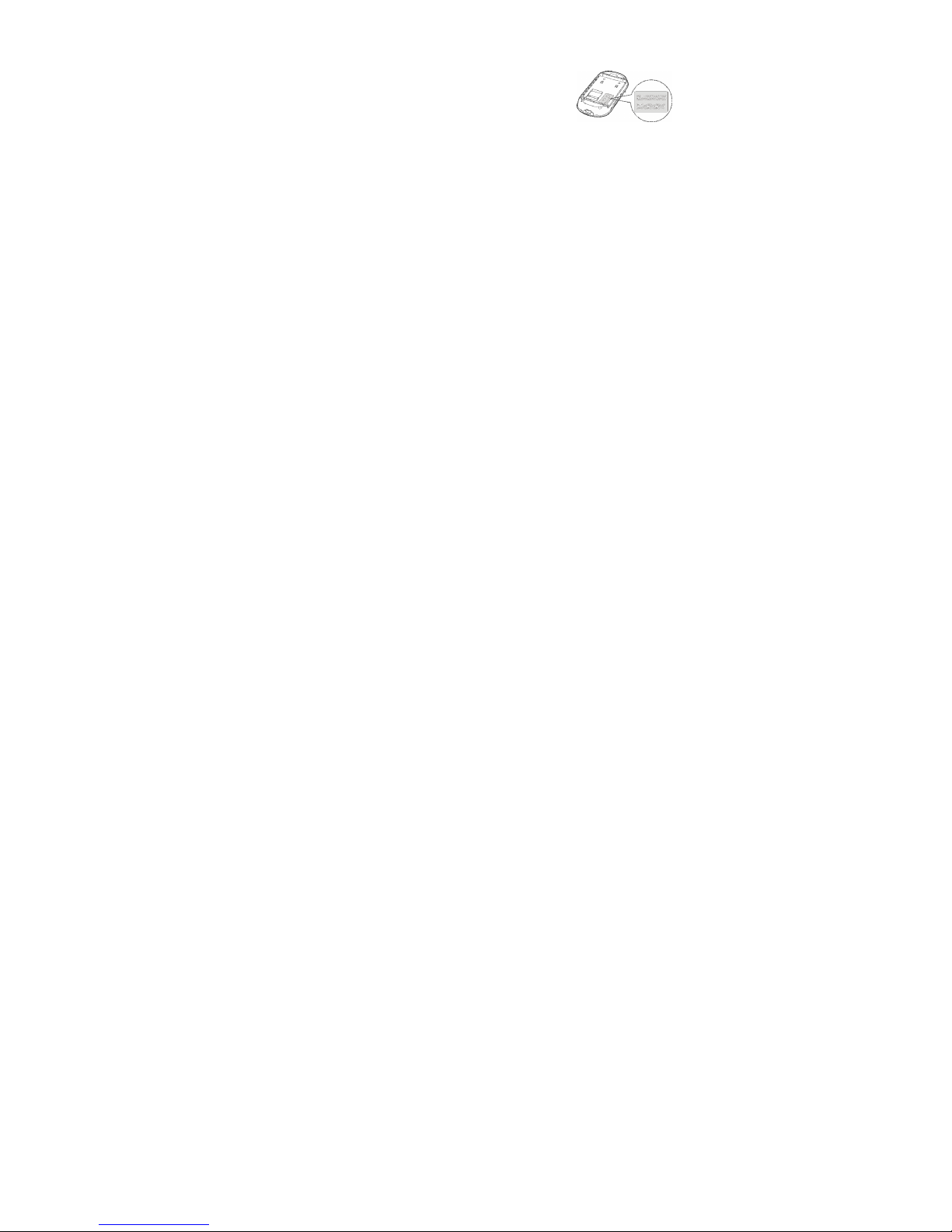

1. Pull the rubber cap from the microSD
card slot and insert the card
Note:
The microSD card is an optional accessory If the microSD card is not
provided in the package, you can buy one yourself
To remove the microSD card, open the rubber cap and press the
microSD card gently
Do not remove the card when it is being used Otherwise, the card and
the E5 II may be damaged, and the data stored on the card may be
