NBB SR7901 Manuale utente
Assembly Instructions
Shelter type: SR7901
SR7901-01-28102021-USA
1
5
6
7
7
5
6
8
9
12
10
11
10
11
1
1
3
4
13
16
8
12
1
1415
3

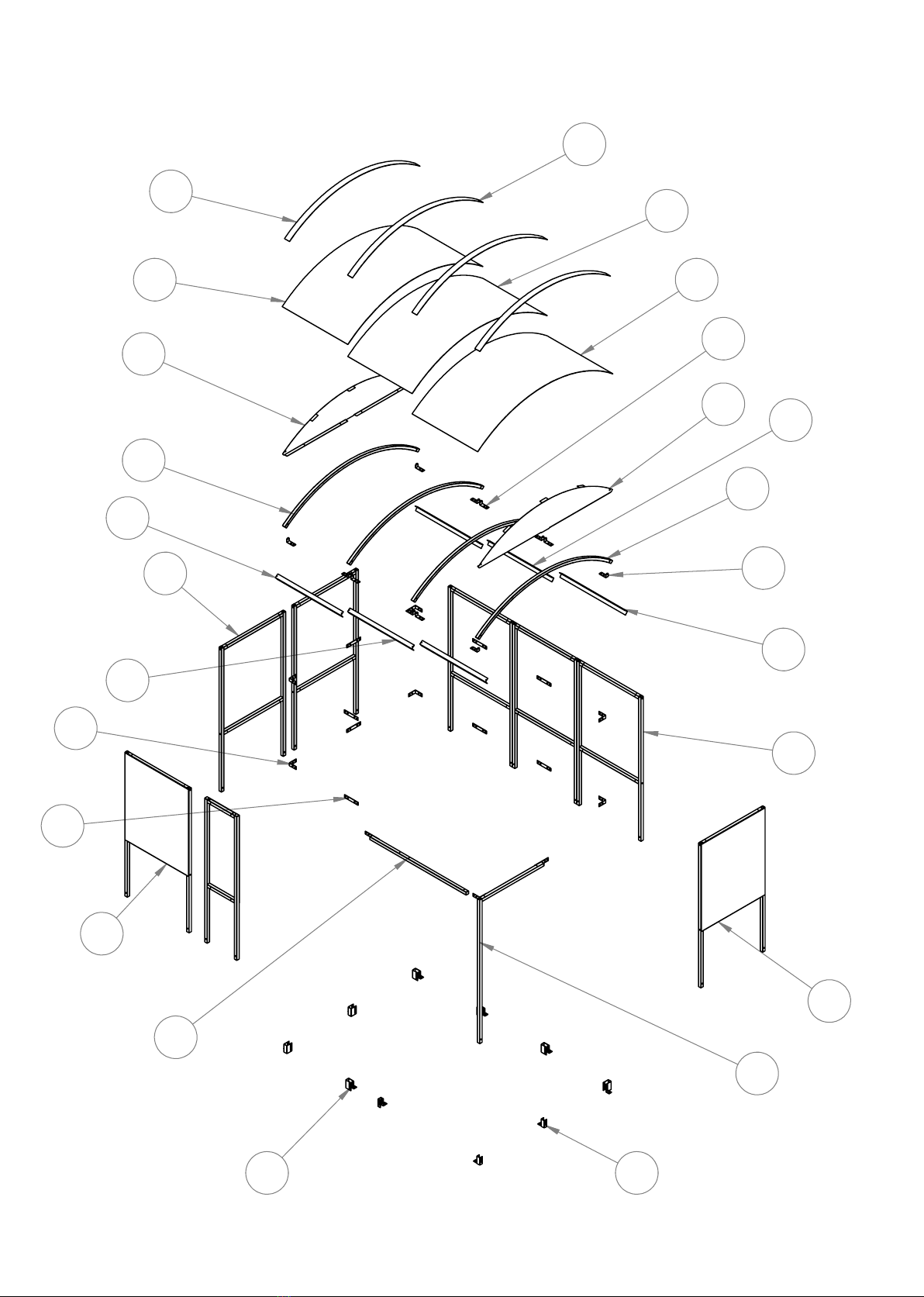

EXPLODED VIEW
ITEM
NO.
PART
NO.
DESCRIPTION
DIMENSION
QTY.
1
S1
FRAME
2000 x 1035
7
2
S3
Frame
2000 x 500
1
3
P1
Post
2000 1
4
ST5
ST5 Roof Tie Bar
1543x40x40
1
5
DR2R
DR2R Rafter
2345 4
6
DR
Rafter Bracket
110 x 40 x 52
12
7
DR2I
DR2 infill panel
2160 x 400
2
8
DR2P
O
DR2 Roof Panel Outer
2345 x 1055
2
9
DR2PI
DR2 Roof Panel Inner
1035 x 2345
1
10
DRAT
O
DR Ally-Angle Trim
Outer
50 x 50 x
1055 4
11
DRATI
DR Ally-Angle Trim
Inner
50 x 50 x
1035 2
12
DR2T
DR2 Roof Trim
2345 x 80
4
13
CB1
Corner Bracket - CB1
110 x 110 x
40 7
14
FT1
FT1 BRACKET
40X40X100
3
15
FT3
FT3 Bracket
40 x 80 x 106
7
16
JF1
Joint Flat - JF1
110 x 40
10
17
EC40
Plastic end cap
STD. STOCK
ITEM
3
4

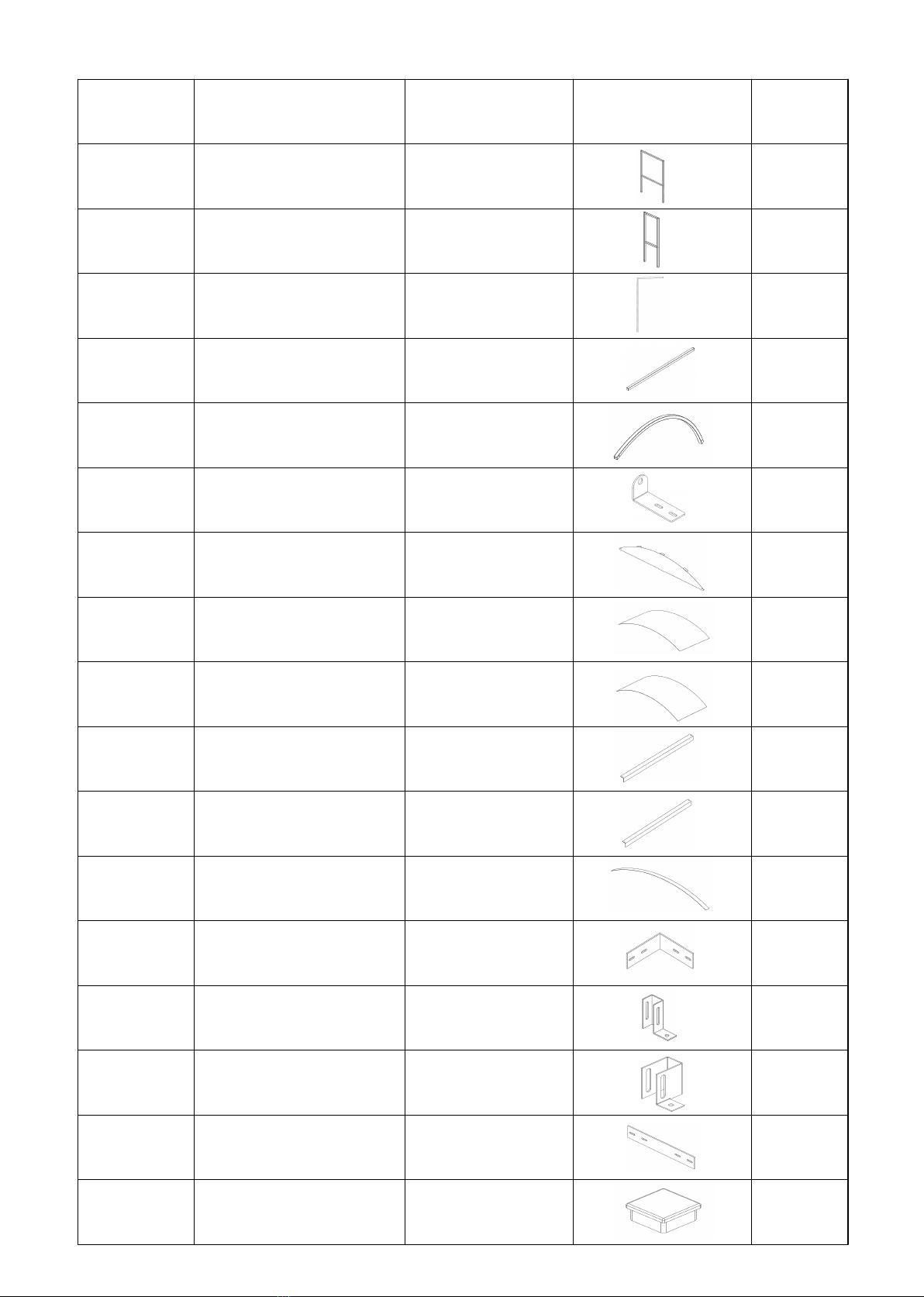

PARTS LIST
ITEM NO.
PART NUMBER
Size (inch)
QTY.
1
S1C Frame
78.74 x 40.74
7
2
S3 Frame 20 & 43
(M1)
78.74 x 20.3
1
3
Post P1
78.75 x 40.5
1
4
ST5 Roof Tie
60.75 1
5
DR2R
92.32 4
6
DR Bracket
4.3 x 1.6 x 2
12
7
DR2I Infill Panel
85 x 15.75
2
8
DR2PO Roof Panel
92.32 x 41.54
2
9
DR2PI Roof Panel
40.75 x 92.30
1
10
DRATO Roof Trim
2 x 2 x 41.5
4
11
DRATI Roof Trim
2 x 2 x 40.75
2
12
DR2T Roof Trim
92.32 x 3.15
4
13
CB1 Bracket
4.3 x 4.3 x 1.57
7
14
FT1 Bracket
1.57 x 1.57 x 3.94
3
15
FT3 Bracket
1.57 x 3.15 x 4.17
7
16
JF1 Bracket
4.33 x 1.57
10
17
40x40 Plastic End
Cap
1.6 x 1.6
3

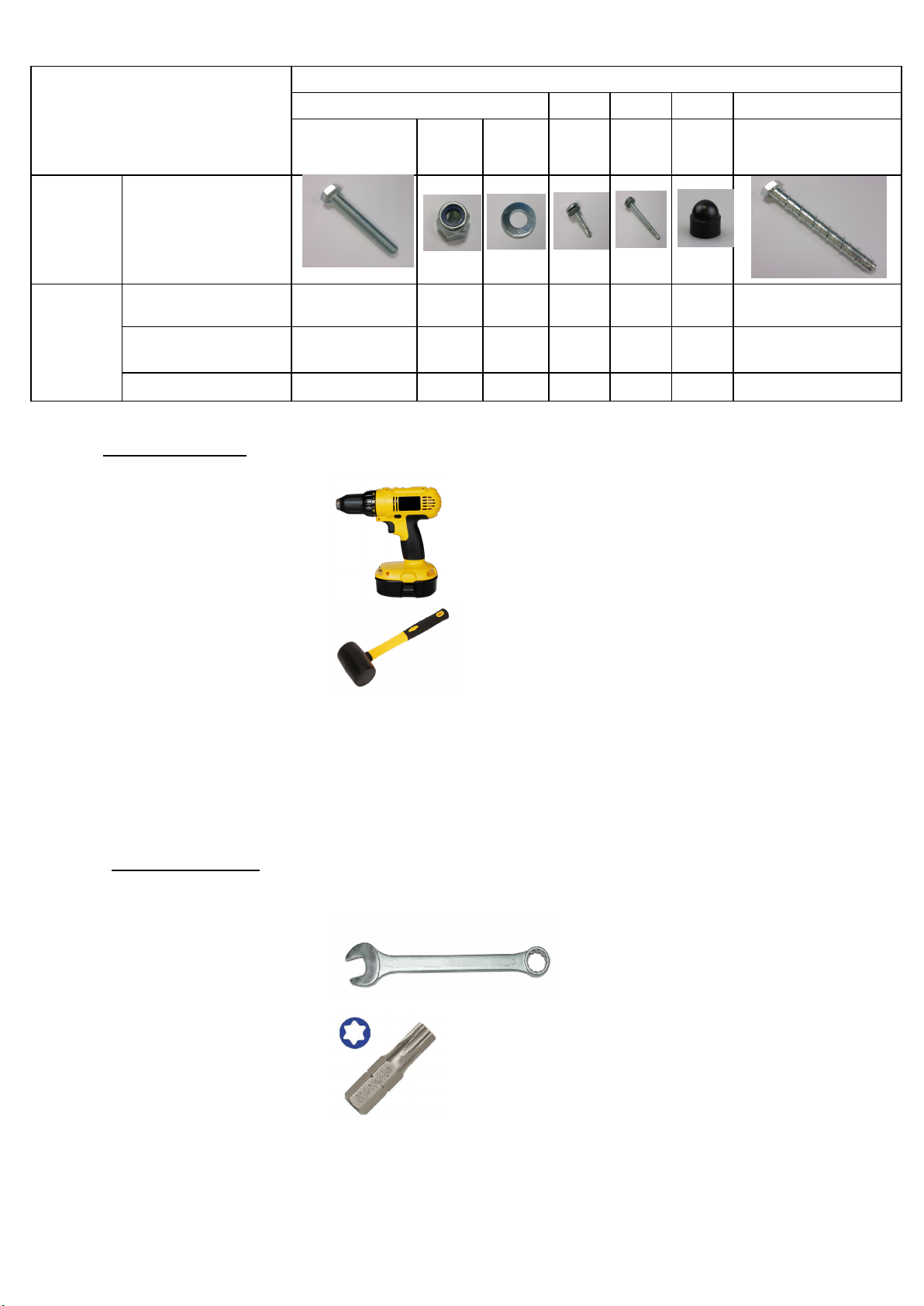

Tools required:
Drill/Screwdriver
Mallet
Tools included:
17mm Wrench
T25 Torx bit
2
FITTING AND TOOLS
Fittings
Bolt set M10
T25 T38
BTANCM12100
M10 x 60mm
Nut
Washer
1" Tech
screw
1.5"
Tech
screw
Black
Caps
M10/12 x 100 mm
Concrete Bolt
SR7901
Amount Included
(Pack A+B)
40 40 80 136 66 80 13
Amount Included
(Pack H)
N/A N/A N/A N/A
48
N/A N/A
Required
28 28 56 72 64 56 8
83.07
123.82
S1
S1
CB1
CB1
CB1
JF1
JF1
JF1
JF1
S1

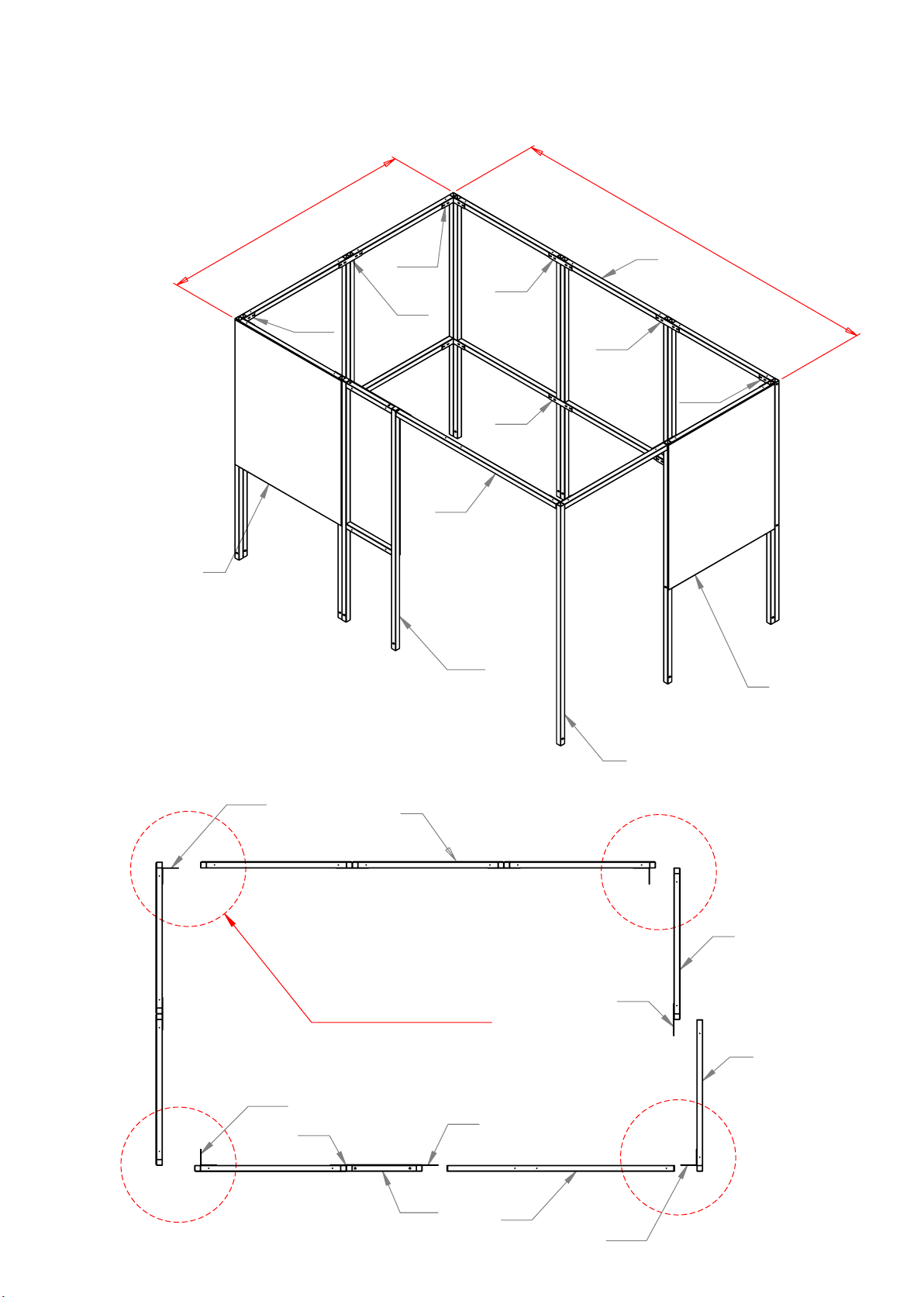

MEASURE THE WIDTH AND DEPTH
OF THE SHELTER TO CHECK
CORRECT ALIGNMENT.
Please note 1.5" Tec
Screws are for roof
panels only
P1
ST5
S3C
S1
CB1
CB1
CB1
JF1
ENSURE CORRECT
ALIGNMENT
ON ALL CORNERS
JF1
S3C
ST5
P1
S1
JF1
Step 1
Assemble the
S1/S3
frames to make up the main structure using
CB1
brackets for the corners and
JF1
brackets for the straight joints. Complete
the structure with the
P1
Post and the
ST5
tie bar.
5
DR2R
DR
DR
DR
DR
DR
DR2R
DR2R
DR2R
DR
DR
DR
DR
DR2I
DR2I

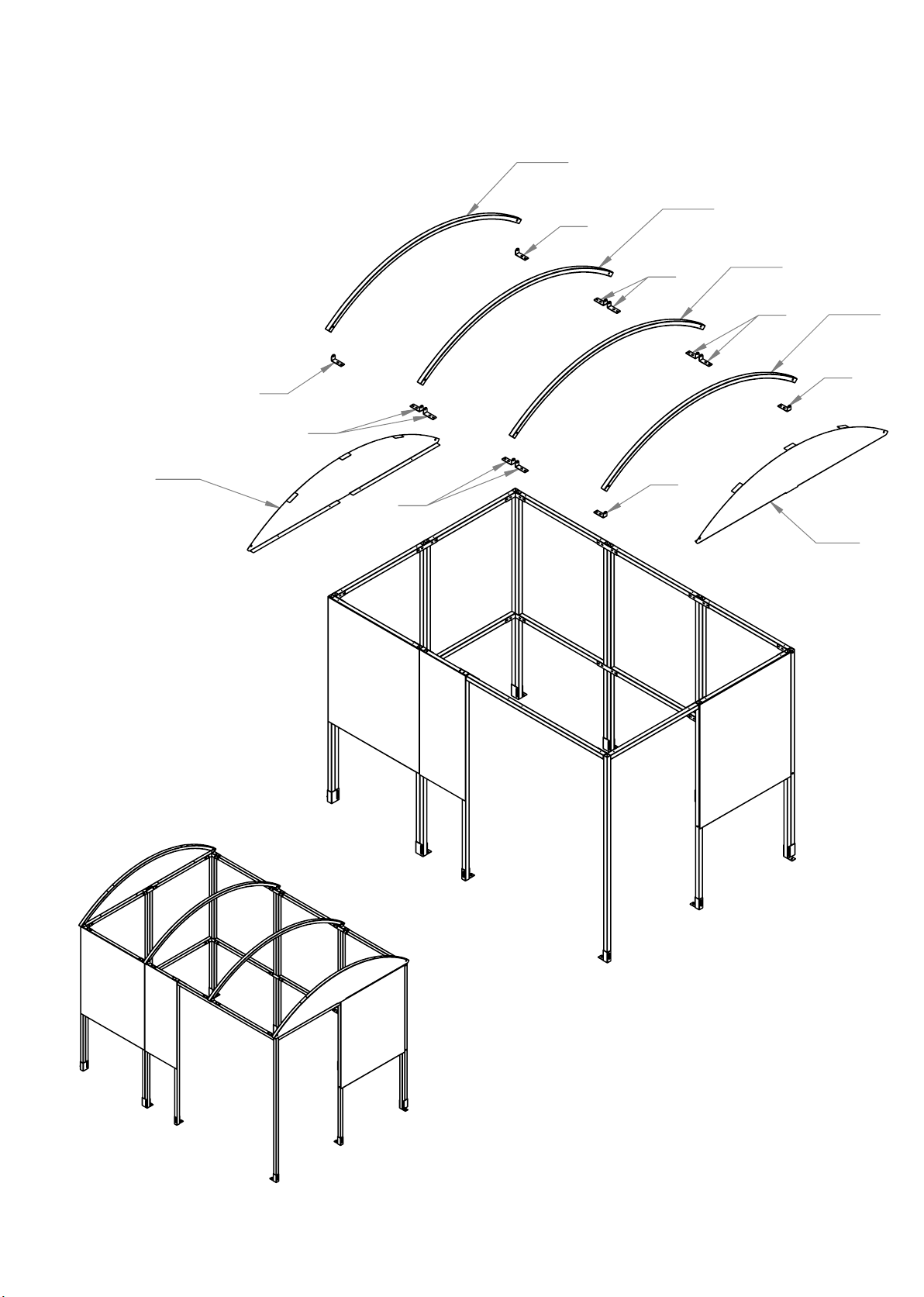

Step 2
Attach
DR
Brackets to the top of the frames, and bolt the
DR2R
rafters in
place through the brackets. The infill panels
DR2I
must be placed into
position at the same time as the end rafters and are screwed in using
1.5" Tech screws.
6
DRATI
DRATO
DRATO
DR2PODR2PO
DR2PI
DRATO
DRATO
DRATO
DRATO
DRATI
DRATI

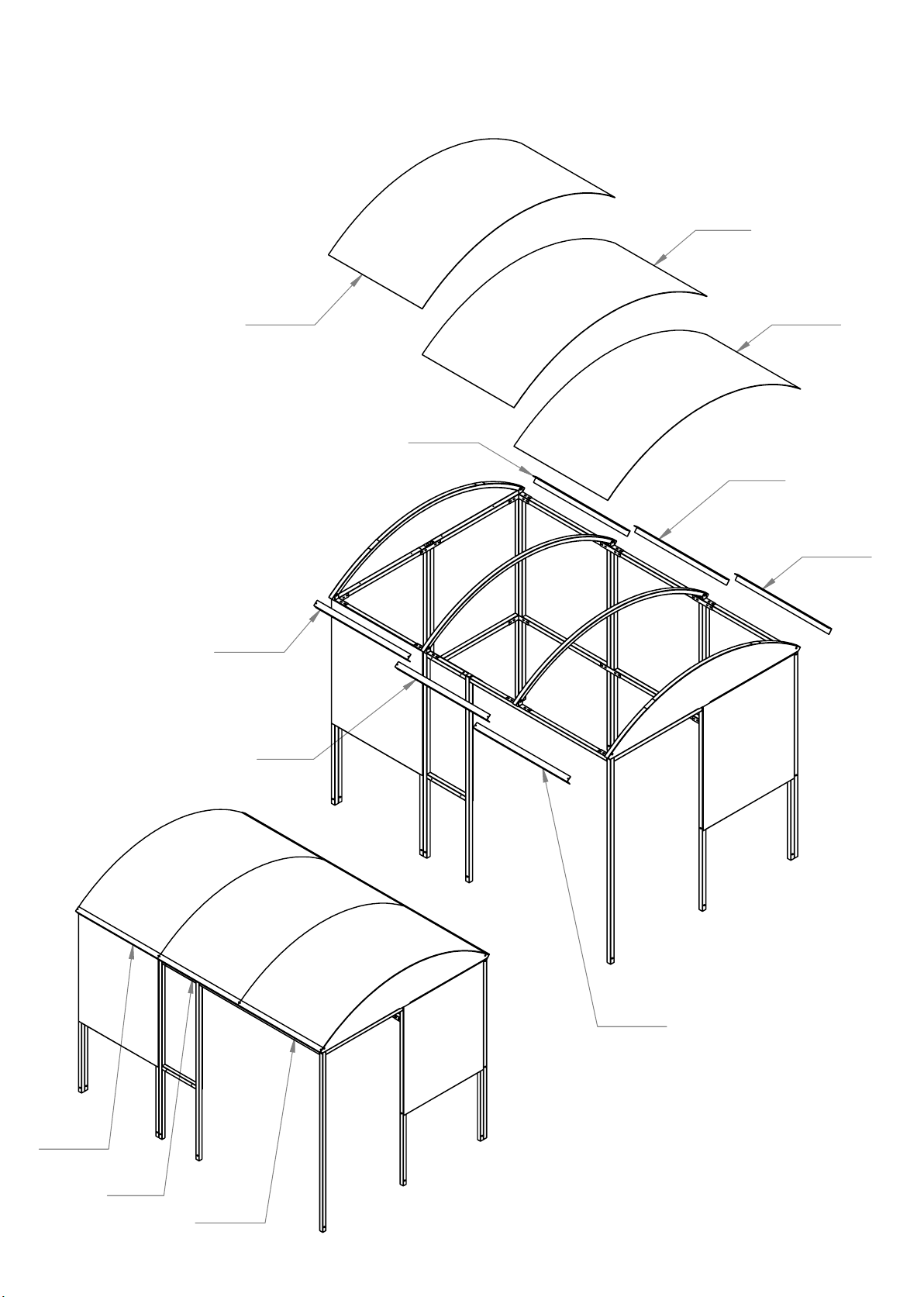

Step 3
Align the
DR2PO
roof panels with the outer roof rafters and equaly space
the
DR2PI
panel in the middle. Then use the DRATO and DRATI angles to
attach the bottom of the panels with 1.5" Tech screws.
7
DR2T
DR2T
FT3
FT1

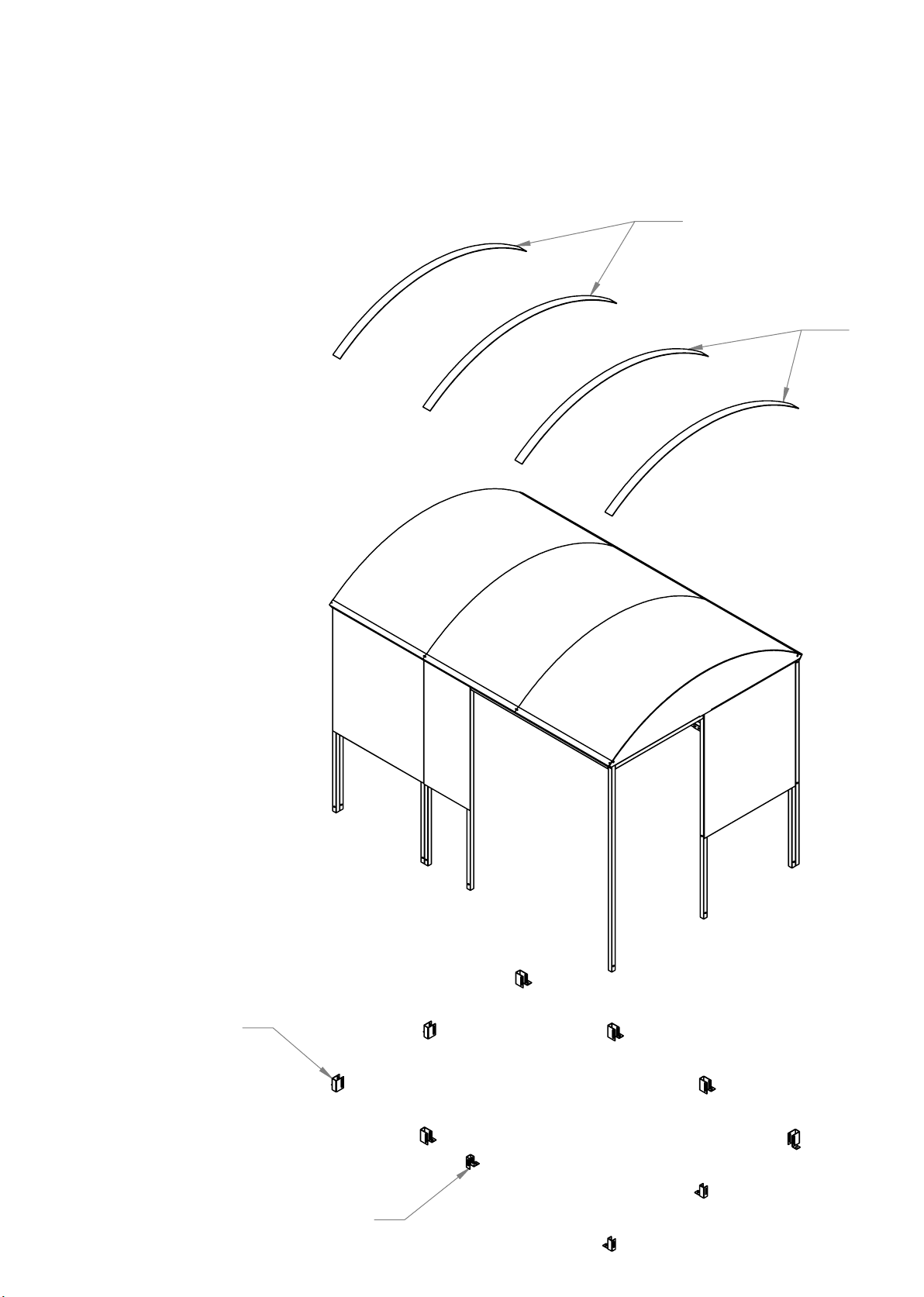

Step 4
Attach the
FT1
and
FT3
foot brackets to the frames. Make sure the
shelter is square and in its desired position before using the anchor
bolts to fix it to the the ground. Screw down the
DR2T
directly into the
rafters as shown below,
using
1.5" Tech screws.
8
9
MAINTENANCE:
To ensure your products give you many years of use we recommend that you:
THANK YOU
FOR PURCHASING THIS PRODUCT
Clean panels regularly with soapy water
•
Ensure all fittings are tight (for example after a big storm)
•
Touch up any exposed metal should it get scratched
•
CONTACT DETAILS:
No Butts Bin Company, Inc.
16 Birch Lane, Madison, CT 06443
Email : [email protected]
Web : www.nobutts.com
Tel : 1-888-662-8887
All Parts and Fixings checked by:
Print Name:
Signature:
