NCR 7409-K321 Manuale utente
7409‐K321
ImagingScanner
KitInstructions
IssueA
Revision Record
Issue Date Remarks
A Sept 2012 First Issue
1
Introduction
ThiskitprovidesanimagingscannertortheNCRSelfServ60(7409)terminal.The
assemblyinstallsonthebottomoftheterminal.

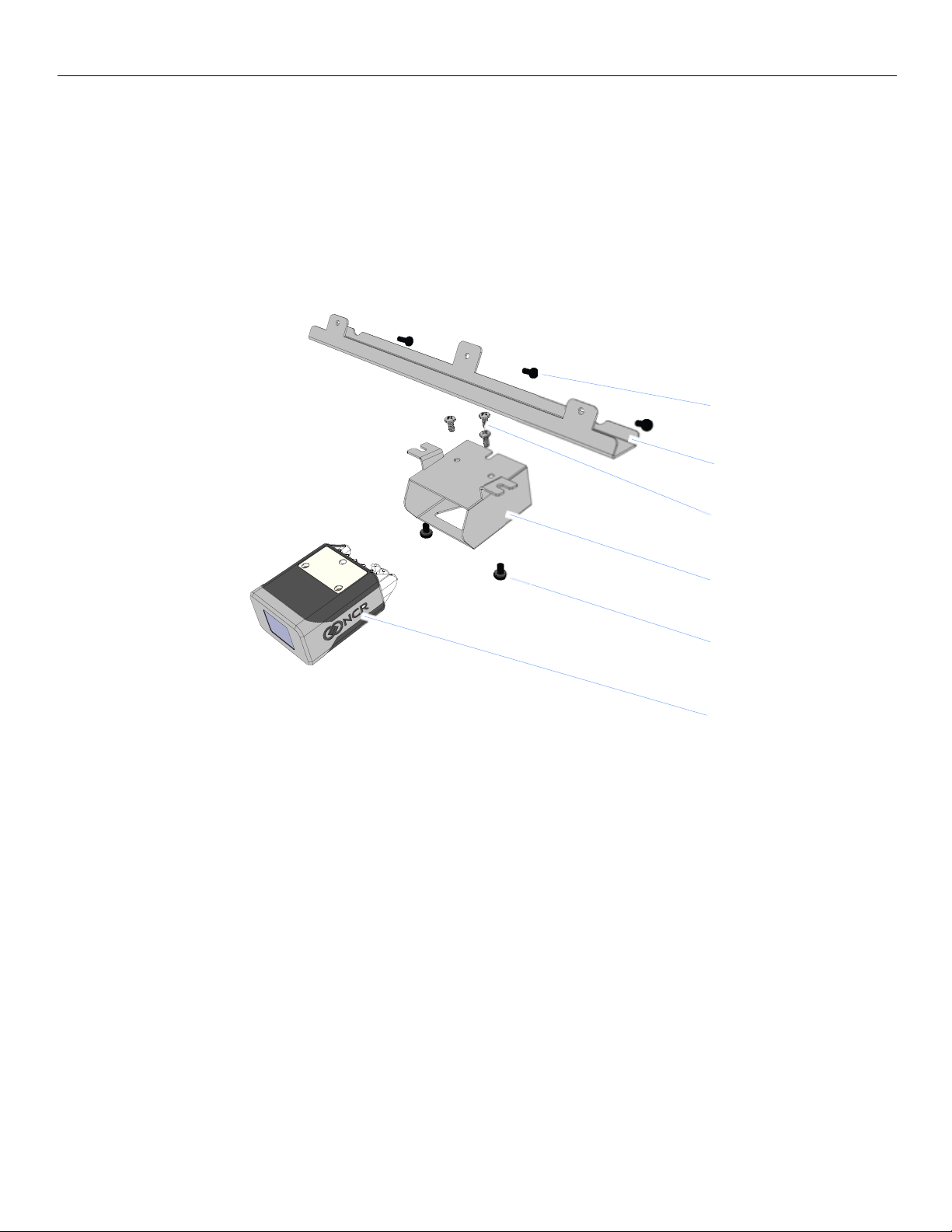

Components
31483
N5680 Imager
497-0476023
Screw, 6-32 x 0.312, Phil, PH
006-8616637
Screw, 8-32 x 1/4, Phil, PH
006-8606548
Imager Bracket
497-0476719
Scanner Mounting Bracket
497-0471949
Screw, 6-32 x 0.375, Phil, PH
006-8613117
2
Installation Procedures
1. UnplugtheTerminalPowerCableandturnoffthepowertoanyconnected
peripheraldevices.

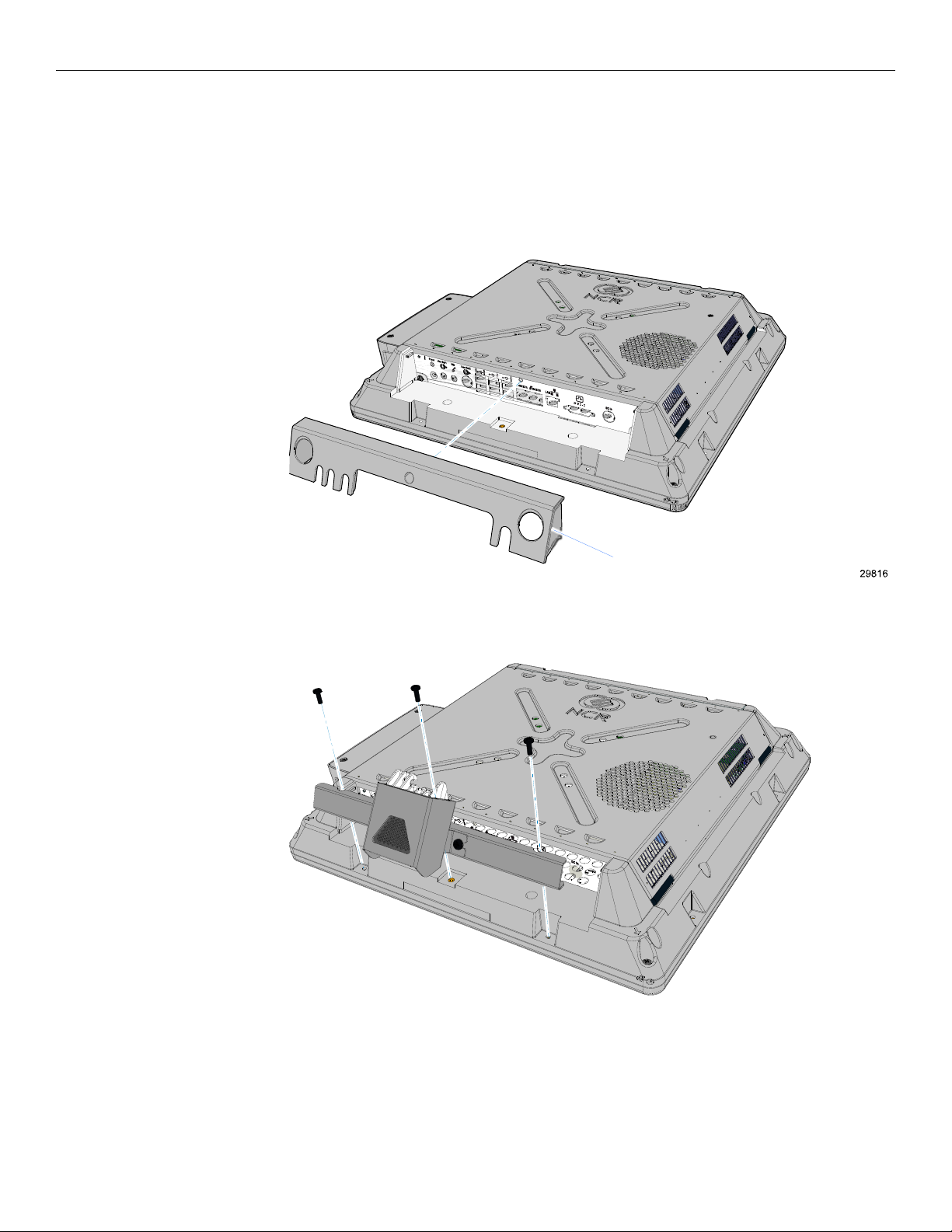

2. LoosenthecaptivescrewthatsecurestheCableCoverandremovethecover.
3. InstalltheScannerAssemblyontothebottomofthedisplayassembly(3screws).
Cable Cover
31484
3
4. ConnecttheScannerUSBCabletothescannerandtotheTerminalI/OPanel.
31485
27661
RS232/B RS232/A A
B
Line Out 2 Line Out 1Mic Power
D V I - I
DC In LAN C
D
E
F
USB PortsTerminal Power
4
